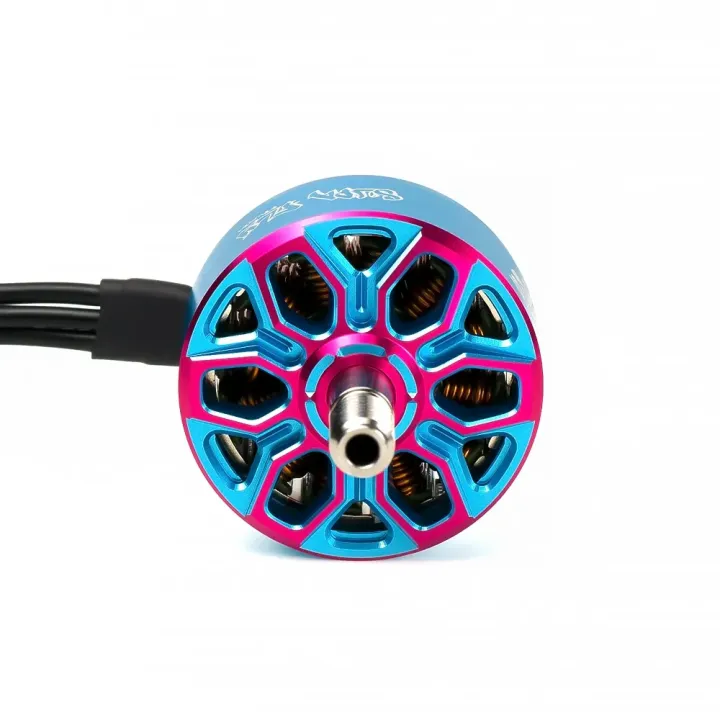

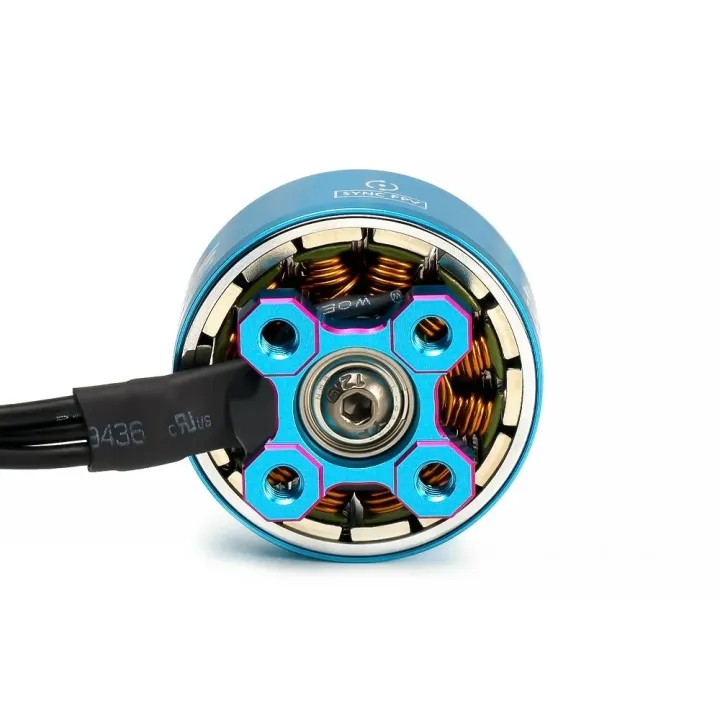

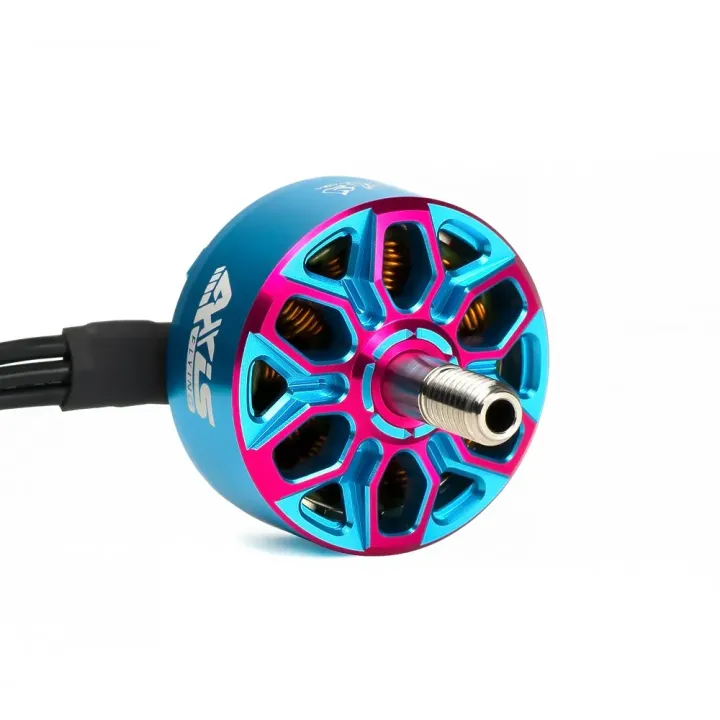

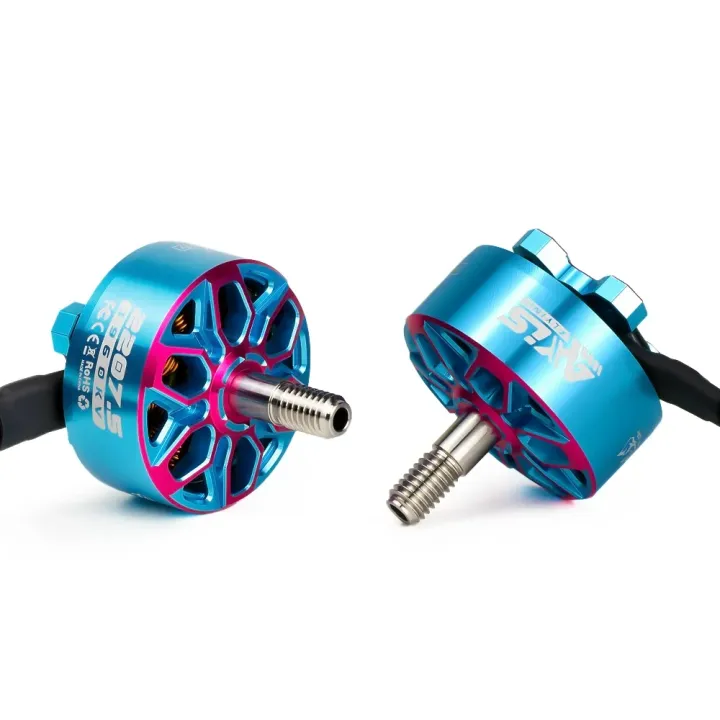

Axisflying 2207.5 1860KV/1960KV 6S FPV Freestyle Motor
SKU RS-228 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
Description
About this product

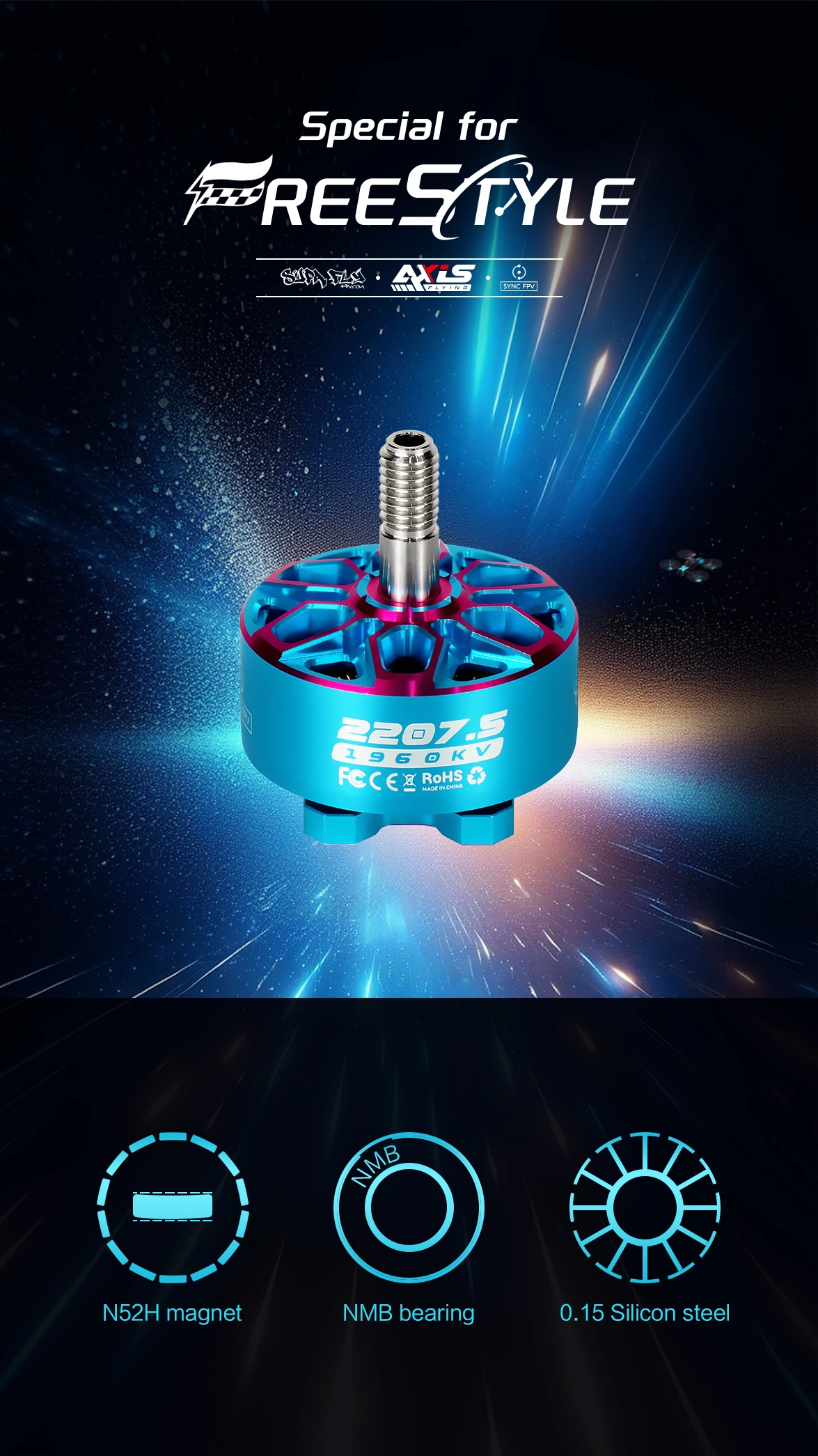

This is a co-branded motor jointly built by Axisflying, SyncFPV and Supafly, professionally tuned for 5-inch freestyle & bando flying. It brings explosive thrust, smooth linearity and extreme durability, making it the ultimate power choice for hardcore freestyle pilots.
Feature
- Official collaboration: Axisflying × SyncFPV × Supafly
- Specially tuned for 5-inch freestyle & bando flight

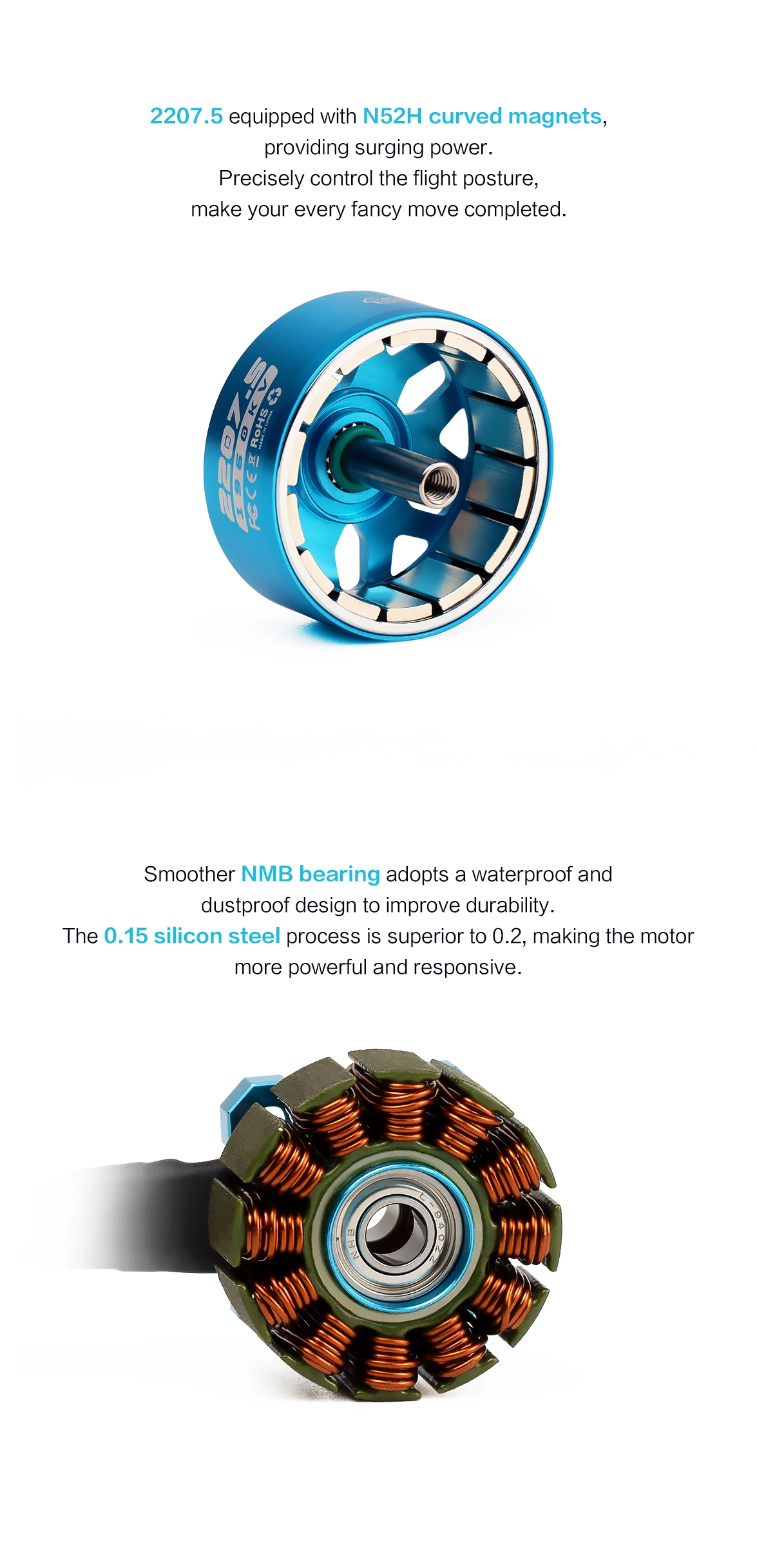

- 12N14P structure with high-performance arc magnets
- Strong low-end torque & instant throttle response
- High-temperature enameled wire & imported NMB bearings

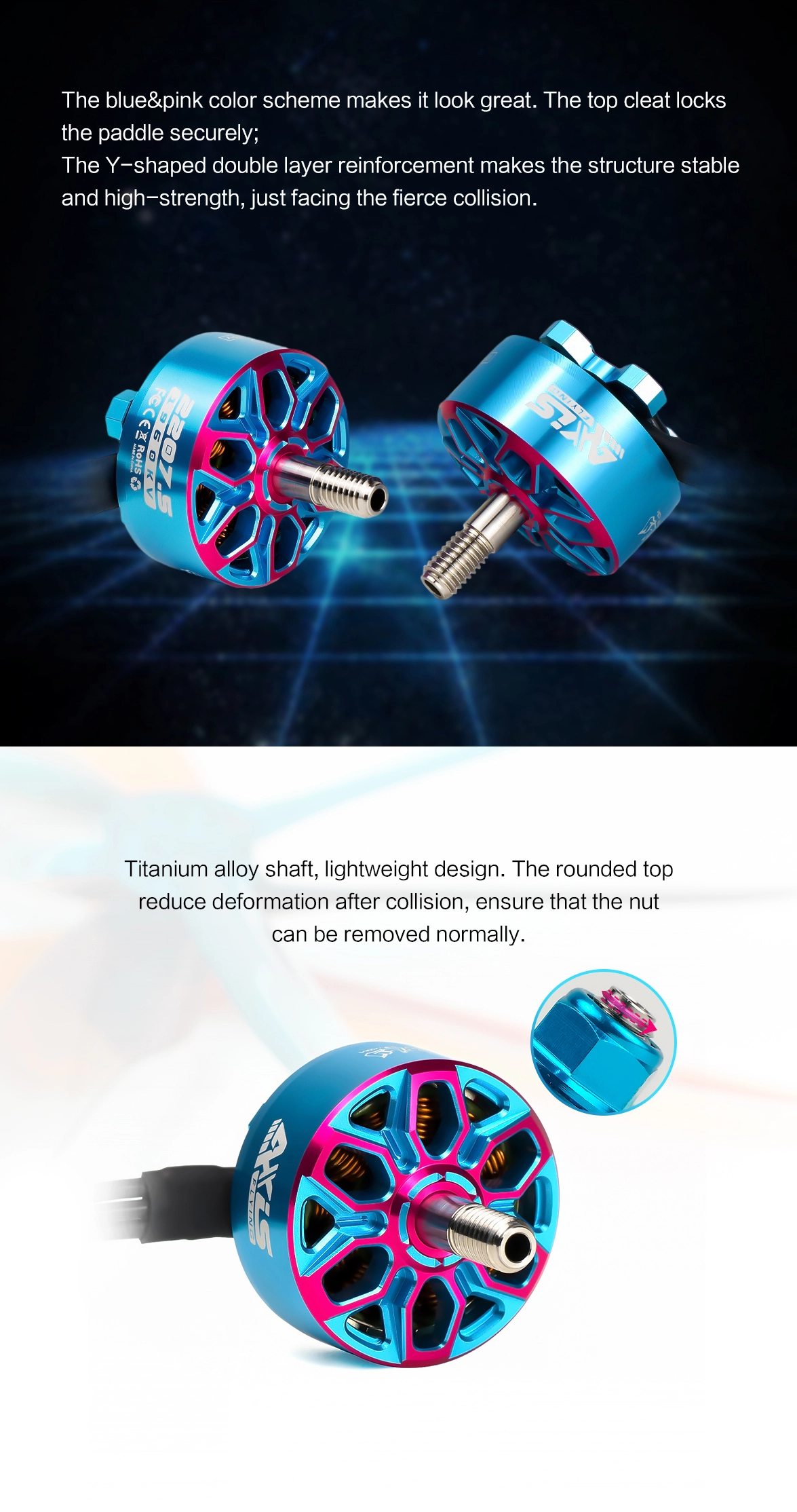

- One-piece bell for better crash resistance
- Lightweight & well-balanced for long-time aggressive flying
- Perfect match with BB4943.5 propellers
Recommended Configuration
- Motor: Axisflying 2207.5 Collaboration (1860KV / 1960KV)
- Voltage: 6S LiPo
- Props: BB4943.5
- Application: 5-inch freestyle, bando, hardcore acro

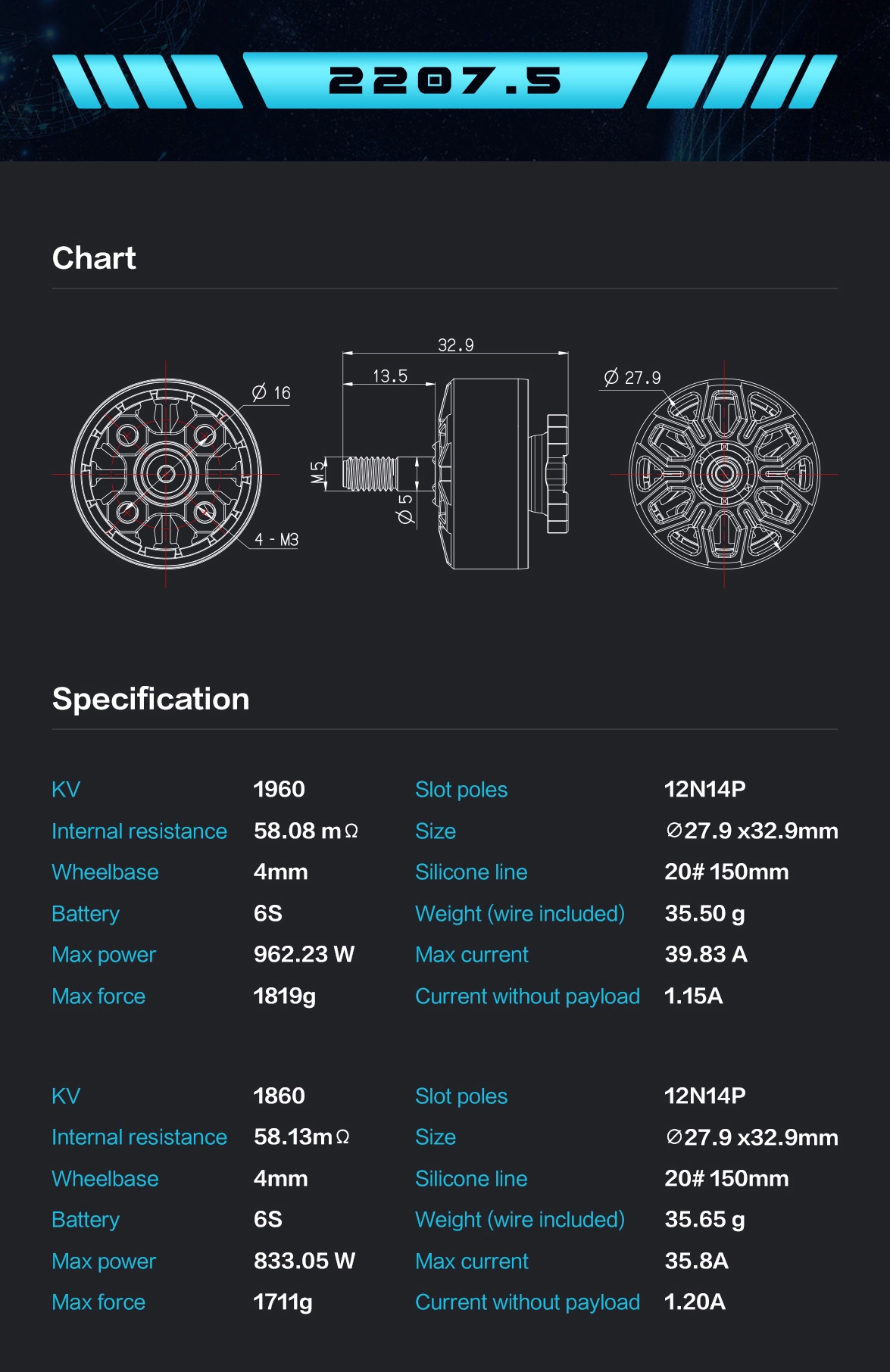

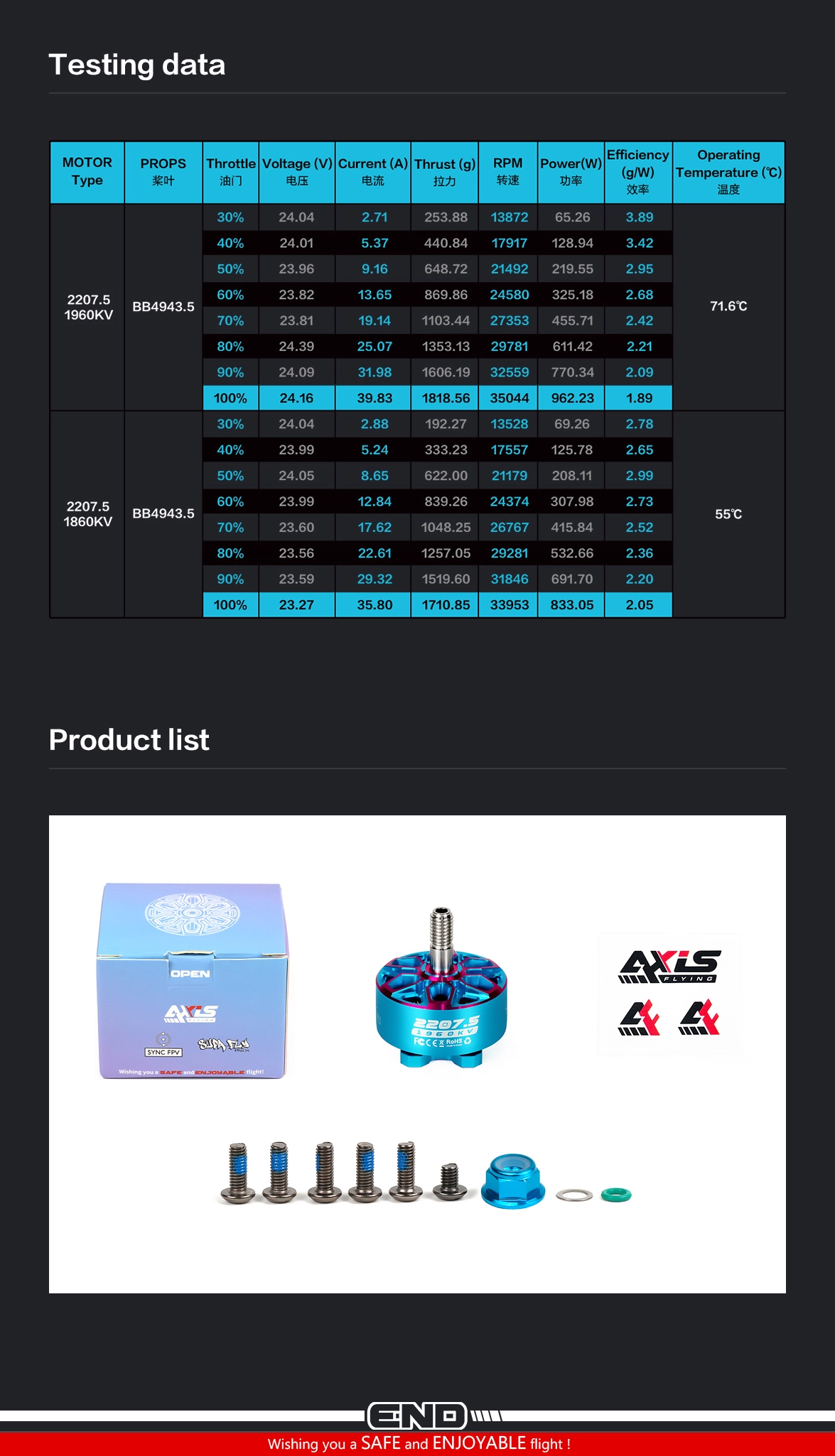

Specifications
1960KV (Collaboration Edition)
- KV: 1960KV
- Configuration: 12N14P
- Internal Resistance: 58.08mΩ
- Size: Φ27.9×32.9mm
- Shaft Diameter: 4mm
- Silicone Wire: 20# 150mm
- Rated Voltage: 6S
- Weight (excl. cable): 35.50g
- Max Power: 962.23W
- Peak Current: 39.83A
- Max Thrust: 1819g
- Idle Current: 1.15A
- Mount: 4-M3
1860KV (Collaboration Edition)
- KV: 1860KV
- Configuration: 12N14P
- Internal Resistance: 58.13mΩ
- Size: Φ27.9×32.9mm
- Shaft Diameter: 4mm
- Silicone Wire: 20# 150mm
- Rated Voltage: 6S
- Weight (excl. cable): 35.65g
- Max Power: 833.05W
- Peak Current: 35.8A
- Max Thrust: 1711g
- Idle Current: 1.20A
- Mount: 4-M3
Package Contents
- 2207.5 Collaboration Motor ×1
- M3×8mm mounting screws ×5
- M3×4mm shaft lock screw ×1
- M5 lock nut ×1
- Damping ring ×1
- Gasket ×1
Key specifications
| Brand | Axisflying |
|---|---|
| Department | Motors & Servos |
| Kv rating | 1860 KV |
| Cell count | 6S |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 4 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 11 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 171 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Axisflying 2207.5 1860KV/1960KV 6S FPV?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For Axisflying 2207.5 1860KV/1960KV 6S FPV Freestyle Motor we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
