Axisflying · Motors & Servos

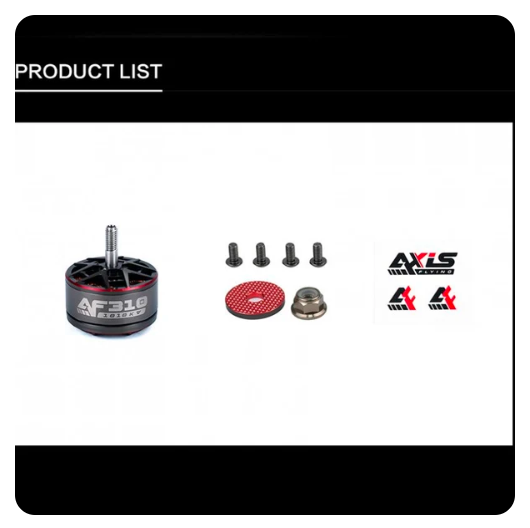

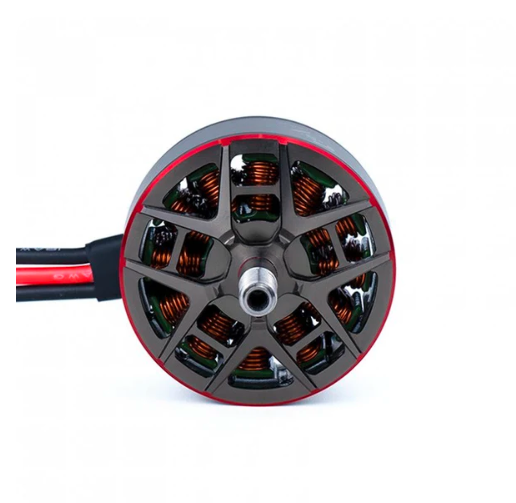

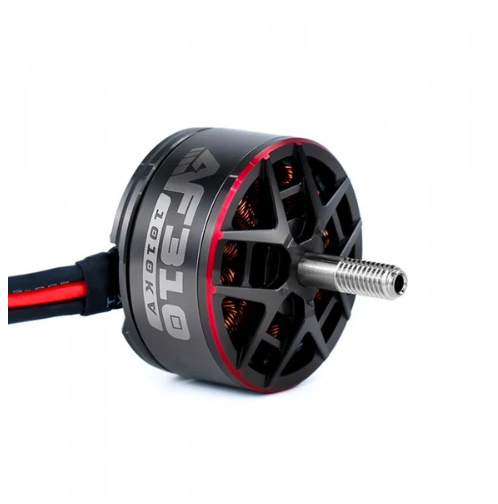

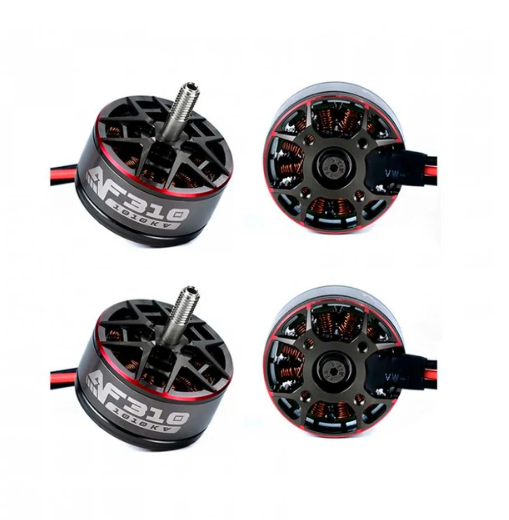

AXISFLYING AF310 3010 6S Brushless Motor
SKU RS-342 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 2 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
AF series motor are axisflying highest quality line with Premium performance, the highest standard.
- AF310 motor designs for X8 cinelifter to take off heavy payload. It has more torque , power and efficiency than 2810 motor.
- High Torque output : The thrust you want, comes on right away.
- High Power: Easily does all kinds of fpv freestyle movements
- High Efficiency: 30% flight time increased compared to 28XX size
Bearing Shield Technology
- An IP53 rating dustproof and waterproof bearing placement design.
- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .
- Increased thrust effciency and say goodbye to crush motor bearings
Specs
- 1010KV is mian for 8inch, 9inch @6S
- 1210KV is mian for 7inch @6S
- Configuration: 12N14P / N52H arc magnet
- Motor stator size: 3010
- Motor mounting hole size: 4*M3 (Φ19mm)
- Motor cables: AWG 18#, 350MM
- Motor dimensions (Dia *Len): Φ36.4*41.6MM / M5 shaft
- Motor weight (excluding 150MM cables) : 72g
- The motor is very powerful that can get over 3KG and most current is about 60A
Key specifications
| Brand | Axisflying |
|---|---|
| Department | Motors & Servos |
| Cell count | 6S |
| Minimum order | 2 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 1 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 16 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 176 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for AXISFLYING AF310 3010 6S Brushless Motor?
Stock supply starts at 2 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For AXISFLYING AF310 3010 6S Brushless Motor we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
