Axisflying C224 Brushless Motor 2204 for CINEON C35 FPV Drone
SKU RS-341 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h

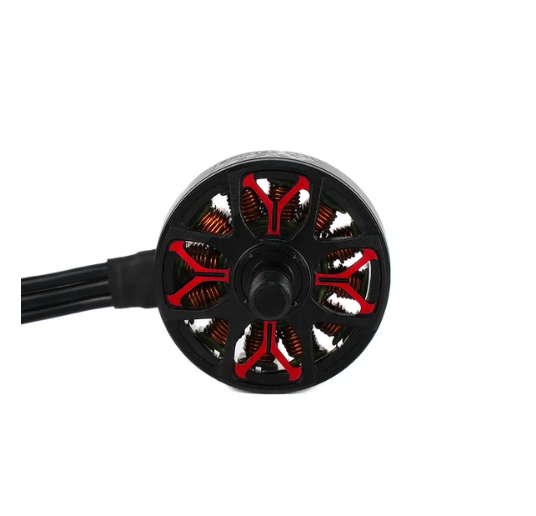

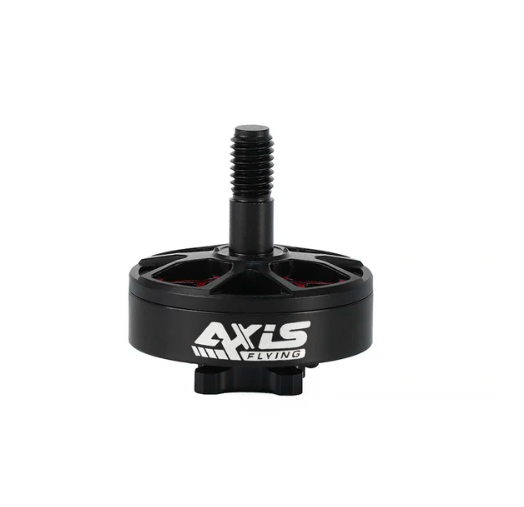

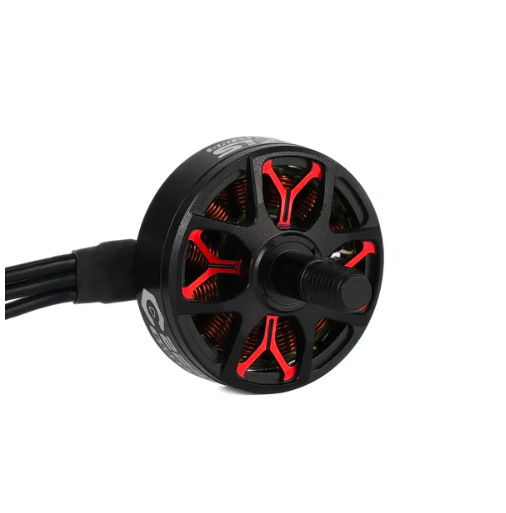

Axisflying C224 Brushless Motor 2204 for CINEON C35 FPV Drone
Check out the rest of Axisflying Motors.
Forword
- C224 motor is special designed for 3.5inch cinewhoop and cinematic drone that need more powerful and torque.
- It is easy to carry heavy GoPro10 or GoPro11.
- C224 motors run perfect with Gemfan D90-3 or HQ D90-3 props.
- There are 2 KV for options 2300KV @6S ,3500KV@4S
*Bearing Shield Technology
- An IP53 rating dustproof and waterproof bearing placement design.
- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .
- Increased thrust effciency and say goodbye to crush motor bearings
*Specs
- 2300KV is for 6S / 3500 KV is for 4S
- Configuration: 12N14P / N52H arc magnet
- Motor stator size: 2204.5
- Motor mounting hole size: 4*M2 (Φ12mm)
- Motor cables: AWG 20#, 150MM
- Motor dimensions (Dia *Len): Φ26.9*28.8MM / M5 shaft
- Motor weight (including 150MM cables) : 21g
- The motor is very powerful that can get over 0.85KG and most current is about 25A
Key specifications
| Brand | Axisflying |
|---|---|
| Department | Motors & Servos |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 48h · OEM run 15-20 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 13 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 133 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Axisflying C224 Brushless Motor 2204?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For Axisflying C224 Brushless Motor 2204 for CINEON C35 FPV we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
