Beitian · Drone Accessories

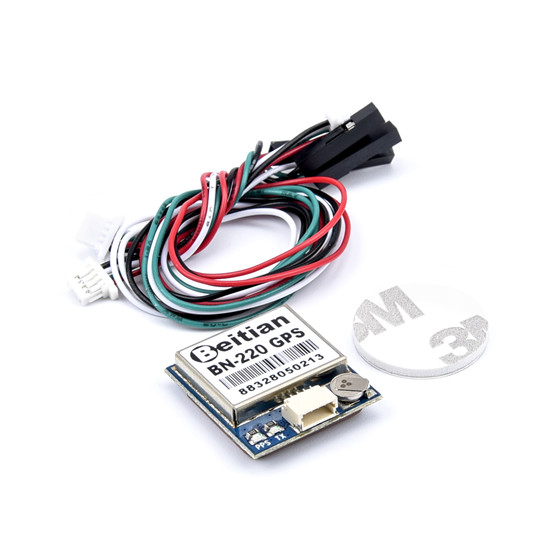

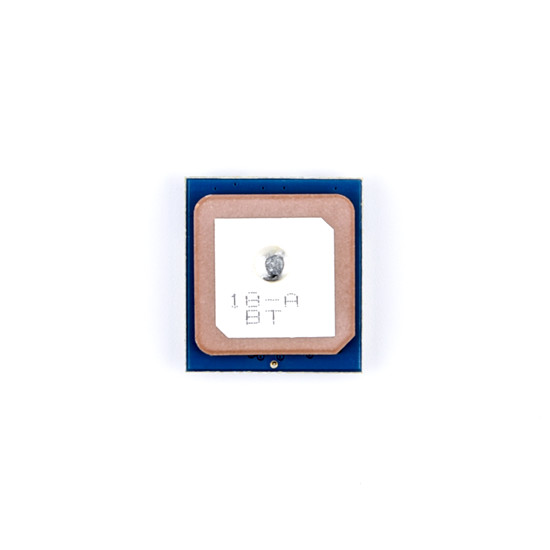

Beitian BN-220 Dual GPS & GLONASS Module (Built-in Flash & Antenna)
SKU RS-3 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
About this product
Specification
Electrical Characteristics
Chipset : M8030-KT
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)
Key specifications
| Brand | Beitian |
|---|---|
| Dimension | 22mm*20mm*6mm |
| Weight | 5.3g |
| Connector | 1.00mm spacing between the 4pins patch seat |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 16 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 166 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Beitian BN-220 Dual GPS & GLONASS?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For Beitian BN-220 Dual GPS & GLONASS Module (Built-in Flash & we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
