BETAFPV · Drone Accessories
BETAFPV P1 Air Unit HD VTX
SKU RS-273 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
About this product

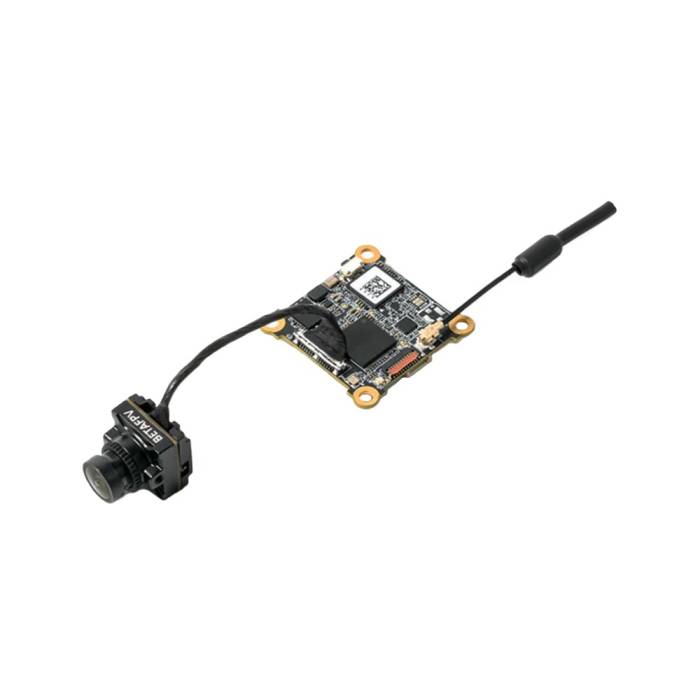

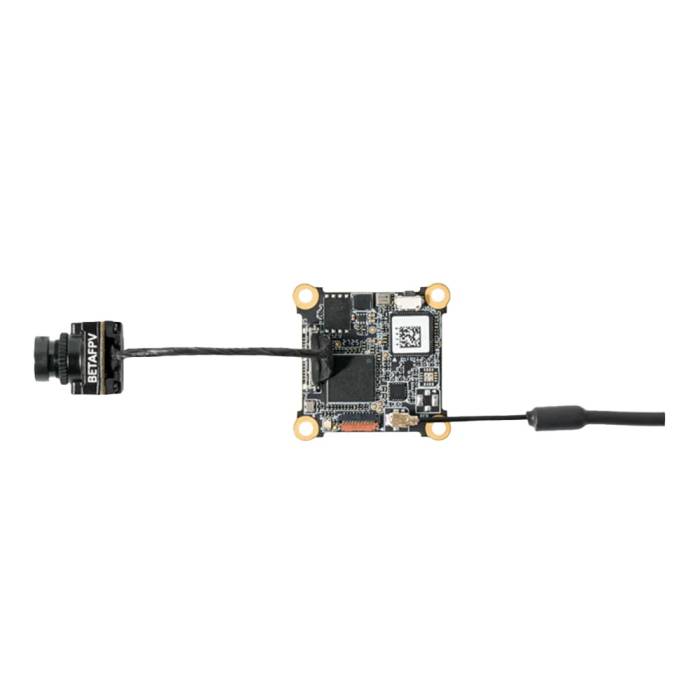

The BETAFPV P1 Air Unit HD VTX delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an impressive transmission range of over 5km. Its 1/2.9” CMOS sensor and wide 170° field of view provide an incredibly immersive and detailed perspective, making every flight intuitive and responsive. Designed for reliability in diverse conditions, the system maintains a stable, interference-resistant connection, whether weaving through dense forests or navigating complex urban environments.
Features
- ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
- Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.
- Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.
- Wide‑Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view.
- Plug‑and‑Play Compatibility: Standard 6‑pin port works seamlessly with Betaflight and BETAFPV flight controllers.
Specifications

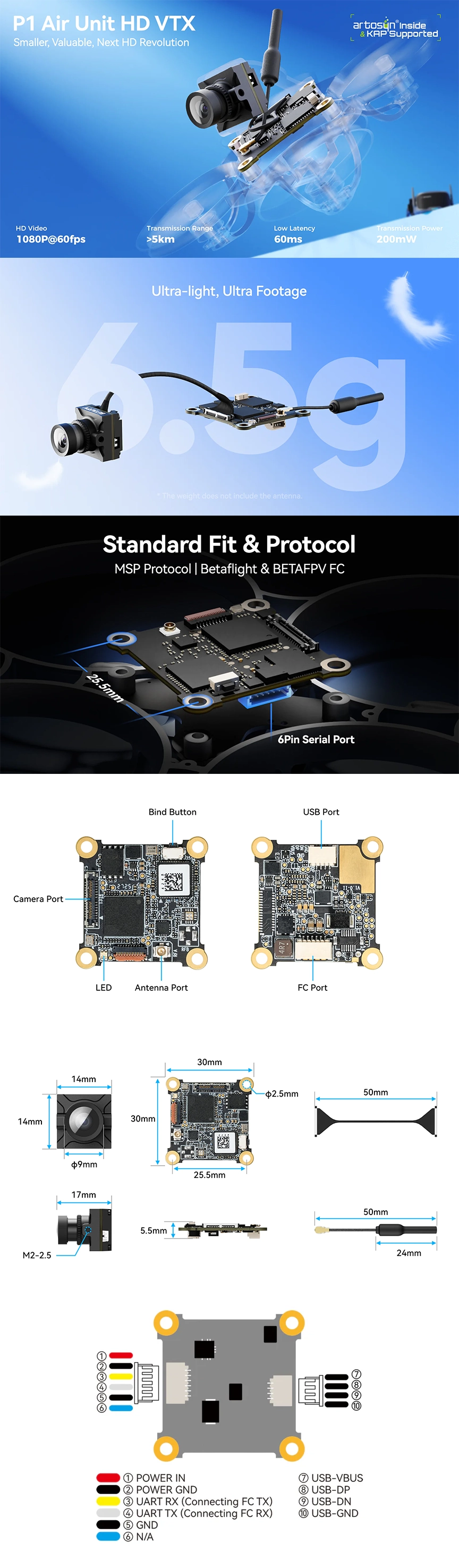

AIR UNIT
- Weight:
- Air Unit (Camera excluded): Approx. 3.61g
- Air Unit (Camera included): Approx. 6.5g
- Antenna: Approx. 0.44g
- Mounting Pattern: 25.5 x 25.5mm
- Mounting Hole Diameter: 2.5mm
- Dimensions (L x W x H):
- Air Unit: 30 x 30 x 5.5mm
- Camera: 14 x 14 x 17mm
- Ports:
- SH 1.0 6-pin (FC)
- SH 1.0 4-pin (USB)
VTX
- Frequency: 5.1-5.9 GHz
- Effective Isotropic Radiated Power (EIRP):
- ＜200mW (FCC/SRRC)
- <25mW (CE)
- Video Transmission Range: >5km
- Video Transmission Latency: Approx. 60ms
- Live View Quality: 1080p@60fps
- Bandwidth: 10MHz
- Antenna: Single antenna
- Channels: 3
CAMERA
- Mounting Width: 14mm
- Mounting Hole: M2
- Image Sensor: 1/2.9'' CMOS
- Field of View (FOV): 170°
- Video Format: MP4
- Max Video Transmission Bitrate: 20Mbps
- OSD: Canvas mode
FIRMWARE
- Input Voltage: 5V
- Operating Temperature: -10℃ to 40℃
COMPATIBILITY
- Supported FC: Betaflight FC & BETAFPV FC
Links

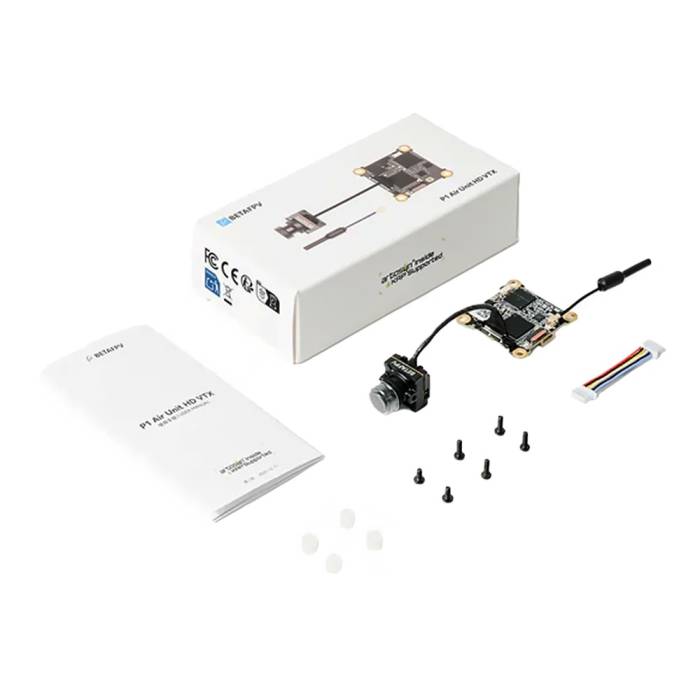

Includes
- 1x P1 Air Unit HD VTX
- 1x 6Pin Cable
- 1x Accessories Package
- 4x Shock-absorbing Balls
- 2x M2-4 Screws
- 4x M2-6 Screws
- 1x User Manual
The BETAFPV P1 Air Unit HD VTX delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an impressive transmission range of over 5km.
Key specifications
| Brand | BETAFPV |
|---|---|
| Department | Drone Accessories |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
| OEM / private label | Not available |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 4 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 15 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 135 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
