Holybro Pixhawk 4 STM32F765 Open Source PX4 Flight Controller Autopilot for Multirotor Fixed Wing VTOL UAV Drone
SKU RS-392 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h

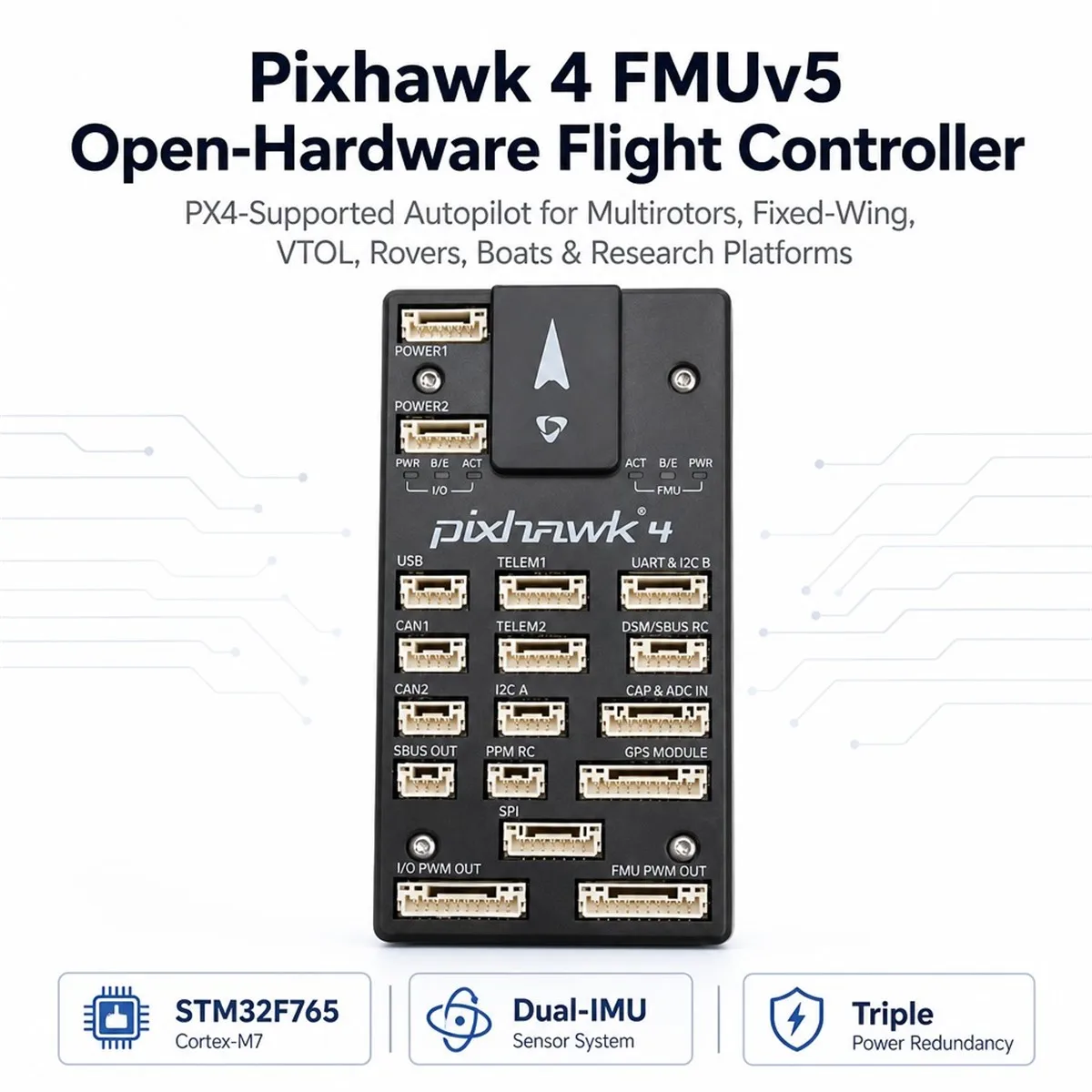

- Holybro Pixhawk 4 is an open-source professional autopilot co-developed by Holybro and the PX4 project, widely adopted for multirotor, fixed-wing, VTOL and rover UAV projects. Powered by dual-processor architecture, this mature flight controller delivers reliable autonomous flight performance for drone development, education, mapping and inspection tasks.

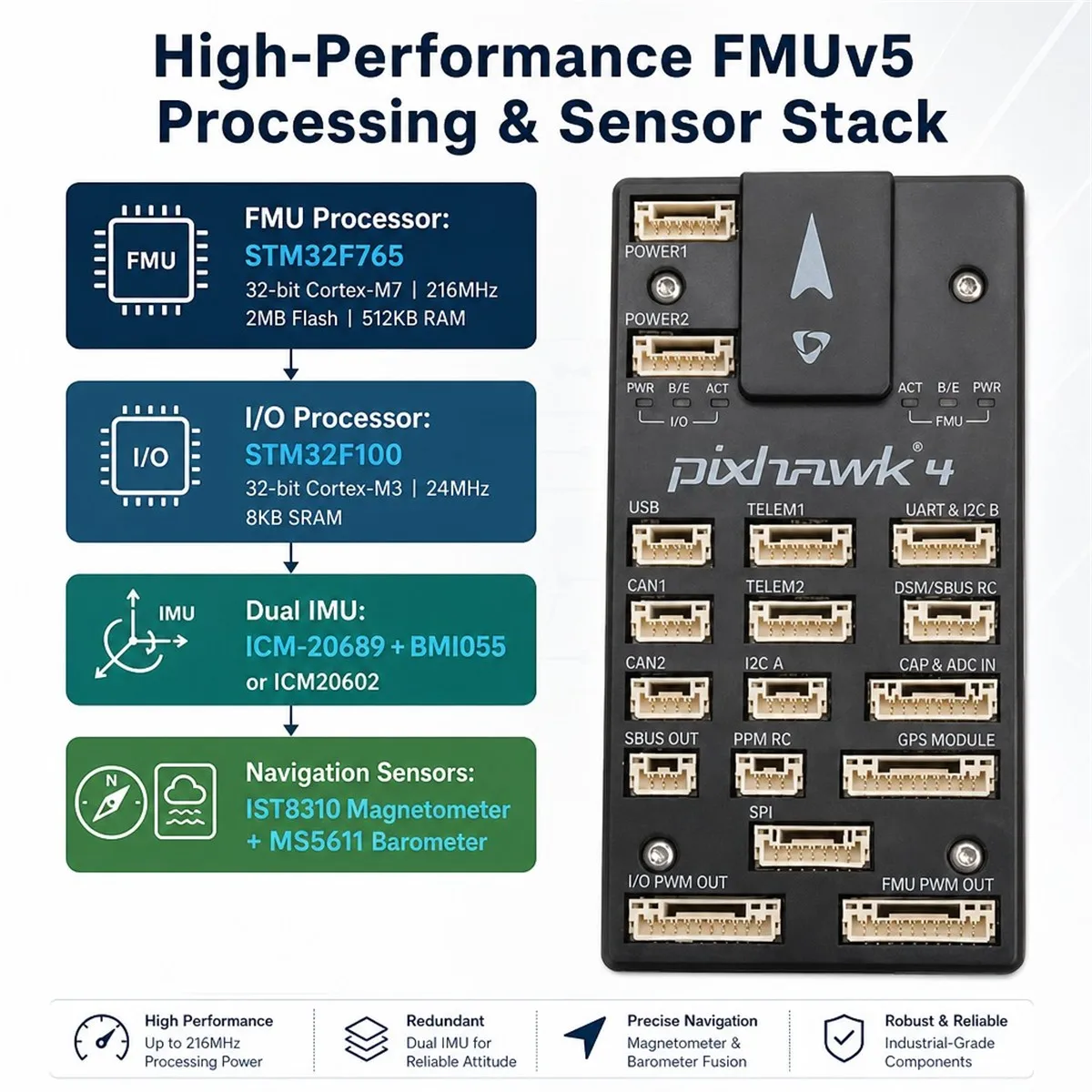

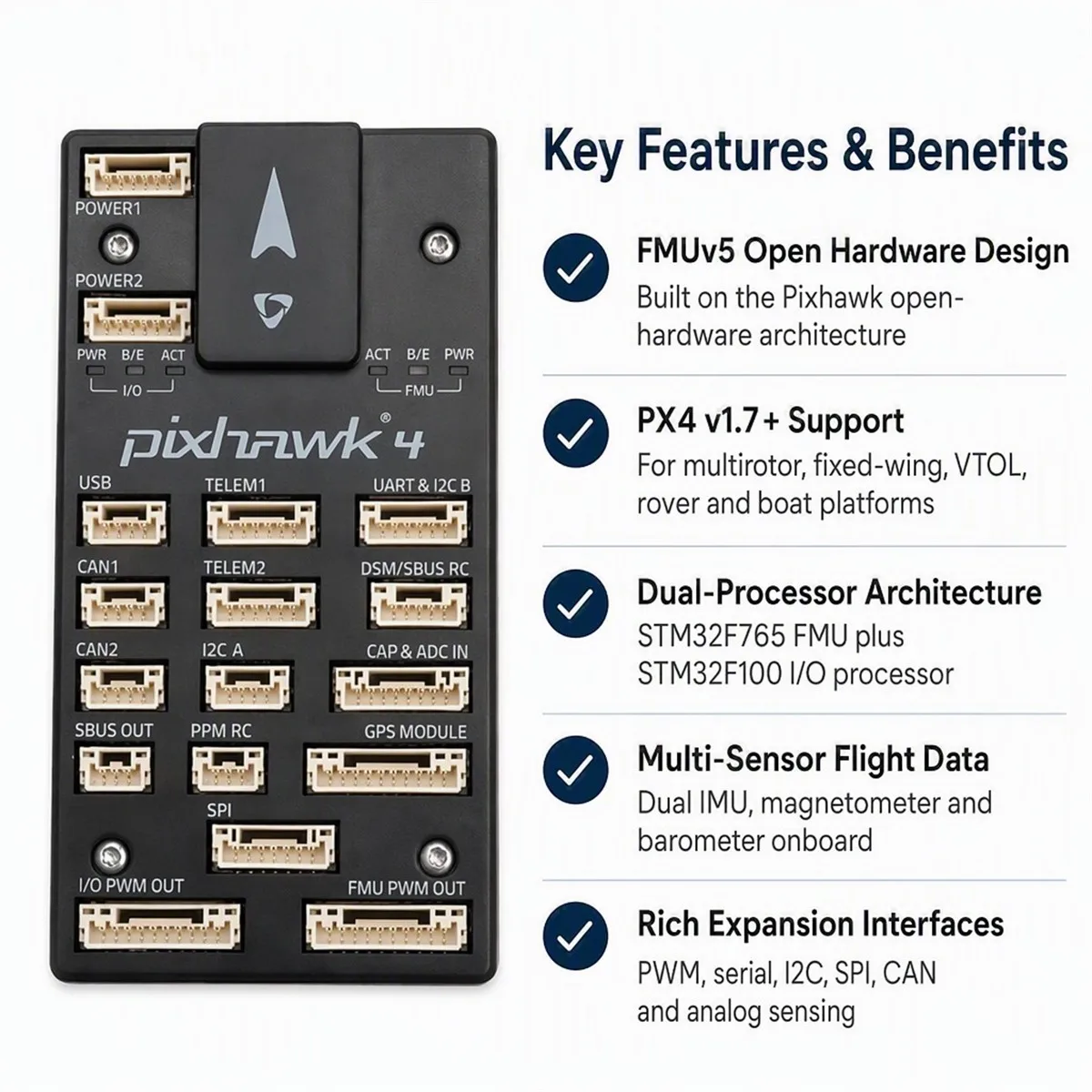

- It adopts STM32F765 FMU main processor (216MHz Cortex-M7, 2MB flash, 512KB RAM) plus STM32F100 IO co-processor. Dual-IMU redundant sensors including ICM-20689, BMI055 gyro-accel, IST8310 magnetometer and MS5611 barometer enhance flight safety via cross-sensor data verificationPX4. Micro-SD card slot supports blackbox flight log storage for post-flight analysis.

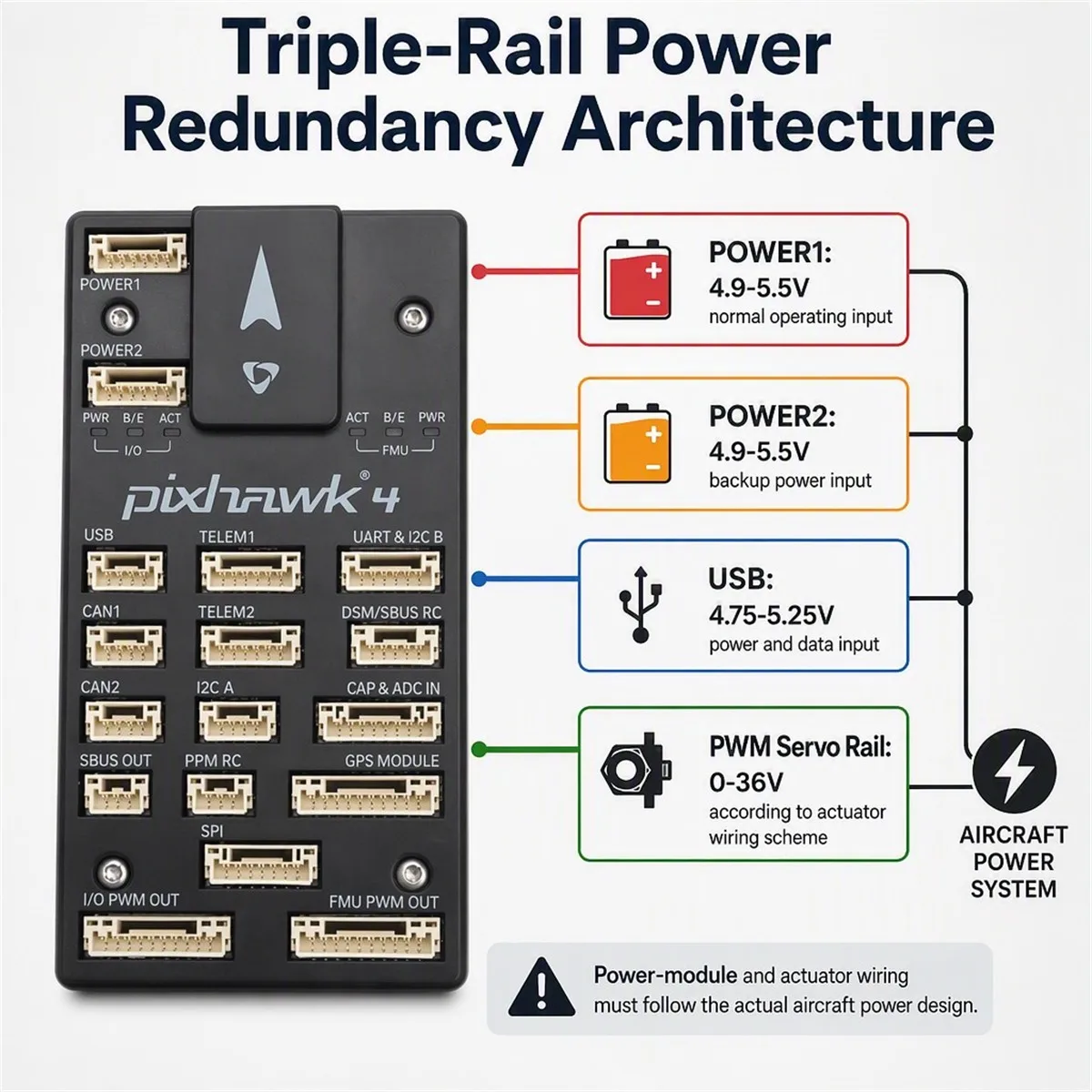

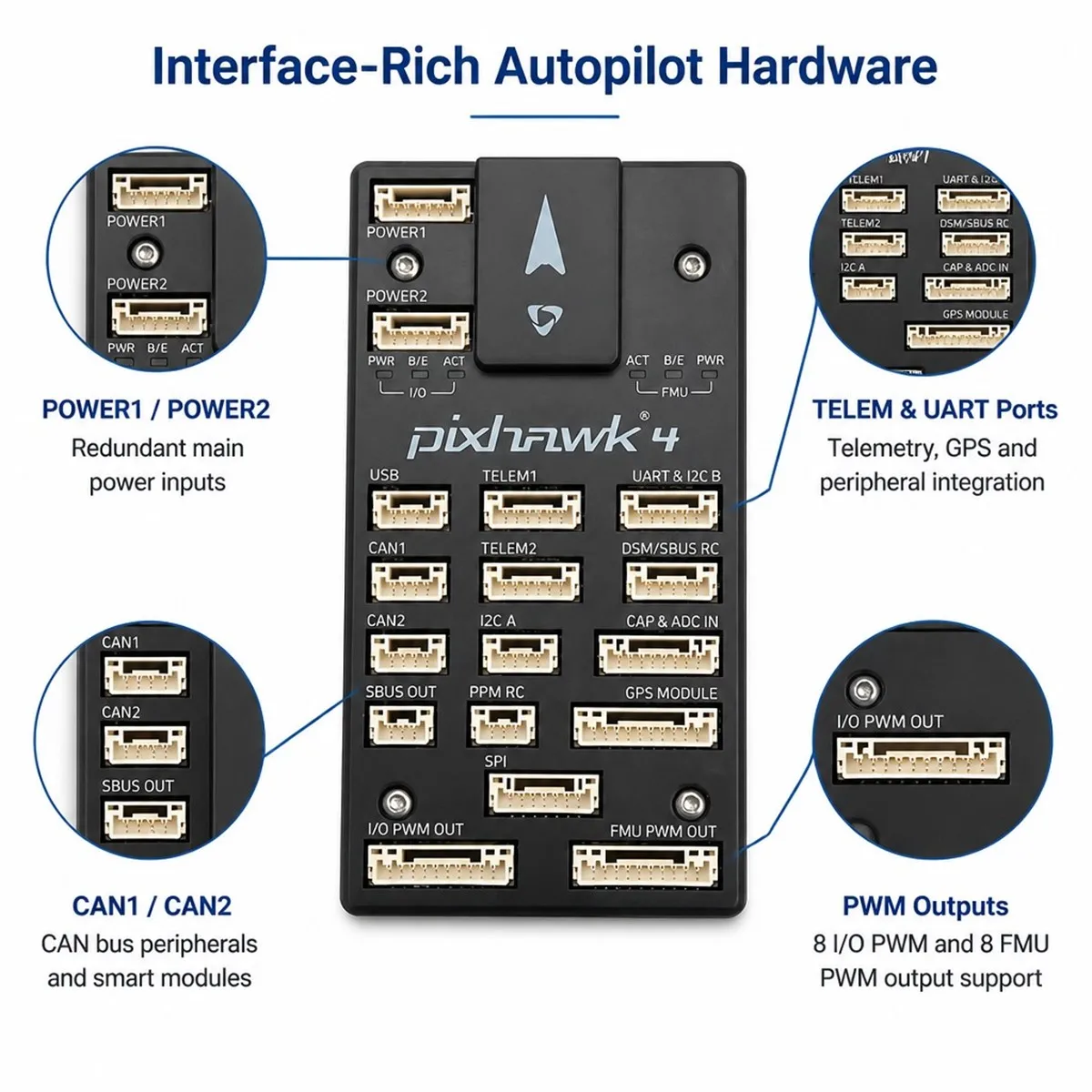

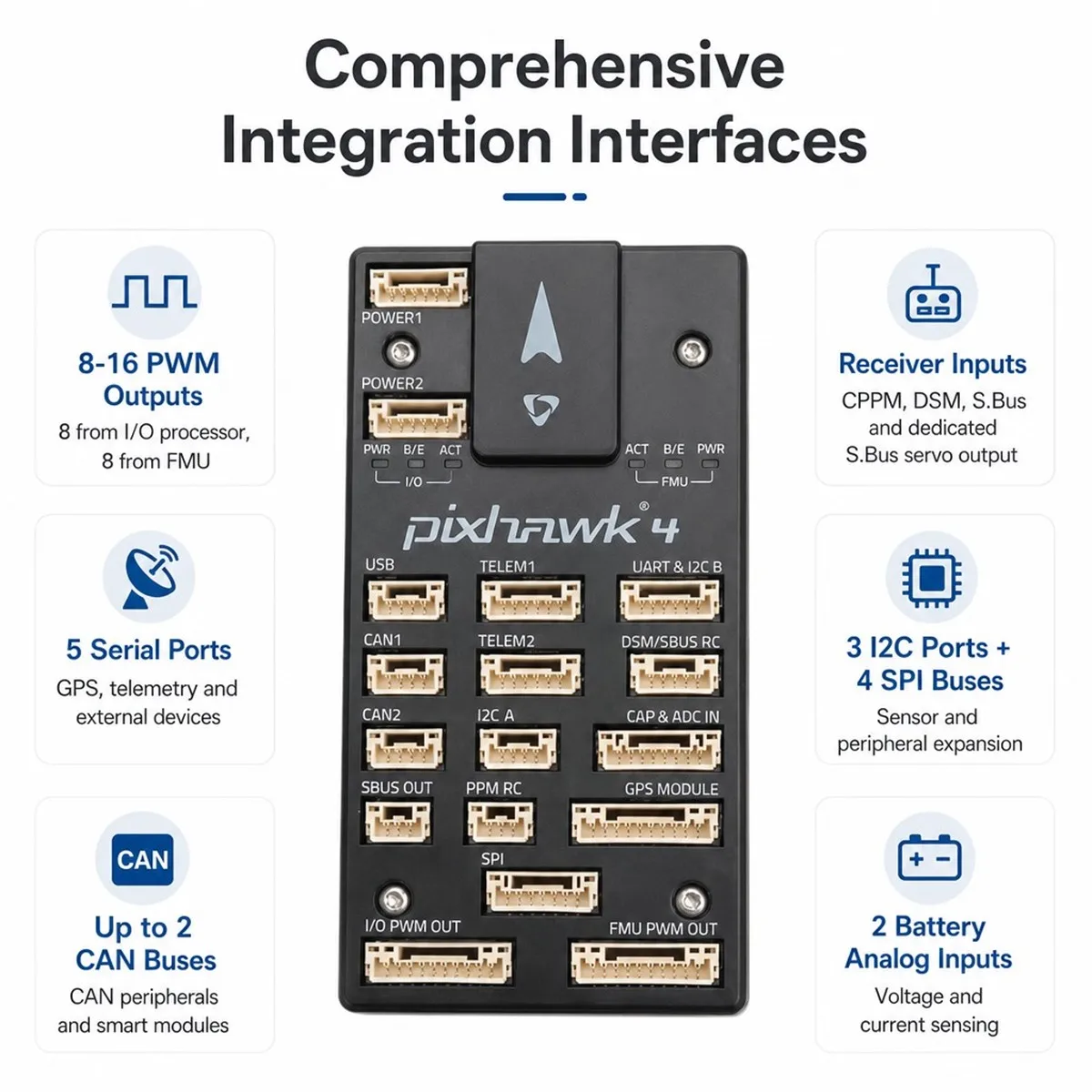

- Rich onboard interfaces provide up to 16 PWM outputs, multiple UART, I2C, SPI and dual CAN-bus ports. It supports SBUS, DSM, CPPM RC input protocols, compatible with mainstream digital-signal ESCs. Dual-battery voltage-current monitoring enables real-time power-status check. Dedicated ports simplify wiring for GPS, telemetry module, payload sensors and peripheral devices

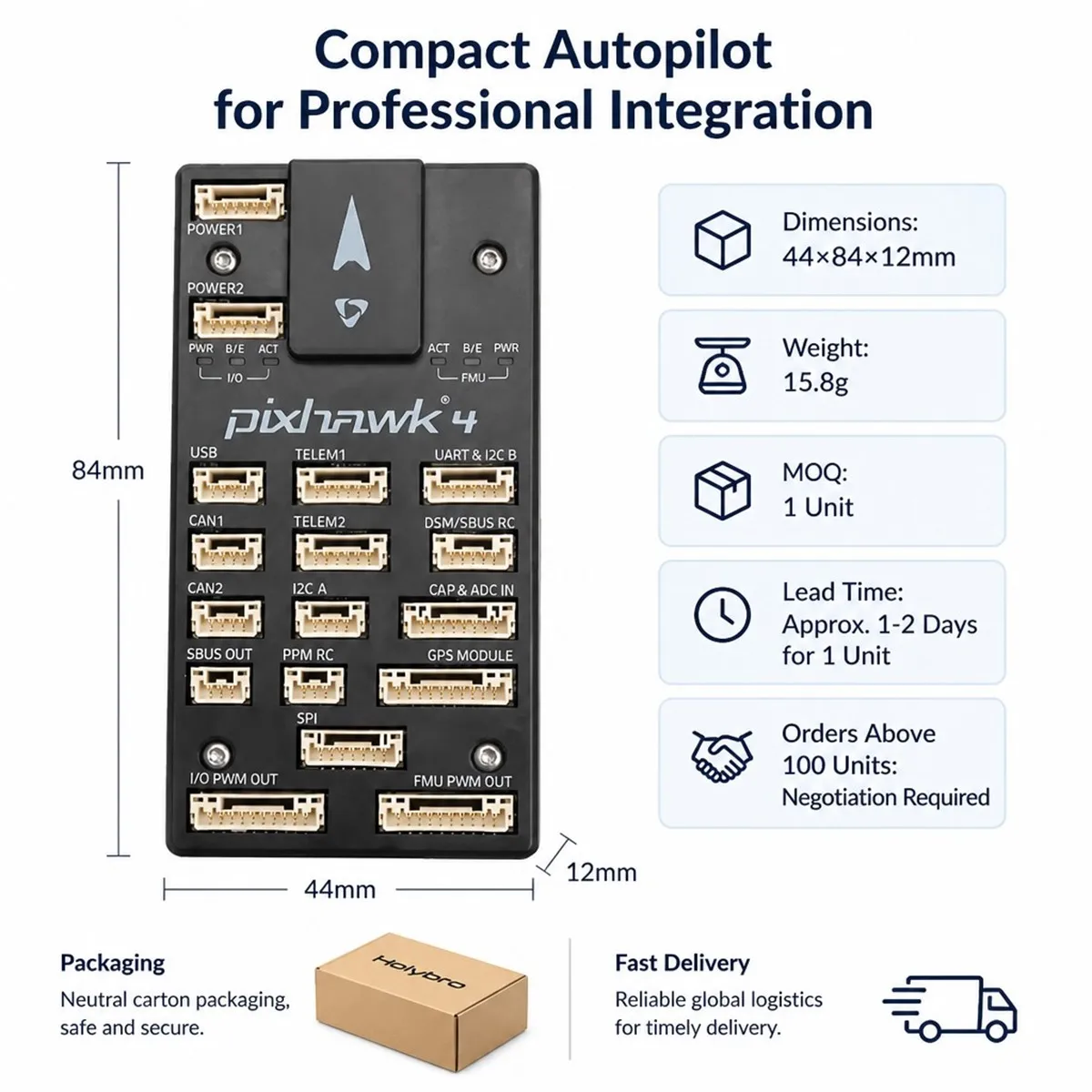

- Fully compatible with open-source PX4 and ArduPilot firmware. Users can configure parameters, set missions and monitor flight status via ground-control-station software. Built-in safety switch and buzzer give clear audible and visual alarm feedback. Compact lightweight 15.8-g design brings minor payload burden for various drone frames
- Please note it is legacy hardware; check official firmware version before flashing. It works with PM02 / PM07 power-module. Widely used for aerial survey, power inspection, drone research-and-development and educational projects. It is a proven cost-effective open-source autopilot solution for custom UAV building.
Holybro Pixhawk 4
Pixhawk4 Flight Controller
Pixhawk 4 Autopilot
Pixhawk4 FC
PX4 Flight Controller
STM32F765 Flight Controller
Dual IMU Flight Controller
Holybro Pixhawk 4 PX4 Open Source Autopilot
Pixhawk4 Flight Controller for Multirotor VTOL UAV
STM32F765 Pixhawk 4 Drone Flight Control
Open Source Pixhawk4 Autopilot For Fixed wing Aircraft
Holybro Pixhawk 4 UAV Flight Controller Survey Drone
Key specifications
| Brand | Holybro |
|---|---|
| Department | Flight Controllers |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 13 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 133 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Holybro Pixhawk 4 STM32F765 Open Source?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For Holybro Pixhawk 4 STM32F765 Open Source PX4 Flight we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?

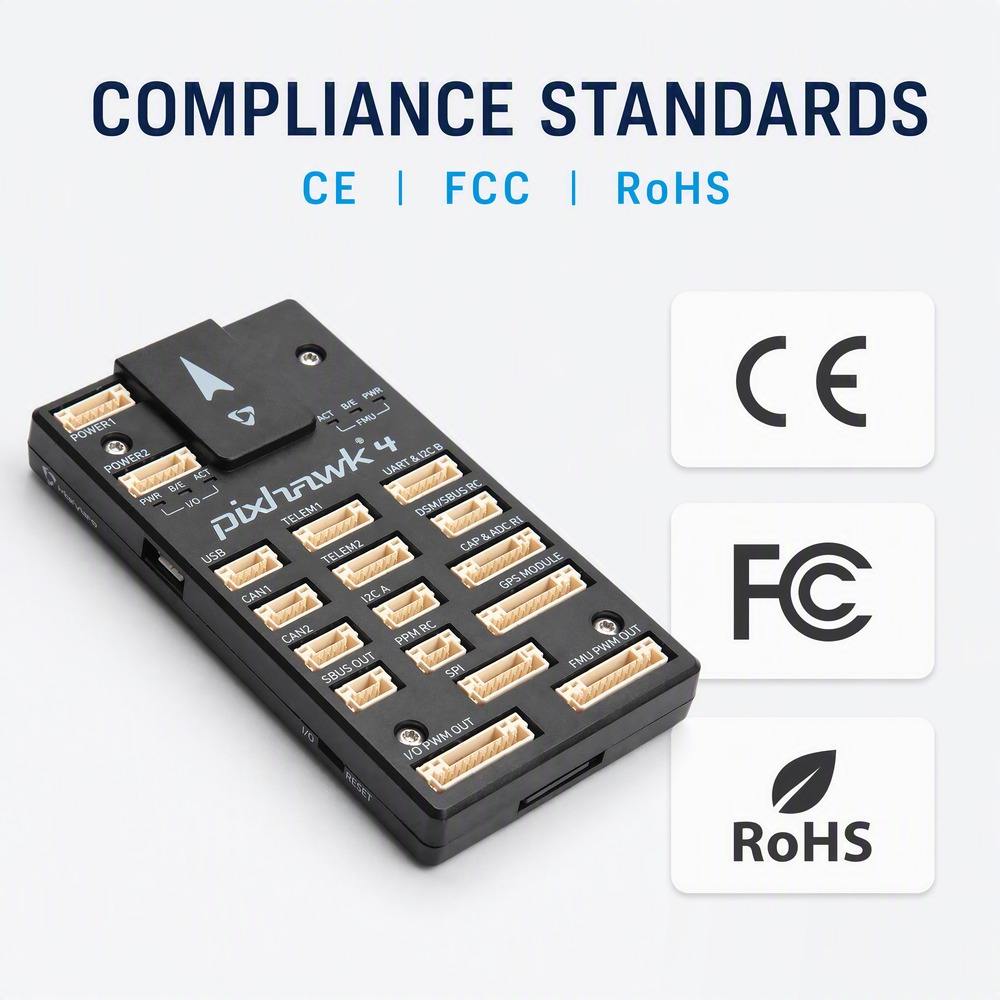

Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
