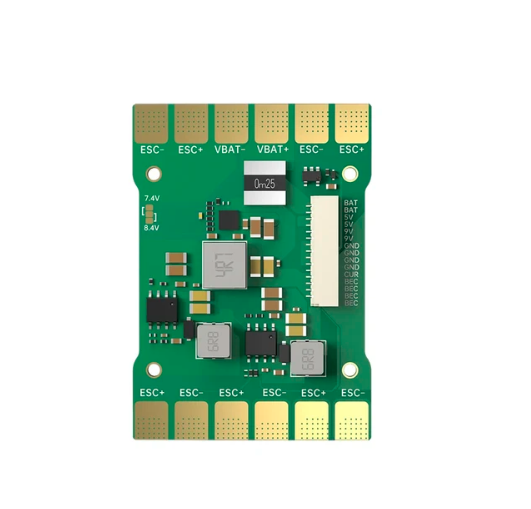

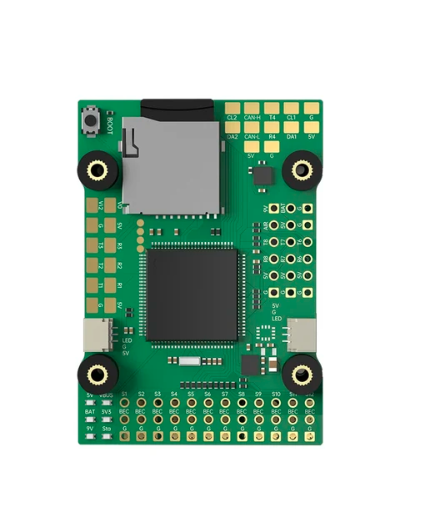

iFlight BLITZ Wing H743 Flight Controller ICM42688P
SKU RS-335 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
Description
Our high-quality flight controller, designed specifically for Fixed Wing UAV enthusiasts, is compatible with Betaflight, INAV, and Ardupilot. This controller is tailored to meet the needs of hobbyists who are passionate about model aviation, providing a reliable and efficient solution for their aircraft. With advanced features and compatibility with popular software platforms, our flight controller offers a superior flying experience for enthusiasts looking to take their Fixed Wing UAVs to the next level.
Features
Up to 5 groups of ESC power supply soldering pads
Equipped with dual analog camera input function, which can be switched by remote control
Independent 6A servo power supply BEC, providing powerful power protection for servos, compatible with servos of different voltages.
Utilizes STM32H743 main MCU, offering powerful processing performance and feature support.
Onboard SD card slot, providing large capacity storage space for data recording.
Soldering pad reserved design
Onboard current meter, real-time monitoring of flight current.
Supports external airspeed sensor for more accurate data.

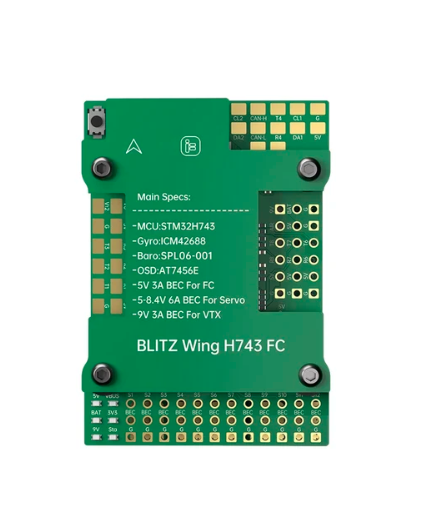

FC Specifications
MCU: STM32H743
Gyro: ICM42688P
Baro: DPS310
OSD: AT7456E
BlackBox: MicroSD card
UARTS: 8
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
WS2812ledStrip: Yes
Beeper pad: Yes
Switchable dual camera inputs
Switchable 5V/7.4V/8. 4V outputs
7-36V DC IN (2-8S)

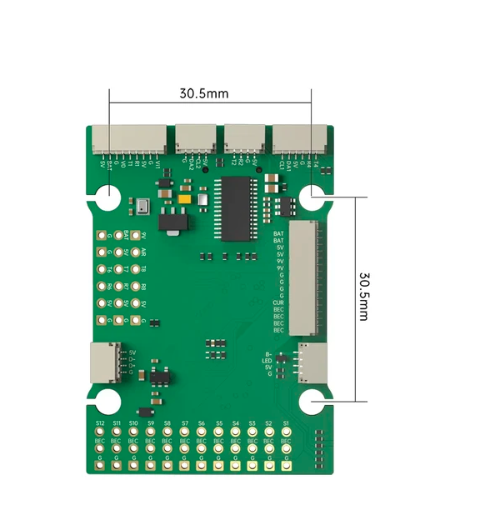

Mount pattern: 30.5*30.5mm/φ4
Dimensions: 36.9*52mm
Weight: 35g
BF Firmware target: IFLIGHT_BLITZ_Wing_H743
INAV Firmware: IFLIGHT_BLITZ_Wing_H743
Ardupilot Firmware: IFLIGHT_BLITZ_Wing_H743
BEC: 5V 2.5A / 9V 2.5A / 5-8.4V 6A
Wiring Suggestion
UART1 for VTX HD/Analog
UART2 for Receiver
UART4 for GPS
UART2、UART5、UART6、UART7 for free
5V 3A BEC for FC
9V 3A BEC for VTX
5-8.4V 6A BEC for Servo
Packing List
1 x BLITZ Wing H743 Flight Controller
1 x silicon grommets
Key specifications
| Brand | iFlight |
|---|---|
| Department | Flight Controllers |
| Minimum order | 5 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 16 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 166 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for iFlight BLITZ Wing H743 Flight?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For iFlight BLITZ Wing H743 Flight Controller ICM42688P we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
