Description
Introducing the All-New Borg Series – Power Meets Precision!
The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!
FC Features
Supports 4S to 8S battery inputs, offering versatility for various racing setups.
Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
FC Specifications
Input voltage: 4-8S; Support LIHV battery
MCU: STM32F722RET6
Gyro: ICM42688
Barometer: SPA06-003
OSD Chip: AT7456E（LGA）
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4
I2C serial: Not supported
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Betaflight Firmware target: IFLIGHT_BLITZ_F722

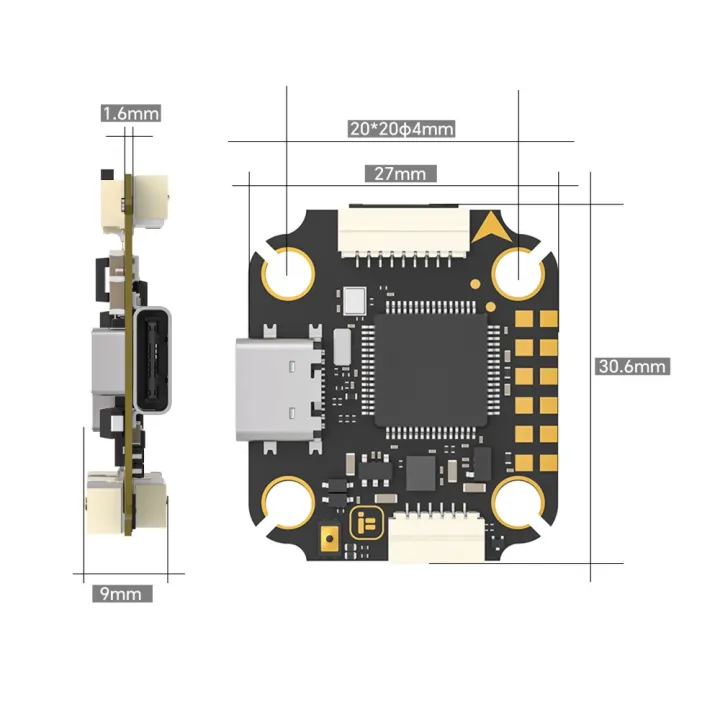

Mount pattern: 20*20φ4
Dimensions: 27*30.6mm±1
Total Weight: 17.1g±1(FC+ESC)
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for Receiver
UART 3 for GPS or other sensors that require a serial port
UART 4 for GPS
UART 5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
ESC Specifications
Product Name: Borg Mini 60 ESC
Input Voltage: 2-8S; Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: Yes
BEC: N/A
Telemetry: Supported
Bidirectional DSHOT: Supported

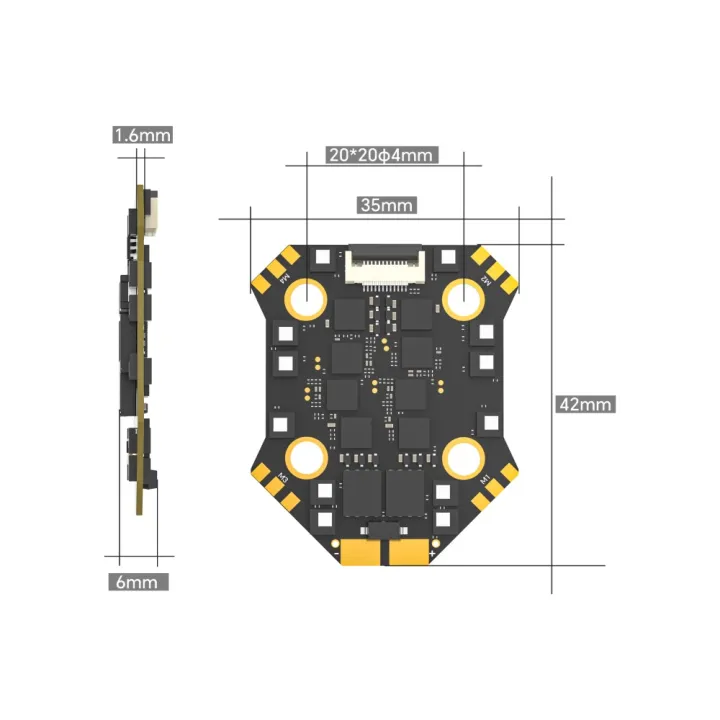

Dimensions: 42*35mm±1
Mounting Holes: 20 x20 mm/Φ4mm
Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.
Packing List
1 x Borg Mini F7 Flight Controller
1 x Borg Mini 60 ESC
1 x Cable set
5 x silicon grommets
