iFlight XING 2812 Cinelifter Motor - 1150KV
SKU RS-225 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
Description
The iFlight XING 2812 Cinelifter Motor is designed for high-performance cinelifter builds, delivering smooth, powerful, and reliable operation. Featuring center-slotted N52H curved arc magnets and an optimized design, it provides faster response, higher efficiency, and precise control for professional FPV applications.

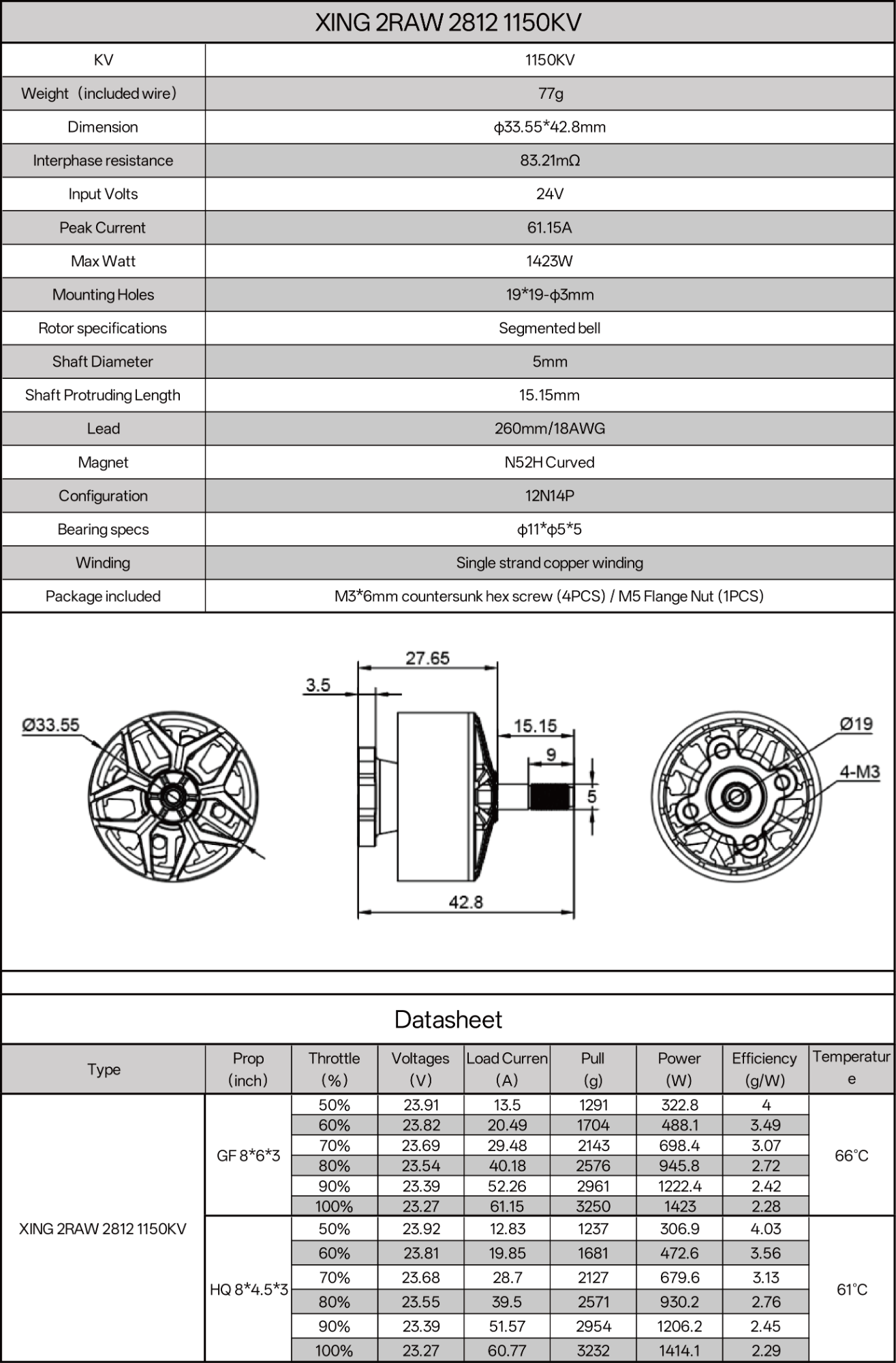

Specifications
KV: 1150KV
Weight(included wire): 77g
Dimension: φ33.55*42.8mm
Interphase Resistance: 83.21mΩ
Input Volts: 24V
Peak Current: 61.15A
Max Watt: 1423W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15.15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
Packing List
1 x XING 2812 motor
1 x M5 Screw nut
4 x M3*6 screws
Test Report
Key specifications
| Brand | iFlight |
|---|---|
| Department | Motors & Servos |
| Kv rating | 1150 KV |
| Minimum order | 4 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 1 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 18 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 128 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for iFlight XING 2812 Cinelifter Motor?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For iFlight XING 2812 Cinelifter Motor - 1150KV we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
