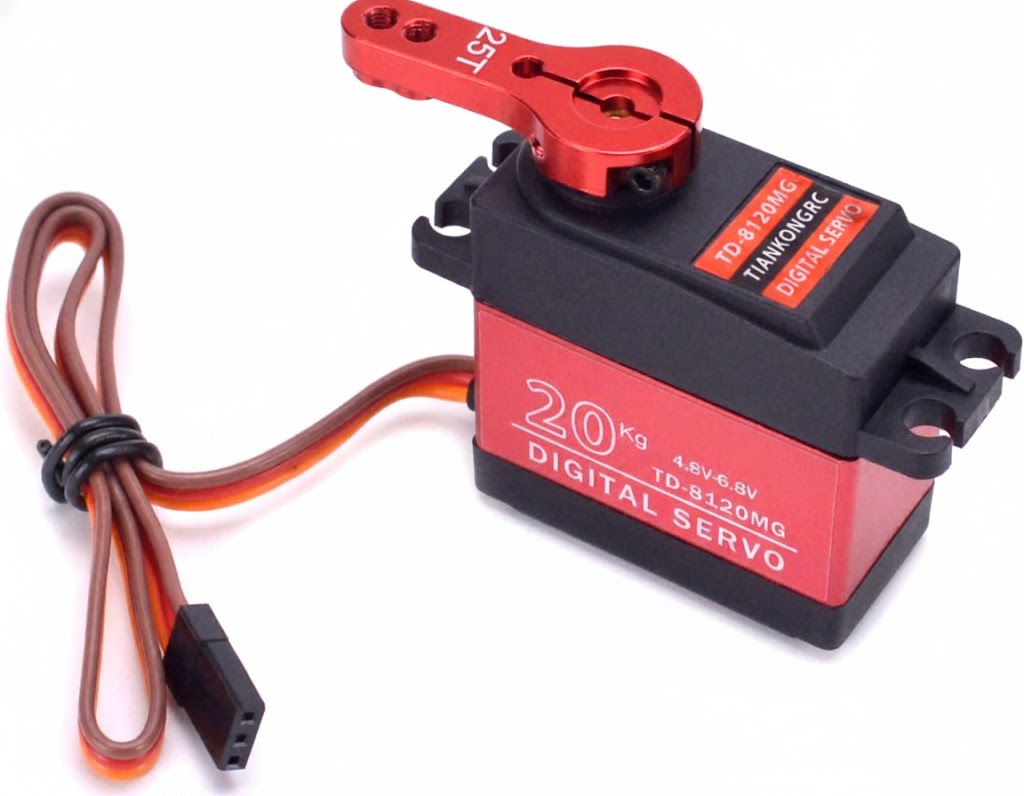

20KG Waterproof Digital Servo (Full Metal Gear, 180°) w/ 25T Horn
Price on request
MOQ 1 pc · samples available
iFlight · Motors & Servos

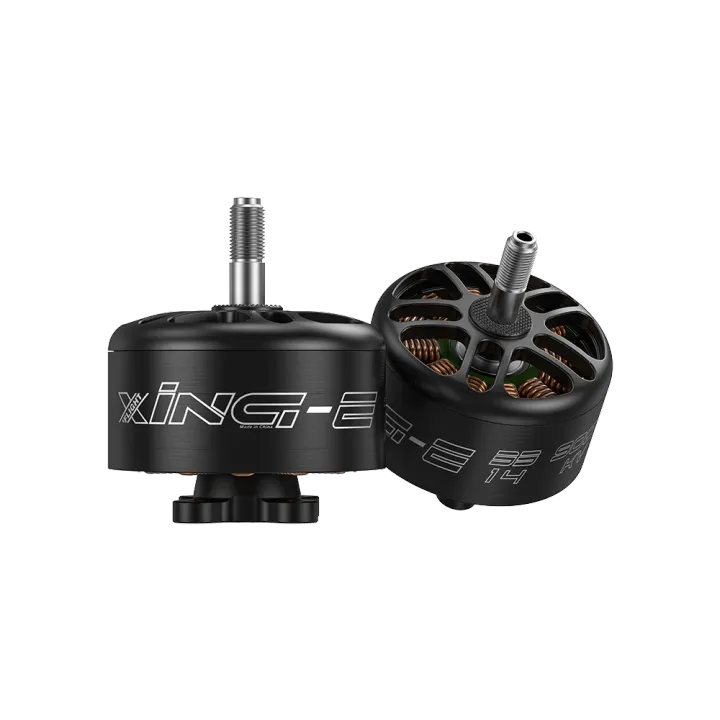

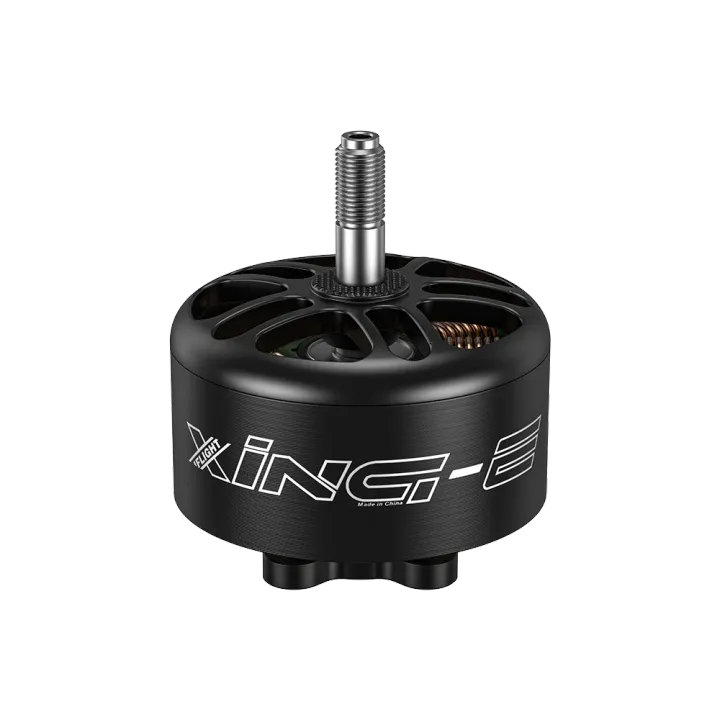

iFlight XING-E 3314 Cinelifter Motor - 900KV
SKU RS-224 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 4 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
Description
The XING-E 3314 Cinelifter Motor is a high-performance 900KV brushless motor designed for heavy-lift Cinelifter drones, delivering up to 1366W of power with durable N52H curved magnets and ultra-smooth performance.

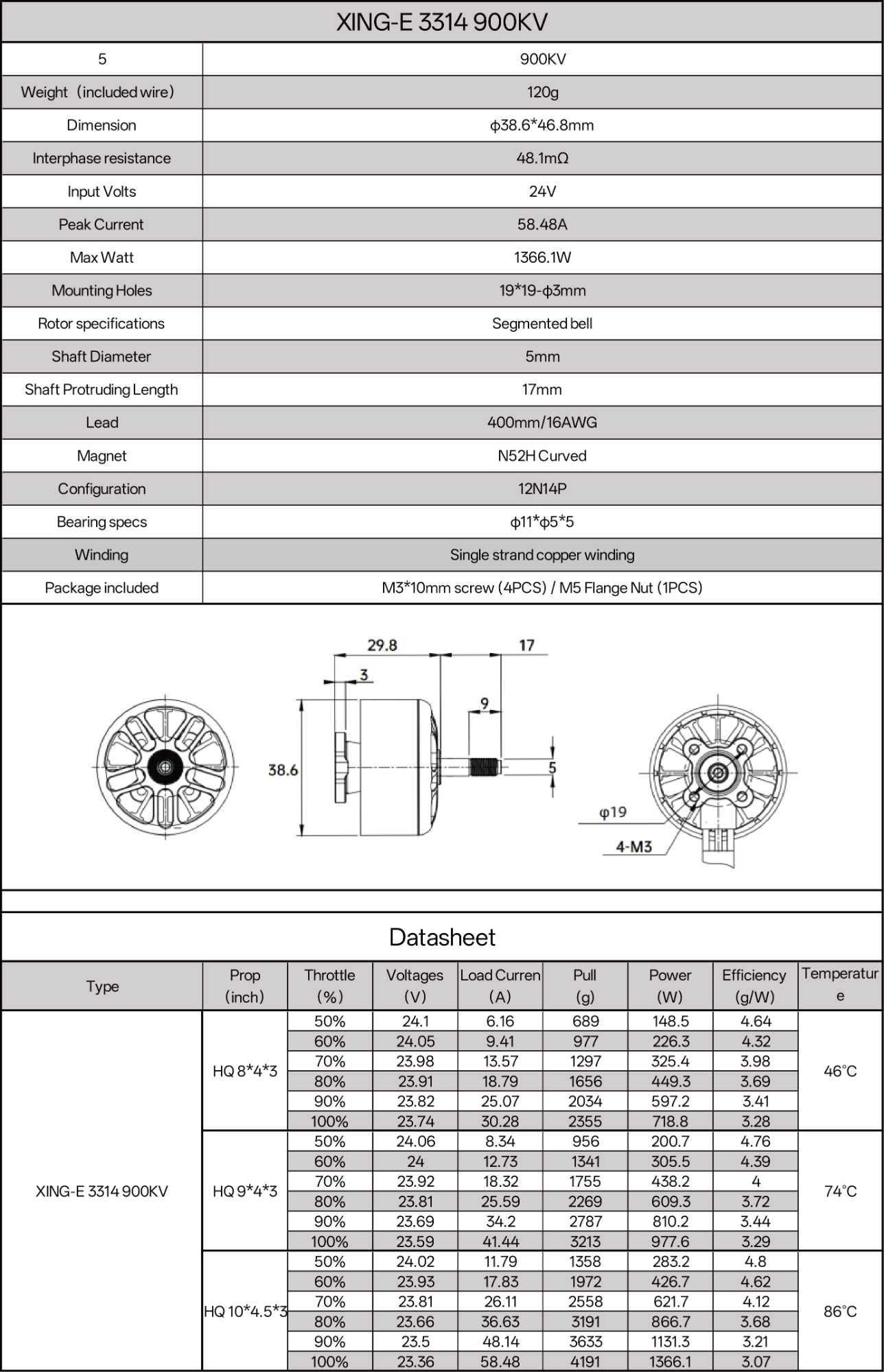

Specifications
Model: XING-E 3314 Motor
KV: 900KV
Weight(included wire): 120g
Dimension: φ38.6*46.8mm
Interphase Resistance: 48.1mΩ
Input Volts: 24V
Peak Current: 58.48A
Max Watt: 1366.1W
Mounting Holes: 19*19 φ3mm
Shaft Diameter: 5mm
Rotor Specifications: Segmented bell
Shaft Protruding Length: 17mm
Lead: 400mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
Packing List
1 x XING-E 3314 900KV Brushless Motor
4 x M3*10 screws
1 x M5 Flange Nut
Key specifications
| Brand | iFlight |
|---|---|
| Department | Motors & Servos |
| Minimum order | 4 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 4 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 17 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 147 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for iFlight XING-E 3314 Cinelifter Motor?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For iFlight XING-E 3314 Cinelifter Motor - 900KV we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
