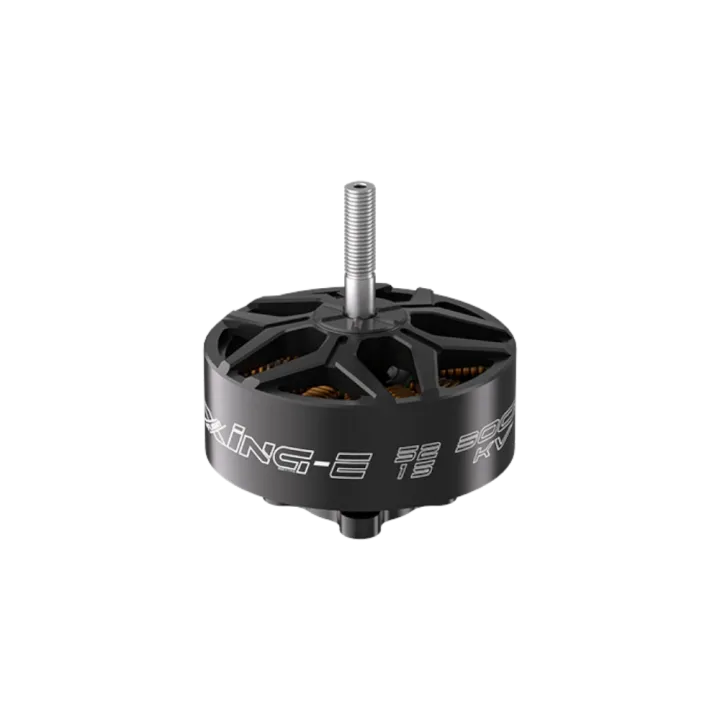

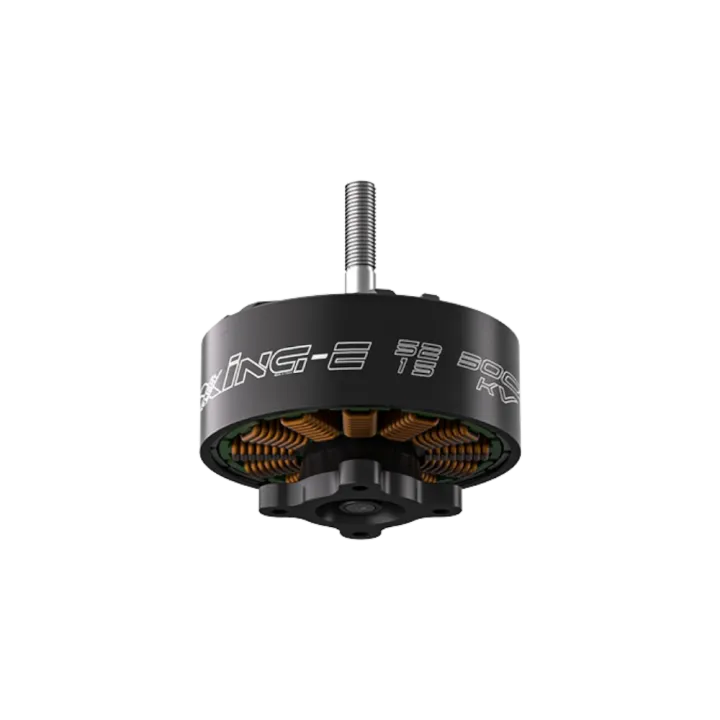

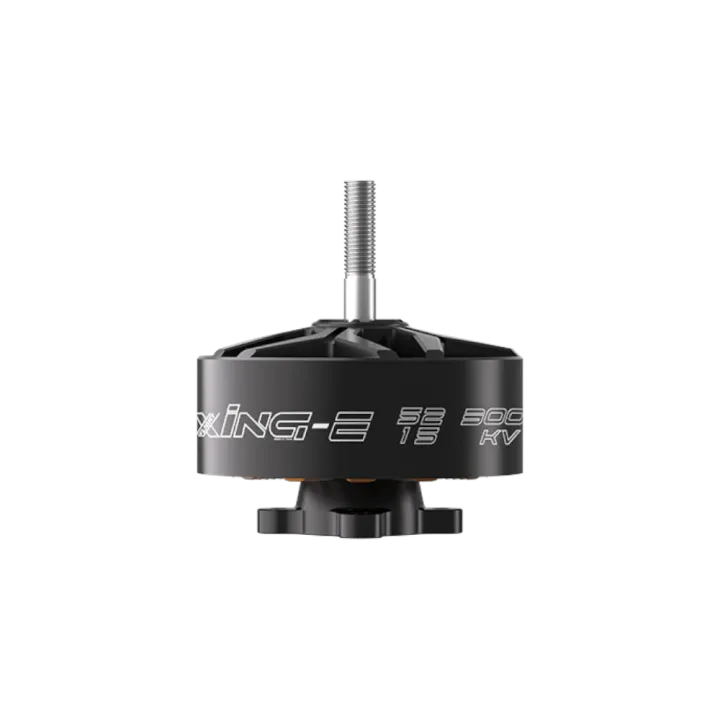

iFlight XING-E 5215 FPV Brushless Motor - 300KV / 500KV
SKU RS-222 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 4 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
Description
Meet the latest high-performance motor from Xing-E—engineered to shatter limits and redefine reliability for large drone builds. Leveraging cutting-edge technological advancements, this motor delivers consistent, dependable performance, making it a standout choice for enthusiasts and professionals focused on bigger X-Class quadcopters.

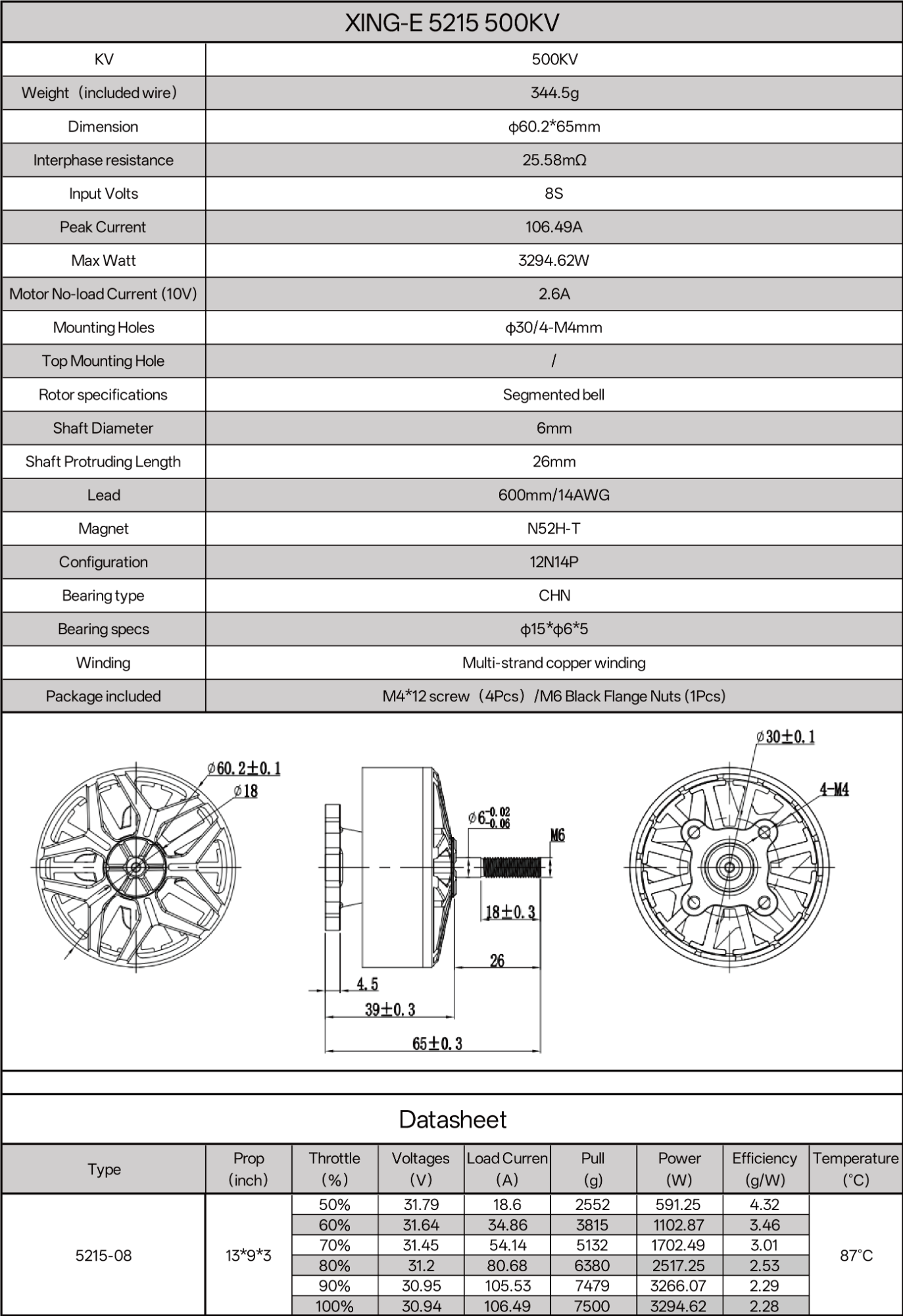

Specifications
Model: XING-E 5215 Motor
KV: 300KV / 500KV
Weight(included wire): 344.5g
Dimension: φ60.2*65mm
Interphase Resistance: 49.57mΩ / 25.58mΩ
Input Volts: 12S / 8S
Peak Current: 71.07A / 106.49A
Max Watt: 3361.83W/ 3294.62W
Shaft Diameter: 6mm
Shaft Protruding Length: 26mm
Lead: 600mm/14AWG
Magnet: N52H-T
Configuration: 12N14P
Mounting holes: 30*30 φ4mm
Rotor Specifications: Segmented Bell
Bearing Specification: φ15*φ6*5
Winding: Multi-Strand copper winding
Packing List
1 x XING-E 5215 Motor
4 x M4*12mm screws
1 x M6 Flange Nut
Key specifications
| Brand | iFlight |
|---|---|
| Department | Motors & Servos |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 48h · OEM run 15-20 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 11 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 161 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for iFlight XING-E 5215 FPV Brushless Motor?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For iFlight XING-E 5215 FPV Brushless Motor - 300KV / 500KV we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
