Lumenier ZIP V2 2807 Blackout Motor - 1700KV
SKU RS-275 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 4 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
About this product
The Lumenier ZIP motor line continues to grow with the addition of the ZIP V2 2807 Blackout Motor.
LUMENIER ZIP V2 MOTOR SERIES
The ZIP V2 series by Lumenier is the culmination of years of FPV drone motor manufacturing experience. The ZIP V2 motors feature top-of-the-line components and powerful N52SH curved magnets for maximum power and the highest temperature rating. This gives you the best-performing motor for your racing or freestyle drone. Lumenier has always been known for its silky smooth motors, and the ZIP motors are no exception. Each motor is dynamically balanced and tested at the factory to ensure a smooth and perfectly running motor out of the box, resulting in clear and jello-free flight footage.
CINEMATIC SERIES
The new Cinematic Motors in the ZIP V2 series are purposefully built with the professional cinematographer in mind. The ZIP V2 Cinematic motors feature an all-black matte finish to seamlessly blend into the background, not drawing any unwanted attention to your drone during shoots. Additionally, the ZIP V2 motors feature premium components for top-of-the-line performance and extra reliability. Lumenier motors are guaranteed to give you the best so you can get the job done right.
V2 UPDATES
ZIP V2 motors feature premium components for top-of-the-line performance and extra reliability. Lumenier motors are guaranteed to give you the best so you can get the job done right.
- Upgraded Light-Weight Bell Design
- Same incredible performance
- Ultra-Lightweight Shaft
Features
- Dynamically Balanced to Extreme Precision
- Lightweight Motor at 45g
- Japanese NMB Bearings
- Upgraded Bell Design
- Anodized Aluminum 7075 Base Casing
Specifications
- Base Mounting Pattern: 19x19mm M3
- Bell and Base: 7075 Anodized Aluminum
- Motor Wire Length: 180mm / 18AWG
- Motor Dimension: 33mm x 19.5mm
- Inner Shaft Diameter: 4.8mm / Titanium Alloy
- Prop Shaft: 5mm
- Motor Connection: Bare Wire
- Magnets: N52H Curved
- Weight: 45g (with short wires)
- Stator Diameter: 28mm x 07mm (0.2mm Kawasaki silicon steel)
- Windings: 12N14P
- Configuration: 12N14P
- POPO Compatible: No
- KV: 1300KV/1700KV/1950KV
- Stator Size: 2807
- Bearing Size: Japanese NMB 12X6X4
- Cells (LiPo): 3-8S (6S most common)

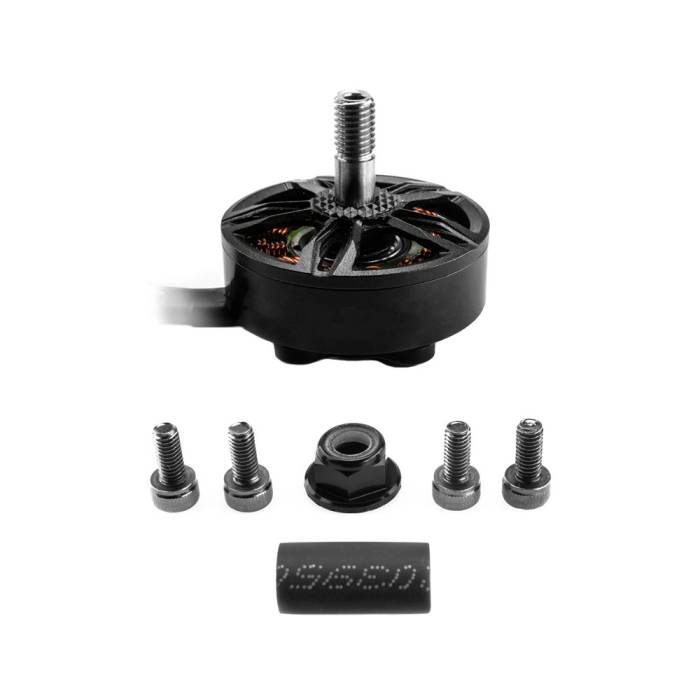

Includes
- 1x Lumeneir ZIP V2 2807 Motor - 1700KV (No Logo)
- 3x 20cm extra motor wire + heat shrink
- 1x Low Profile locking Prop Nut
- 1x Standard locking Prop Nut
- 4x Mounting Screws (M3x7)
- 1x Spacer/washer
Key specifications
| Brand | Lumenier |
|---|---|
| Department | Motors & Servos |
| Kv rating | 1700 KV |
| Minimum order | 4 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 17 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 197 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
