Matek Mateksys F405-WING-V2 FC
SKU RS-213 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h

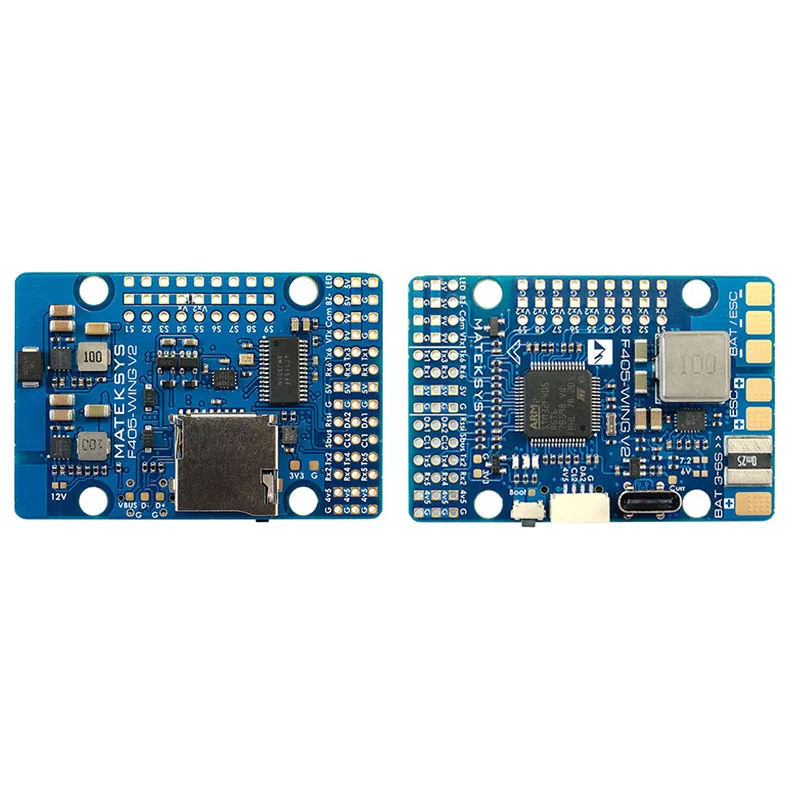

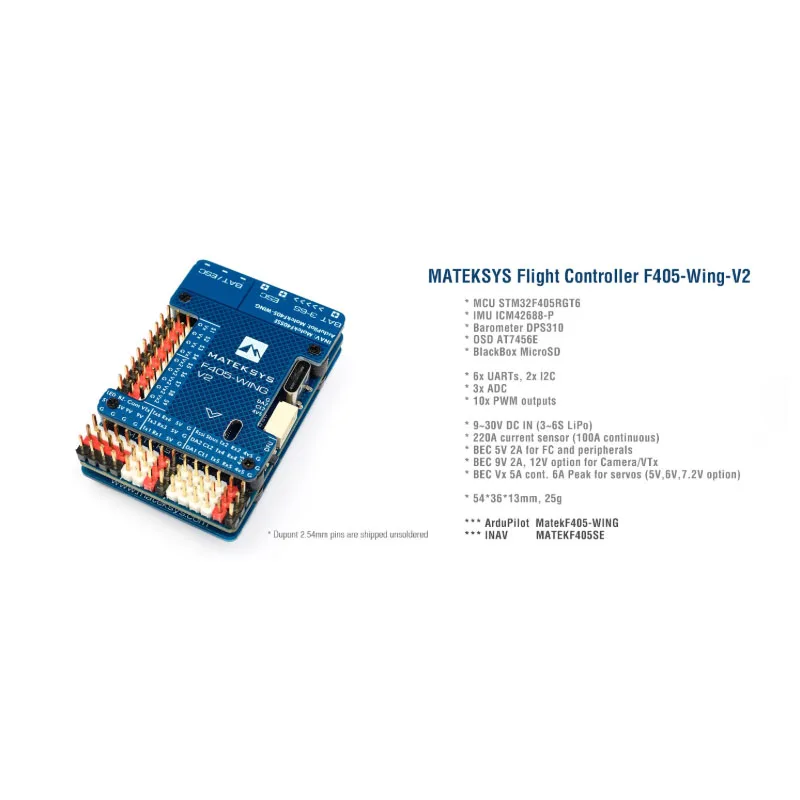

Matek Flight Controller F405-WING-V2
STM32F405RGT6, ICM42688P, DPS310, OSD, 6xUARTs, 10x PWM, 2xI2C, 3xBEC
FC Specifications
* MCU: STM32F405RGT6, 168MHz , 1MB Flash
* IMU: ICM42688-P
* Baro: DPS310
* OSD: AT7456E
* Blackbox: MicroSD card slot
* 6x UARTs, 1x Softserial_Tx option(INAV)
* 10x PWM outputs
* 2x I2C
* 3x ADC (VBAT, Current, RSSI)
* Built in inverter for SBUS input
* USB Type-C(USB2.0)
FC Firmware
* ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
* INAV: MATEKF405SE (INAV 6.0 or newer)
PDB
* Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
* Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)
* Sense resistor: 100A continuous, 220A peak
* Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
BEC 5V output
* Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
* Continuous current: 2 Amps
BEC 9V /12V output
* Designed for Video Transmitter, Camera, Gimbal ect.
* Continuous current: 2 Amps
* 12V option with Jumper pad
* for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
* Designed for Servos
* Voltage adjustable, 5V Default, 6V or 7.2V options
* Continuous current: 5 Amps, 6A Peak
* for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
* Designed for external 3.3V peripherals
* Linear Regulator
* Continuous current: 200mA
Physical
* Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

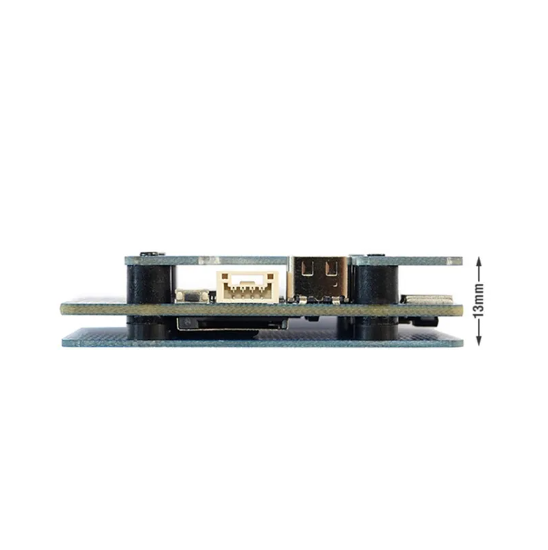

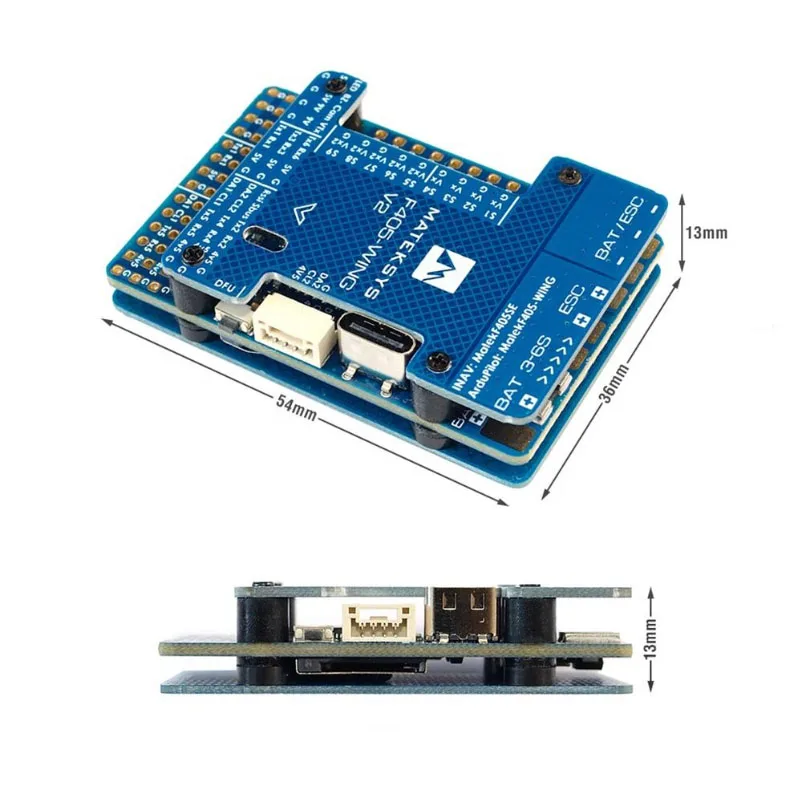

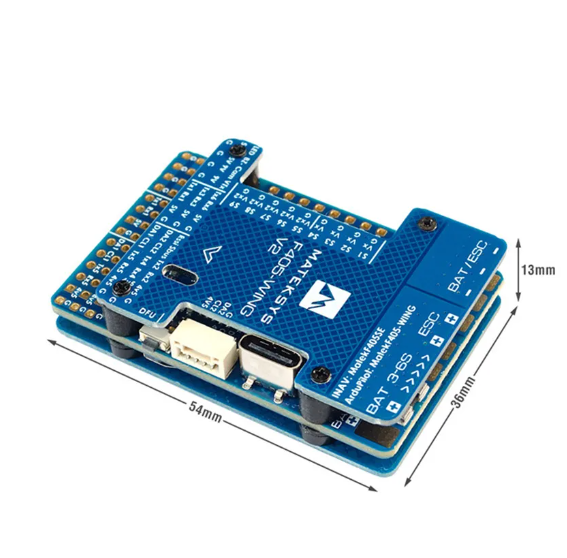

* Dimensions: 54 x 36 x 13 mm
* Weight: 25g
Including
* 1x F405-Wing-V2
* 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
* Dupont 2.54 pins (Board is shipped unsoldered)
Key specifications
| Brand | Matek |
|---|---|
| Department | Flight Controllers |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 48h · OEM run 15-20 working days |
| OEM / private label | Logo, packaging and firmware on request |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 11 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 121 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Matek Mateksys F405-WING-V2 FC?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For Matek Mateksys F405-WING-V2 FC we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
