MATEK MICRO BEC 6-60V TO 5V/9V/12V-ADJ MBEC12S Step-Down Regulator Module
SKU RS-312 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 10 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
Original Genuine Product MBEC12S MATEKSYS MICRO BEC 6-60V TO 5V/9V/12V-ADJ Step-Down Regulator Module For RC Model Airplane Helicopter FPV Racing Drone
- Wide 6V to 60V Operating Input Range
- Start-up Voltage >=6.7V

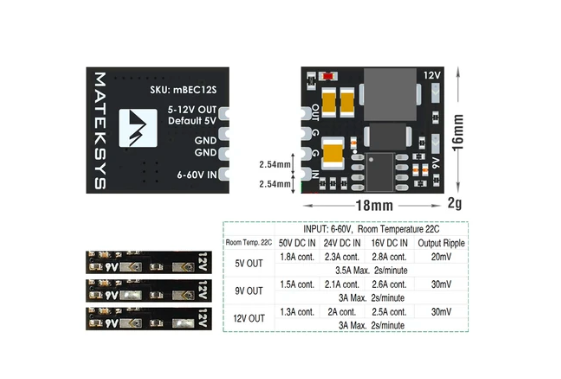

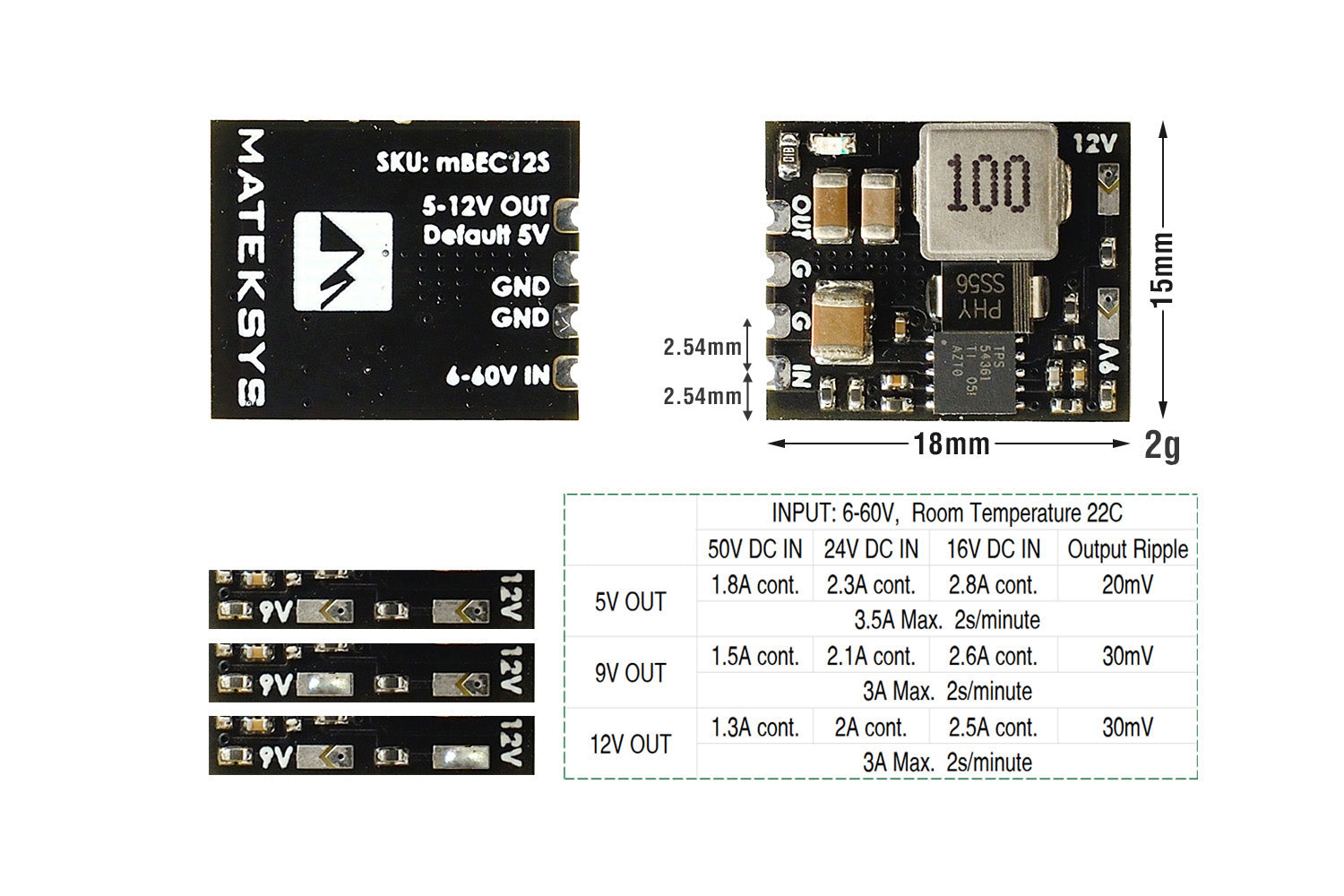

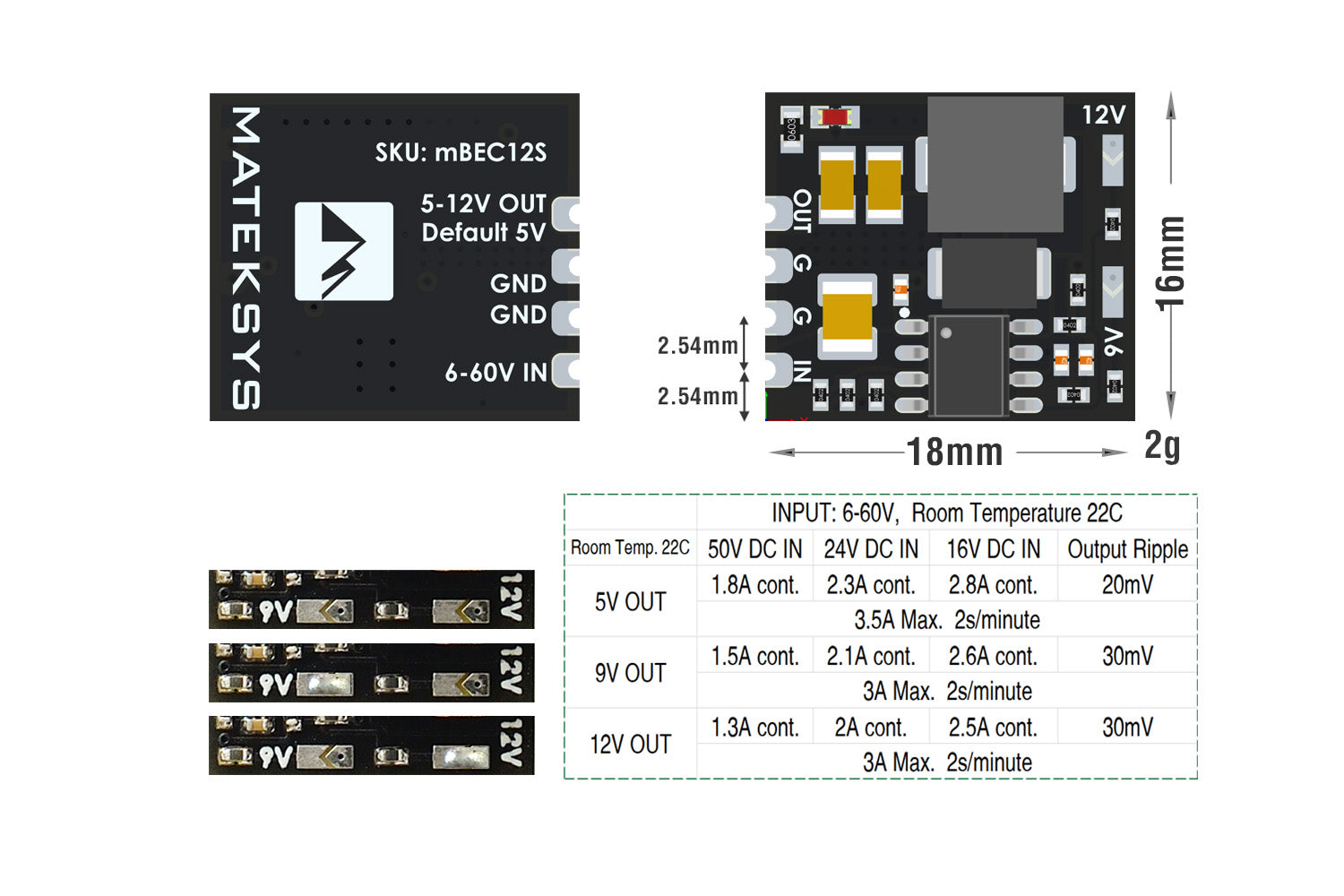

- VOut 5V, 9V or 12V Adj. Default is 5V.
- Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
- Continuous load current: Depends on input voltage and heat dissipation.
- Standby current: <5mA
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (3 seconds/minute)
- No protection for reversed input polarity
- Pins distance: 2.54mm

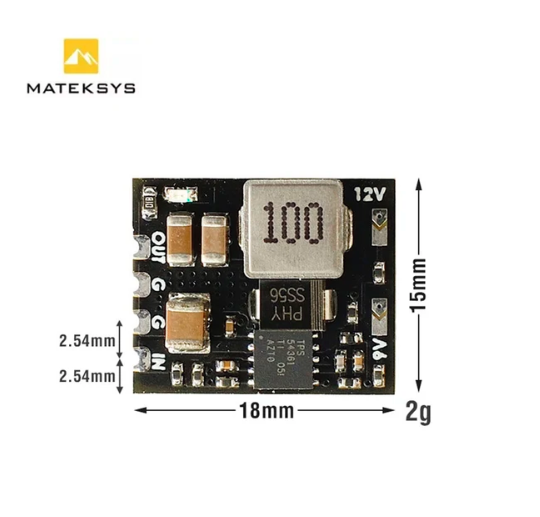

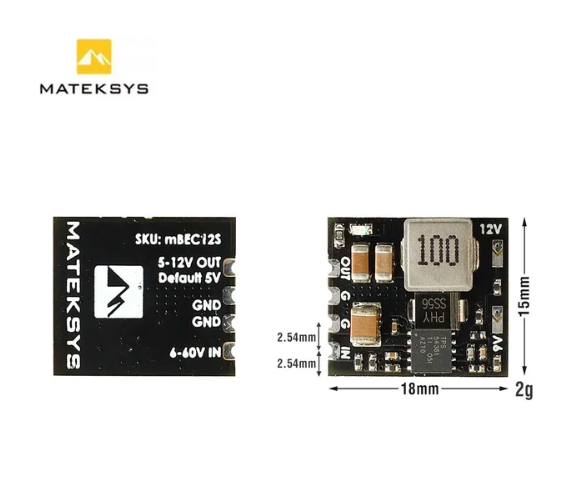

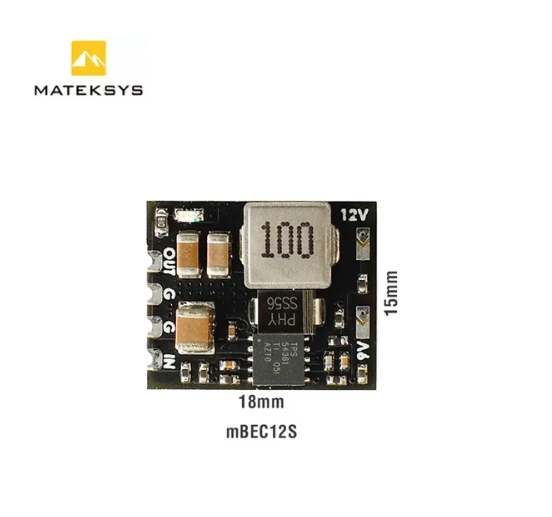

- Size & Weight: 18×15(16)x4.5mm, 2g
- Packing: 1pc/package
- Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.
- PCB 1mm wider.
- Identical performance as previous version.
- For details, please refer to the off
Key specifications
| Brand | Matek |
|---|---|
| Department | ESCs, PDB & BEC |
| Cell count | 12S |
| Nominal voltage | 60 V |
| Minimum order | 10 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 13 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 193 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for MATEK MICRO BEC 6-60V TO 5V/9V/12V-ADJ?
Stock supply starts at 10 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For MATEK MICRO BEC 6-60V TO 5V/9V/12V-ADJ MBEC12S Step-Down we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
