Matek · ESCs, PDB & BEC
Matek Systems Micro BEC 6-30V To 5V / 9V-ADJ Step-down Regulator
SKU RS-314 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
Matek Systems Micro BEC 6-30V to 5V / 9V-ADJ Step-down Regulator Module
Specification:
Brand name: Matek Systems
Article name: Micro BEC
Continuous load current: 1.5 amps (max.2.5A 5 s / minute)
VOut 5 V or 9 V Adj. Standard is 5 V.
Out load regulation: 2%
Standby current: <5mA
Maximum cycle: 95%
Pins distance: 2.54mm
Quantity: 3 pcs

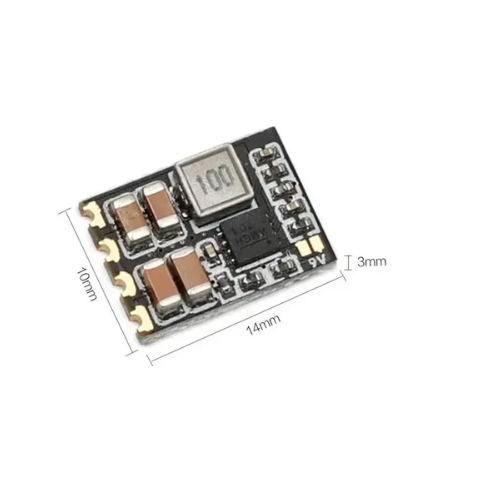

Size: 10x14x3mm
Weight: 1g
High efficiency synchronous step-down regulator
Wide 6V to 30V operation input range
OCP protection and Hiccup
Thermal shutdown
Output short-circuit tolerant (5 seconds / minute)
Key specifications
| Brand | Matek |
|---|---|
| Department | ESCs, PDB & BEC |
| Nominal voltage | 30 V |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 48h · OEM run 15-20 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 4 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 11 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 131 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Matek Systems Micro BEC 6-30V To 5V /?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For Matek Systems Micro BEC 6-30V To 5V / 9V-ADJ Step-down we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
