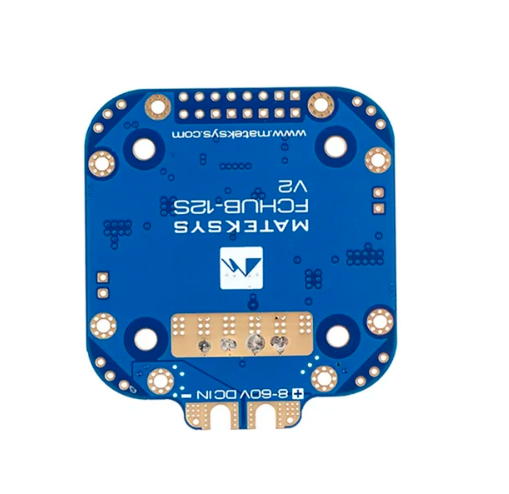

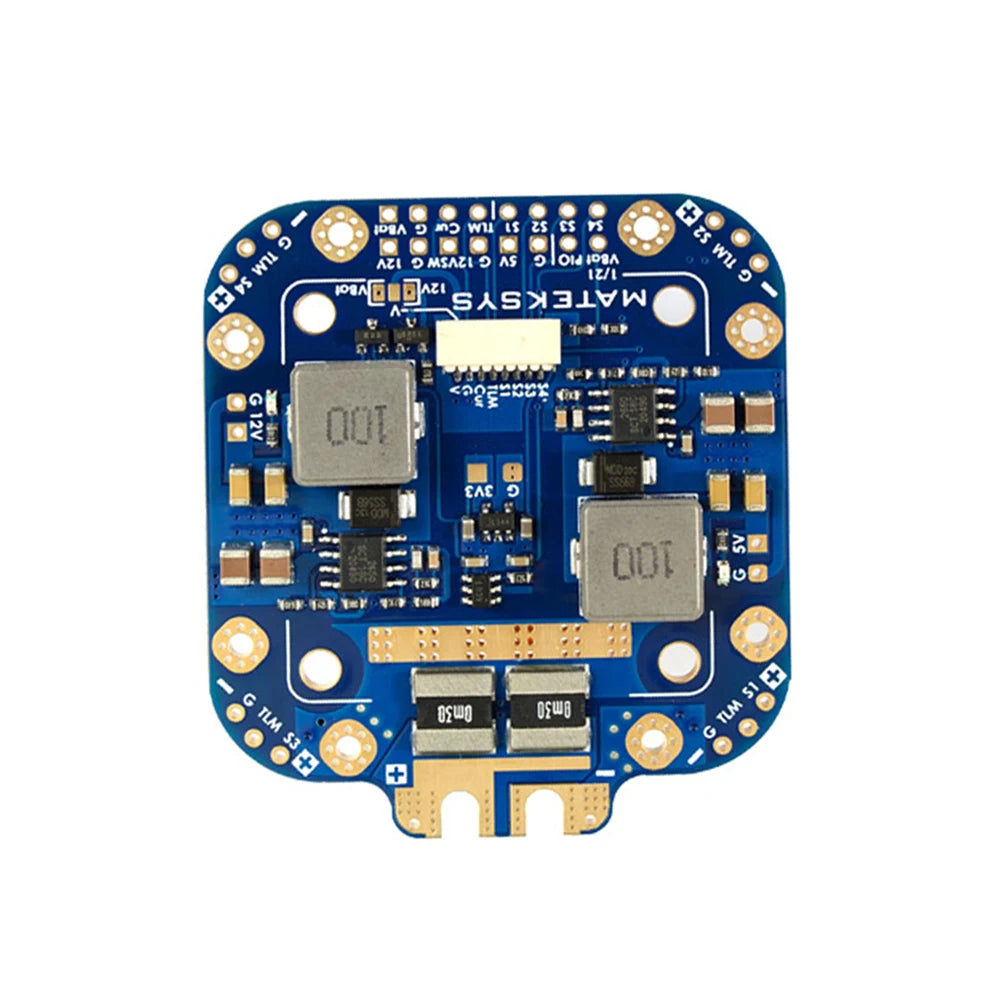

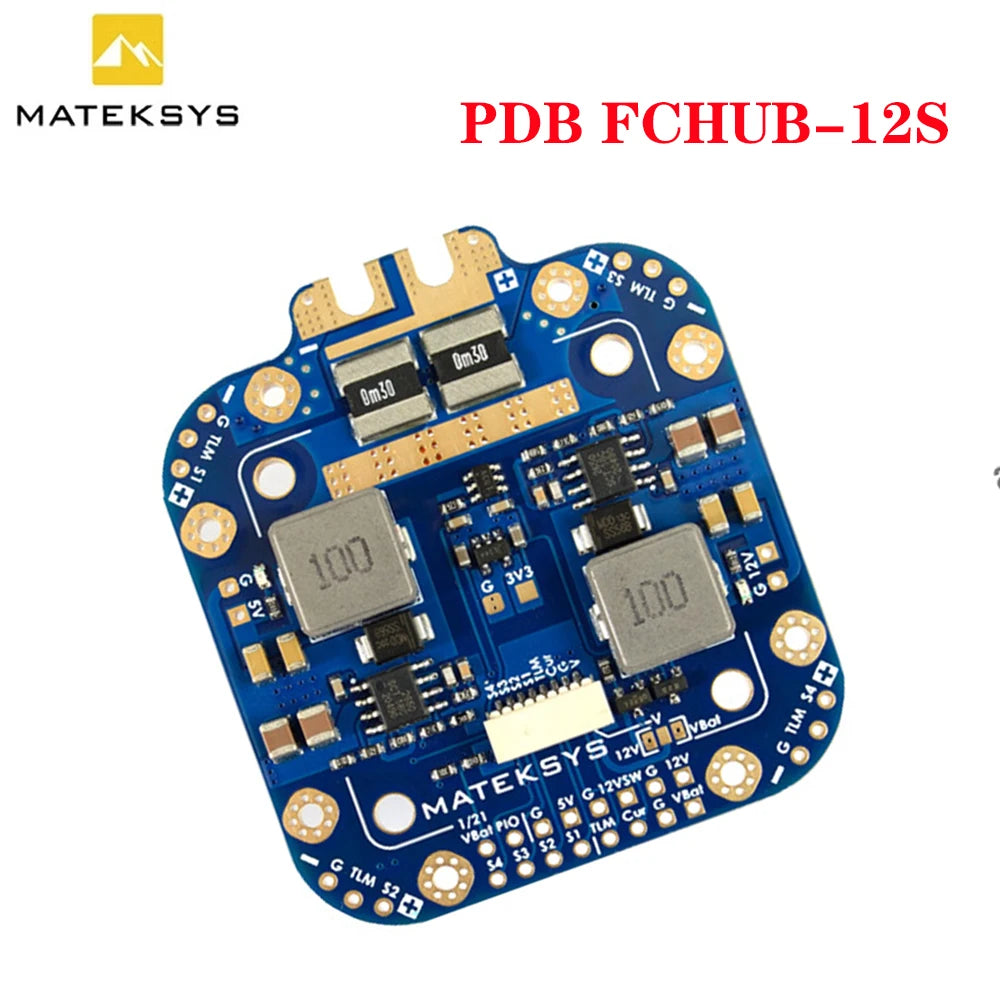

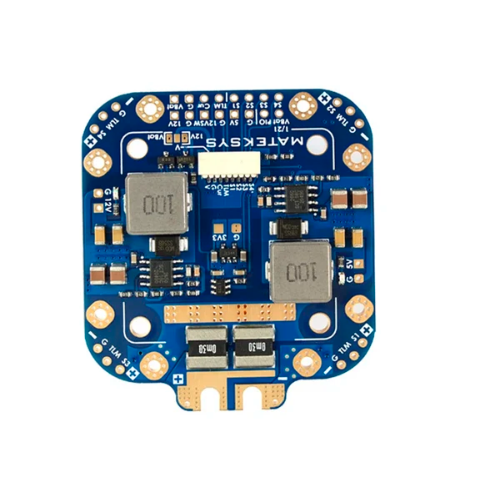

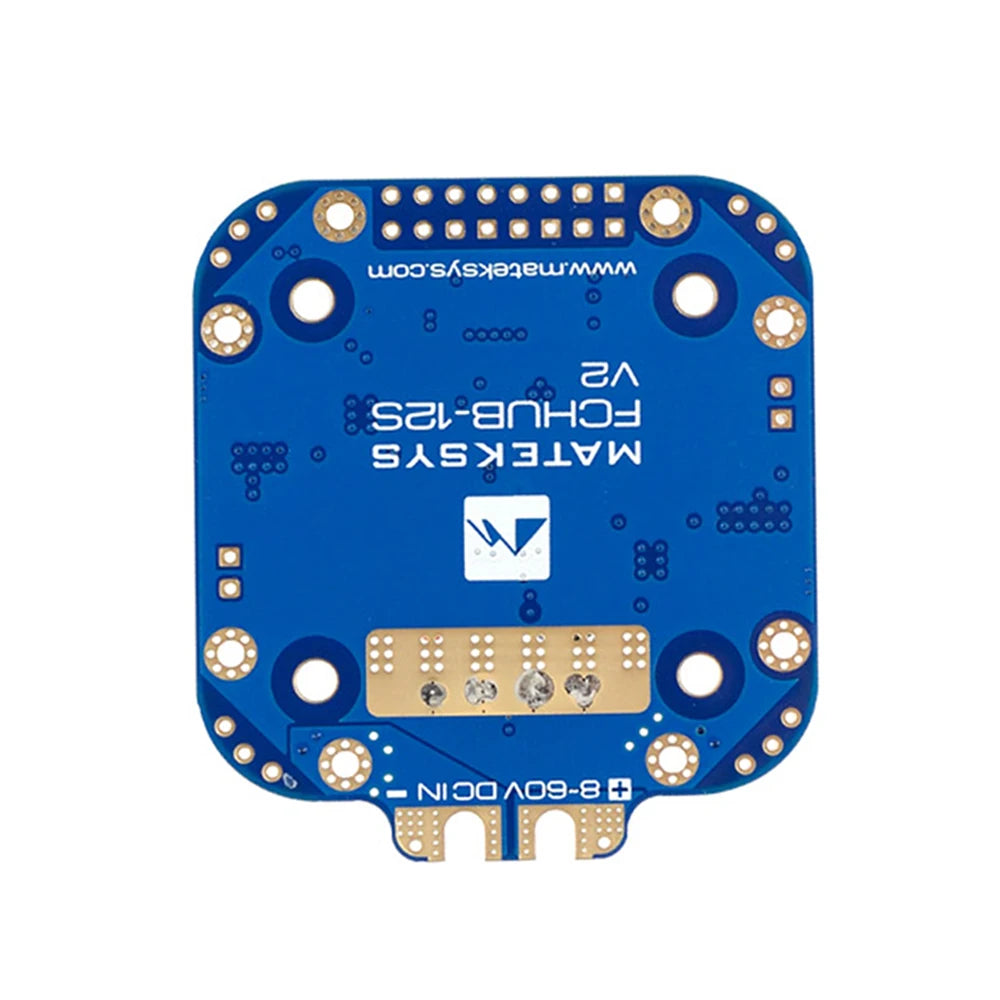

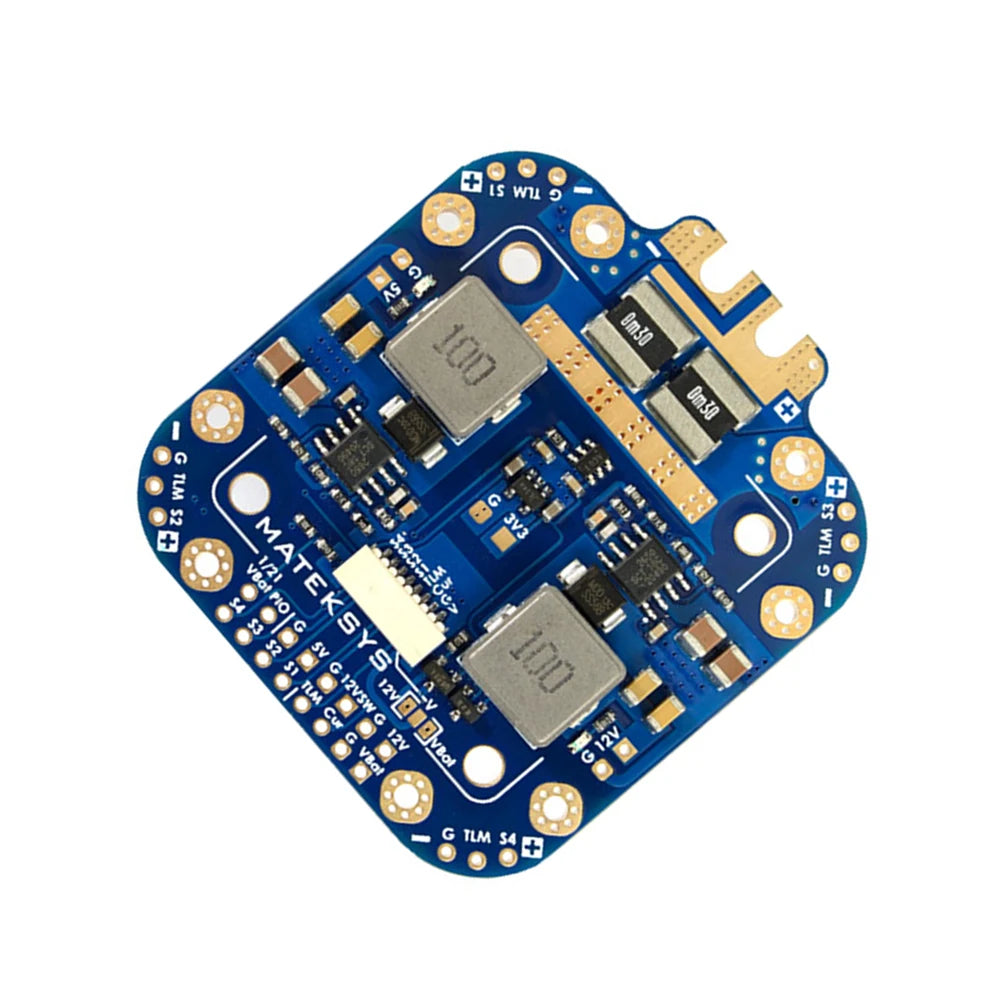

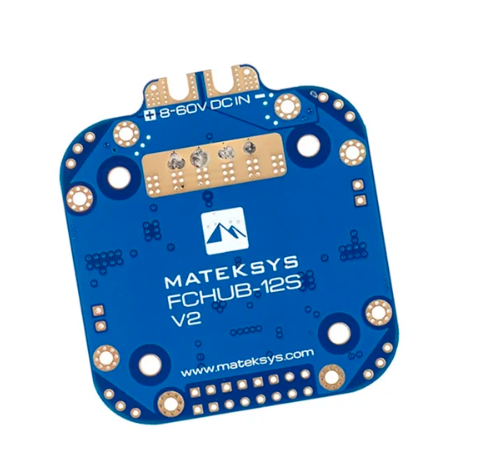

MATEKSYS PDB FCHUB-12S V2 5V / 12V Output 440A Current Sensor 3-12S 30.5mm
SKU RS-317 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
- Input voltage range: 8~60V (3~12S LiPo)
- 4x70A cont, 4x110A burst
- 4x ESC power /signal/ telemetry pads
- Current Senor: 440A, 3.3V ADC, Scale 75
- 2x LED indicators for 5V, 12V
FFC connection:
- Compatible with MATEKSYS FC F405-STD, F722-STD
- VTX: Video Transmitter signal
- T5 & R5: TX5 and RX5 of F405-STD/F722-STD
BEC 5V output (5V pad):
- Voltage: 5.0 +/- 0.1VDC
- Continuous current 5 Amps, Max.6A
- Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
BEC 12V output (12V pad):
- Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
- Continuous current 4 Amps, Max.5A
- Input voltage<12V, Output voltage = Input voltage
- Probably there is audible sound in the BEC12V inductor when Input voltage<12V
Short-circuit tolerant (2 seconds):
- Overcurrent protection & self-recovery
- Switchable 12V output (SW12V pad)
- 12V ON/OFF can be switched via PINIO
- can be use for powering VTX,LED etc.
BEC 3.3V output:
- Linear Regulator
- Continuous current: 500mA

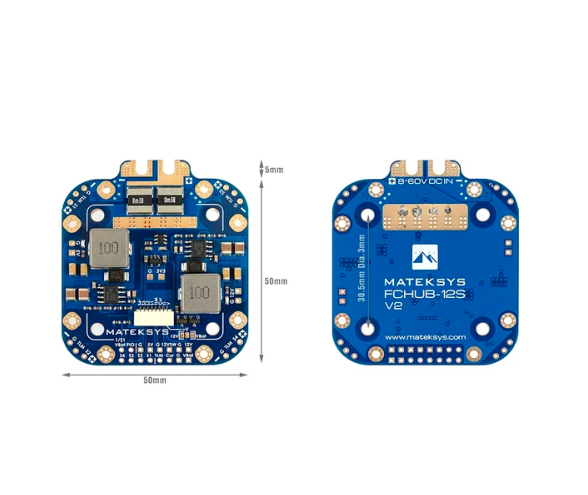

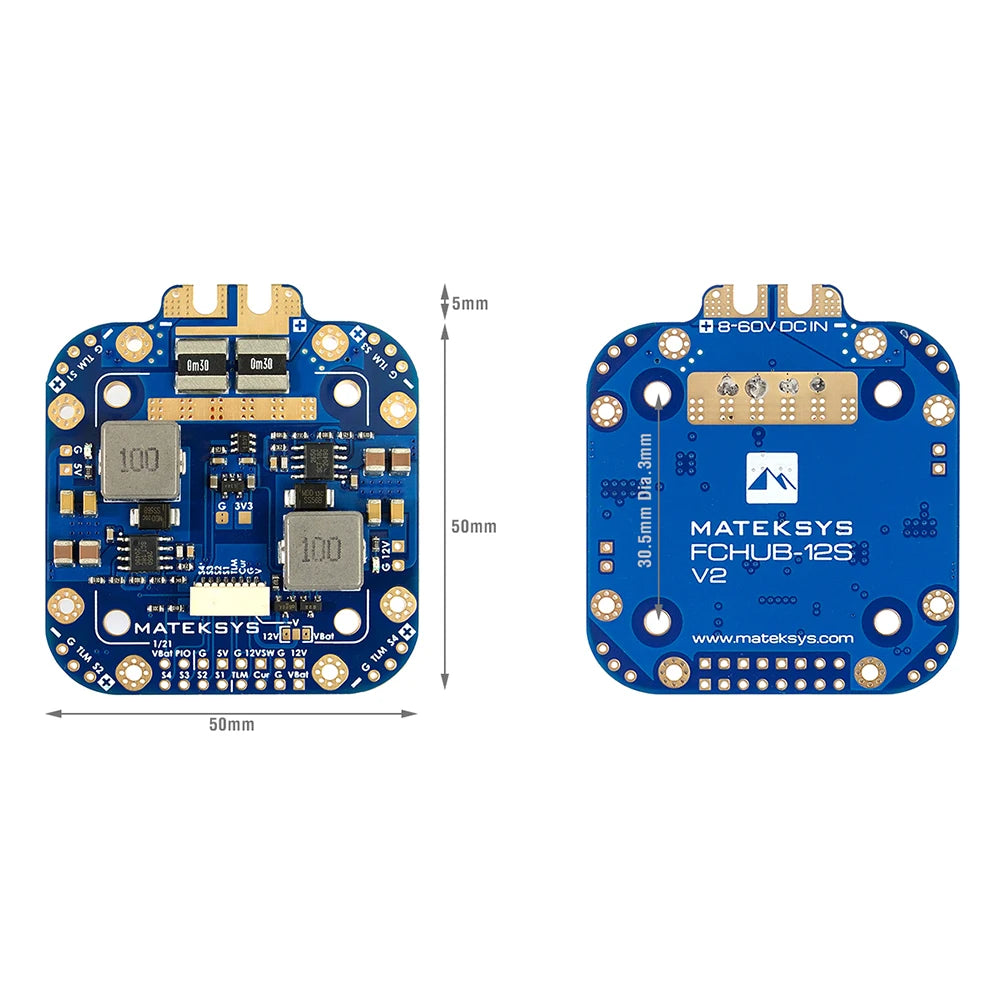

Physical:
- Mounting: 30.5 x 30.5mm, Φ3mm
- Dimensions: 55 x 50 x 6 mm
- Weight: 21g
Key specifications
| Brand | Matek |
|---|---|
| Department | ESCs, PDB & BEC |
| Cell count | 12S |
| Nominal voltage | 5 V |
| Current rating | 440 A |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 10 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 150 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for MATEKSYS PDB FCHUB-12S V2 5V / 12V?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For MATEKSYS PDB FCHUB-12S V2 5V / 12V Output 440A Current we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
