SG92R Digital Micro Servo - Upgraded SG90 with Carbon Fiber Gears
SKU RS-57 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 10 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
Product Overview

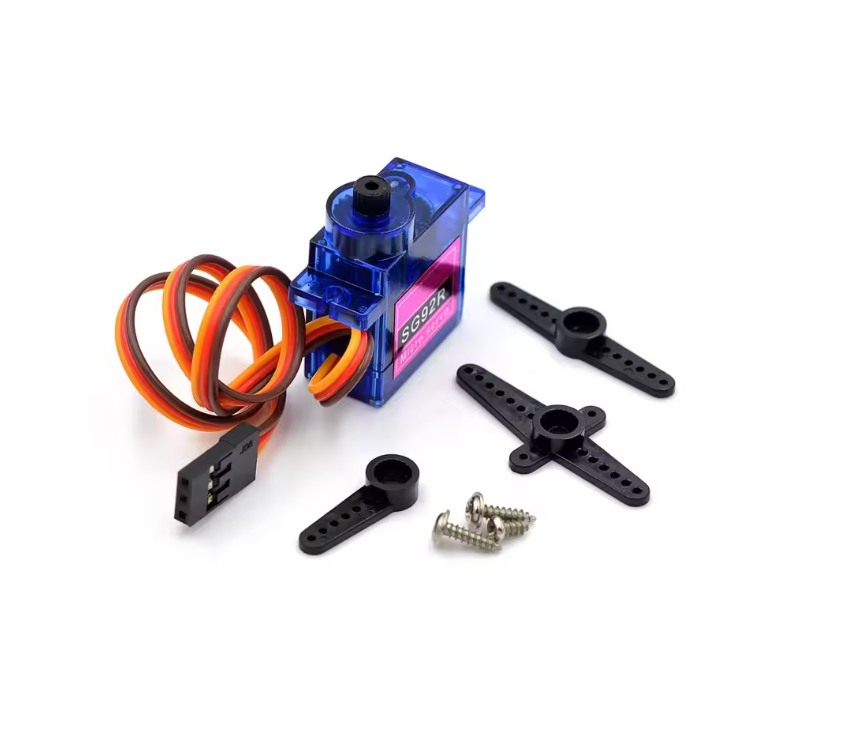

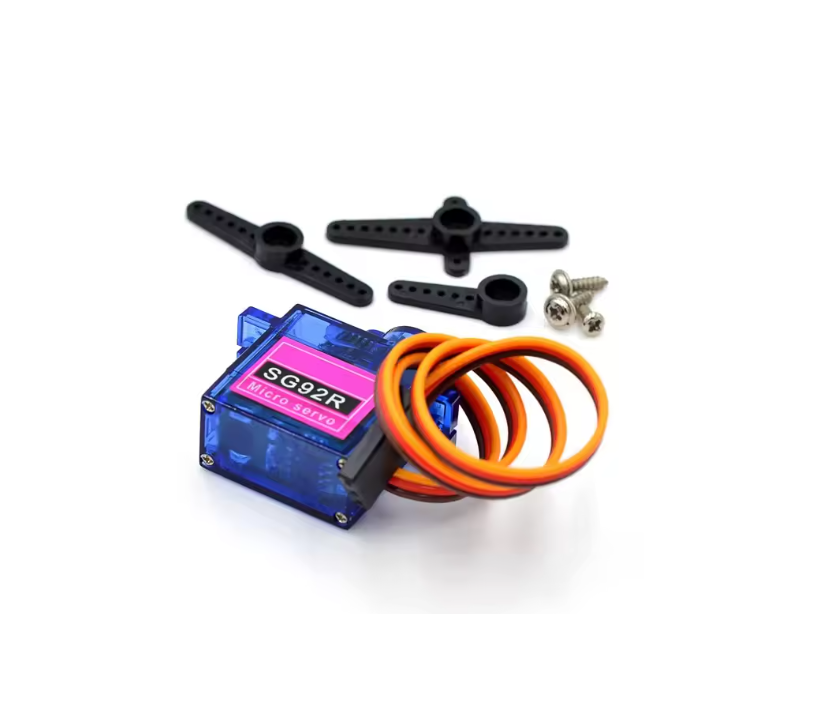

SG92R Micro Digital Servo (Carbon Fiber Gears, 2.5kg Torque)
The SG92R is a high-performance digital upgrade to the classic SG90 micro servo. Weighing only 9g, it offers significantly more power and durability by utilizing carbon fiber reinforced POM gears. It is an ideal choice for weight-sensitive applications requiring precision and reliability, such as 3D park flyers, high-speed jets, 250-450 size RC helicopters, and educational robotics.
Key Features
- Enhanced Durability: Features a gear set made of POM (Polyoxymethylene) with Carbon Fiber, which is more wear-resistant than standard nylon gears.
- High Torque Output: Delivers a powerful 2.5kg/cm stall torque at 4.8V, providing excellent holding power for its small size.
- Fast & Precise Response: The digital control system ensures constant torque throughout the travel range and a quick reaction speed of 0.1 seconds per 60°.
- Lightweight Design: Compact dimensions and a weight of just 9g minimize the impact on your aircraft's center of gravity.
- Universal Compatibility: Equipped with a standard JR/Futaba universal connector and a 25cm cable, making it compatible with almost all RC receivers and microcontrollers like Arduino.
Technical Specifications
- Weight: 9 grams.

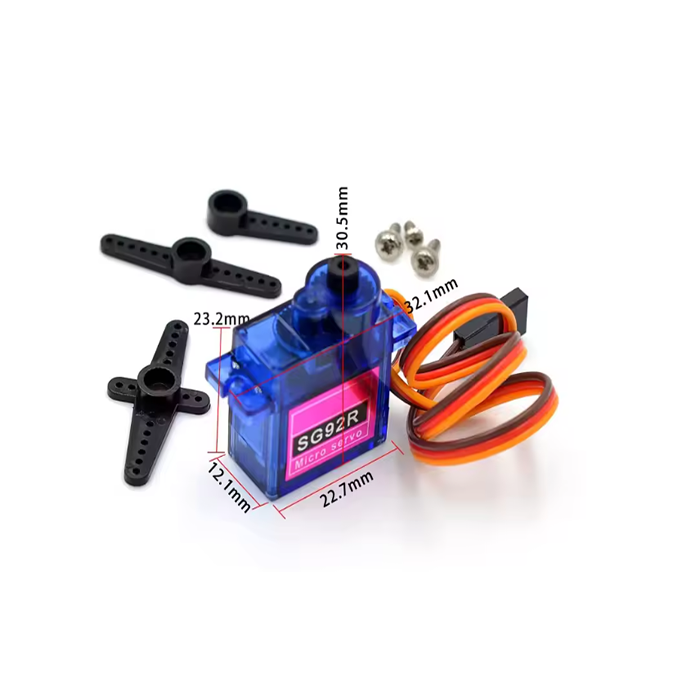

- Dimensions: 23mm x 12.2mm x 27mm.
- Operating Voltage: 3.0V to 7.2V (Optimal 4.8V).
- Stall Torque: 2.5 kg/cm at 4.8V.
- Operating Speed: 0.1 sec / 60° at 4.8V (0.08 sec / 60° at 6.0V).
- Gear Type: POM with Carbon Fiber.
- Operating Angle: Approximately 180 degrees.
- Dead Band Width: 1µs to 10µs depending on specific controller settings.
Package Includes:
- 1 x SG92R 9g Micro Digital Servo.
- 3 x Assorted Servo Horns (Arms).
- 1 x Set of Mounting Screws.
Key specifications
| Department | Motors & Servos |
|---|---|
| Minimum order | 10 pcs (samples available) |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 13 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 153 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for MECHFPV SG92R Digital Micro Servo?
Stock supply starts at 10 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For MECHFPV SG92R Digital Micro Servo - Upgraded SG90 with we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
