Holybro Zephyr ELRS Gemini X dual band receiver
Price on request
MOQ 10 pcs · samples available
Ruistart · Radio, RX & VTX

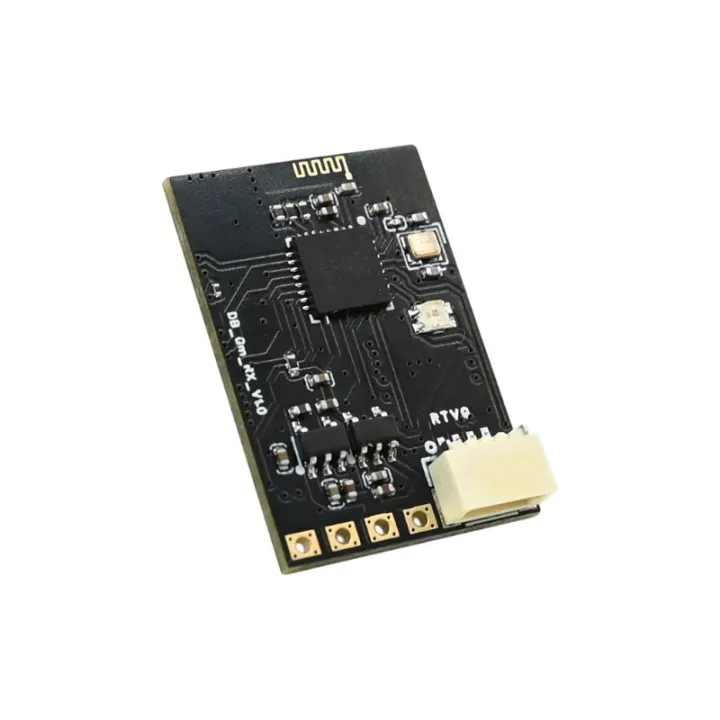

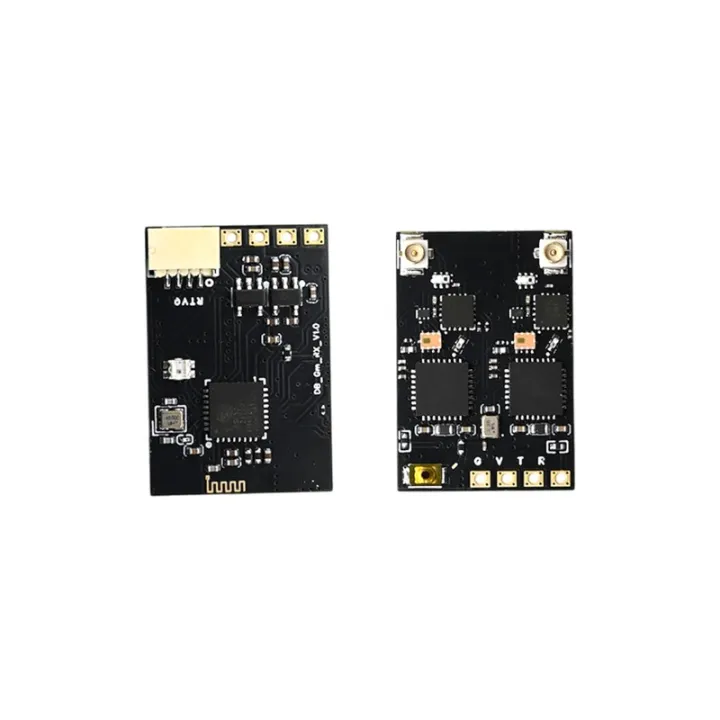

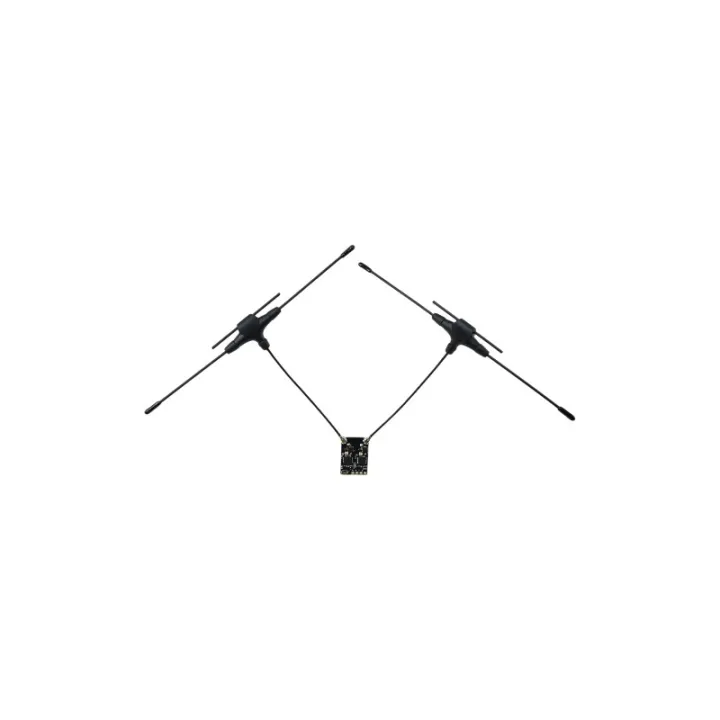

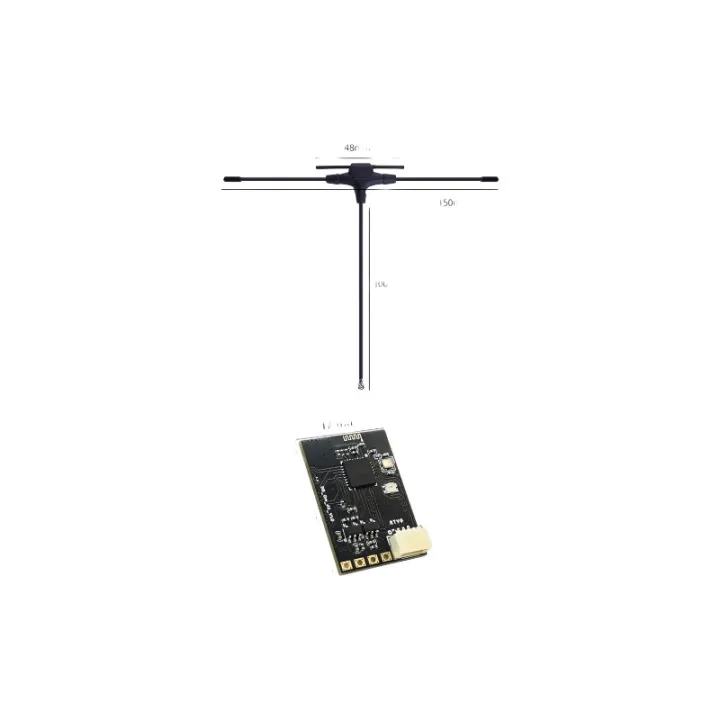

Super X dual ELRS Receiver
SKU RS-244 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 2 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
Description
Product Specifications
Product Name:Super X double
Size: 17mm * 25mm * 1.17mm

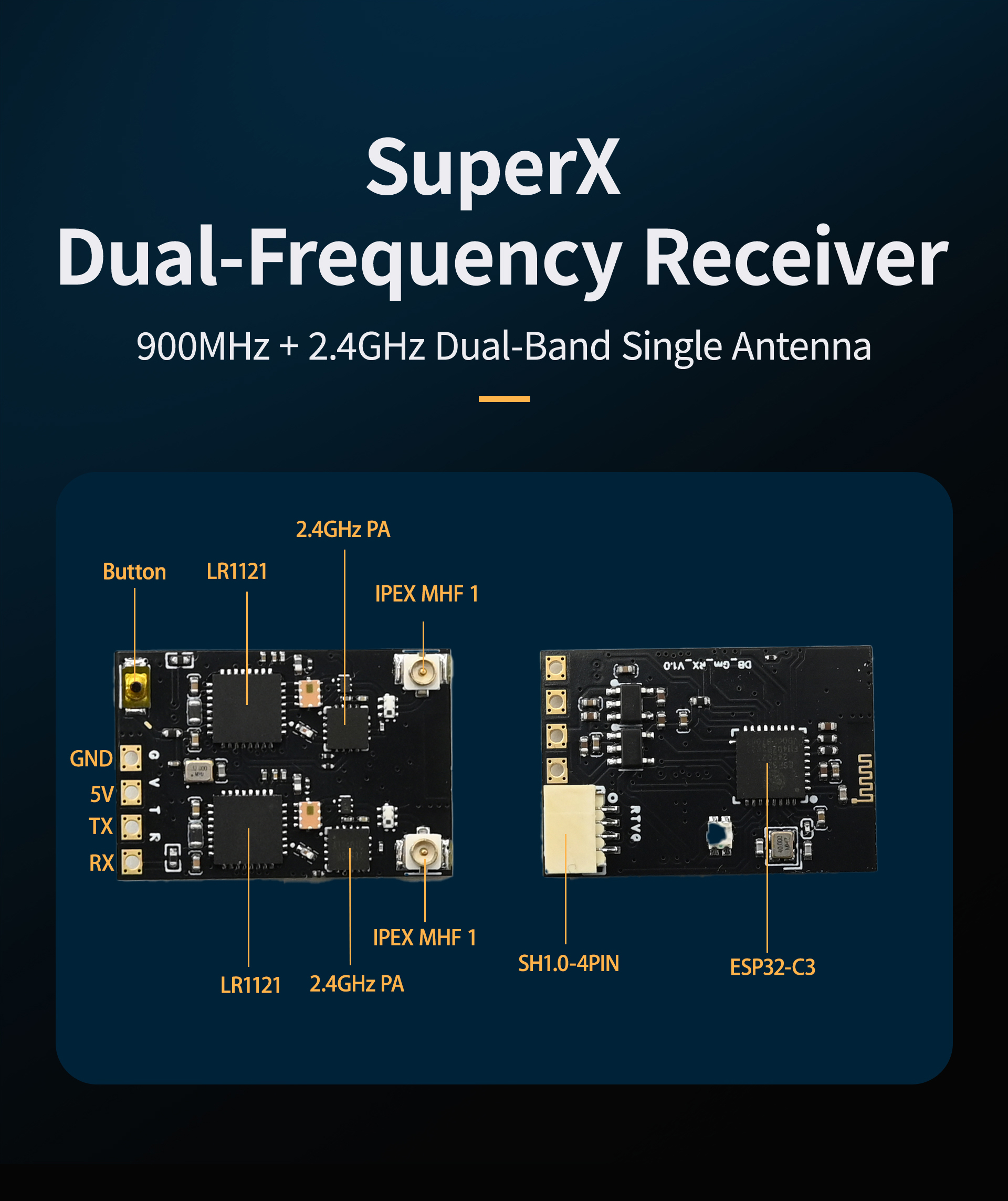

Main Control Chip:ESP32-C3

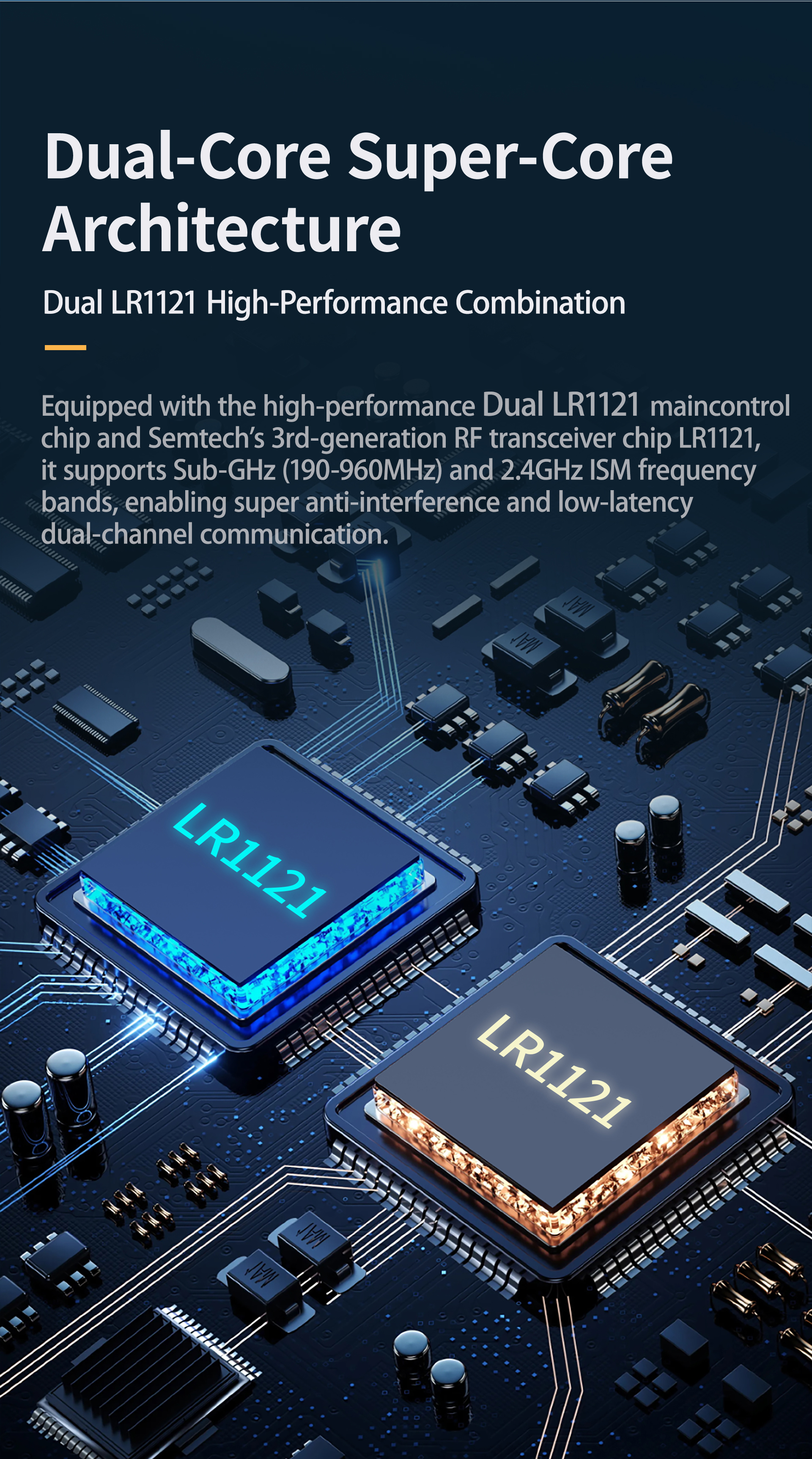

RF chip:LR1121*2

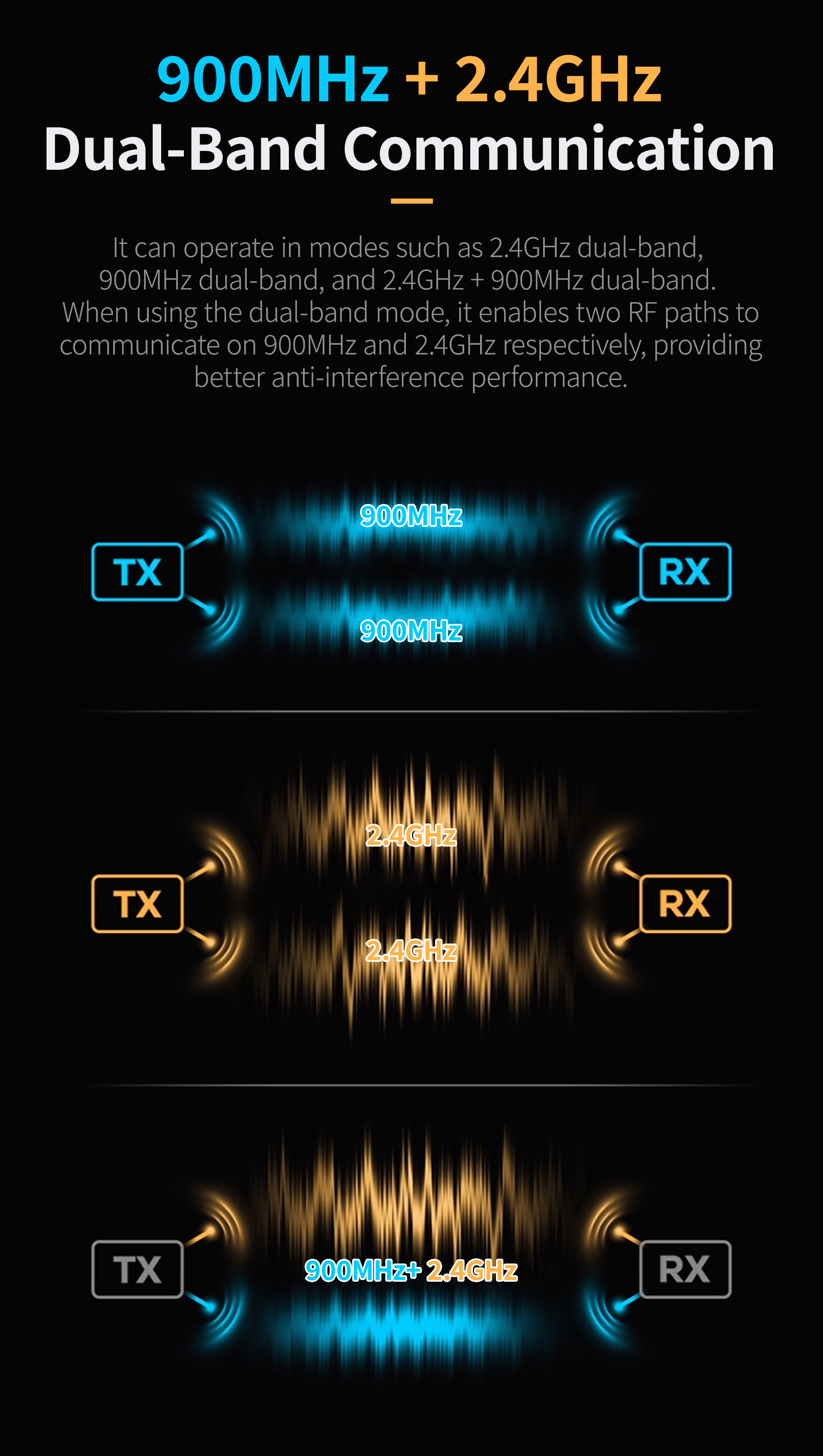

Frequency Band:900M+2.4G
Backhaul Power:20dbm

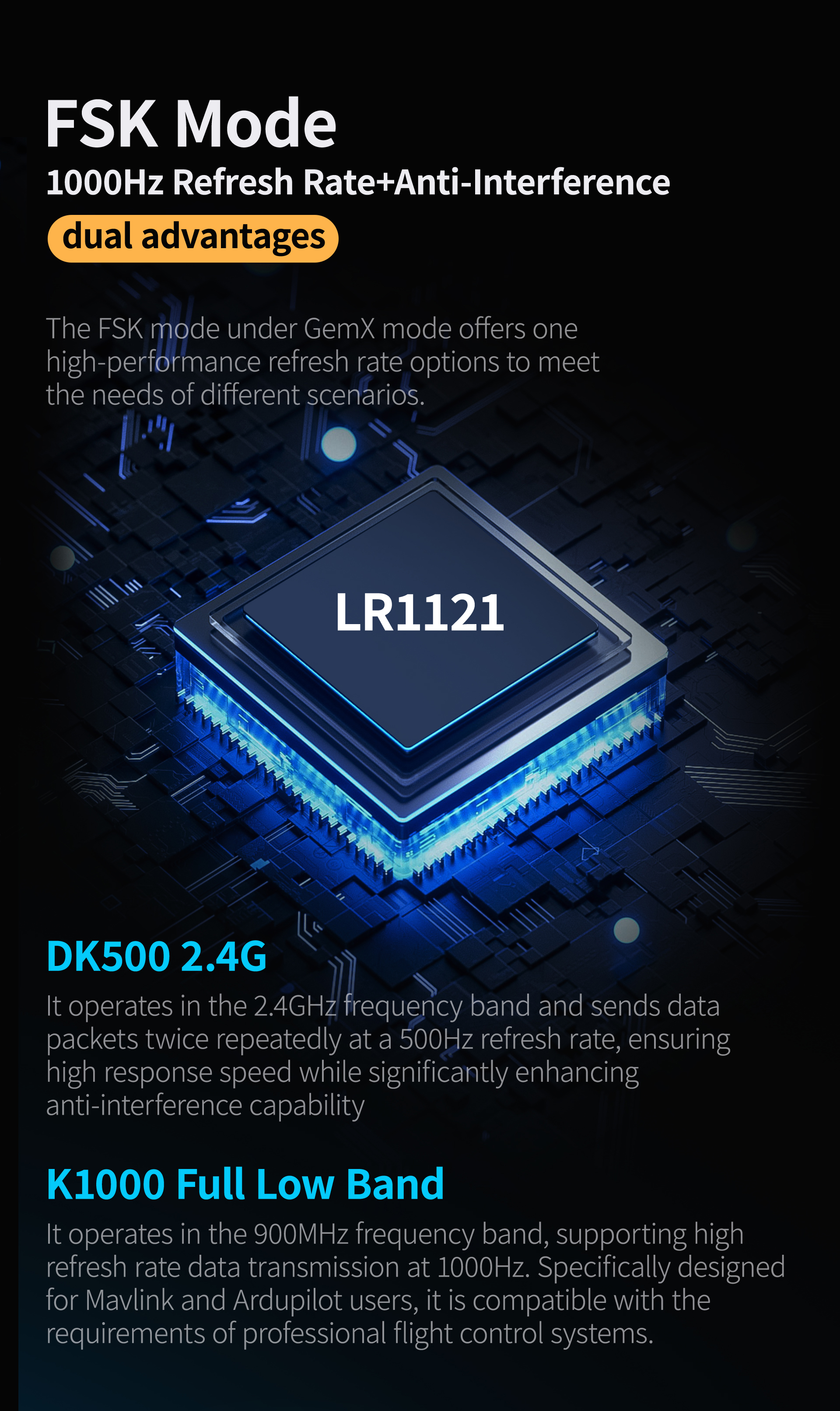

Modulation Mode:LORA FSK
Crystal oscillator: temperature compensated crystal oscillator

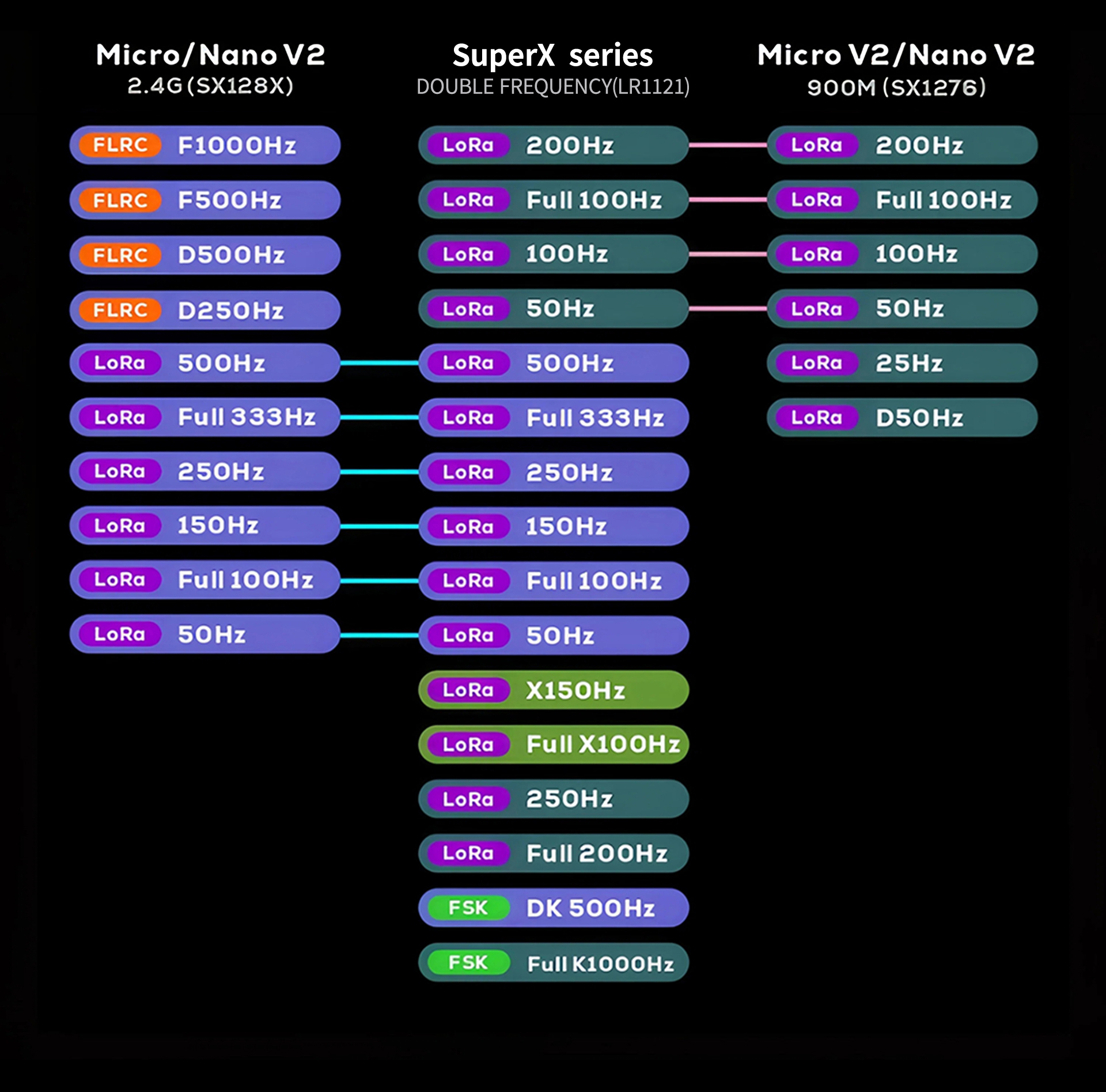

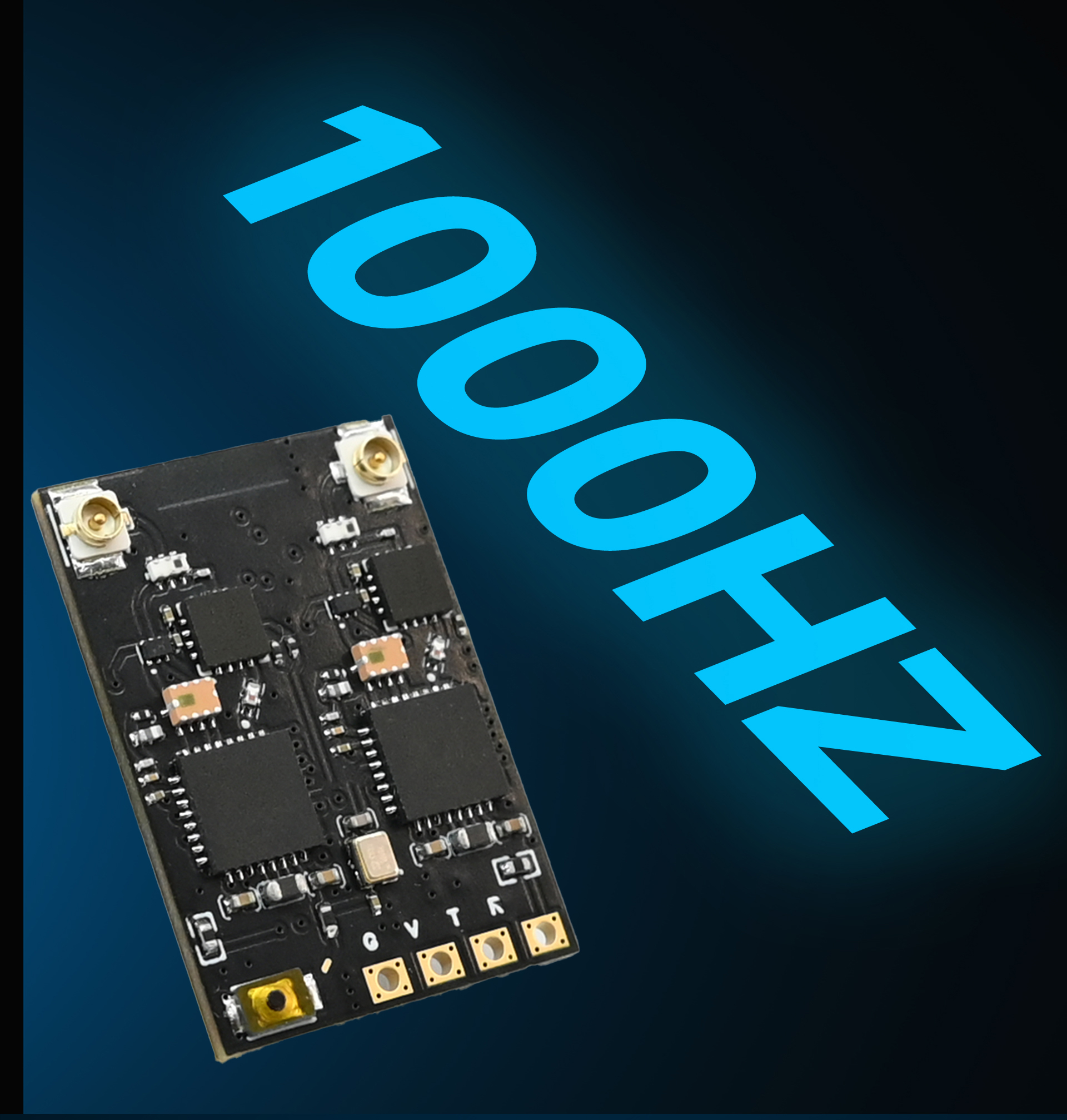

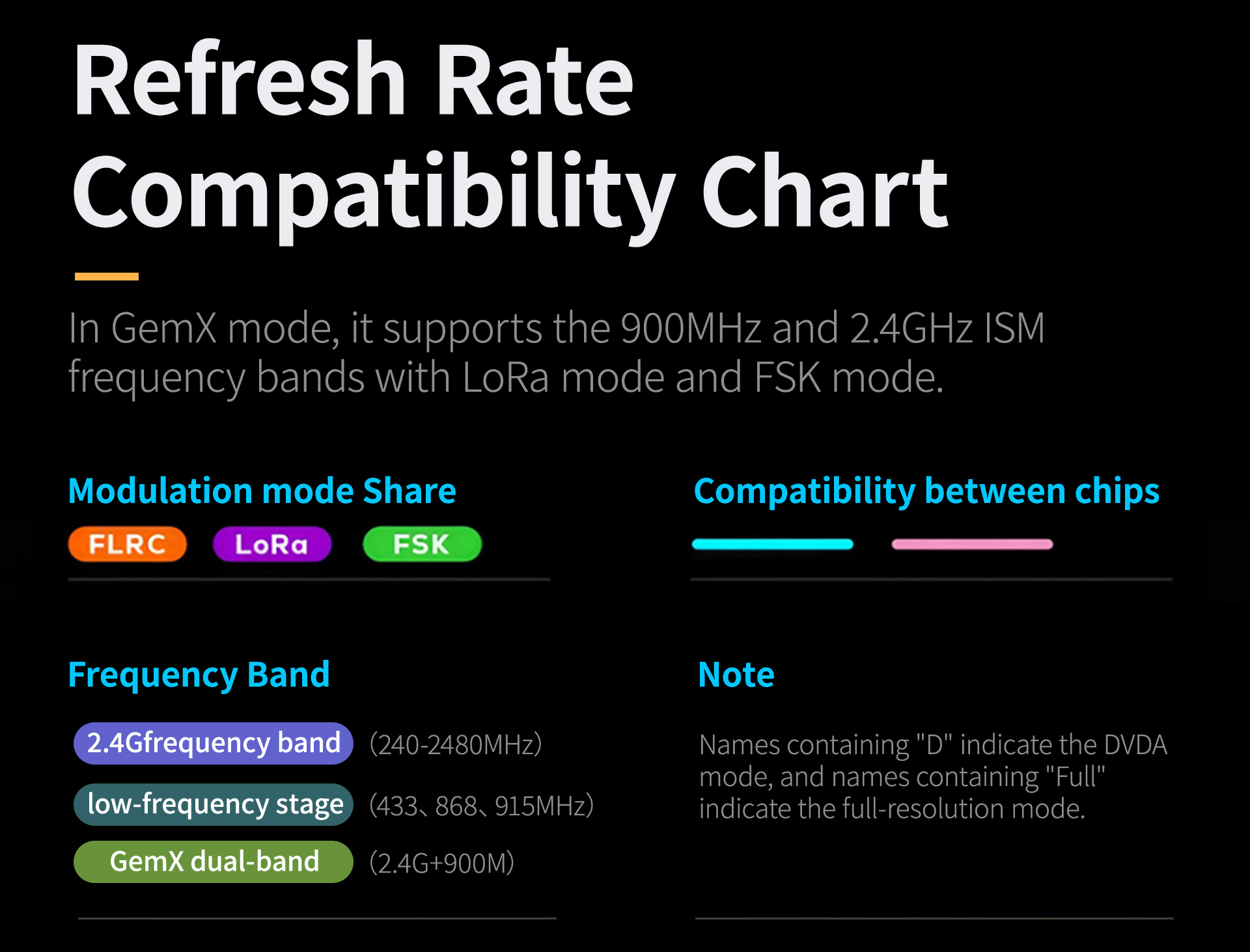

Refresh rate: 25Hz-1000Hz
Working voltage: 5V
Antenna interface: IPEX1
Firmware: Alz Dual Band RX V2
Return power: 100mW

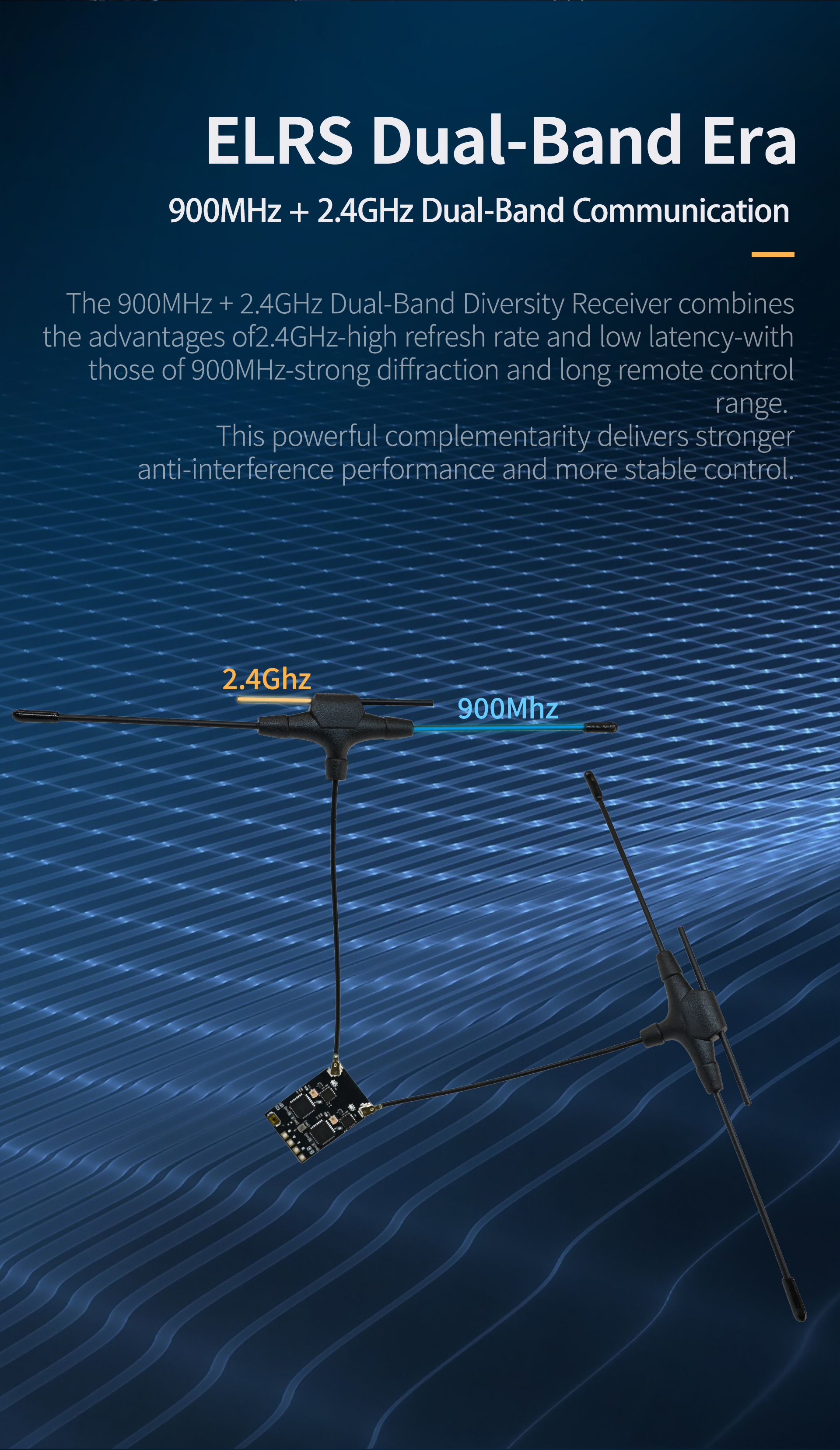

Working frequency band: 915MHz Gemini, 2.4GHz

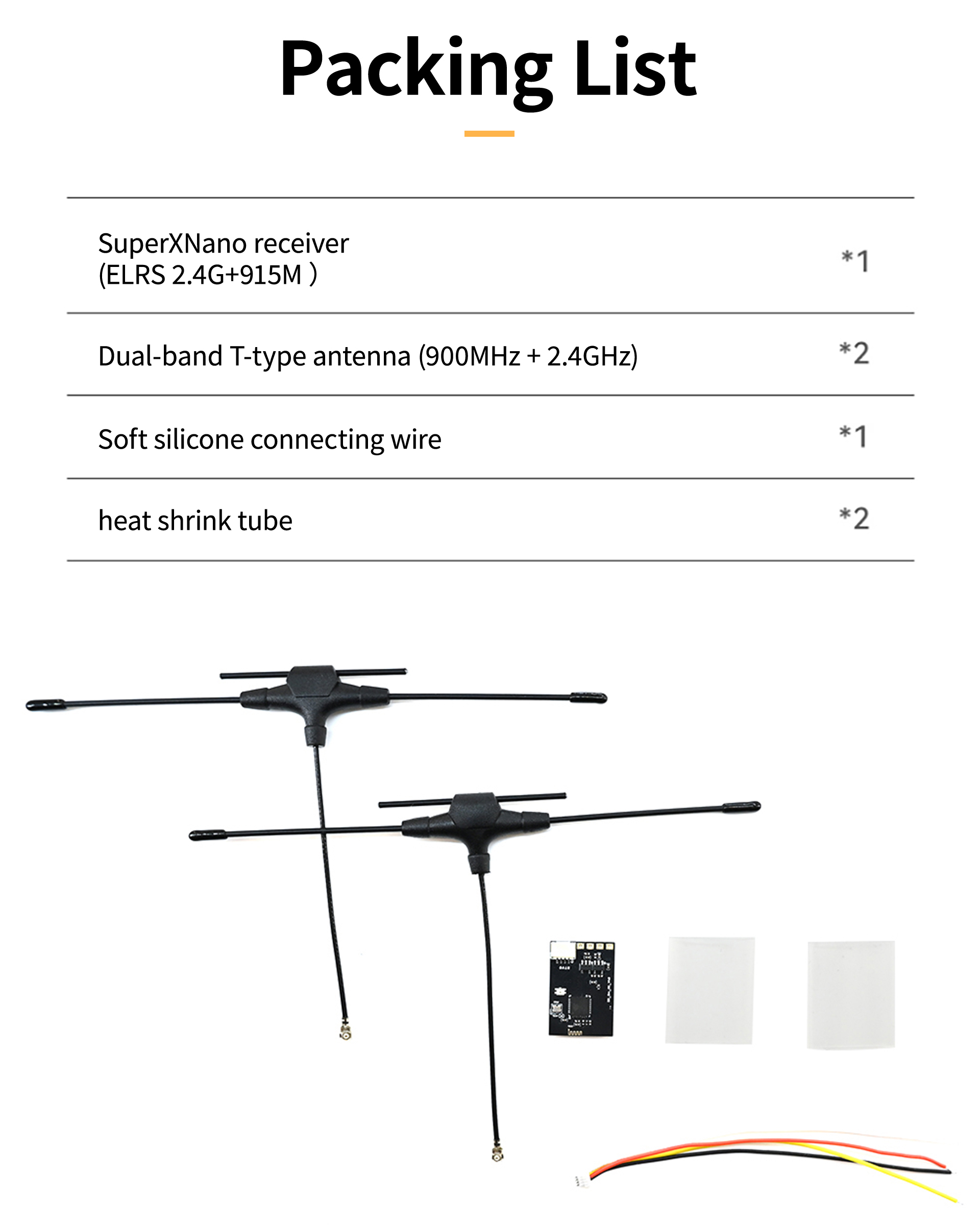

Packing List
1x MECHFPV Receiver
2x 915M/2.4G IPEX1 antenna
2x Heat shrink sleeve

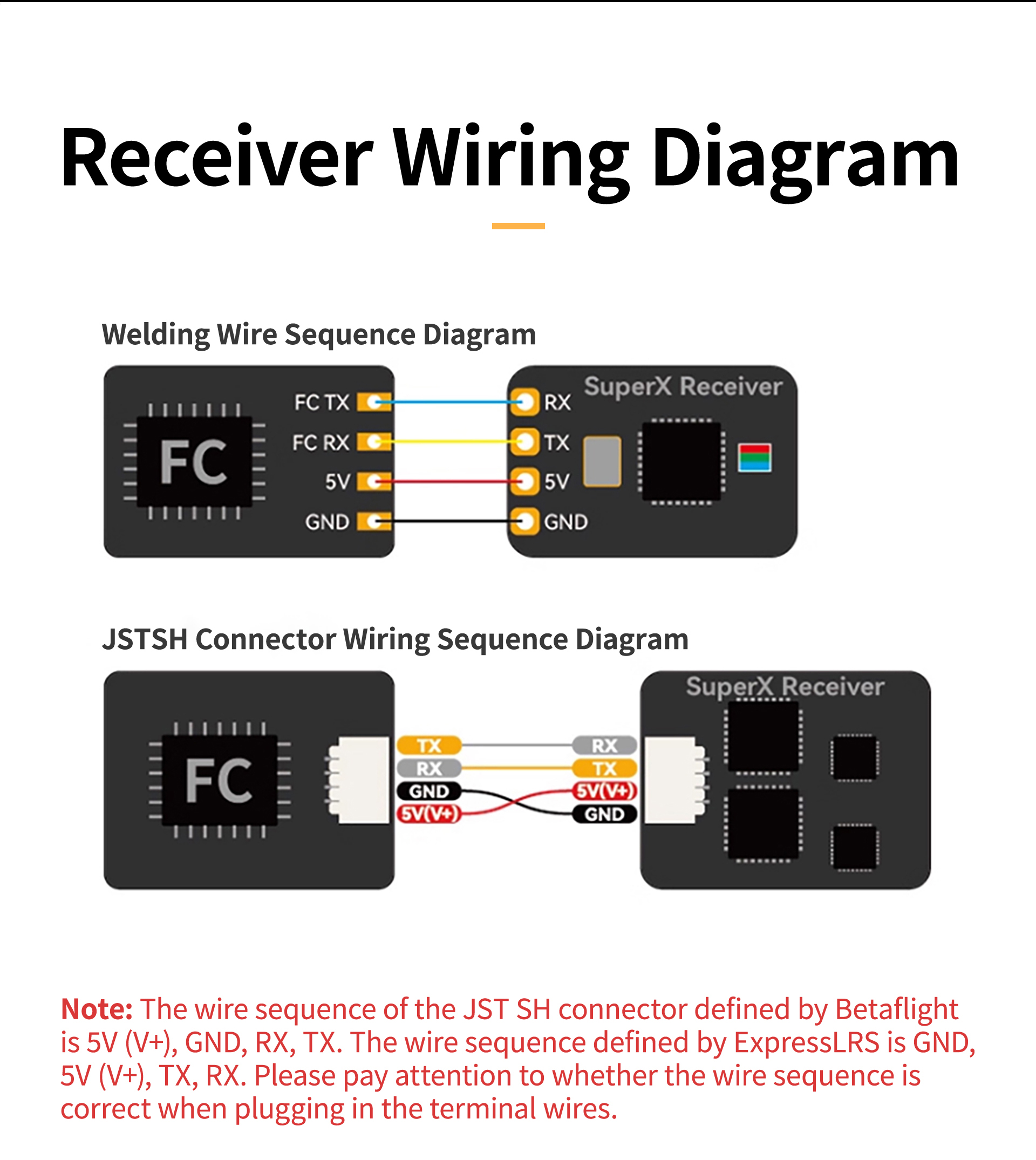

4x Welding line
Key specifications
| Department | Radio, RX & VTX |
|---|---|
| Minimum order | 2 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 15 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 185 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Mechfpv Super X dual ELRS Receiver?
Stock supply starts at 2 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For Mechfpv Super X dual ELRS Receiver we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
