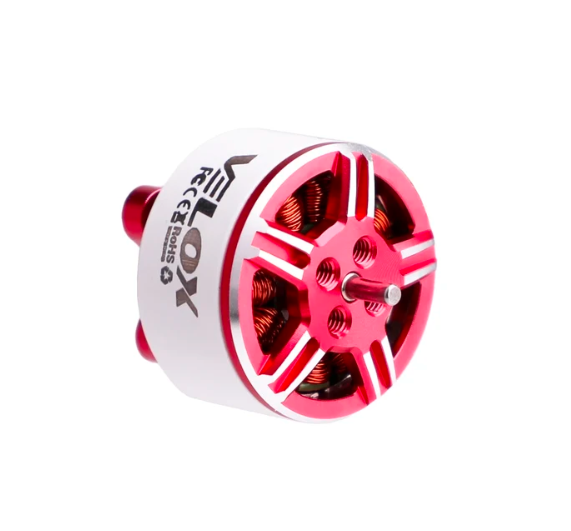

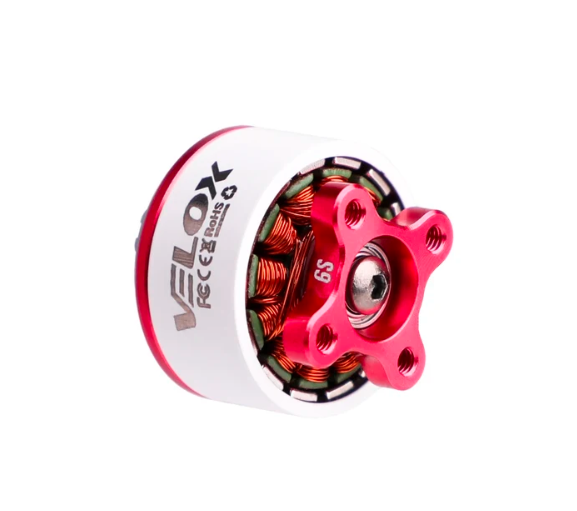

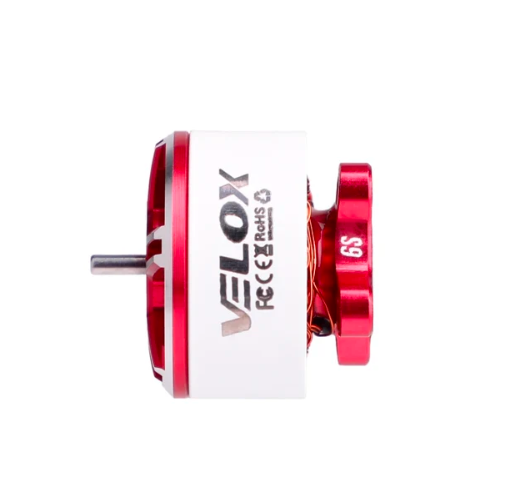

T-MOTOR VELOX V1507 3inch High Thrust Motor 1.5mm/5mm Shaft 4S/6S

description:

The T‑MOTOR VELOX V1507 is a high‑performance 3‑inch class high‑thrust brushless motor designed for 3‑inch FPV cinewhoop, freestyle and lightweight payload drone builds. It offers dual‑shaft hardware options: 1.5mm shaft‑less and 5mm threaded shaft, plus two voltage variants for 4S (4100KV) and 6S (2700KV) LiPo battery operation.

Adopting optimized 12N14P magnetic‑stator structure together with thermal simulation optimization, this motor achieves up to 20 °C lower operating temperature under heavy continuous throttle compared to legacy F1507 motor for better reliability during aggressive flight. Built‑in black‑nickel‑plated arc magnets, imported MR63zz bearings and O‑ring sealing enhance durability and crash resistance. M2 lock‑screw shaft design simplifies maintenance without protruding screw interference with frames. Max single‑motor thrust reaches 869g, supporting take‑off payload up to 300g for 3‑inch drone platforms. Perfect for cinewhoop, freestyle, light GoPro‑carrying 3‑inch multirotor projects.

brand: T‑MOTOR

sku: TM‑VELOX‑V1507

offers:

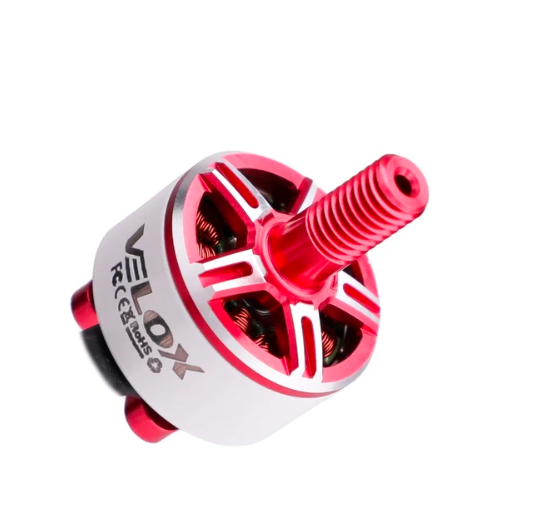

• 3‑inch high‑thrust motor, optional 1.5mm shaft‑less / 5mm threaded shaft versions

• Dual‑voltage options: 4S (4100KV) / 6S (2700KV) LiPo compatible

• 12N14P stator design, optimized thermal performance, runs 20°C cooler under heavy load

• Black‑nickel arc‑magnets, imported MR63zz bearings and O‑ring dust‑proof seal

• M2 lock‑screw shaft structure for easy repair, non‑protruding mounting

• Max thrust up to 869g, supports payload up to 300g for 3‑inch cinewhoop / freestyle drones

• Φ12 mm‑M2‑4‑hole mounting pattern, compatible with mainstream 3‑inch frames

availability: In Stock, Fast Shipping
