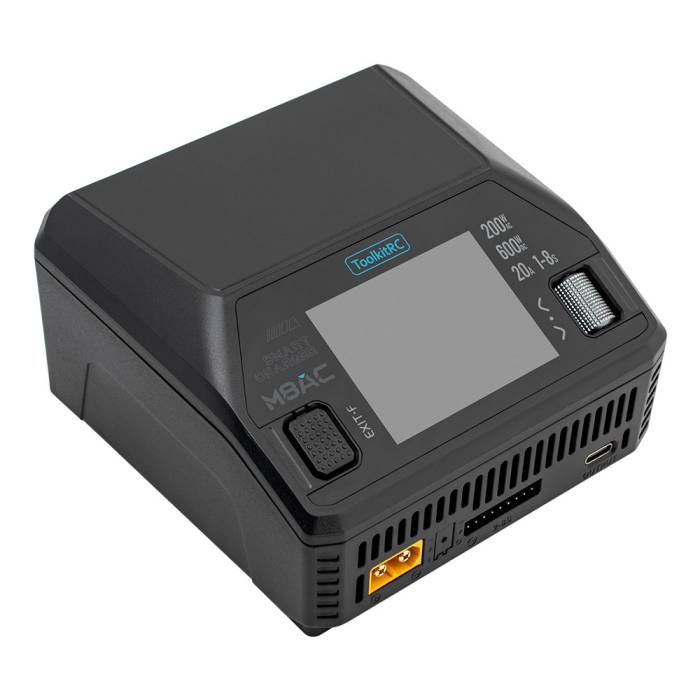

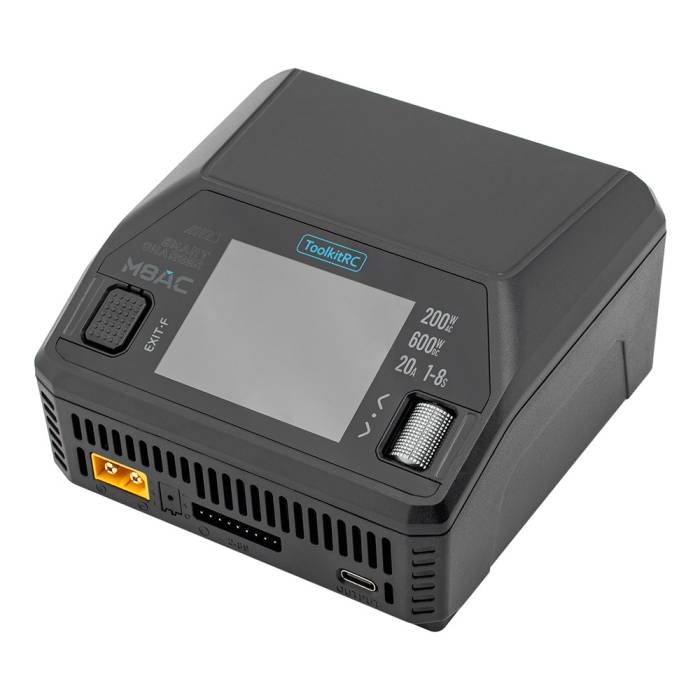

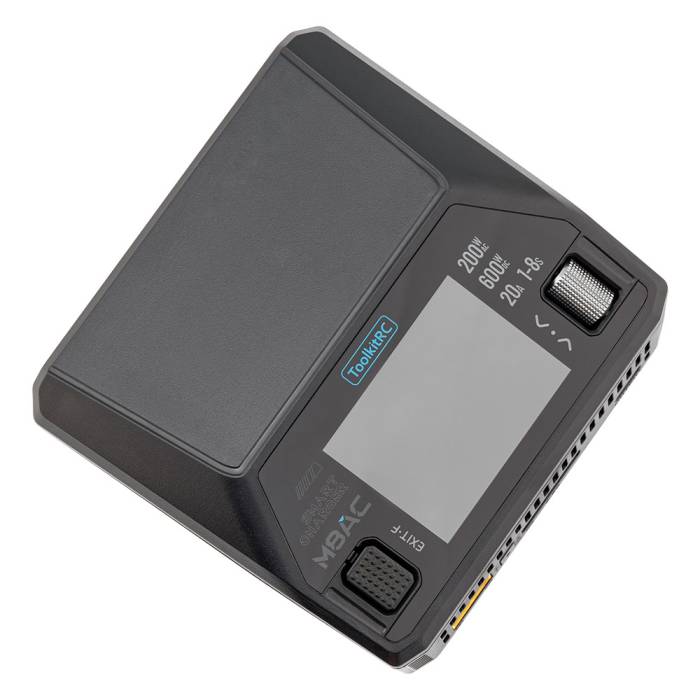

ToolkitRC M8AC 600W 20A 1-8S AC/DC Smart Charger - XT60

About this product

The ToolkitRC M8AC is a 600W 20A charger with AC/DC input, supporting LiPo, LiHV, LiFe, Li-Ion, LTO (1-8S), NiMH (1-20S), and Pb (1-12S) batteries. It's 2.4″ IPS LCD ensures easy navigation, while 1000mA balance charging optimizes battery health with <0.005V accuracy. With 600W charging, 300W (recycle), and 20W (normal) discharge, plus a 65W USB-C port, it’s built for performance. Beyond charging, it functions as a PWM, PPM, and SBUS signal tester. Compact (108 × 113 × 62mm) with an XT60 input, it’s efficient and powerful.

VIDEO: RC NEWS: NEW TOOLKITRC M8AC JUST RELEASED

Features

• Advanced Balance Charging
• Wide Battery Compatibility
• Signal Testing & Generation
• High-Powered Charging
• Compact & Efficient
• 2.4" IPS LCD Screen
• Discharge Modes
• USB-C Port (65W)
• AC/DC Input
•

• Specifications

  OUTPUT

  • Power: 0.5-15A @ 1-35V (Mode: CC + CV)
  • SBUS: 880us-2200us × 16CH @ 74Hz
  • PWM: 500us-2500us @ 20-1000Hz
  • PPM: 880us-2200us × 8CH @ 50Hz

  MEASURER

  • Internal Resistance: 0.1mΩ-99mΩ @ 1-8S
  • SBUS: 880us-2200us × 16CH @ 20-100Hz
  • PPM: 880us-2200us × 8CH @ 20-50Hz
  • PWM: 880us-2200us @ 20-400Hz
  • Voltage: 1.0V-5.0V @ 1-8S

  DISCHARGING POWER

  • USB-C: MAX 20.0V @ 65W (Upgrade)
  • 0.1-20A @ 300W (Recycle Mode)
  • 0.1-3A @ 20W (Normal Mode)

  BATTERY TYPE

  • LiPo, LiHV, LiFe, Li-Ion, LTO @ 1-8S
  • Charging Power: 0.1-20A @ 600W
  • Balance Current: 1000mA @ 4.2V
  • Balance Accuracy: <0.005V
  • NiMH @ 1-20S
  • Pb @ 1-12S

  GENERAL

  • Product Size: 108 × 113 × 62mm
  • Packing Size: 136 × 153 × 67mm
  • LCD: IPS 2.4″ LCD, 320 × 240px
  • Packaging Weight: 600g
  • Product Weight: 500g

  CHARGER

  • Input Voltage:
  • AC 100-240V @ MAX 2.5A
  • DC 7-35V @ MAX 25A

  Includes

  • 1x ToolkitRC M8AC 600W 20A 1-8S AC/DC Smart Charger - XT60
  • 1x Screen Protector
  • 1x AC Input Cable
  • 1x Quick Manual
  • 1x USB Cable
