WBPTech Atlas Sink 16S80A G1 AM32 ESC 5-16S Lipo 80A Continuous 160A Peak
SKU RS-311 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
description:

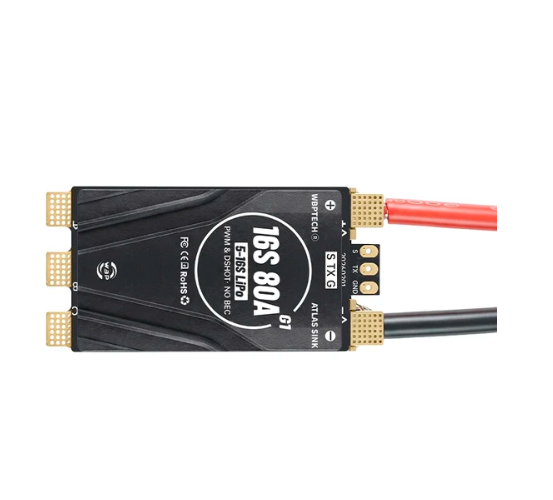

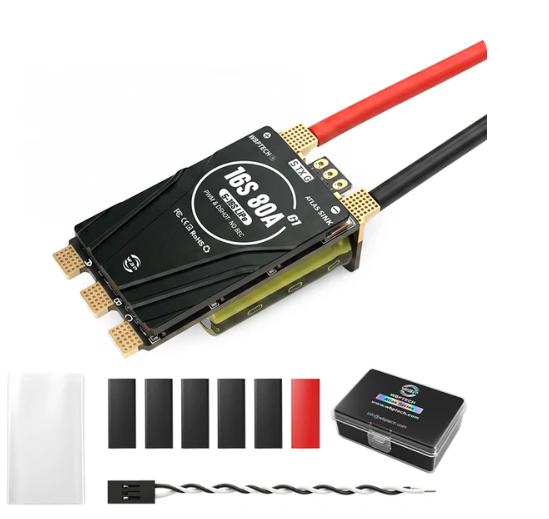

The WBPTech Atlas Sink 16S80A G1 is a high‑voltage AM32‑based brushless ESC built for X‑class large‑size multirotor drones. It supports 5‑16S LiPo input, delivering 80A continuous current and 160A peak current. Powered by the 120 MHz AT32F421K8U7 MCU and optimized open‑source AM32 firmware, it offers fast throttle response, flexible parameter tuning and rich telemetry functions.

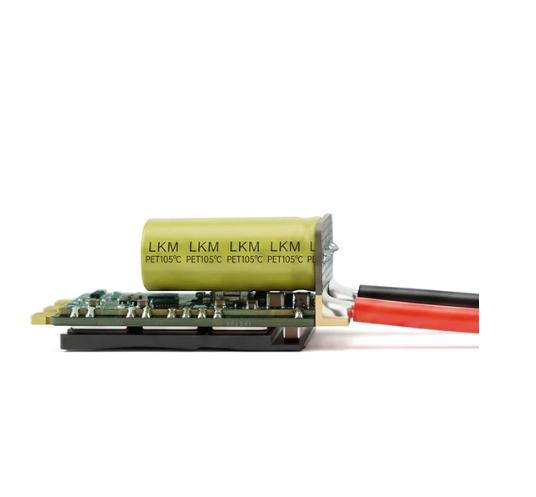

Built‑in aluminum alloy heat sink paired with 6‑layer 3oz thick‑copper PCB greatly improves heat dissipation and current‑carrying capability. Power‑signal separation layout minimizes electromagnetic interference. It supports automatic detection of PWM, DShot300 and DShot600 signals, with sensor‑less sinusoidal startup for smooth motor spin‑up. Comprehensive protections including stall, stuck‑rotor and overheat safeguard your hardware. Perfect for 10‑18 inch heavy‑lift, long‑range and industrial FPV drone builds.
Specs:
l Model: Atlas Sink 16S80A G1
l SKU: WBP-AT-SK-16-080-G1-AM32
l Firmware: AM32_WBPTECH_AT1680G1_F421_2.19
l Voltage: 5S~16S Lipo
l Peak Current: 160A(3S), 120A(10S)
l Continuous Current: 80A(60S); 45A(5 mins) (under good heat dissipation condition)
l BEC: No
l Power Wire: 12 AWG
l Length of Power Wire: 120mm
l Programming Tool: ESC Config Tool
l Programming Link: http://am32.ca/
l Import Source Support: PWM/ Dshot300/ Dshot600
l Data Transmission: TX Port
l Startup: OPEN/ Sinusoidal Startup(sensorless)

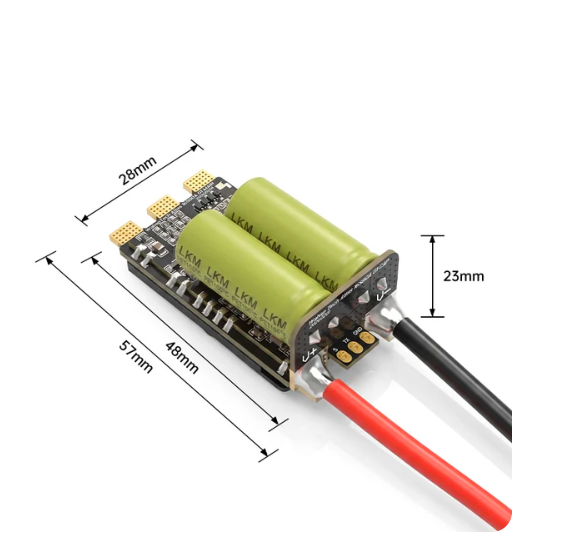

l Size: L57mm*W28mm*H23mm(without power wire)

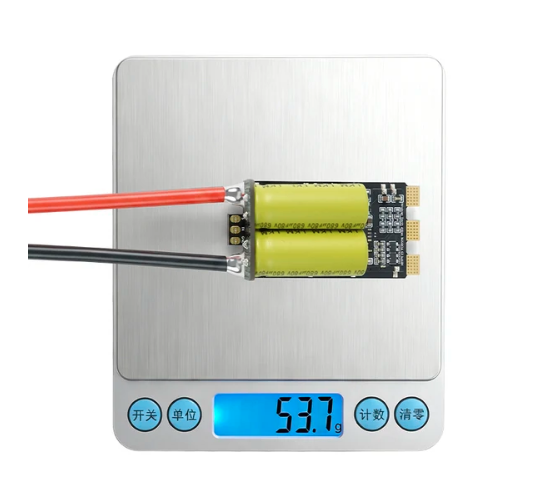

l Weight: 53.7g(with power wire)
Key specifications
| Brand | WBP |
|---|---|
| Department | ESCs, PDB & BEC |
| Cell count | 16S |
| Current rating | 80 A |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 48h · OEM run 15-20 working days |
| OEM / private label | Logo, packaging and firmware on request |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 1 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 16 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 136 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for WBPTech Atlas Sink 16S80A G1 AM32 ESC?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For WBPTech Atlas Sink 16S80A G1 AM32 ESC 5-16S Lipo 80A we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
