008D 5.8G 40CH Diversity FPV Goggles w/ DVR (4.3" Screen)
SKU RS-90 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 2 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
Description:
008D Mini FPV Goggles with DVR (Dual Antenna / Diversity)
# Separable design ,4.3 inch screen canbe used as small monitor on radio controller or with tripod
# High brightness 4.3 inch LCD specially tuned for FPV racing or Model airplane
# Buit-in super sensitiveness 5.8GHz 40ch receiver,especially with RaceBand.
# Come with advanced auto-searching function ad show yout the working frequency on screen
# Buit-in 3.7V/2000mA battery ,each full charge revive around 2 hours woking time
# Ergonomic design fit your faces
# 92%transparent lens adopted ,no distort,no blur on the adage of screen;
# Light weight 375g with 2hr 2000mAh battery,RTF for any scale,racing ,Model airplane game
# 4.3 inch 800*480px HD high brightness LCD
Product Specification:
Body
Dimension: 155x144x113mm
Weight: 375g with 2hr 2000mAh battery
Belt: three-Ways adjustable belt
Screen
screen size: 4.3 inch
Screen resolution: 800*480(No blur after enlarge by the lens)
Screen brightness; 300cd/m2 with special high brightness backlight LED for outdoor FPV
View Angle: 12 O'CLOCK
Lens
2.8x boost of the video to acquire intense feel-in-there video
92% transparent rate no distort of light
JACK
Input CVBS
Headphone sound output
TF Card(C10) Max32G
USB DC5V IN, the device operating current of 550mA@5V,built-in battery maximum charge current of 750mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment.
Battery:
Built-in 3.7V/2000mAh high-capacity polymer battery, when the battery is charging, the device the red LED will light when charging is completed, here are bright green LED.

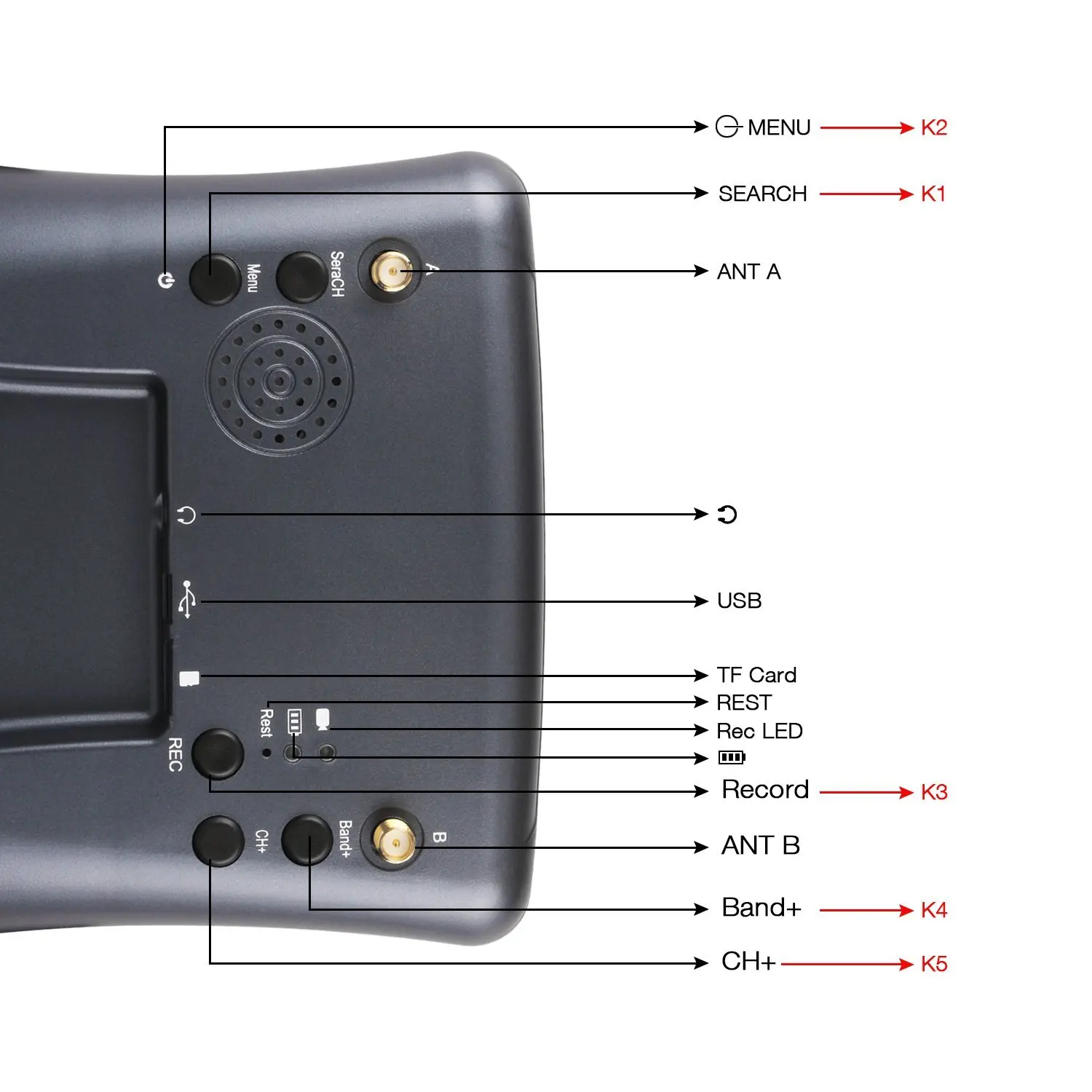

Operation Instructions
KEY
K1: Search/AV
Default mode, Short press for automatically search signals to a certain signal strength and stops on that channel; Long press switch RF MOD and Long press for AV MOD; In Play mode, pressed jump volume adjust OSD.
K2: MENU/Power
Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is use as the Return.
K3: REC/Play/OK
Default mode, Short press for recording /STOP; Long press for Play mode; MENU pressed, this button is use as the confirmed.
K4: Band+/VOL+
Default mode, Short press for Band+ option A,B,D,E,F,R cycle selection; Long press for Volume control -; MENU pressed, this button is use as the UP.
K5: CH+/VOL-
Default mode, Short press for CH 1~8 cycles; Long press for Volume control +, MENU pressed, this button is use as the DOWN.
Playback
Call MENU and select Playback (Short Press K1 button to call menu, and use K3 button to select Playback mode; Or long pressed K3 )
Review/Replay in Playback mode (Playing Short K1 jump volume adjust OSD)
Buttons have different function in playback mode
Record file: AVI
px progressive
Support up to 32G TF card (C10 recommend)
K2: Playback menu (volume control/file delete/protect)
K4: UP/ fast backward<<
K5: DOWM/ fast backward>>
K3: Select/Play/ Pause
K1: Quit Playback mode
Key specifications
| Department | FPV Drones & Kits |
|---|---|
| Propeller size | 4.3 inch |
| Minimum order | 2 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 1 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 14 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 124 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for mechfpv 008D 5.8G 40CH Diversity FPV?
Stock supply starts at 2 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For mechfpv 008D 5.8G 40CH Diversity FPV Goggles w/ DVR (4.3" we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
