DJI Mini 5 Pro Fly More Combo - DJI RC-N3

About this product

The DJI Mini 5 Pro features a 1-inch CMOS camera, nightscape omnidirectional obstacle sensing, a gimbal with 225° of flexible rotation, and upgraded ActiveTrack 360°, all packed into its signature lightweight body. With performance on par with flagship drones, it captures life’s beautiful moments and preserves your treasured memories in stunning detail.

VIDEO: Meet DJI Mini 5 Pro - All-In-One 1-Inch Large CMOS Mini Camera Drone

Features

• 1-Inch CMOS Sensor, Capture Like a Pro
• Nightscape Omnidirectional Obstacle Sensing
• True Vertical Shooting and 225° Flexible Gimbal Rotation
• Extended Battery Life, Up to 36 minutes of flight time
• Upgraded ActiveTrack 360°
• Lightweight and Portable

Specifications

AIRCRAFT

• Takeoff Weight: Approx. 249.9 g
• Dimensions:
• Folded (without propellers): 157×95×68 mm (L×W×H)
• Unfolded (with propellers): 304×380×91 mm (L×W×H)
• Max Ascent Speed:
• 3 m/s (C mode)
• 6 m/s (N mode)
• 10 m/s (S mode)
• Max Descent Speed:
• 3 m/s (C mode)
• 6 m/s (N mode)
• 6 m/s (S mode)
• Max Horizontal Speed:
• 15 m/s (tracking status)
• 18 m/s (S mode)
• Max Takeoff Altitude: 4500 m
• Max Flight Time: Approx. 36 mins
• Typical Flight Time: Approx. 21 mins
• Max Flight Distance: 21 km
• Max Wind Speed Resistance: 12 m/s
• Operating Temperature: -10° to 40°C (14° to 104°F)
• Global Navigation Satellite System: GPS + Galileo + BeiDou
• Internal Storage: 42 GB
• Class: C0 (EU)

CAMERA

• Image Sensor: 1-Inch CMOS, 50MP Effective Pixels
• Lens:
• FOV: 84°
• Format Equivalent: 24 mm
• Aperture: f/1.8
• Focus: 0.5 m to ∞
• ISO Range:
• Video
• Normal:
• 100-12800 (Normal)
• 100-3200 (D-Log M)
• 100-3200 (HLG)
• Slow Motion:
• 100-6400 (Normal)
• 100-3200 (D-Log M)
• 100-3200 (HLG)
• Photo
• 100-6400 (12 MP)
• 100-3200 (50 MP)
• Shutter Speed:
• 12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure)
• 50MP Photo: 1/8000-2 s
• Max Image Size: 8192×6144
• Photo Format: JPEG/DNG (RAW)
• Video Resolution:
• H.264/H.265
• 4K: 3840×2160@24/25/30/48/50/60/120*fps
• FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps
• * Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding
• Video Format: MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
• Max Video Bitrate: H.264/H.265: 130 Mbps
• Color Mode:
• Normal (FHD):
• 8-bit 4:2:0 (H.264)
• Normal (FHD/4K):
• 10-bit 4:2:0 (H.265)
• HLG/D-Log M:
• 10-bit 4:2:0 (H.265)
• Camera FOV
• Single Lens Mode:
• With RC 2/RC-N2/RC-N3: Natural Wide
• With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Standard (Dewarp)/Wide/Natural Wide
• Digital Zoom:
• 12MP Photo: 1-3x
• 4K: 1-3x
• FHD: 1-4x
• Supported File System: exFAT

GIMBAL

• Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)
• Mechanical Range:
• Tilt: -135° to 80°
• Roll: -230° to 95°
• Pan: -25° to 25°
• Controllable Range
• Tilt: -90° to 55°
• Roll: -180° to 45°
• Max Control Speed: 100°/s
• Angular Vibration Range: ±0.005°

VIDEO TRANSMISSION

• Video Transmission System: O4+
• Live View Quality: Remote Controller: 1080p/30fps, 1080p/60fps
• Operating Frequency:
• 2.400-2.4835 GHz
• 5.170-5.250 GHz*
• 5.725-5.850 GHz
• Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
• Transmitter Power (EIRP):
• 2.400-2.4835 GHz:
• < 33 dBm (FCC)
• < 20 dBm (CE/SRRC/MIC)
• 5.170-5.250 GHz:
• < 23 dBm (CE)
• 5.725-5.850 GHz:
• < 33 dBm (FCC)
• < 30 dBm (SRRC)
• < 14 dBm (CE)
• Max Transmission Distance (unobstructed, free of interference):
• FCC: 20 km
• CE: 10 km
• SRRC: 10 km
• MIC: 10 km
• Max Transmission Distance (unobstructed, with interference):
• Strong Interference: Urban landscape, approx. 1.5-4 km
• Medium Interference: Suburban landscape, approx. 4-10 km
• Low Interference: Suburb/seaside, approx. 10-20 km
• Max Transmission Distance (obstructed, with interference):
• Low Interference and Obstructed by Buildings: Approx. 0-0.7 km
• Low Interference and Obstructed by Trees: Approx. 0.7-4.5 km
• Max Download Speed:
• O4+: 10 MB/s
• Wi-Fi 6: 100 MB/s*
• * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, and when internal storage or a high-speed microSD card is used. Download speeds may vary depending on the actual conditions.
• Lowest Latency: Aircraft + Remote Controller: Approx. 120 ms
• Antennas: 4 antennas, 2T4R

INTELLIGENT FLIGHT BATTERY

• Capacity: 2788 mAh
• Weight: Approx. 71.2 g
• Nominal Voltage: 7 V
• Max Charging Voltage: 8.6 V
• Battery Type: Li-ion
• Energy: ≥ 19.52 Wh
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Charging Time:
• 1 battery can be fully charged in approx. 69 minutes by charging through the drone using the DJI 65W Portable Charger.
• 1 battery can be fully charged in approx. 46 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger.
• 3 batteries can be fully charged in approx. 115 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger.

BATTERY CHARGING HUB

• Input: 5-15 V, max 4.3 A
• Output: 5-15 V, max 2 A
• Compatibility: DJI Mini 5 Pro Intelligent Flight Battery, DJI Mini 5 Pro Intelligent Flight Battery Plus

WI-FI

• Protocol: 802.11 a/b/g/n/ac/ax
• Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
• Transmitter Power (EIRP):
• 2.400-2.4835 GHz:
• < 20 dBm (FCC/CE/SRRC/MIC)
• 5.725-5.850 GHz:
• < 26 dBm (FCC/SRRC)
• < 14 dBm (CE)

BLUETOOTH

• Protocol: Bluetooth 5.4
• Operating Frequency: 2.400-2.4835 GHz
• Transmitter Power (EIRP): < 10 dBm

DJI RC-N3 REMOTE CONTROLLER

• Max Operating Time:
• Without charging any mobile device: 3.5 hours
• When charging a mobile device: 1.5 hours
• Operating Temperature: -10° to 40°C (14° to 104°F)
• Charging Temperature: 5° to 40°C (41° to 104°F)
• Charging Time: 2 hours
• Charging Type: It is recommended to use a 5V/2A charger.
• Battery Capacity: 9.36Wh (3.6V,2600 mAh)
• Weight: Approx. 320 g
• Dimensions: 104.2×150×45.2 mm (L×W×H)
• Supported Mobile Device Port Type: Lightning, USB-C, Micro-USB
• Using a mobile device with a Micro-USB port requires the DJI RC-N Series RC Cable (Standard Micro USB Connector), which is sold separately.
• Operating Frequency:
• 2.400 GHz to 2.4835 GHz
• 5.170 GHz to 5.250 GHz
• 5.725 GHz to 5.850 GHz
• Transmitter Power (EIRP):
• 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
• 5.1 GHz: < 23 dBm (CE)
• 5.8 GHz: < 33 dBm (FCC), < 14 dBm (CE), < 30 dBm (SRRC)

Links

• Quick Start Guide
• Safety Guidelines
• User Manual

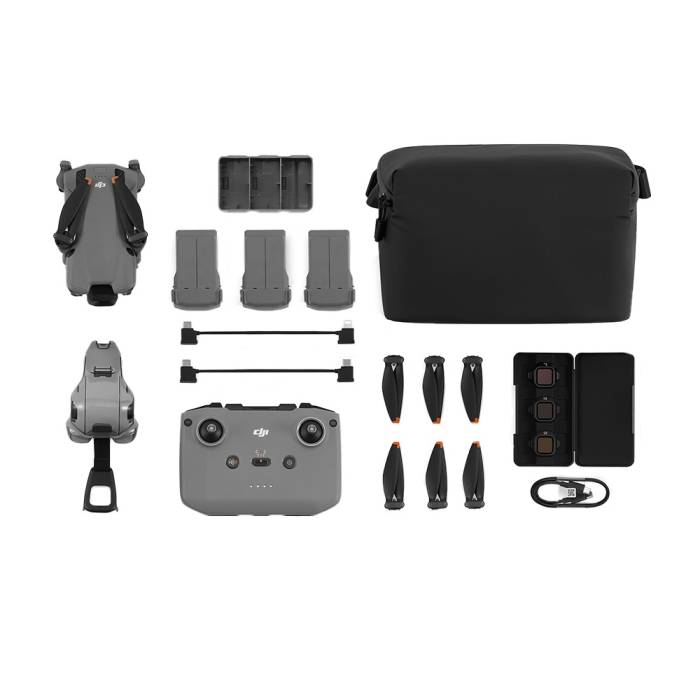

Includes

• 1x DJI Mini 5 Pro
• 1x DJI RC-N3 Remote Controller
• 3x DJI Mini 5 Pro Intelligent Flight Battery
• 1x DJI Mini 5 Pro Two-Way Charging Hub
• 1x DJI Mini 5 Pro Shoulder Bag
• 1x DJI Mini 5 Pro ND Filter Set (ND8/32/128)
• 3x DJI Mini 5 Pro Spare Propeller (Pair)
• 1x DJI Mini 5 Pro Storage Cover
• 1x USB-C to USB-C Data Cable
• 1x RC-N Series RC Cable (USB-C Connector)
• 1x RC-N Series RC Cable (Lightning Connector)

Featured Videos

The Giant in Your Pocket | DJI Mini 5 Pro

The DJI Mini 5 Pro features a 1-inch CMOS camera, nightscape omnidirectional obstacle sensing, a gimbal with 225° of flexible rotation, and upgraded ActiveTrack 360°, all packed into its signature lightweight body.
