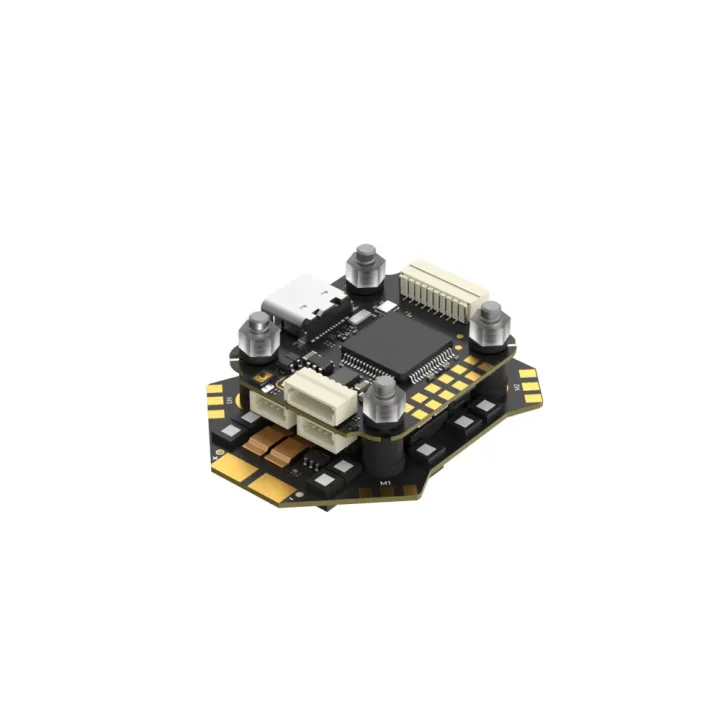

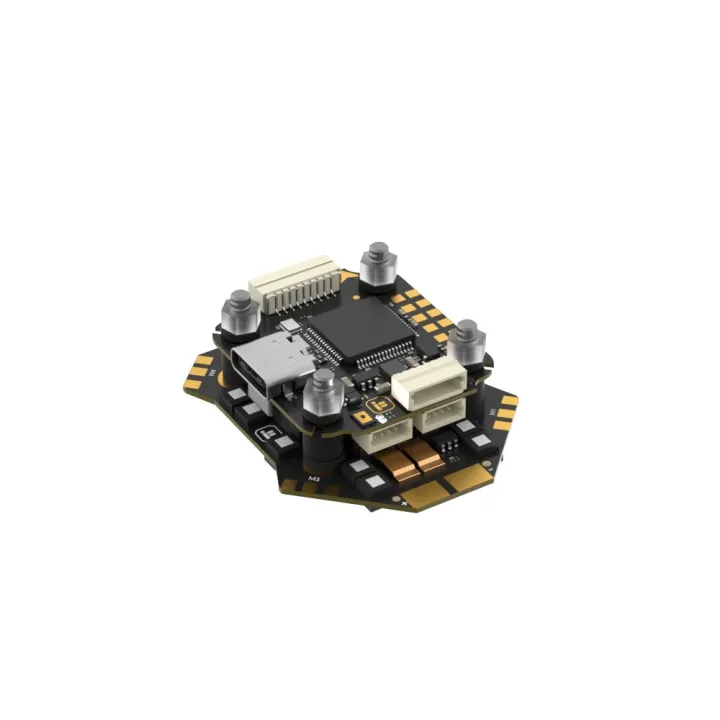

iFlight Borg Mini F7 Stack (Mini 60 4-IN-1 ESC)
Price on request
MOQ 5 pcs · samples available
iFlight · ESCs, PDB & BEC
2026 iFlight Borg Mini F7 Stack (Mini 60 4-IN-1 ESC)
SKU RS-240 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
Description
Introducing the All-New Borg Series – Power Meets Precision!
The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!
FC Features
Supports 4S to 8S battery inputs, offering versatility for various racing setups.
Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
FC Specifications
Input voltage: 4-8S; Support LIHV battery
MCU: STM32F722RET6
Gyro: ICM42688
Barometer: SPA06-003
OSD Chip: AT7456E（LGA）
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4
I2C serial: Not supported
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Betaflight Firmware target: IFLIGHT_BLITZ_F722
Mount pattern: 20*20φ4

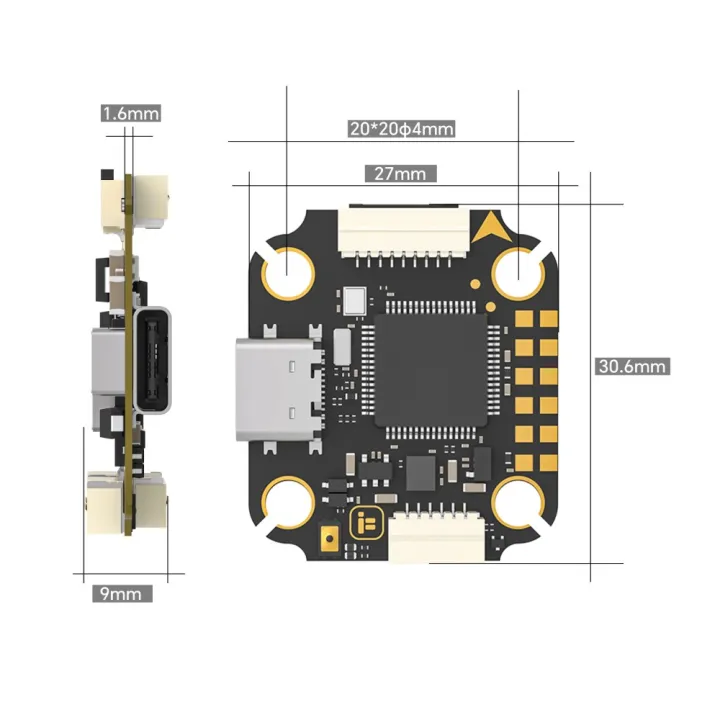

Dimensions: 27*30.6mm±1
Total Weight: 17.1g±1(FC+ESC)
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for Receiver
UART 3 for GPS or other sensors that require a serial port
UART 4 for GPS
UART 5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
ESC Specifications
Product Name: Borg Mini 60 ESC
Input Voltage: 2-8S; Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: Yes
BEC: N/A
Telemetry: Supported
Bidirectional DSHOT: Supported

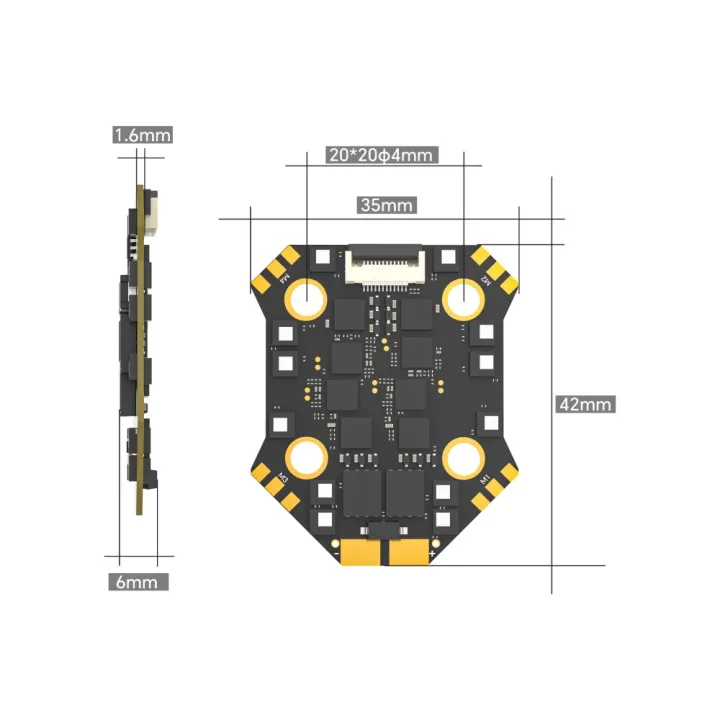

Dimensions: 42*35mm±1
Mounting Holes: 20 x20 mm/Φ4mm
Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.
Packing List
1 x Borg Mini F7 Flight Controller
1 x Borg Mini 60 ESC
1 x Cable set
5 x silicon grommets
Key specifications
| Brand | iFlight |
|---|---|
| Department | ESCs, PDB & BEC |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 19 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 109 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for 2026 iFlight Borg Mini F7 Stack (Mini?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For 2026 iFlight Borg Mini F7 Stack (Mini 60 4-IN-1 ESC) we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
