5W High Power 5.8G FPV Video Transmitter with Dual Fans for Long Range / Industrial

Description:

5W 5.8GHz Extreme Range FPV VTX (Dual Cooling Fans, Built-in Mic)

Feature

1. Working channel 48CH
2. Support 7-36V power supply
3. With 5V/200mA output
4. Support SmartAudio and button to adjust parameter
5. Have heat sink, effectively reduce the influence of temperature on transmission
6. With four-gear power (200/500/1200/5000mW)
7. Working current: 200mW/320mA, 500mW/460mA, 1200mW/650mW, 5000mW/1.2A
8. Added silicon microphone, supporting 1-2 meter range sound reception with high sensitivity
9. Add temperature detection function, the blue light will turn off when the temperature is too high (the power will decrease by one level)

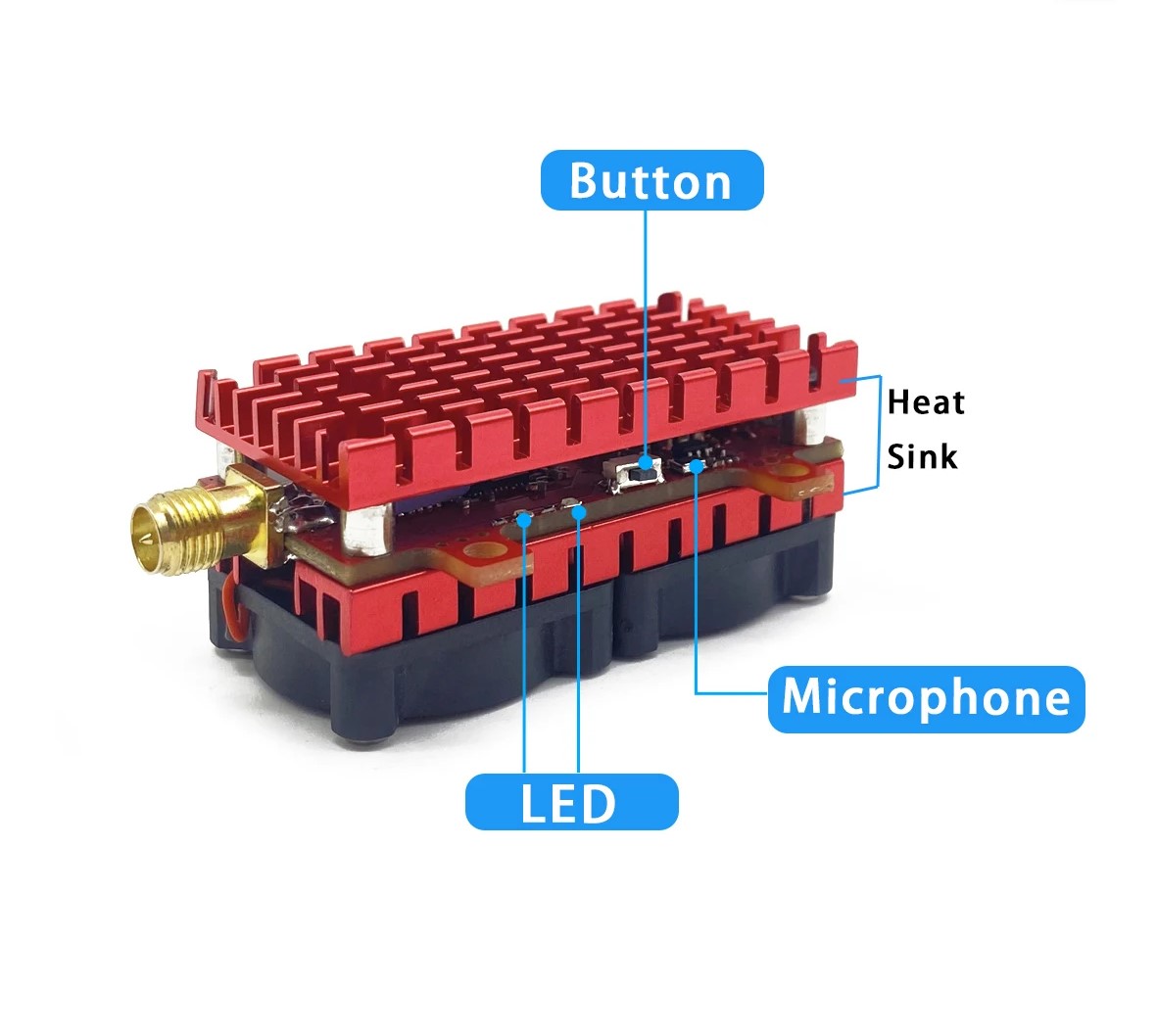

Key description

Pit mode

Press the button twice will toggle the OFF/ON PitMode. The red light and blue light are flashing, indicate it enter to PitMode, and the working distance is only 1-2 meters.When the red light and blue light are always on,the transmission is in normal work.

Step 1

Press and hold the button until the Red LED flash 1 time which means the item of channel selecting , then press the button can select the channels (Blue LED flashing times corresponds to CH1-CH8).

Step 2

Press and hold the button again, the Red LED will flash 2 times which means the item of Band selecting , then press the button can select the Band (Blue LED flashing times corresponds to A-R).

Step 3

Press and hold the button again, the Red LED will flash 3 times which means the item of power level selecting , then press the button can select the power (This step is essential for setting).

Finally, press and hold the button to save the parameters. The red and blue lights are always on.
