Mini FPV DVR Video Recorder Module (NTSC/PAL) Built-in Battery
SKU RS-95 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
Note: The black model packaging has been updated, and the product functionality remains the same.
Item name: Mini FPV DVR Module w/ Built-in Battery (Video & Audio Recording)
System startup time: 3 seconds
Video input format: NTSC/PAL
Video input impedance: 75? Typ.
Video compression format: MJPEG
Record file resolution: VGA (640 * 480) / D1 (720 * 480) / HD (1280 * 720) selectable
Record file format: AVI
Recording sound: ON/OFF selectable
Cycle recording time: 10min/20min/30min
Frame rate: 30 Frames
Memory card: TF card, support up to 32GB (C10 recommended)
Menu language: 11 language choices
Optical frequency: 50Hz/60Hz can be selected
Video playback: CVBS output (connected to the monitor)
Audio input interface: 3.5mm AV jack
Audio output interface: 3.5mm AV jack
Charging interface: micro USB interface
Charging voltage: 5V DC
Charging current: 500mA Max
Battery (non-removable): Built-in 3.7V/400 mAh lithium ion polymer battery
Battery life: Each working load is 1.5 to 2 hours of working time.
Operating temperature: -10~60°C
Operating humidity: 85% RH

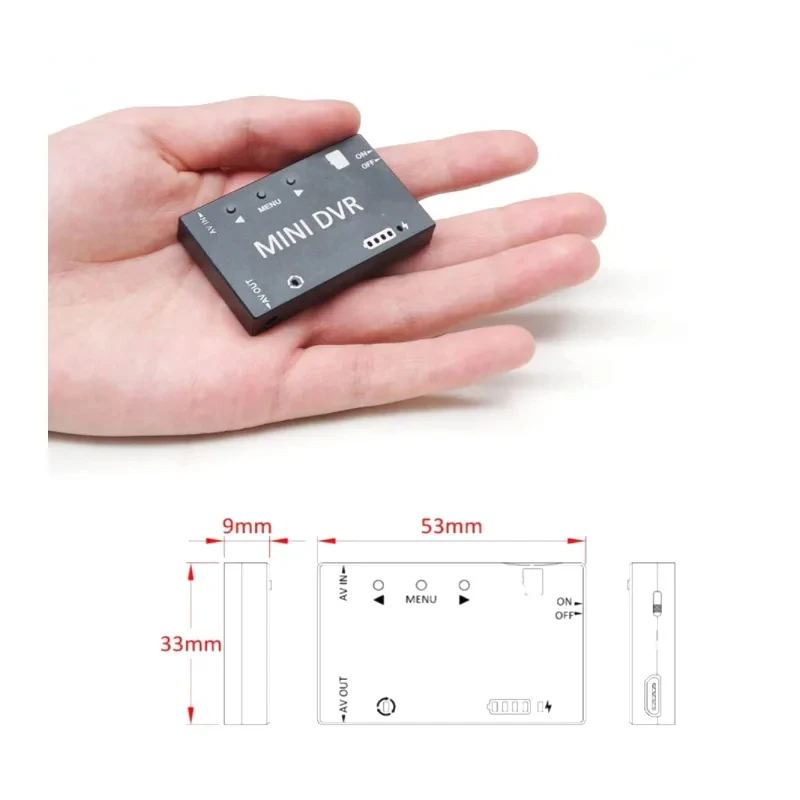

Dimension: 53mm * 33mm * 9mm
Weight: 24.5g
Menu language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, Korean.
Features:
* Small size and light weight;
* Low power consumption, operating current 200 mA;
* Aluminum alloy casing (CNC processing);
* Support 32GB TF card (10 level recommended);
* Built-in 3.7V/400 mAh lithium ion polymer battery;
* Universal USB charging interface;
* High-precision 4-level battery power indicator;
* Multi-language menu, 11 menu language choices;
* CVBS signal input (built-in video decoder);
* Support playback and AV signal output (built-in video encoder)

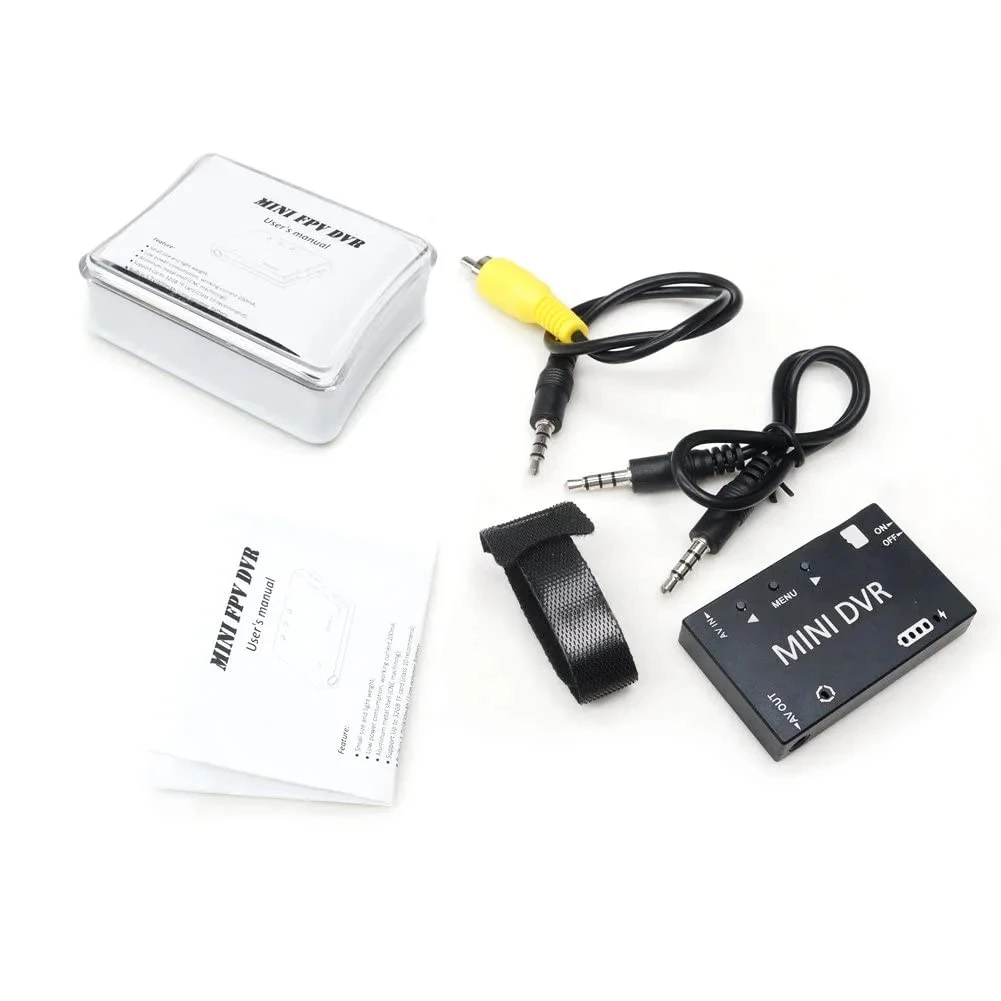

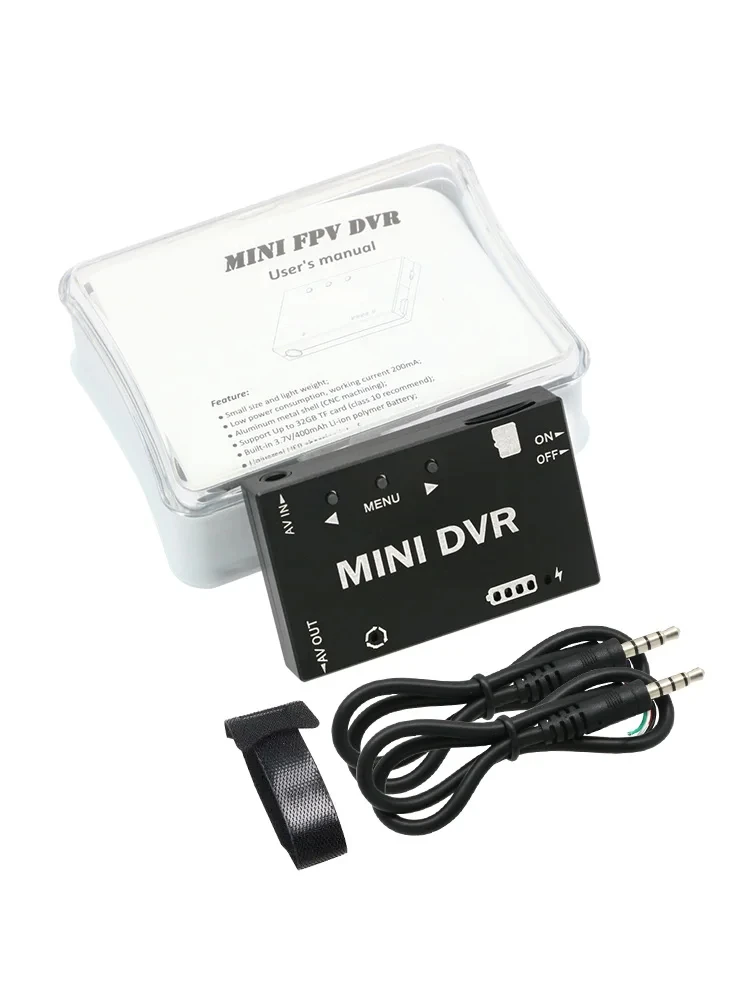

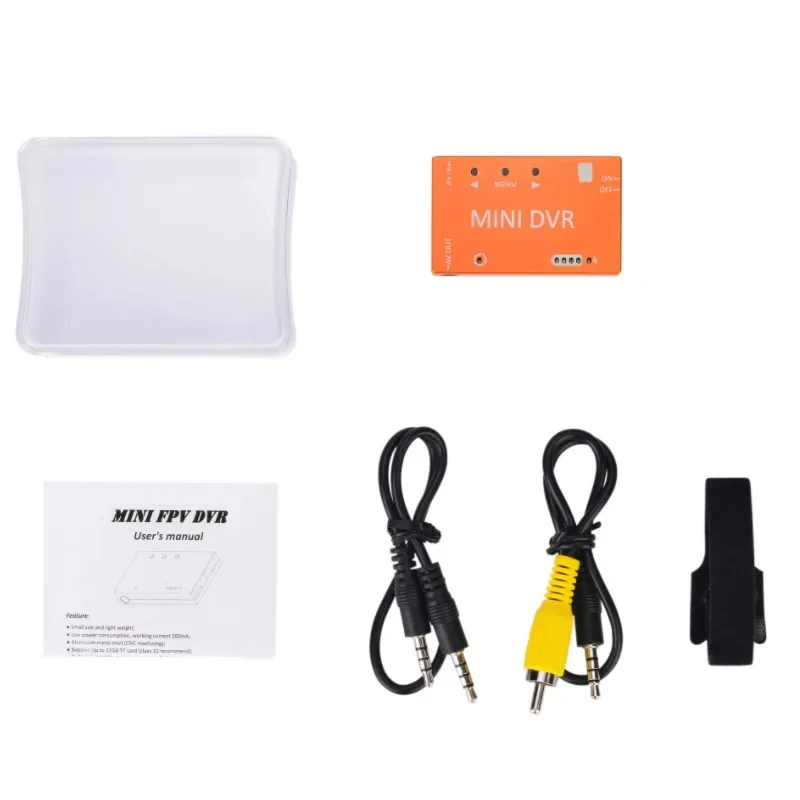

Package included:
1* FPV minimum DVR
2* AV cable
1* magic tape
Key specifications
| Department | FPV Drones & Kits |
|---|---|
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 4 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 17 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 167 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
