BETAFPV · ESCs, PDB & BEC

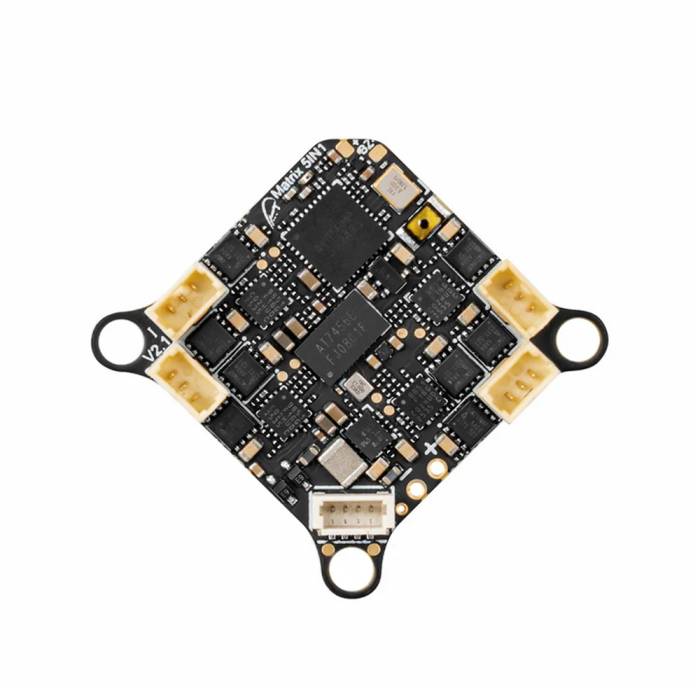

BETAFPV Matrix V2 AIO - G4 FC + 12A 1S ESC + 400mW VTX + ELRS - Solderless
SKU RS-296 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
About this product
The BETAFPV Matrix V2 AIO is the next-generation flight controller engineered for pilots who refuse to compromise. Building on the proven all-in-one design, it delivers a substantial leap in both performance and durability. Experience the raw power of a 12A continuous ESC, the crash-proof confidence of 3-point mounting, and the convenience of solder-free design. This is the durable, high-output core for your most demanding 1S whoop builds.

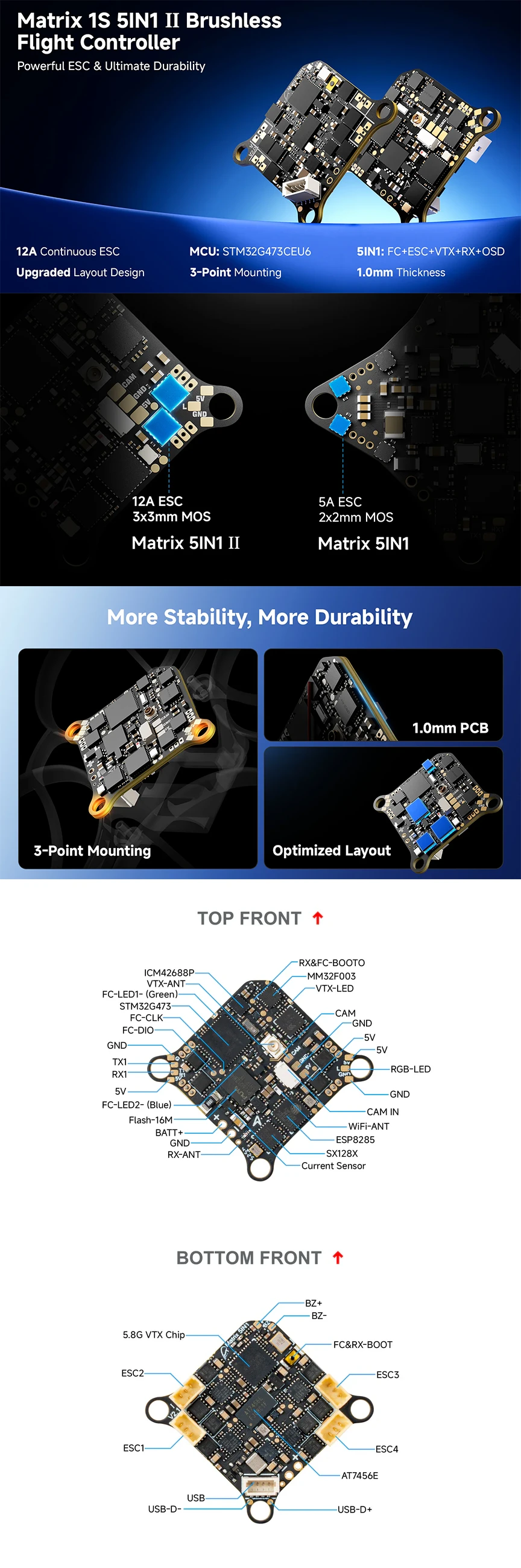

Features
- All-in-one integration combines the FC, ESC, OSD, Serial ELRS 2.4GHz RX, and a 5.8GHz 400mW VTX into a single, compact unit
- Upgraded 12A continuous ESC
- Durable 3-point mounting system and a 1.0mm thick PCB to absorb crash impacts and protect core components
- Solder-free for easy connection and maintenance
- Built around a powerful G473 processor for precise racing and complex freestyle maneuvers
- Optimized layout improves durability and overall reliability
Specifications
FLIGHT CONTROLLER
- MCU: STM32G473CEU6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Sensor: Voltage & Current
- BEC: 5V, Max 3A
- UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
- BetaFlight OSD: AT7456E
- ESC: 12A continuous
- RX: Serial ELRS 2.4GHz (V3.4.3)
- VTX: 5.8GHz 48 channels, Max 400mW
- FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
- USB port: SH1.0-4Pin
- Motor connector: JST1.25
- Battery connector: BT2.0
- Mounting hole size: 26mm x 26mm
- Weight: 4.1g
ESC
- Power input: 1S Only
- Current: 12A continuous, 18A peak
- ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
- Digital signal protocol: DShot300, DShot600
VTX
- Output power: 25/100/200/400/PIT
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.0
- Modulation type: FM
- Frequency control: PLL
- All harmonic: Max -50dBm
- Frequency stability: ±100KHz (Typ.)
- Frequency precision: ±200KHz (Typ.)
- Channel carrier error: ±1.5dB
- Antenna port: 50 Ω
- Operating temperature: -10℃-80℃
Links

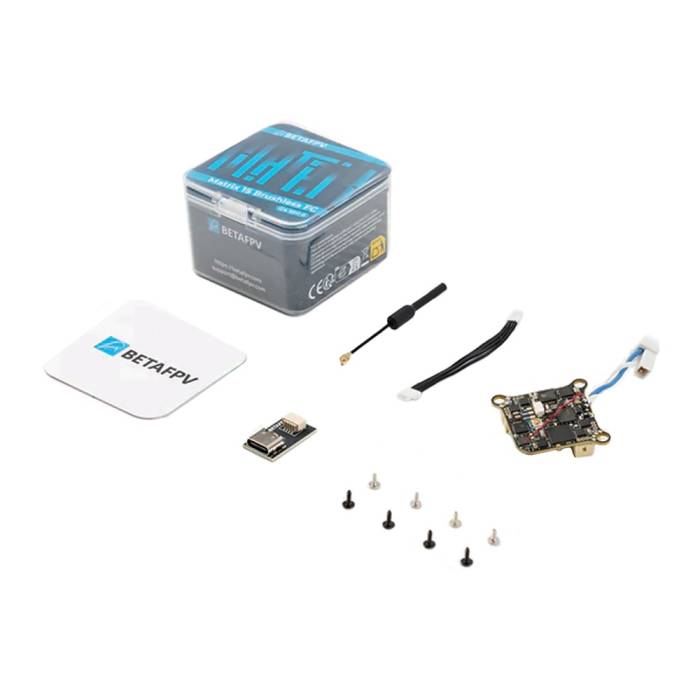

Includes
- 1x BETAFPV Matrix V2 AIO Brushless Flight Controller
- 1x Type-C to SH1.0 Adapter
- 1x SH1.0-4Pin Adapter Cable
- 1x 5.8G Antenna
- 4x M1.2x4 Self-tapping Screws
- 4x M1.4x5 Self-tapping Screws
- 4x Shock Absorbing Balls
Key specifications
| Brand | BETAFPV |
|---|---|
| Department | ESCs, PDB & BEC |
| Cell count | 1S |
| Current rating | 12 A |
| Minimum order | 1 pcs (samples available) |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 12 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 102 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for BETAFPV Matrix V2 AIO - G4 FC + 12A 1S?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For BETAFPV Matrix V2 AIO - G4 FC + 12A 1S ESC + 400mW VTX + we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
