DeepSpace Nano ELRS 2.4GHz 100mW Receiver + 80mm Antenna
SKU RS-292 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 2 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
About this product

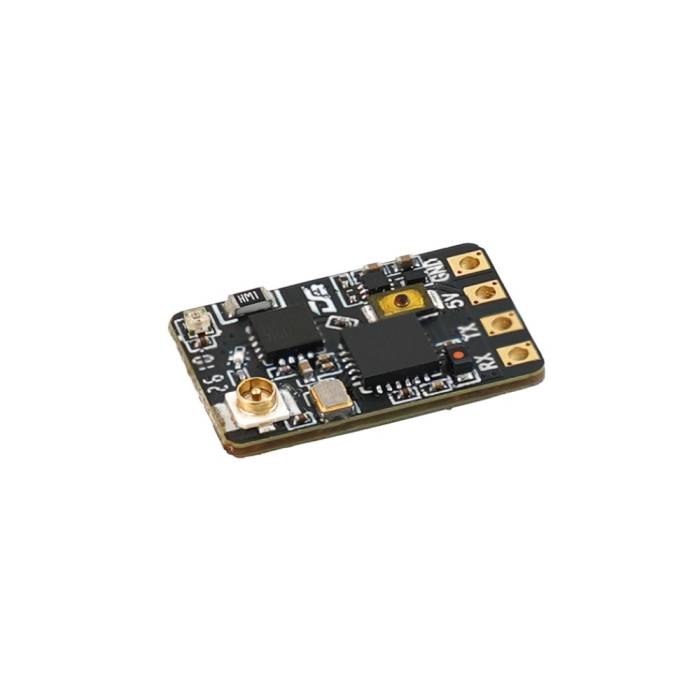

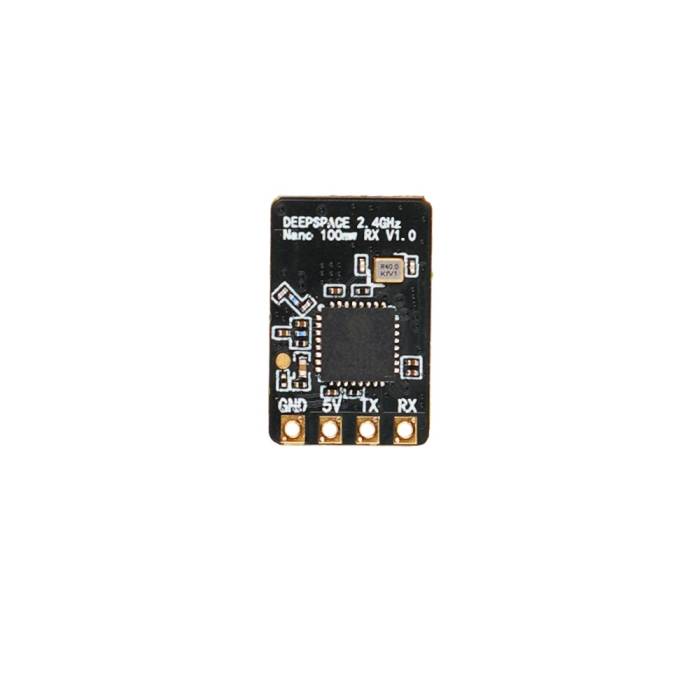

The DeepSpace ELRS Nano 2.4GHz 100mW Receiver is a high-performance receiver built on the ExpressLRS platform, offering long-range control with ultra-low latency for FPV drones. Its integrated Power Amplifier delivers strong, stable signal transmission, while a temperature-compensated oscillator ensures consistent performance across varying conditions. Designed for reliability and responsiveness, this receiver is ideal for freestyle, racing, and long-range FPV applications.
Features
- ESP32 chip
- Built-in TCXO
- Compact and lightweight design
- High sensitivity

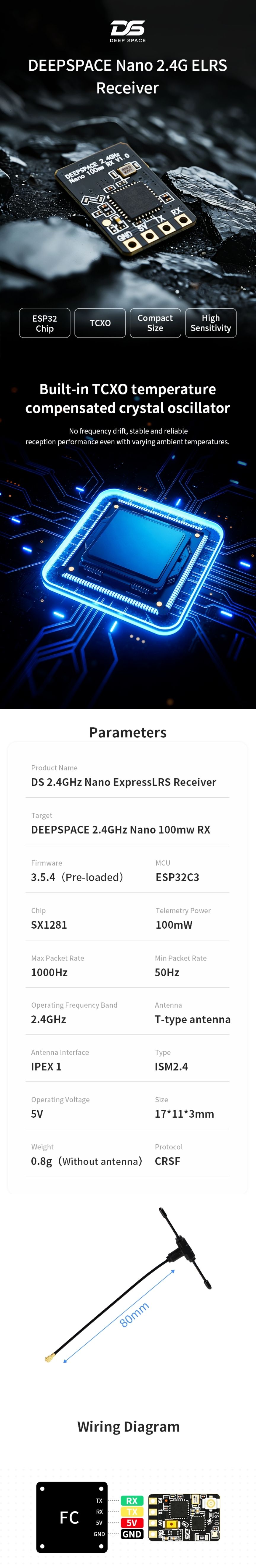

Specifications
- Model: DeepSpace ELRS Nano 2.4GHz
- RF Frequency: 2.4GHz ISM
- Chipset: ESP32C3, SX1281
- Crystal Oscillator: TCXO
- Telemetry Power: 100mW
- Protocol: CRSF
- Refresh Rate: 50Hz – 1000Hz
- Input Voltage: 5V
- Dimensions: 17mm x 11mm x 3mm
- Weight: 0.8g (without antenna)

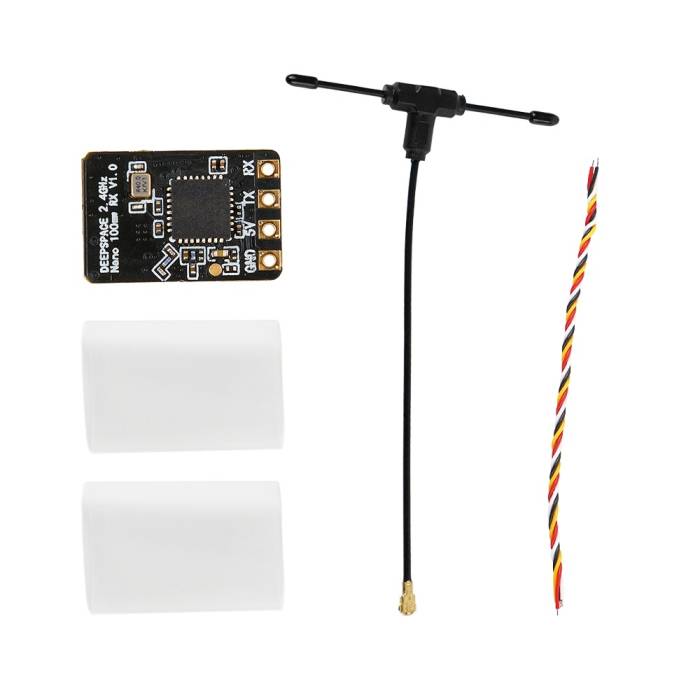

Includes
- 1x DeepSpace Nano ELRS 2.4GHz 100mW Receiver
- 1x Twisted Connector Cable
- 1x 80mm Antenna
- 2x Heat Shrink Tubing
The DeepSpace ELRS Nano 2.4GHz 100mW Receiver is a high-performance receiver built on the ExpressLRS platform, offering long-range control with ultra-low latency for FPV drones.
Key specifications
| Brand | DeepSpace |
|---|---|
| Department | Radio, RX & VTX |
| Minimum order | 2 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 18 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 178 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for DeepSpace Nano ELRS 2.4GHz 100mW?
Stock supply starts at 2 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For DeepSpace Nano ELRS 2.4GHz 100mW Receiver + 80mm Antenna we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
