Flywoo
Flywoo Firefly 20 Pro BNF Drone - No FPV System
Price on request
MOQ 5 pcs · samples available
Ruistart · FPV Drones & Kits

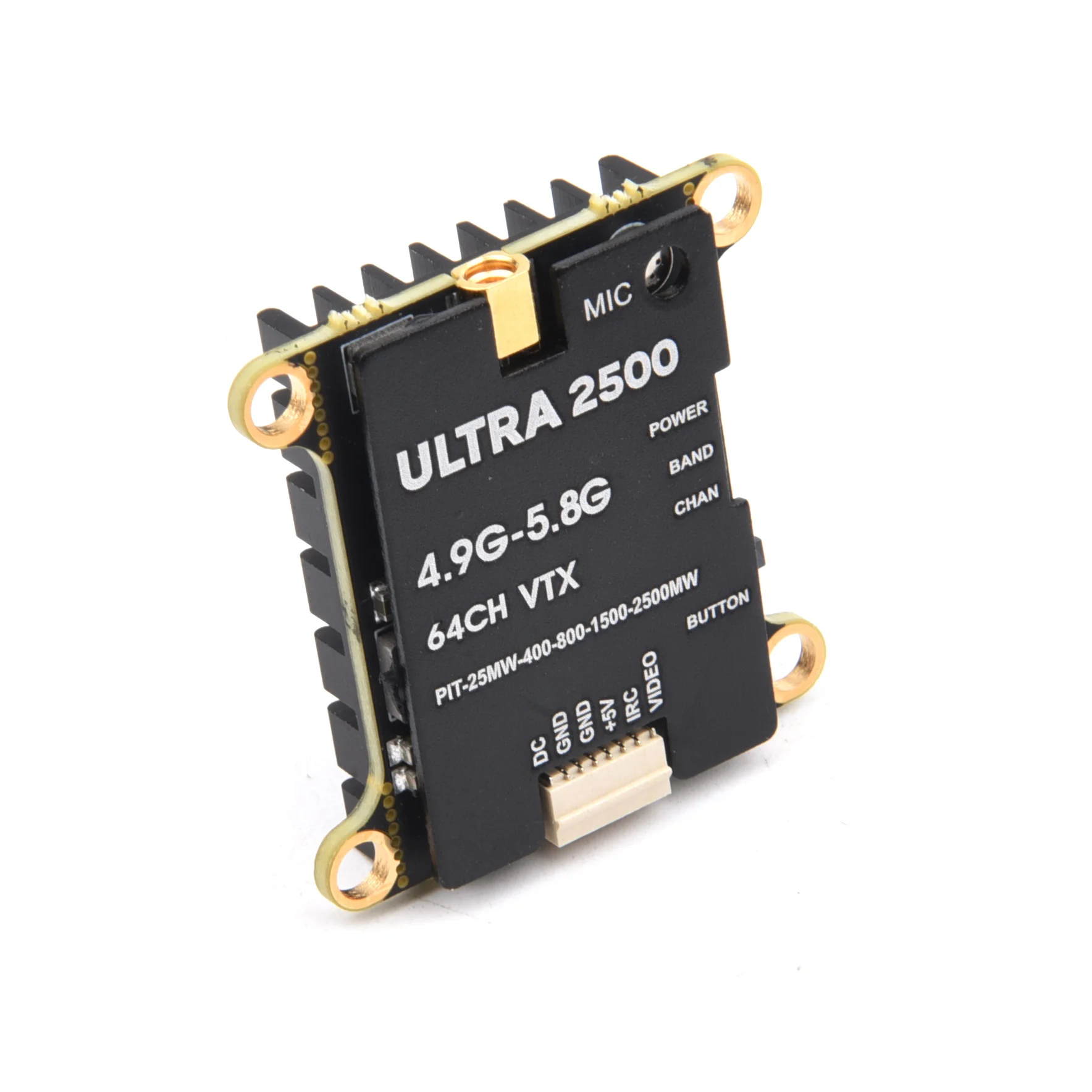

Ultra Long Range 5.8G VTX (1.6W / 2.5W Adjustable, 7-36V Input)
SKU RS-83 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h

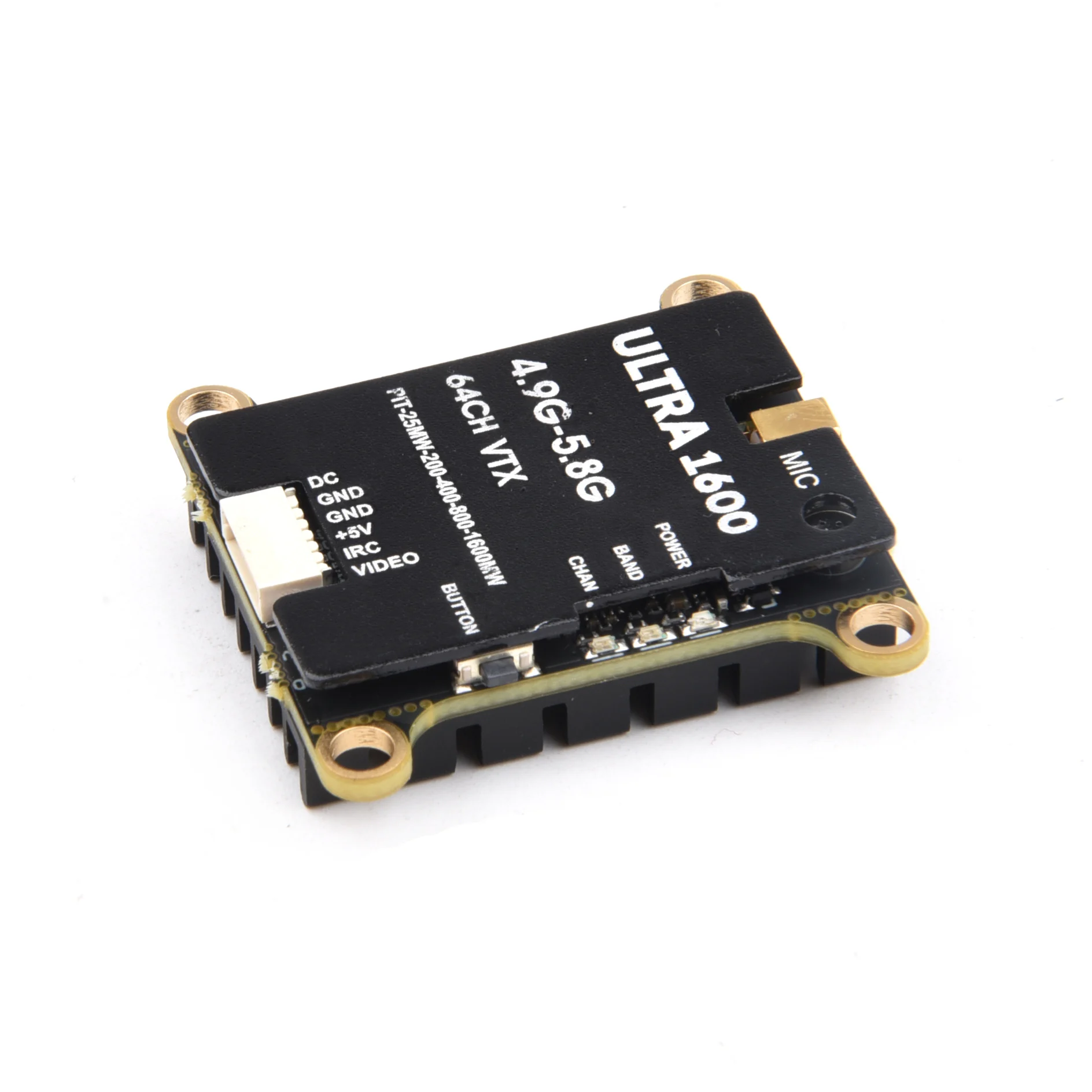

Model: Ultra1600 VTX 4.9G-5.8G 1.6W
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX connector
Cable connector: GH1.25-6P connector
Output power: 25mW/200mW/400mW/800mW/1600mW/Pit mode
Frequency tables: 64 CH
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmX30.5mm(M3)
Features
1. 1.6W super-power ,suitable for Long Range flight with good stability.
2. Six power levels: 25mW/200mW/400mW/800mW/1600mW/Pit mode .

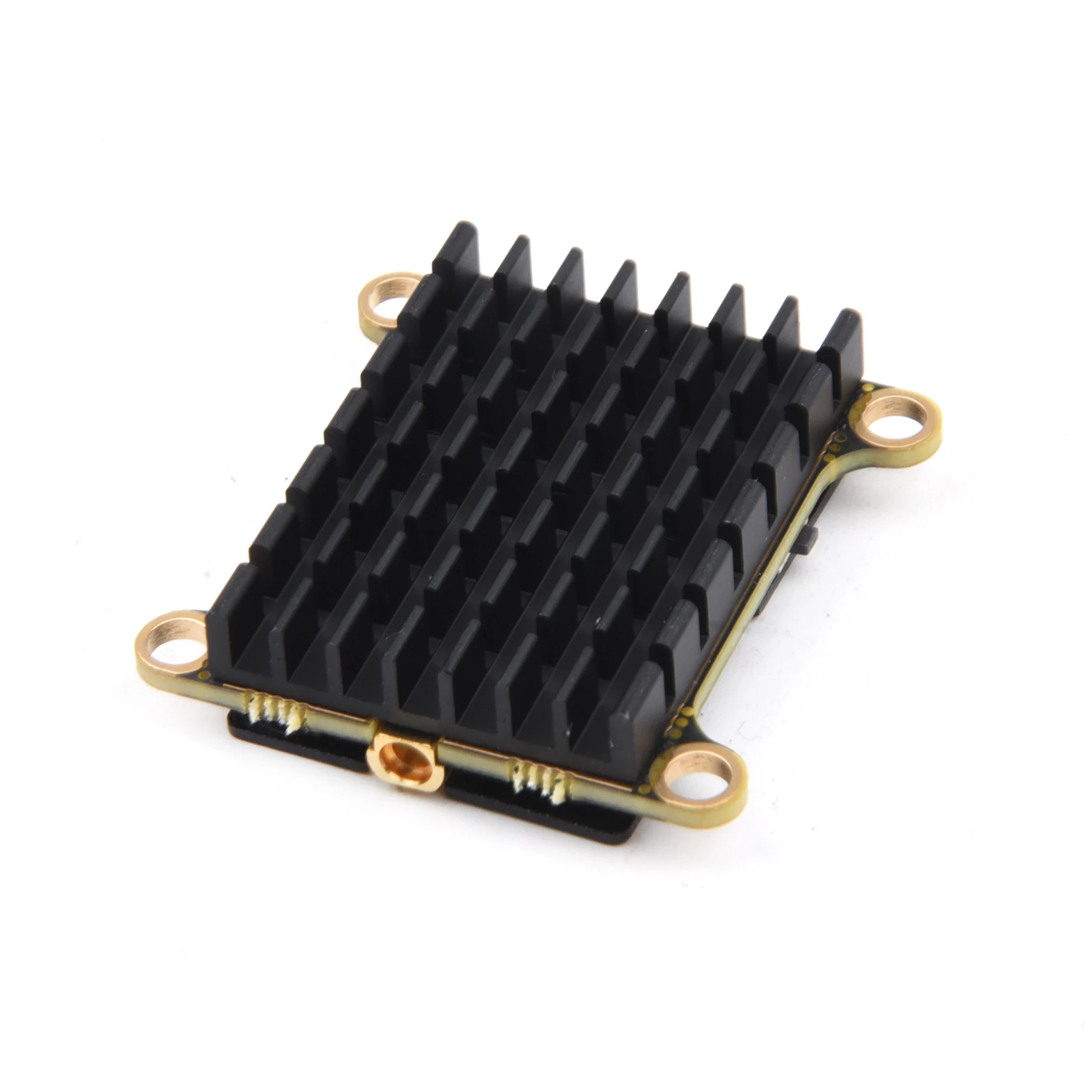

3. Two-layer board cooling structure,separate power BEC and main-board,reducing
and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature
burning.
5. Wide voltage input, supports 7V-36V voltage input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone's sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.
9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.
Key specifications
| Department | FPV Drones & Kits |
|---|---|
| Nominal voltage | 36 V |
| Output power | 1.6 W |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
| OEM / private label | Logo, packaging and firmware on request |
| Documentation | Commercial invoice, packing list; CE / FCC / RoHS on request |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 1 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 12 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 112 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for mechfpv Ultra Long Range 5.8G VTX (1.6W?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For mechfpv Ultra Long Range 5.8G VTX (1.6W / 2.5W Adjustable we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
