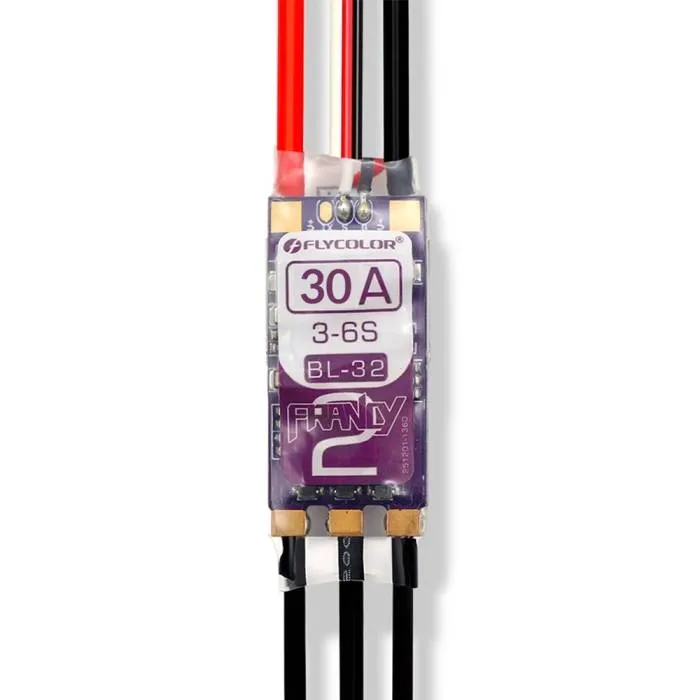

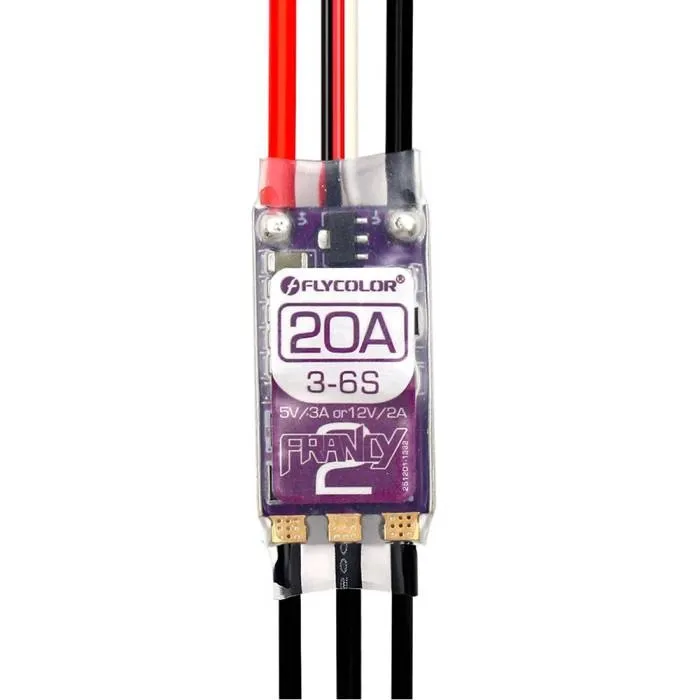

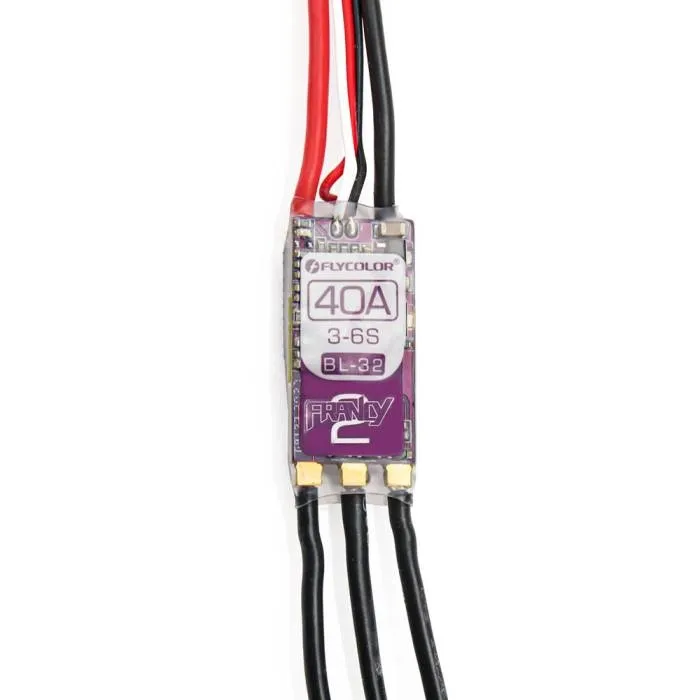

FLYCOLOR Francy 2 BLHeli_32 3-6S 20A/30A/40A/50A ESC
SKU RS-229 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
| Version | SKU | MOQ | |
|---|---|---|---|
| 20A | RS-229-20A | 5 pc | Quote this |
| 30A | RS-229-30A | 5 pc | Quote this |
| 40A | RS-229-40A | 5 pc | Quote this |
| 50A | RS-229-50A | 5 pc | Quote this |
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
Description
Features
Redefine the fixed-wing ESC with the following core advantages:
Petite & Powerful: Compact size with high-performance output
Visual Programming: Intuitive programming interface for easy parameter adjustment
High-performance MCU: Equipped with ARM 32-bit Cortex core MCU, operating frequency up to 48MHz
High-frequency Motor Control: Supports up to 48KHz motor PWM frequency for smoother operation
Multi-protocol Support:
Digital signals: Up to Dshot1200 (ultra-low latency, no throttle calibration required with compatible flight controller)
Analog signals: PWM, Oneshot & Multishot protocols
Adjustable Motor Timing: Manual setting (10-319) or automatic timing mode
Specifications
20A
Continuous Current: 20A
Instant:25A
BEC:5V/34;12V/2A
Voltage:3-6S;4-6S
Weight: 12.5g
Size:29x14x9mm
30A
Continuous Current:30A
Instant:35A
BEC:5V/34;12V/2A
Voltage:3-6S;4-6S
Weight:12.5g
Size:29x14x9mm
40A
Continuous Current:40A
Instant:45A
BEC:5V/34;12V/2A
Voltage:3-6S;4-6S
Weight: 14g
Size:29x14x9mm
50A
Continuous Current:
Instant:
BEC:5V/34;12V/2A
Voltage:3-6S;4-6S
Weight:16.5g
Size:33x16x10mm
Includes
1 x Flycolor Francy 2 BLHeli_32 3-6S ESC
Key specifications
| Department | ESCs, PDB & BEC |
|---|---|
| Cell count | 6S |
| Current rating | 20 A |
| Minimum order | 5 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 1 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 12 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 152 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for FLYCOLOR Francy 2 BLHeli_32 3-6S?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For FLYCOLOR Francy 2 BLHeli_32 3-6S 20A/30A/40A/50A ESC we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
