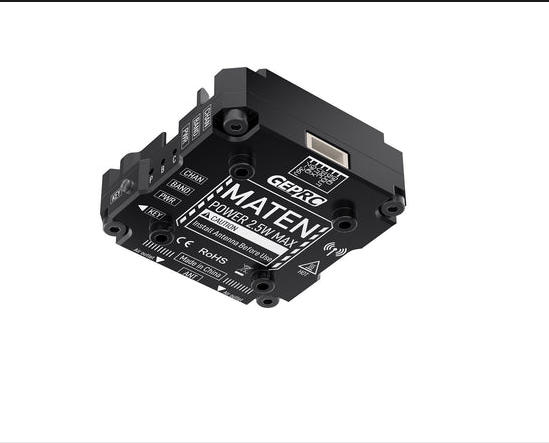

GEPRC MATEN 2.5W VTx PRO 5.8G Video Transmitter
SKU RS-370 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
The MATEN 5.8G 2.5W VTX PRO high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 5 adjustable power levels and a maximum power of up to 2500mW. The transmission signal is very stable and the penetration ability is excellent.
MATEN 5.8G 2.5W VTX PRO uses high-strength aluminum alloy CNC shell to assist heat dissipation. The unique appearance design and active fan cooling provide stronger impact resistance and better heat dissipation performance. It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters. The built-in microphone can transmit the sound of the FPV drone in real time.
It has a wide voltage input of 7-36V and temperature control protection function to prevent overheating and burning. Supports two installation hole positions: 20*20mm and 30.5*30.5mm.
Feature
- Five levels of adjustable power, up to 2500mW, suitable for long distance flight

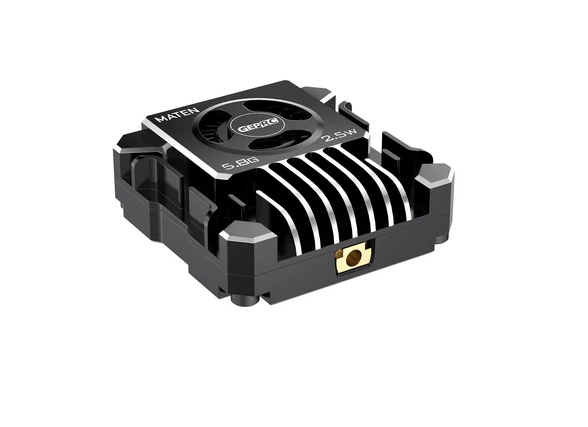

- Selected high strength aluminum alloy CNC shell, auxiliary heat dissipation
- The built-in micro turbofan actively dissipates heat
- Wide voltage input, Supports 7V-36V Voltage input.

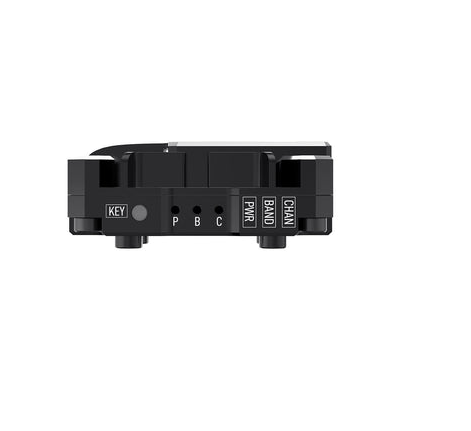

- One function buttons, three indicator lights, easy to control.
- VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
- Temperature control protection function that can prevent high temperature burning
- VTX built in microphone,Real-time transmission of Drone’s sounds.
- Support 20*20mm and 30.5*30.5mm installation hole position
Specifications
- Model：GEPRC MATEN 5.8G 2.5W VTX PRO
- Size：36.3×36.3×12.6mm
- Mounting hole：20x20mm(M2)、30.5×30.5mm(M2)
- Output power：25mW/200mW/600mW/1600mW/2500mW/Pit mode
- Frequency：5.8G
- Channel：48CH
- Input voltage：DC7-36V（2-8S Battery）
- Output voltage：5V@600mA
- Protocol：IRC Tramp
- Antenna interface：MMCX
- Cable interface：SH1.0 6pin
- Video format：PAL/NTSC
- Microphone: Built in microphone
- Weight：17g
Notes
- Install Antenna before use.
- To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
- The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.
Includes
- 1x MATEN 5.8G 2.5W VTX PRO
- 1x MMCX Copper tube antenna
- 1x MMCX to SMA（Internal foramen）connector
- 1x sh1.0 6P Connecting cable
- 6x M2*5 screw
- 4x M2*12 screw
Key specifications
| Brand | GEPRC |
|---|---|
| Department | Drone Accessories |
| Output power | 2.5 W |
| Minimum order | 1 pcs (samples available) |
| Lead time | Ships in 48h · OEM run 15-20 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 13 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 173 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for GEPRC MATEN 2.5W VTx PRO 5.8G Video?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For GEPRC MATEN 2.5W VTx PRO 5.8G Video Transmitter we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
