HAKRC F722 35A mini Stack
SKU RS-241 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 2 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
Description
About this product
HAKRC F722 35A mini Stack is equipped with BLS 35A four-in-one ESC and F722 flight control,Installation hole spacing of 20 * 20mm.F722 flight controller is equipped with 6 UARTs, MPU6500 IMU, OSD, F.Port and many other functions!Built-in plug-in allows you to easily connect to the DJI FPV Air System.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life and reduce the risk of poor contact. Supports various receivers including Sbus,ELRS， PPM, CRSF, DSMX, iBus, DUMD, etc.
F722 FC Specifications
Size: 29 * 39mm (20mm-20mm mounting hole)
package size: 64 * 64 * 35mm
input voltage: 2S-6S LIPO
product net weight: 6g
package weight: 37g
CPU: STM32F405RET6
IMU: ICM42688 dual gyroscope
OSD: AT7456E
barometer: Integrated
Black Box: 16MB
EC: 5V/2A
BEC: 10V/2A
LED: support external adjustable LED
sensor: built-in current sensor
firmware version: HAKRCF722V2
receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver
BLS 35A ESC Specifications
Size: 31 * 30mm (20mm * 20mm mounting hole)
packing size: 64 * 64 * 35mm
product net weight: 6g
packing weight: 40g
input voltage: 2S-6S Lipo
galvanometer ratio: 300
continuous current: 35A
peak current: 40A
Electric Firmware: g-rev. 16.7-Multi
protocol support: PWM, Oneshot125, Oneshot42, Multishot,
DSHOT150, DSHOT300, DSHOT600

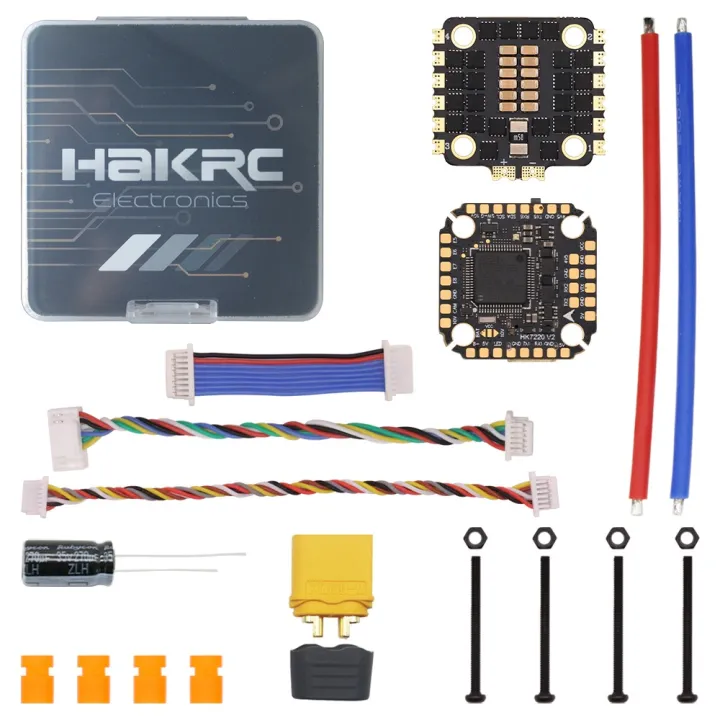

Package includes
1x F722 35A mini
Key specifications
| Department | ESCs, PDB & BEC |
|---|---|
| Current rating | 35 A |
| Minimum order | 2 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 10 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 190 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for HAKRC F722 35A mini Stack?
Stock supply starts at 2 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For HAKRC F722 35A mini Stack we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
