Holybro Pixhawk Baseboards Mini Standard Baseboard V2B
SKU RS-393 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h

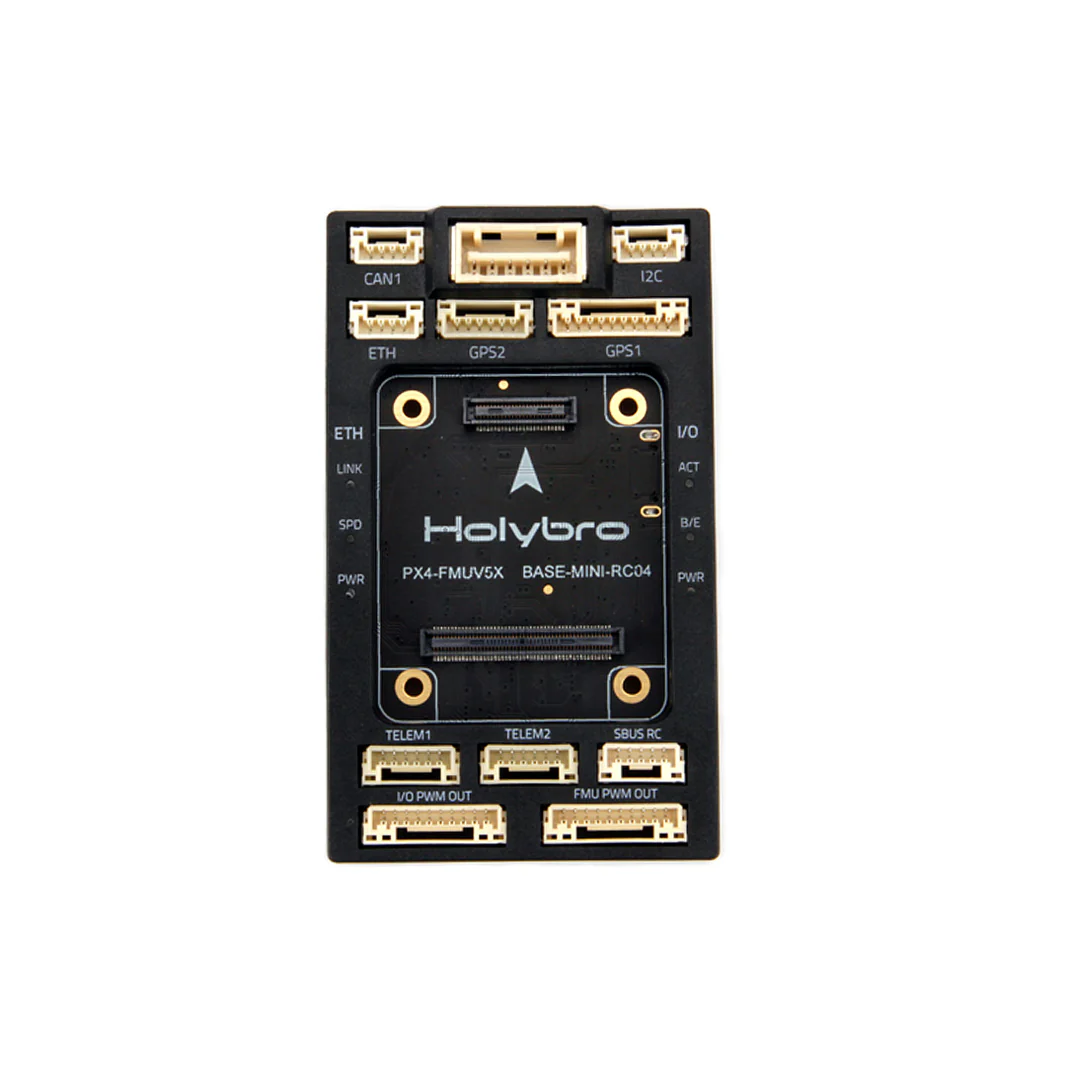

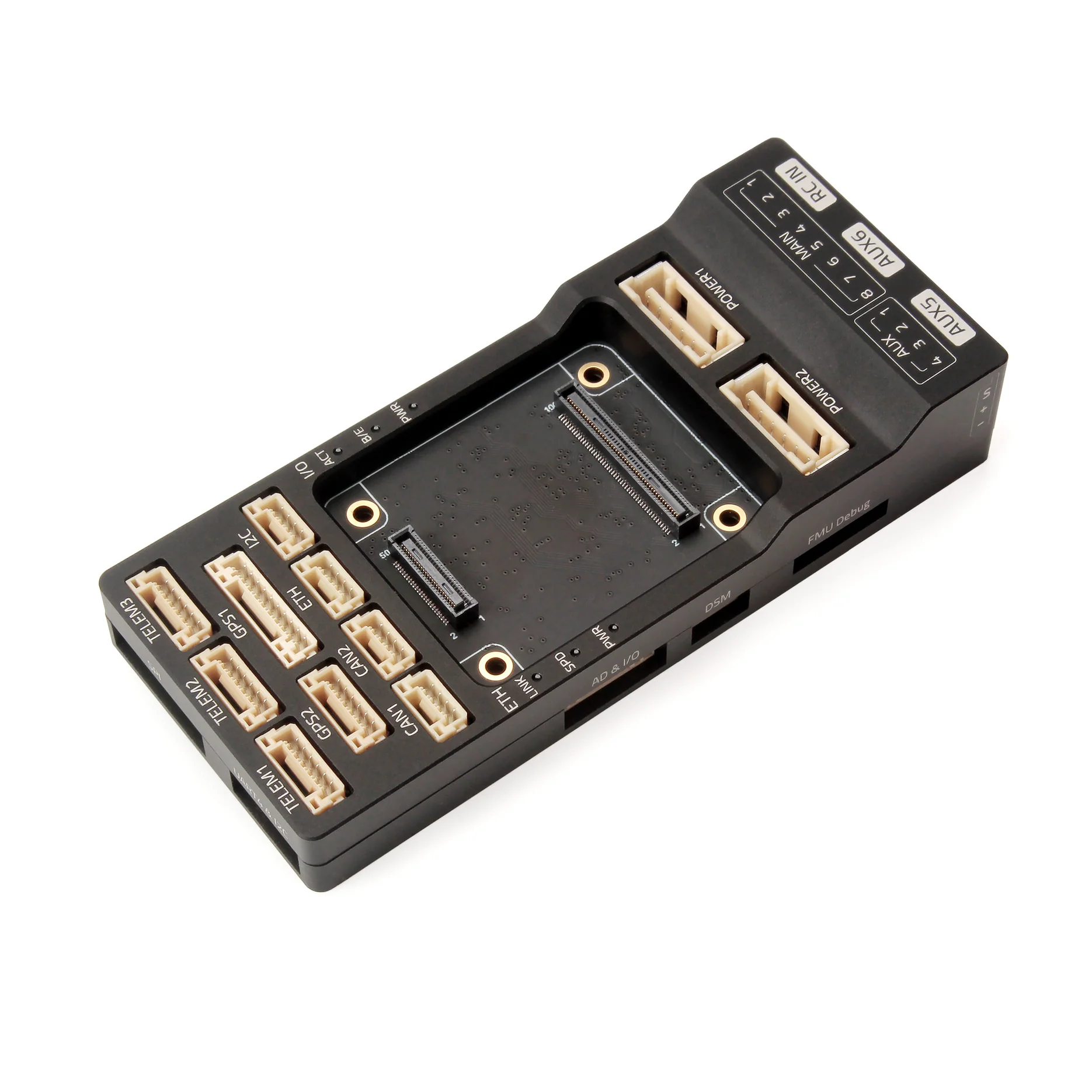

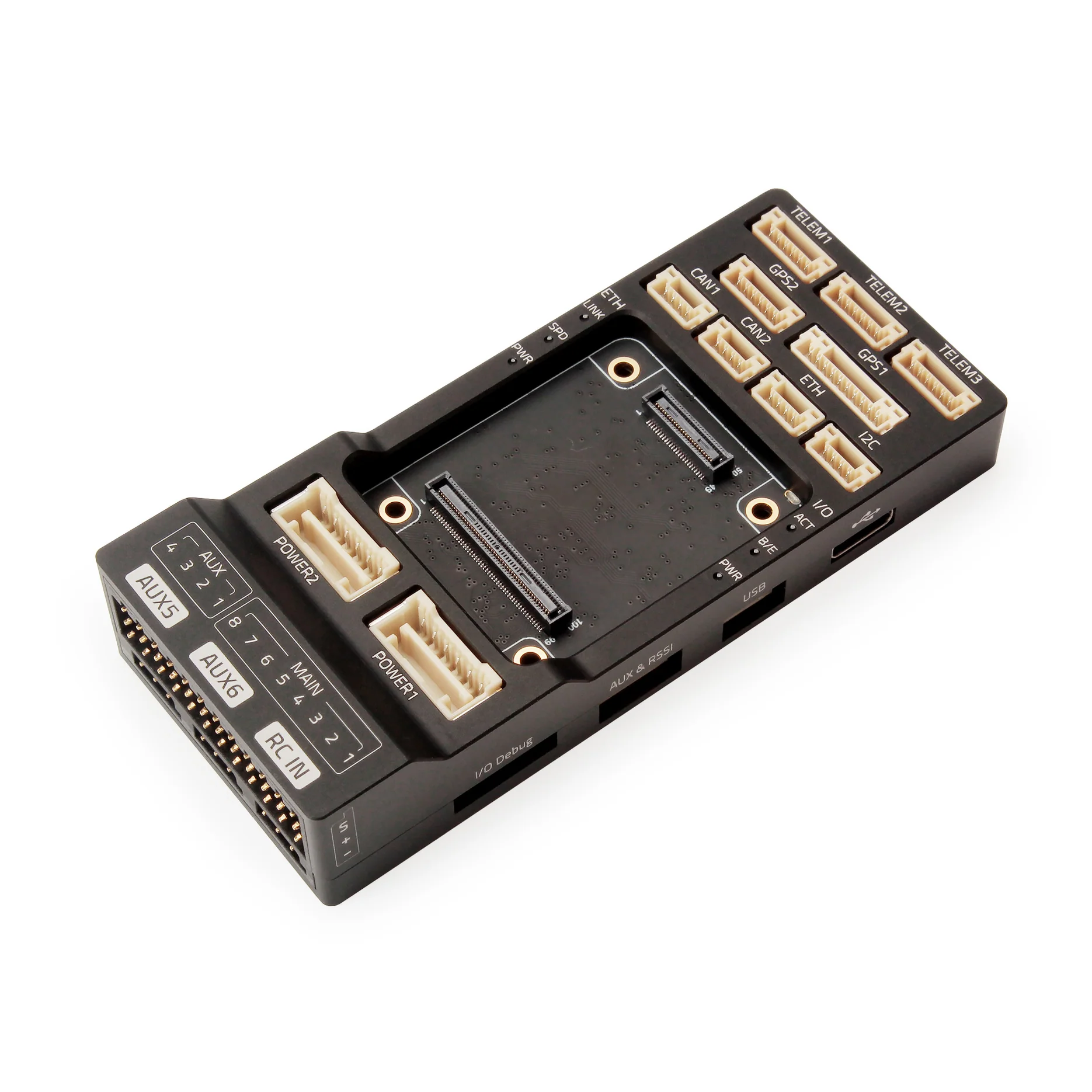

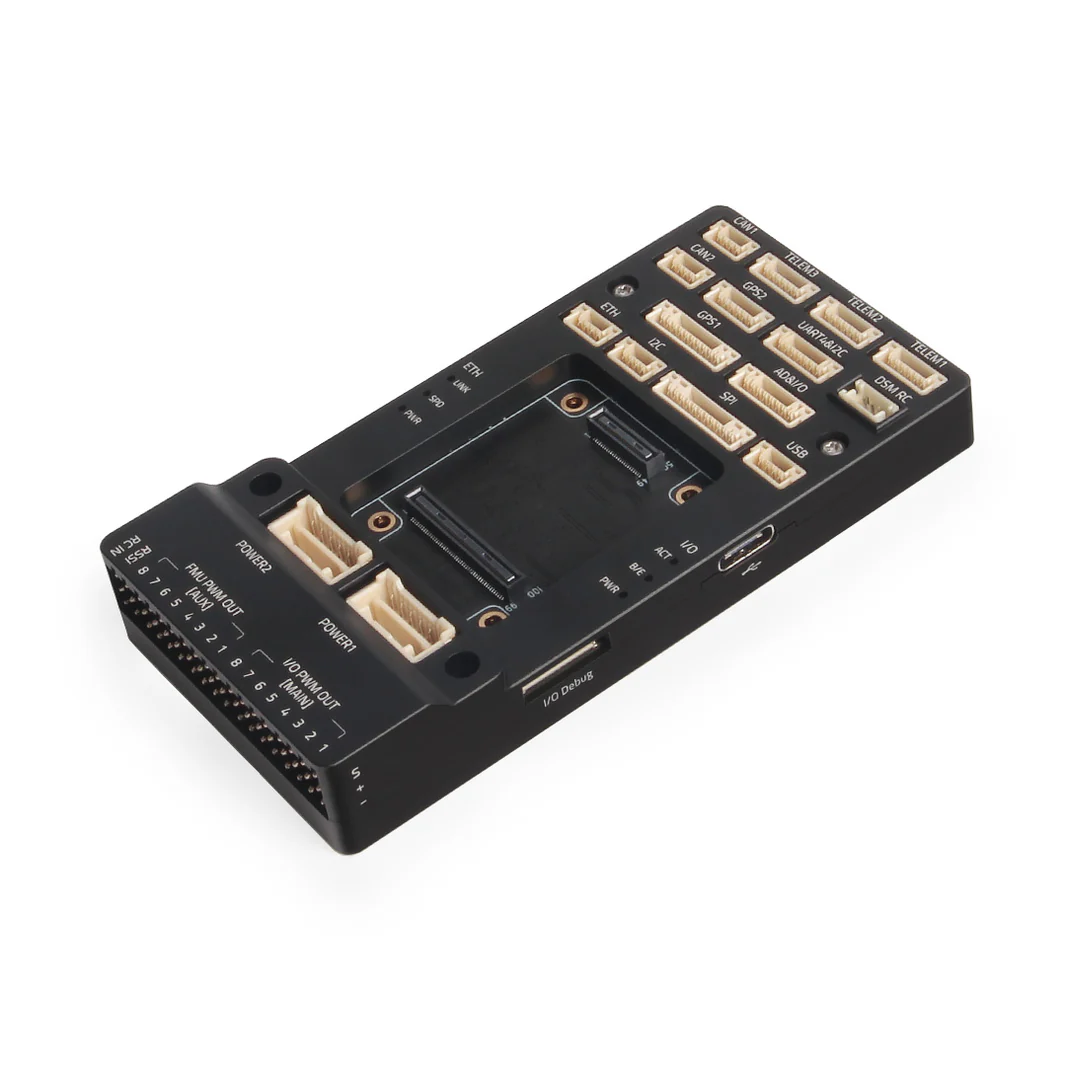

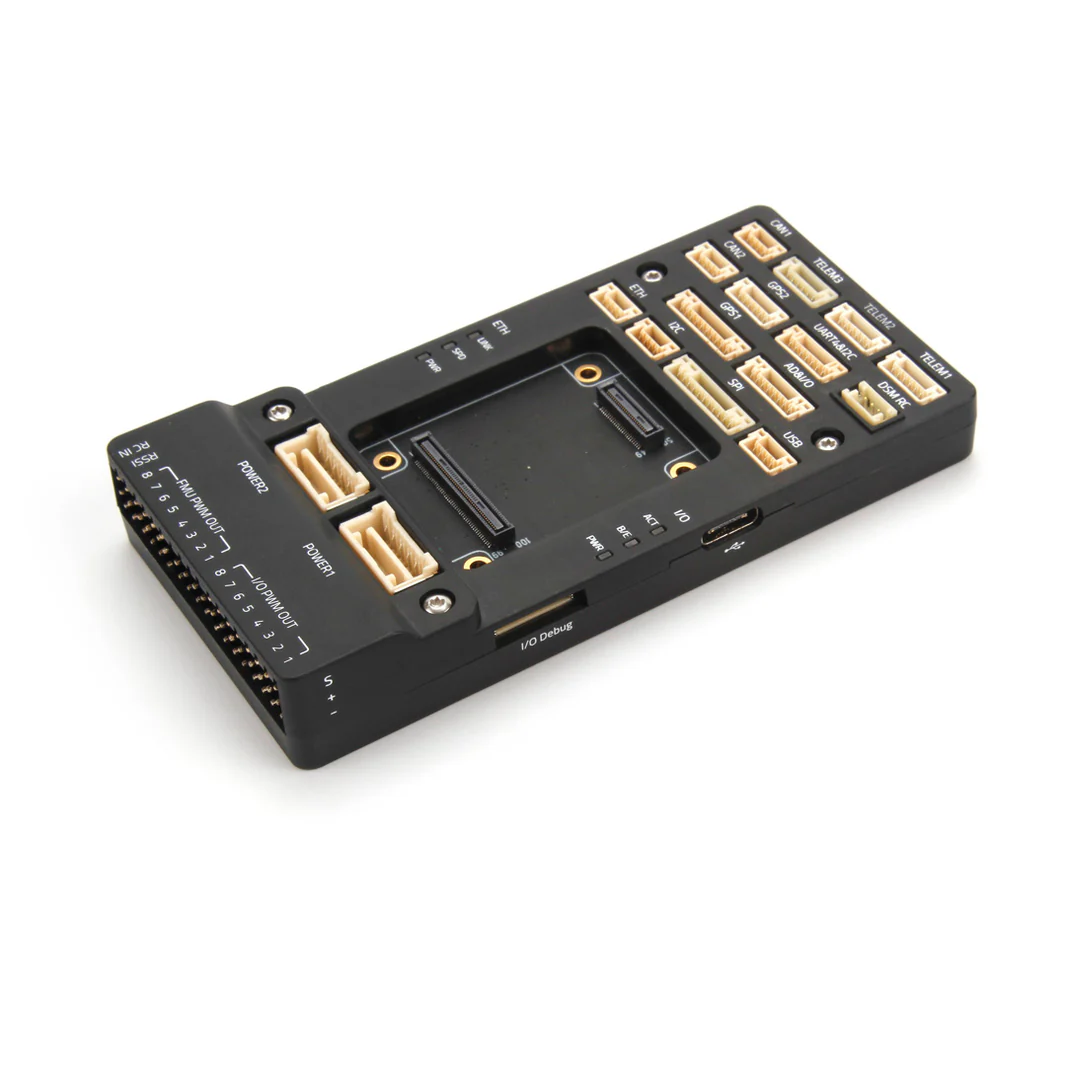

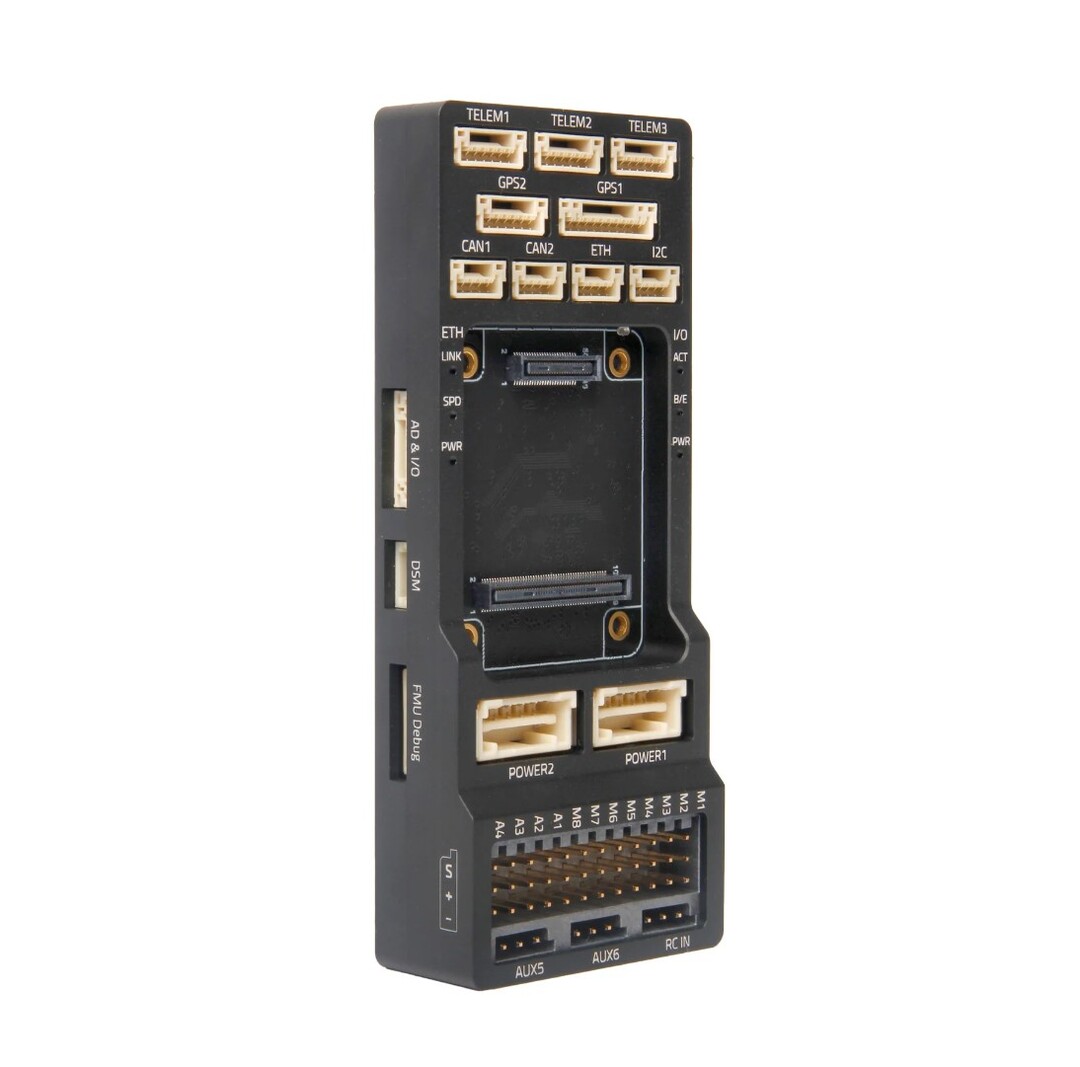

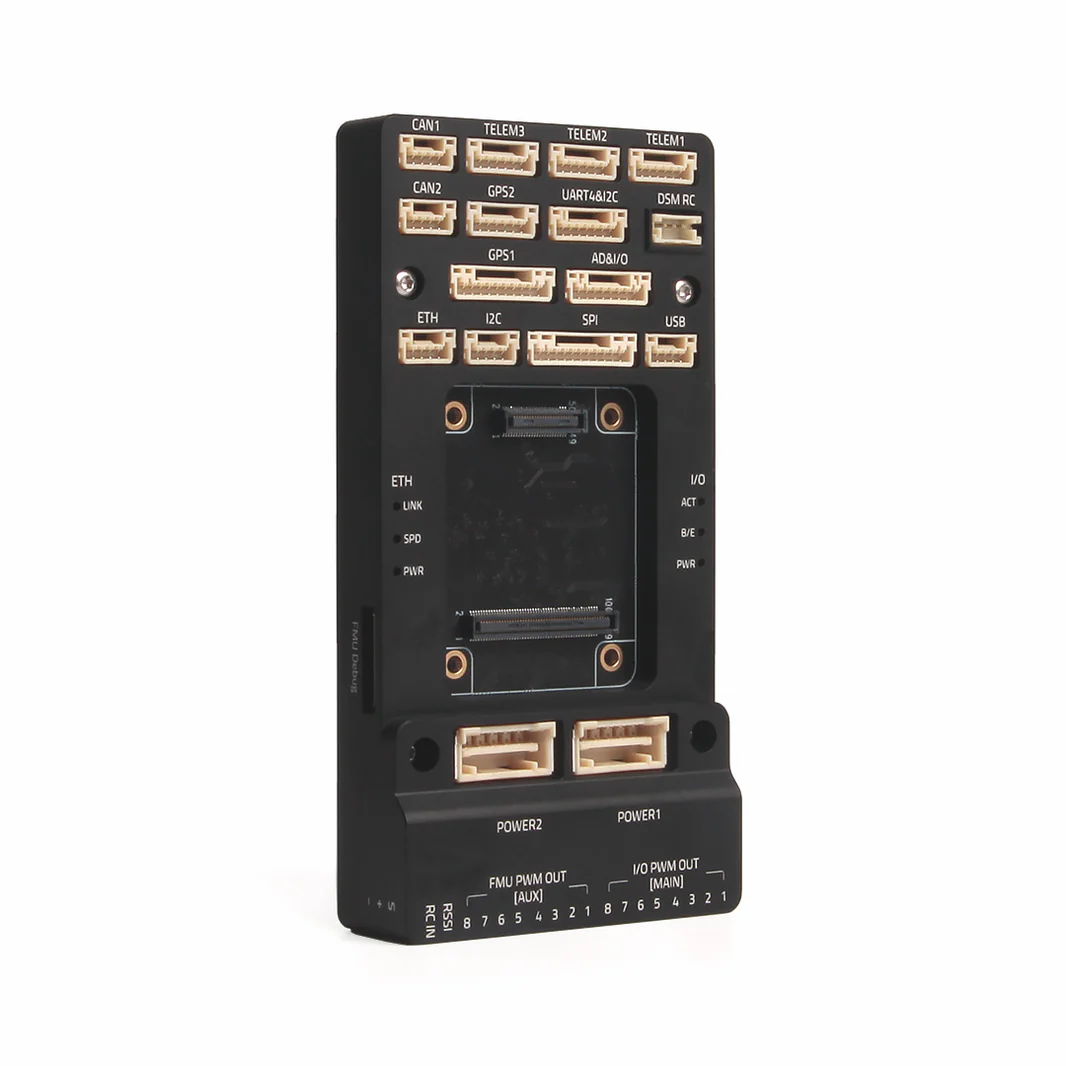

The Holybro Pixhawk Standard Baseboard V2B is an upgraded, full-featured carrier interface engineered for modular autopilots adhering to the open-source Pixhawk Autopilot Bus (PAB) standard, including the Pixhawk 5X, Pixhawk 6X, and Pixhawk 6C (module version). Designed for commercial drones, industrial sUAS, and autonomous robotics platforms, the V2B baseboard provides a central connection hub for avionics, power distribution, and mission-critical communications.
Sharing identical electrical pinouts and functionality with the V2A variant, the V2B features a modified header pin orientation optimized for compact airframe layouts and streamlined cable routing. It breaks out dual-redundant power module inputs, 16 PWM outputs, 100Mbps high-speed Ethernet for companion computer integration, dual CAN buses, dual GPS ports, and four general-purpose telemetry ports utilizing secure, locking JST-GH connector interfaces.
Key Features
- Pixhawk Autopilot Bus (PAB) Standard: Fully compatible with Pixhawk 6X, Pixhawk 5X, Pixhawk 6C (module version), and modular flight controllers following the PAB interface standard.
- V2B Pin Header Orientation: Offers a specialized pin header layout designed to ease cable routing and connector strain in tightly packed drone frames.
- Dual Redundant Power Inputs: Features primary (Power1) and backup (Power2) power inputs with automatic power path switching and overvoltage protection.
- 100Mbps High-Speed Ethernet: Dedicated Ethernet interface enables high-bandwidth communication with companion computers (e.g., Raspberry Pi, NVIDIA Jetson).
- Comprehensive I/O Breakout: Provides 16 PWM servo outputs, dual CAN buses, 2x I2C ports, 1x SPI bus, and 4 telemetry/serial ports (Telem1–3, UART4).
- Locking JST-GH Connector Interface: Industrial-grade locking connectors prevent physical disconnections caused by high vibration and G-forces.
Technical Specifications
- Brand / Manufacturer: Holybro
- Model Identifier: Pixhawk Standard Baseboard V2B (SKU: 18125 / 44398887305405)
- Bus Interface: Pixhawk Autopilot Bus (100-Pin & 50-Pin High-Density Connectors)
- Compatible FC Modules: Holybro Pixhawk 6X, Pixhawk 5X, Pixhawk 6C (Module Version)
- Power Supply Inputs: Dual Redundant Power Inputs (Power 1 & Power 2 via CLIK-Mate 2.00mm 6-Pin)
- Input Voltage Range: 4.75V – 5.25V DC
- PWM Servo Outputs: 16x PWM Channels (MAIN & AUX Outputs, Default 3.3V, Resistor Modifiable to 5V)
- Serial Interfaces: 4x General Purpose Serial Ports (Telem1, Telem2, Telem3, UART4)
- GPS Interfaces: 2x Ports (GPS1 with Safety Switch / Buzzer support, GPS2)
- Networking: 1x 100Mbps Ethernet Port
- Peripheral Buses: 2x CAN Bus Ports, 2x I2C Ports, 1x SPI Bus
- RC Inputs: Dedicated RC In (SBUS / PPM) & Spektrum DSM JST-ZH Port
- Debug Interfaces: Independent FMU Debug & IO Debug Ports (JST-SH 1.0mm)
- Connector Standard: JST-GH 1.25mm Pitch (unless noted otherwise)
- Dimensions: 40.2 mm x 92.3 mm x 18.4 mm
- Net Weight: ~58 grams

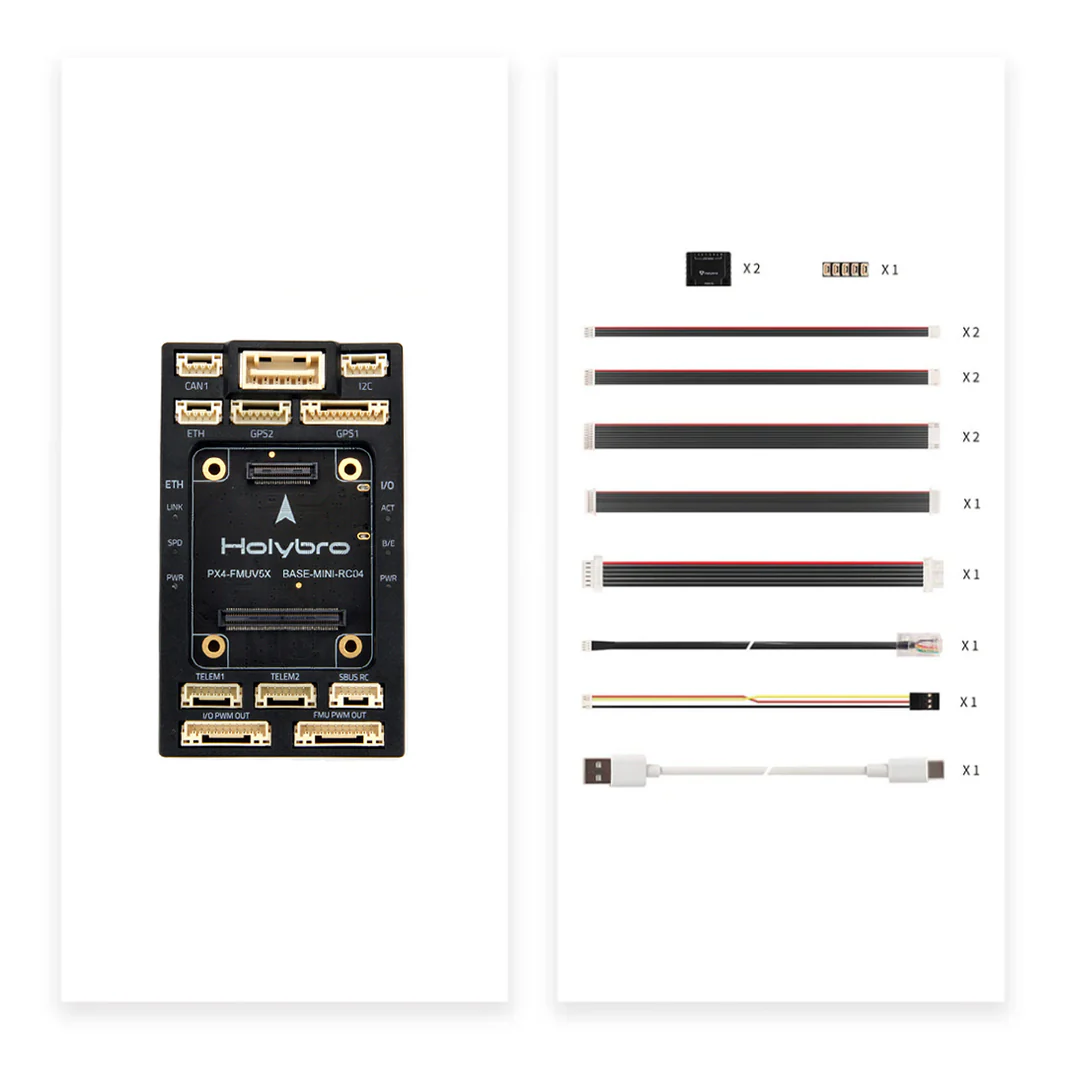

What Is Included
- (1) Holybro Pixhawk Standard Baseboard V2B
- (1) Complete Peripheral JST-GH Cable Set (SKU 18119)
Key specifications
| Brand | Holybro |
|---|---|
| Department | Drone Accessories |
| Minimum order | 5 pcs (samples available) |
| Lead time | Ships in 48h · OEM run 15-20 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 14 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 114 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Holybro Pixhawk Baseboards Mini?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For Holybro Pixhawk Baseboards Mini Standard Baseboard V2B we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
