Ruistart
FS2A 4CH AFHDS 2A Receiver (PWM Output) for Flysky i6/i6X
Price on request
MOQ 1 pc · samples available
iFlight · Radio, RX & VTX

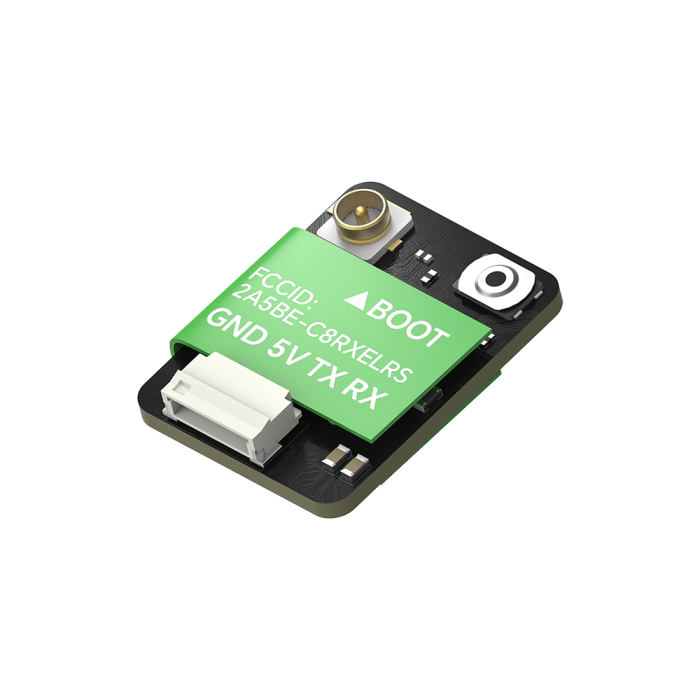

iFlight ELRS Nano 2.4GHz Receiver + 160mm Antenna
SKU RS-303 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 10 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
About this product
With the extreme range and high packet rate of the iFlight ELRS Nano 2.4GHz Receiver and 160mm Antenna, failsafes are a thing of the past. The ExpressLRS RX Nano modules were developed in close cooperation with the ExpressLRS Team, with firmware targets already released.
Features
- Improved circuit design
- Upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
- High-performance at 2.4GHz signal has outstanding performance and long-range capabilities
Specifications
- Antenna connector: IPEX
- Firmware: ExpressLRS iFlight 2.4GHz Nano RX
- Frequency bands: 2.4GHz ISM
- Telemetry Power: 12.3dbm（17mW 2.4GHz）
- Dimension: 10x13mm
- Connector: SUR0.8 Connector
- Interface: RX TX 5V GND
- Input voltage: 5V
- Protocol: CRSF
- Weight: 0.5g
Links
Includes
- 1x iFlight ELRS Nano 2.4GHz Receiver
- 1x 160mm Antenna
With the extreme range and high packet rate of the iFlight ELRS Nano 2.4GHz Receiver and 160mm Antenna, failsafes are a thing of the past.
Key specifications
| Brand | iFlight |
|---|---|
| Department | Radio, RX & VTX |
| Dimension | 160 mm |
| Minimum order | 10 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 4 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 19 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 199 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for iFlight ELRS Nano 2.4GHz Receiver +?
Stock supply starts at 10 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For iFlight ELRS Nano 2.4GHz Receiver + 160mm Antenna we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
