Ruistart · Frames & Kits

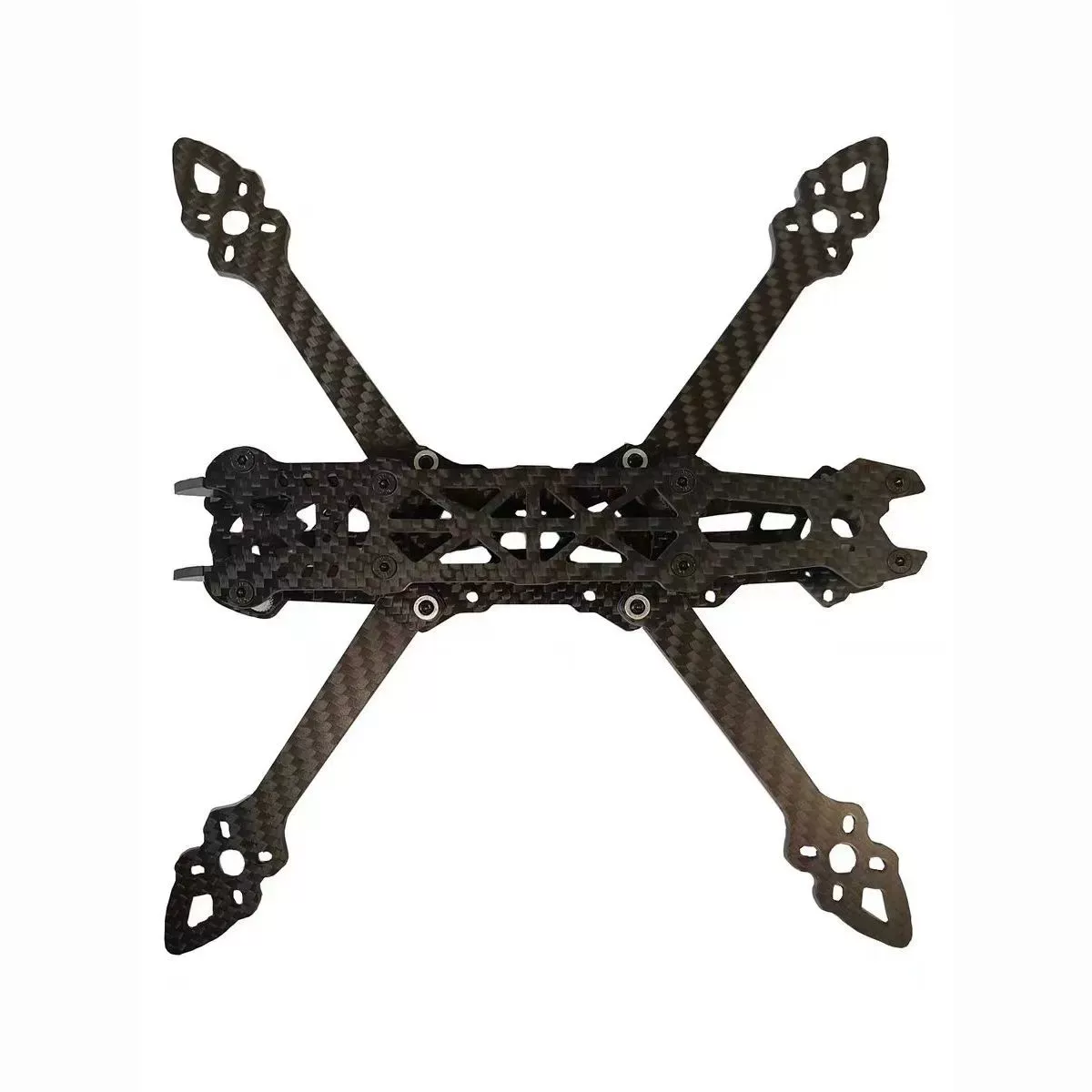

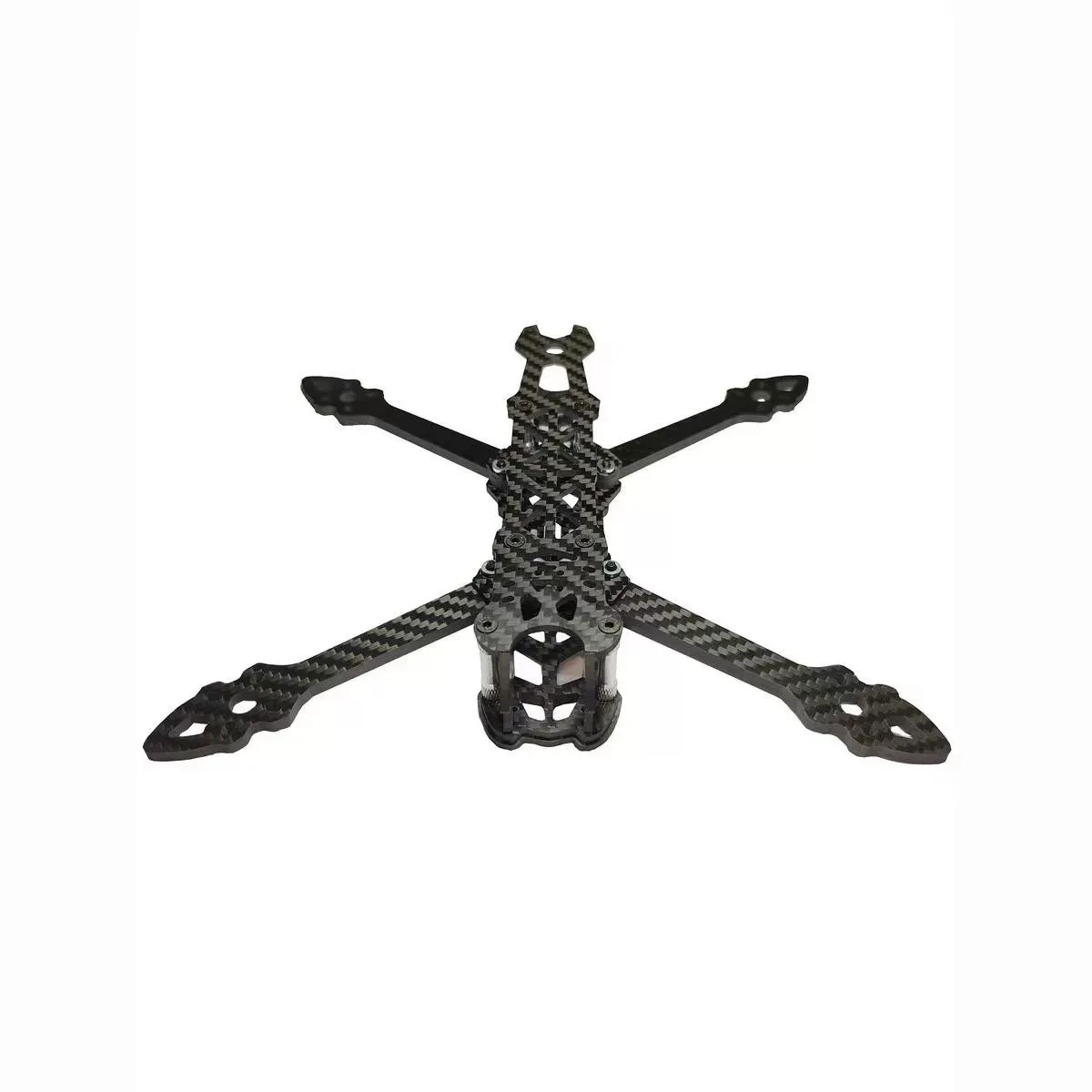

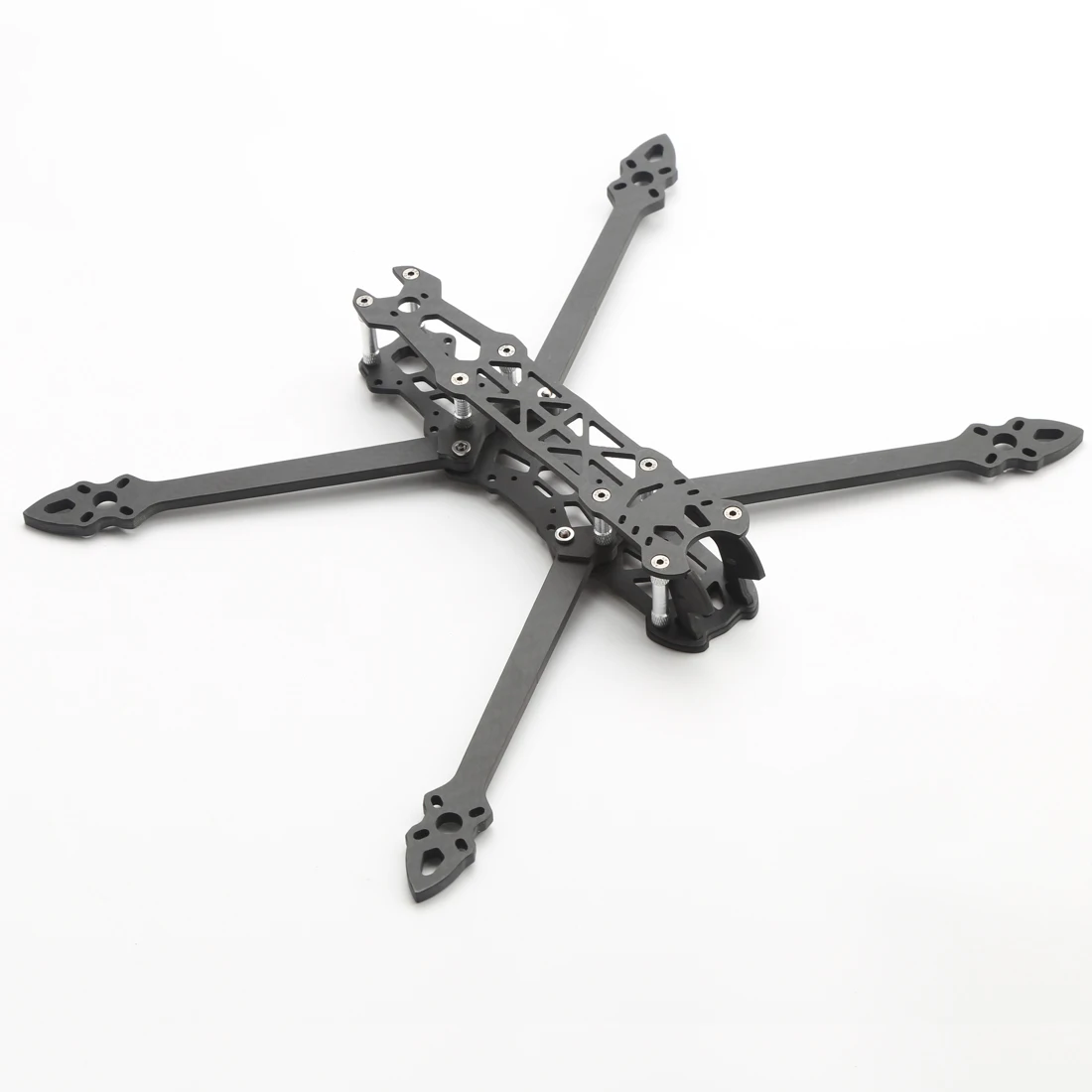

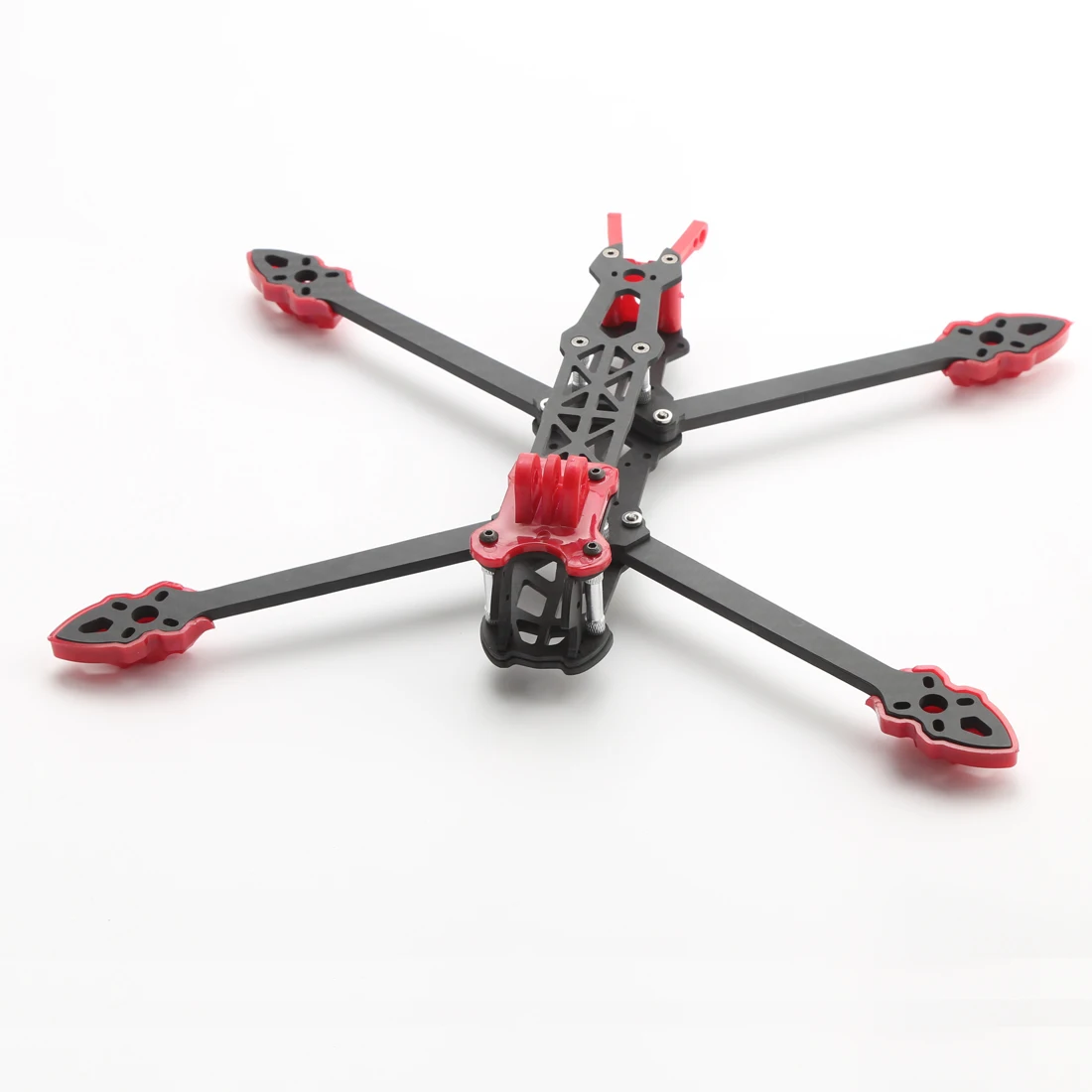

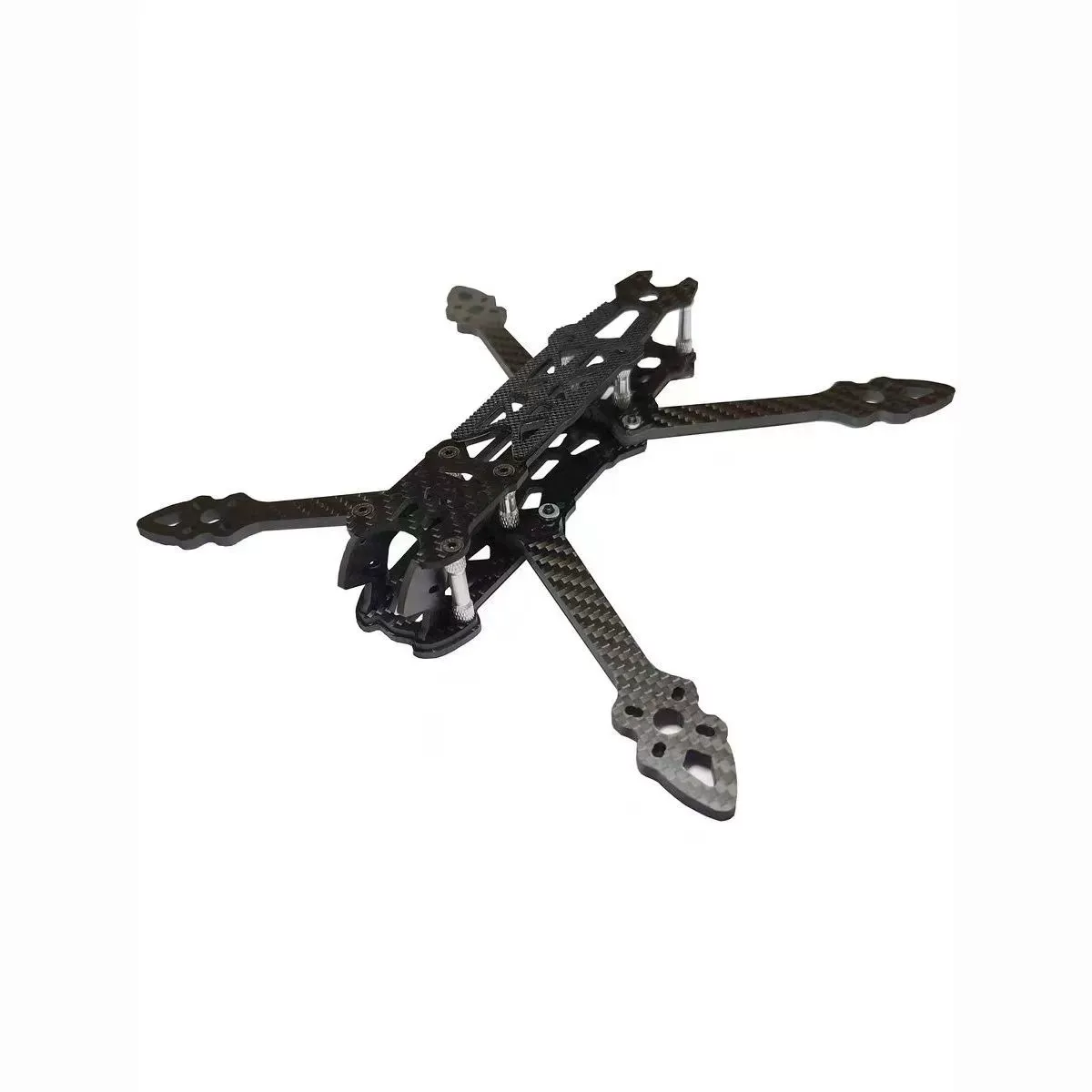

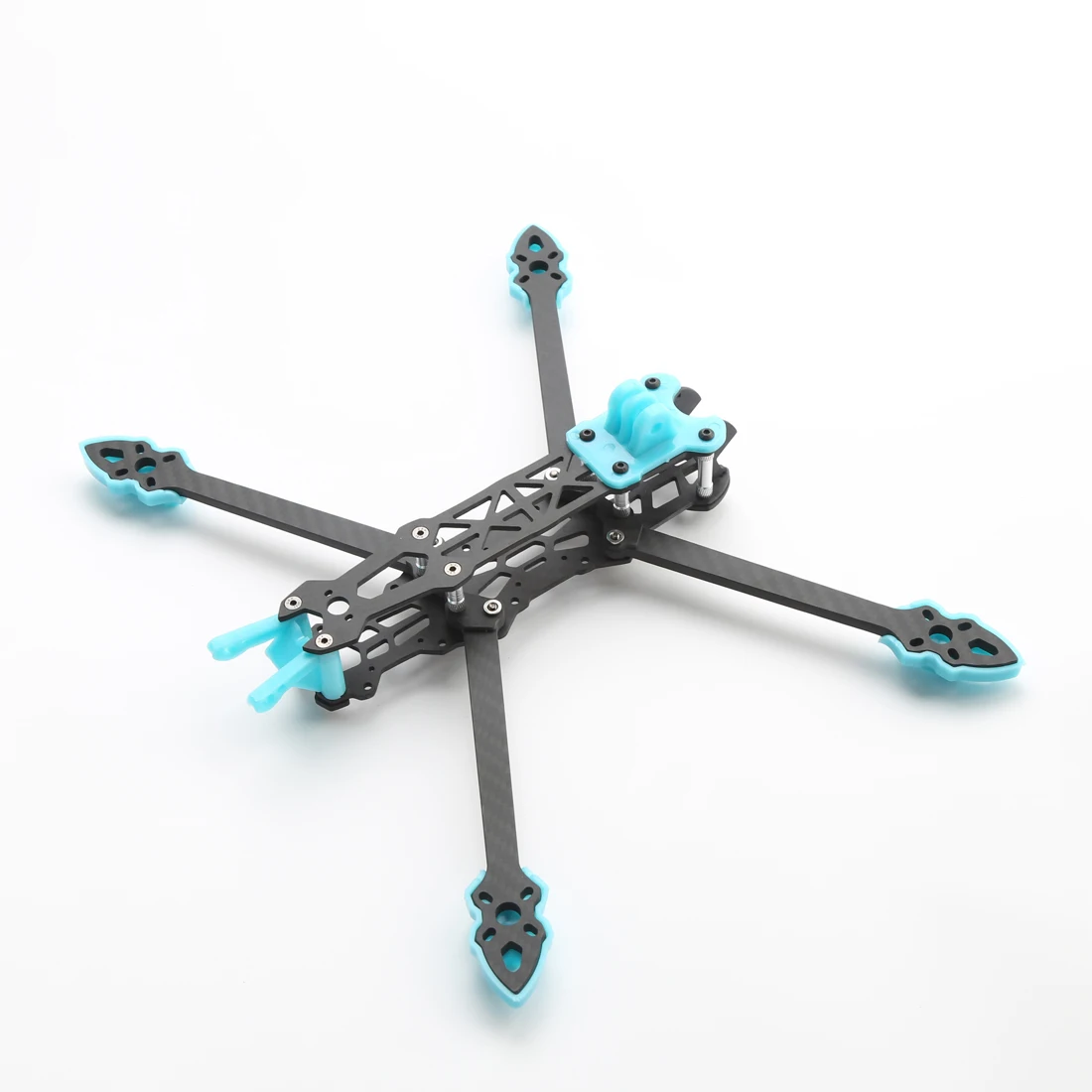

Mark4 5" Carbon Fiber FPV Frame (Freestyle/Racing)
SKU RS-148 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
Description:
Name: Mark4 5-Inch Freestyle Frame Kit (225mm, 5mm Arms)
Propeller: 5 inch
Weight: 102g
Motor to motor: 225MM
Size: 145*172MM
Arms plate: 5MM
Top plate: 2.5MM
Bottom plate: 2.5MM
Side plate: 2.5MM
Camera mount size: 19*19mm
Recommended configuration: (not included)
Flight Controller: RF/Kiss/F3/F4/F7/F405/F722
Motors: 2205/2206/2207/2305/2306/2507/2306.5/2207.5
ESC: 30A-40A-45A-50A
Propeller: 5 inch
Battry: 3S-4S 1500mAh-2200MAH -6s 1150mAh-1500MAH

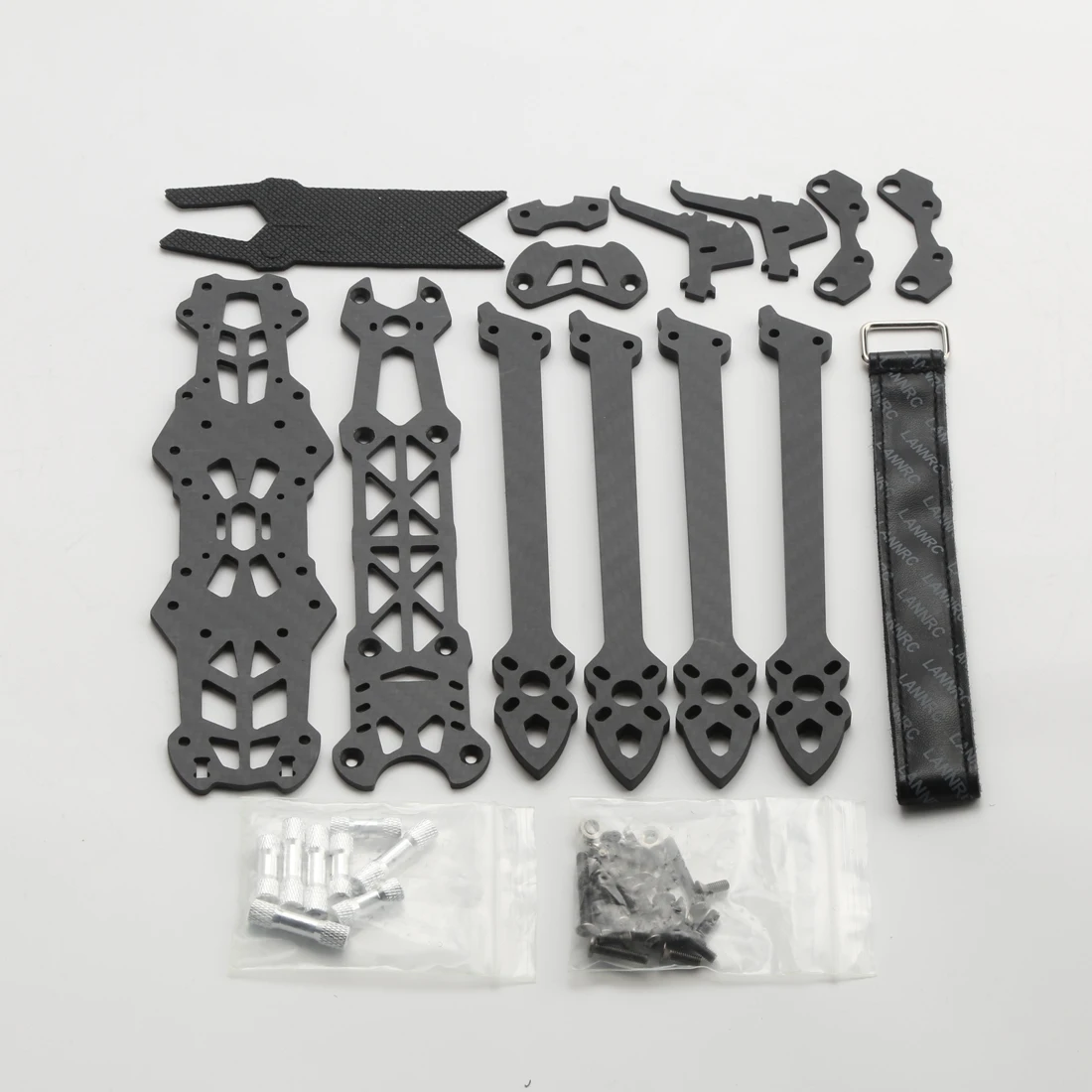

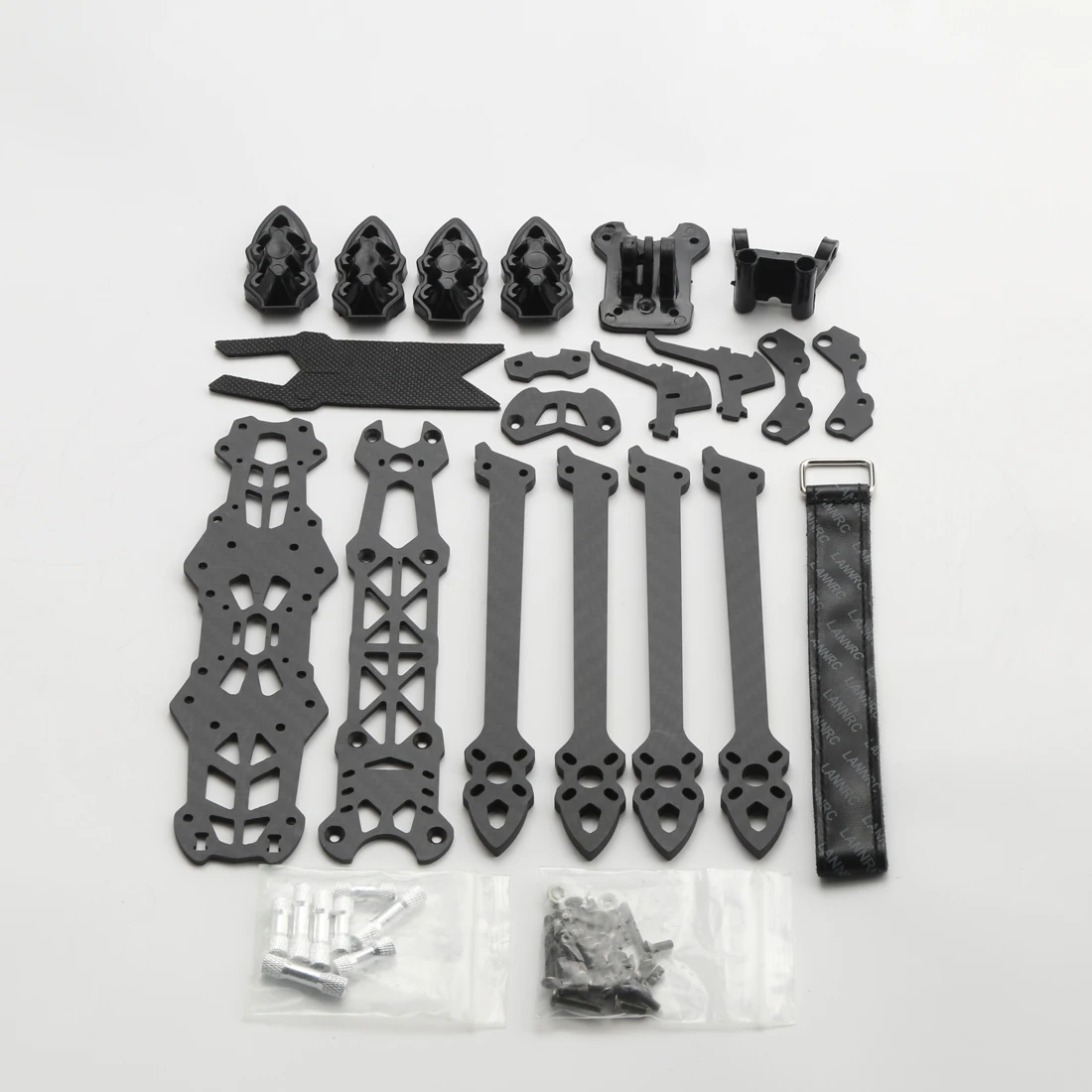

Package included: (Send it as your choice)
1 x Mark4 5inch FPV Frame kit
Key specifications
| Department | Frames & Kits |
|---|---|
| Propeller size | 5 inch |
| Minimum order | 1 pcs (samples available) |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 1 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 12 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 192 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for mechfpv Mark4 5" Carbon Fiber FPV Frame?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For mechfpv Mark4 5" Carbon Fiber FPV Frame (Freestyle/Racing) we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
