Description:
Mark4 V3 Pro 15-Inch Long Range Frame Kit (680mm Wheelbase)
The MARK4 V3 Pro carbon fiber frame kit is designed for FPV freestyle quadcopters, offering a rigid and lightweight structure with 8mm arms, wide electronics compatibility, and support for large motors and propellers.
Specifications:
Product Name:MARK4 V3 Pro Carbon Fiber Drone Frame

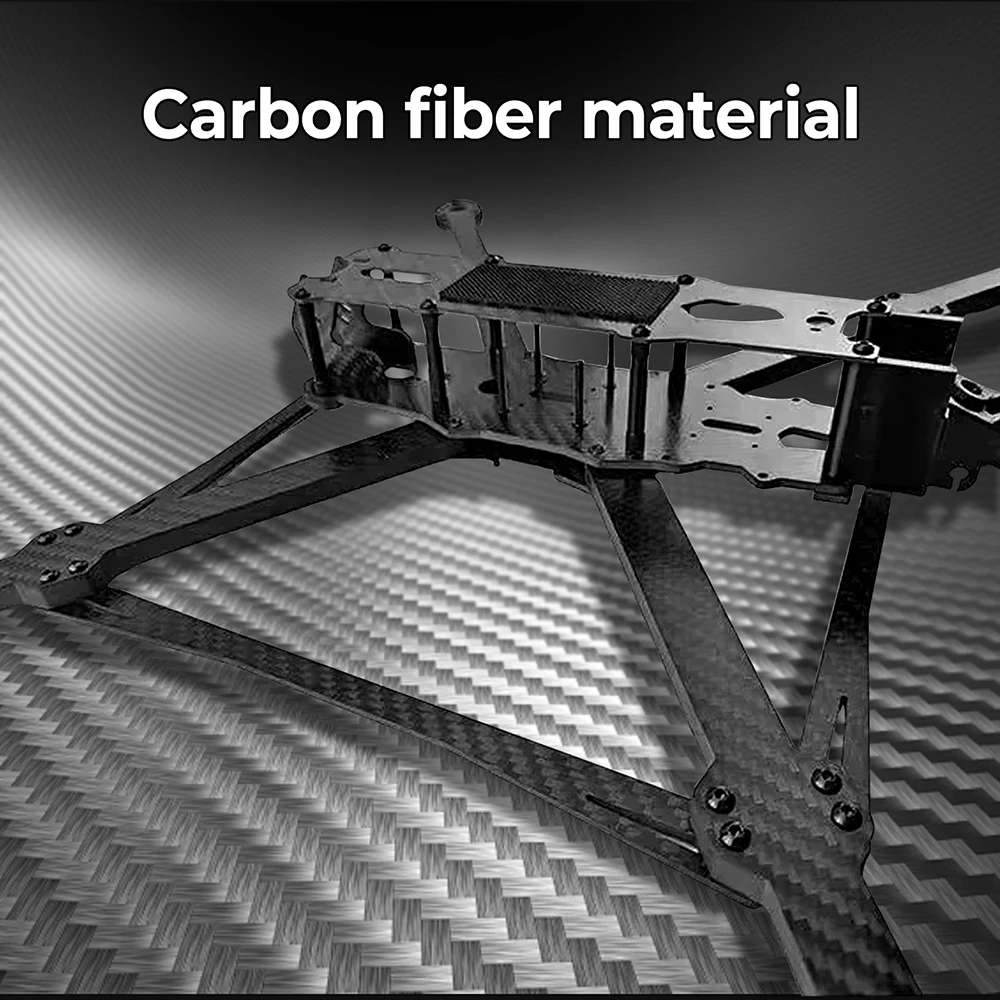

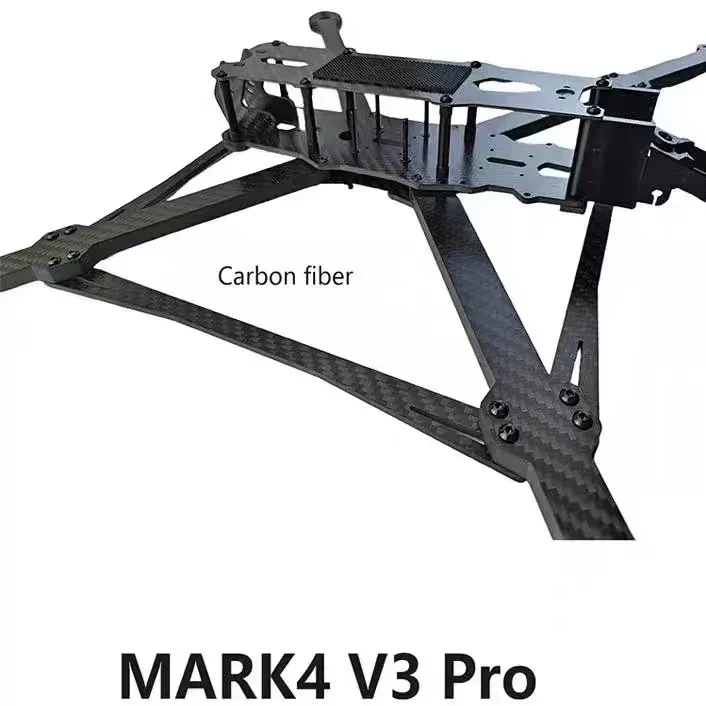

Material:Carbon Fiber

15 Inch Version

Wheelbase: 680mm
Weight: 590g
Prop Compatibility: 15 inch
Motor Compatibility: 4218 / 4312 / A4320
Payload Capacity：8–10kg

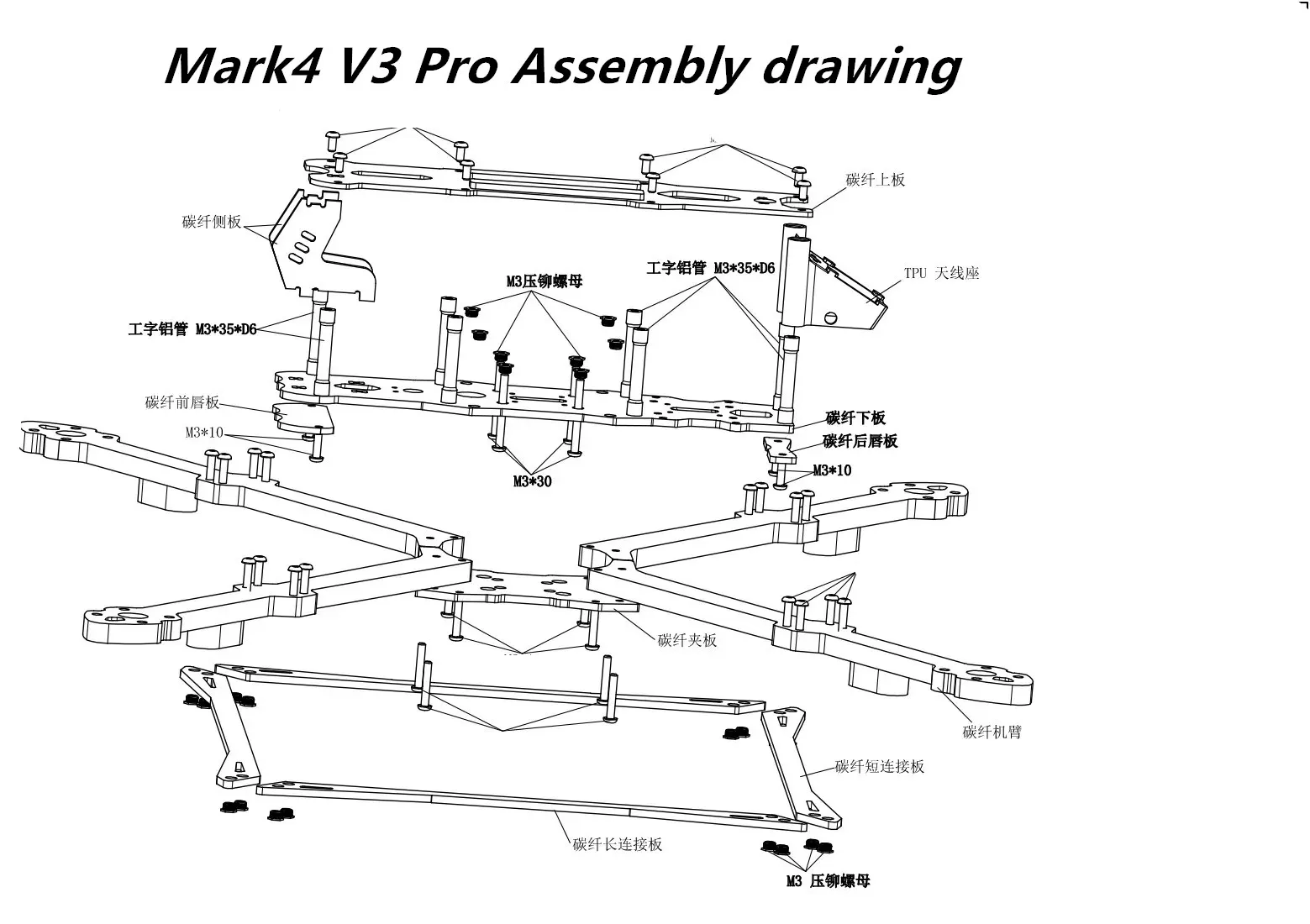

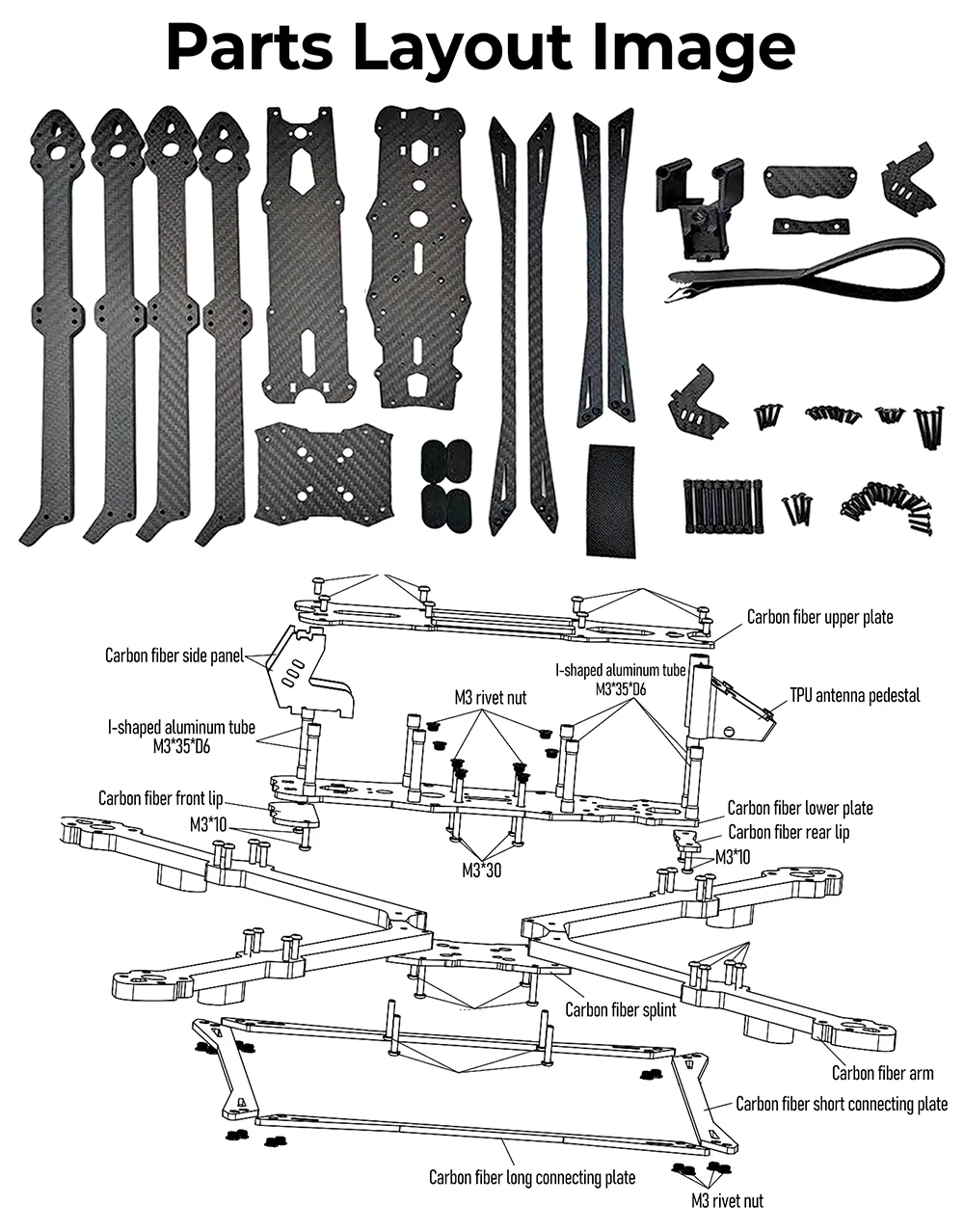

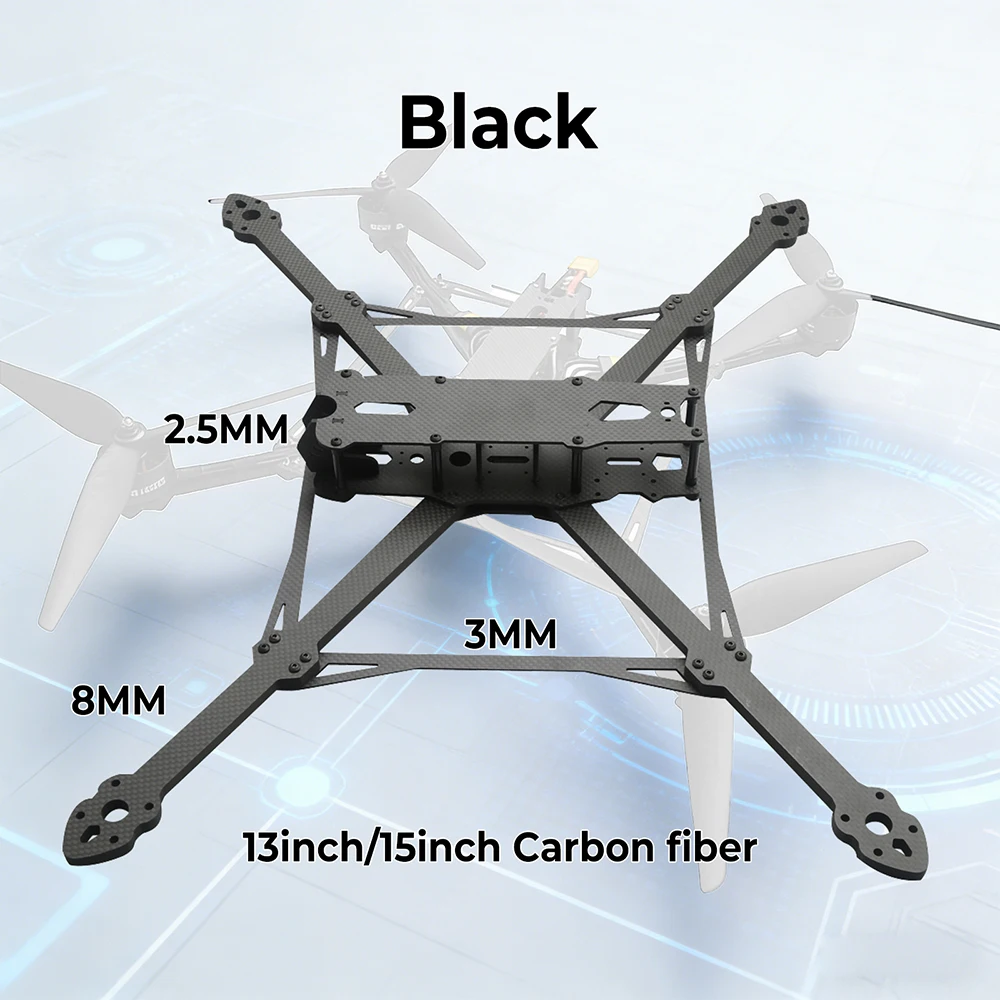

Structure Details

Upper Plate Thickness: 2.0mm
Bottom Plate Thickness: 3.0mm
Lower Fixed Plate Thickness: 3.0mm
Camera Side Plate Thickness: 2.5mm
Front Lip Plate Thickness: 2.5mm
Rear Lip Plate Thickness: 2.5mm
Surrounding Reinforcement Thickness: 3.0mm
Arm Thickness: 8.0mm

Mounting

Camera Mount Spacing: 19mm
FC Mount Spacing: 20×20mm / 30.5×30.5mm
VTX Mount Spacing: 20×20mm / 30.5×30.5mm
Motor Mount Spacing: 21×21mm
Motor Screw Hole Diameter: 4mm

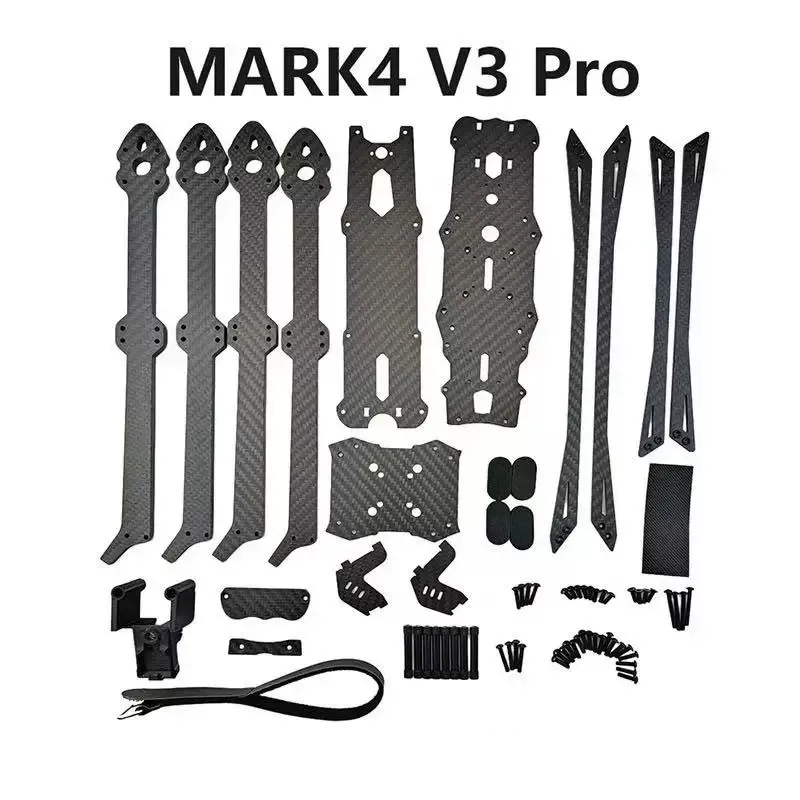

Package contents:
1*Carbon Fiber Frame
