Holybro Pixhawk 4 STM32F765 Open Source PX4 Flight Controller Autopilot for Multirotor Fixed Wing VTOL UAV Drone
Price on request
MOQ 1 pc · samples available
Pixhawk · Flight Controllers
Pixhawk 2.4.8 Full Combo - M8N GPS + 3DR Telemetry + OSD + PM + I2C
SKU RS-29 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
PIXHAWK 2.4.8 32-Bit ARM Flight Controller System
Complete Pixhawk 2.4.8 PX4 Flight Controller Kit with M8N GPS & Telemetry
PIXHAWK integrates the latest 32-bit chip technology and sensor technology, eliminating the limitations of APM's 8-bit CPU and the issues of high CPU occupancy. Featuring a real-time operating system and 14 PWM/Servo outputs, it provides a powerful and reliable platform for your aircraft.
Key Features
- High Performance: Upgraded from 8-bit to 32-bit processing for complex flight calculations.
- Real-Time OS: Built on a real-time operating system for low-latency response.
- Redundancy & Safety: Integrated backup power and failover controller. In case of main controller failure, it safely transitions to the backup system.
- Flight Modes: Supports both automatic and manual flight modes.
- Power Failover: Redundant power supply input with automatic failover capabilities.
- Visual & Audio Feedback: Multi-color LED indicator and multi-sound buzzer interface.
- Data Logging: Micro SD card slot for comprehensive flight data recording.

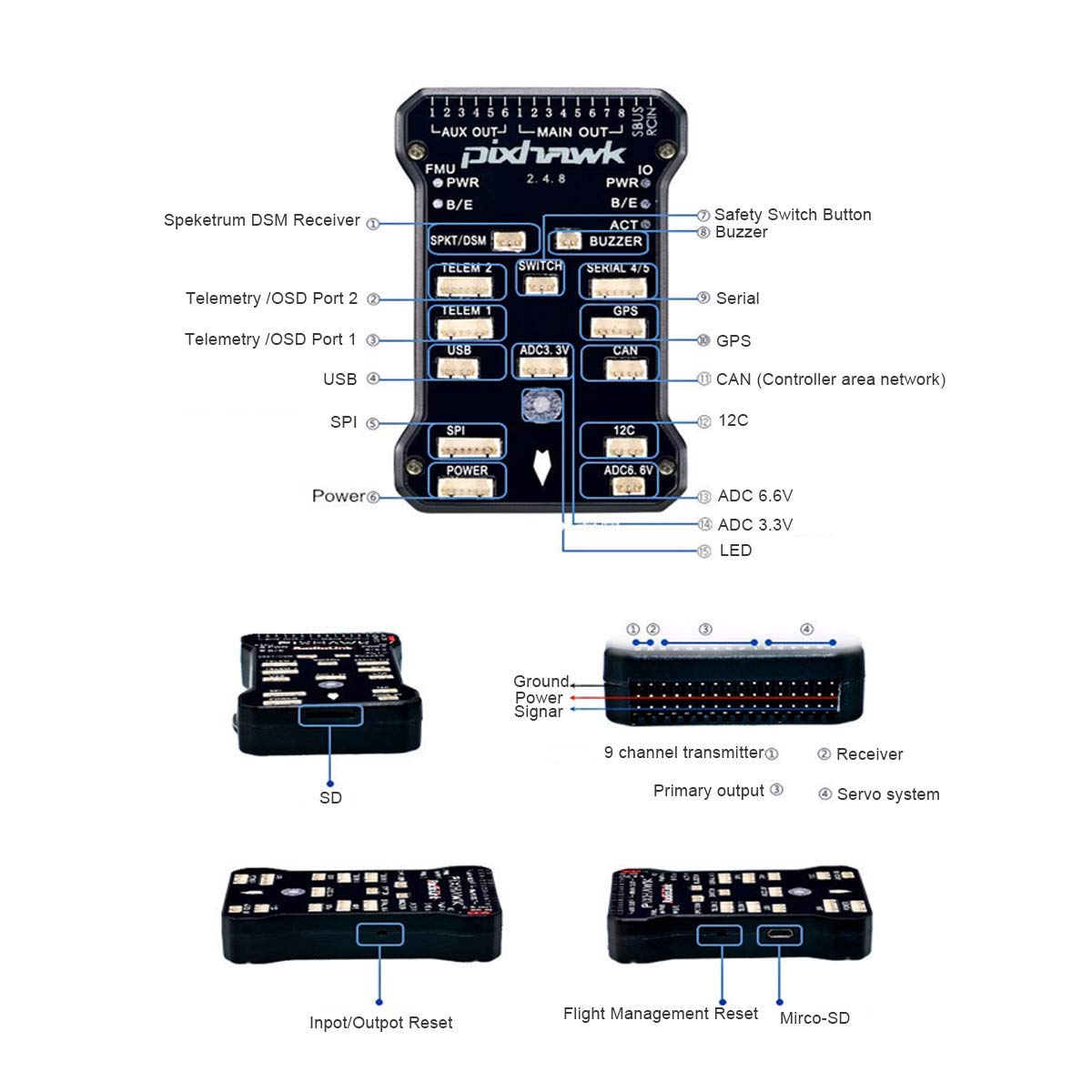

Hardware Parameters
ComponentSpecificationsMain Processor32-bit STM32F427 Cortex M4 (2M Flash, Hardware Floating Point)Main Frequency168MHz / 256K RAMBackup Processor32-bit STM32F103 backup processorGyroscopeL3GD20 3-axis digital 16-bit gyroscopeAcc/MagnetometerLSM303D 3-axis 14-bit acceleration/magnetometerSensor HubMPU6000 6-axis acceleration/magnetometerInterface Specifications
- UART: 5 ports (1 compatible with high voltage, 2 with hardware flow control)
- CAN: Dual CAN interfaces
- RC Compatibility: Spektrum DSM/DSM2/DSM-X satellite receiver & Futaba SBUS input/output
- Signal Input: PPM signal input and RSSI (PWM or voltage) output
- Expansion: I2C, SPI, 3.3V and 6.6V ADC inputs
- Connectivity: External Micro USB interface and 14 PWM/Servo output bus
Package Included (As shown in main picture)
- 1 x Pixhawk PX4 2.4.8 32-bit ARM Flight Controller (with shell)
- 1 x Safety Button
- 1 x Shock Absorber for Pixhawk board

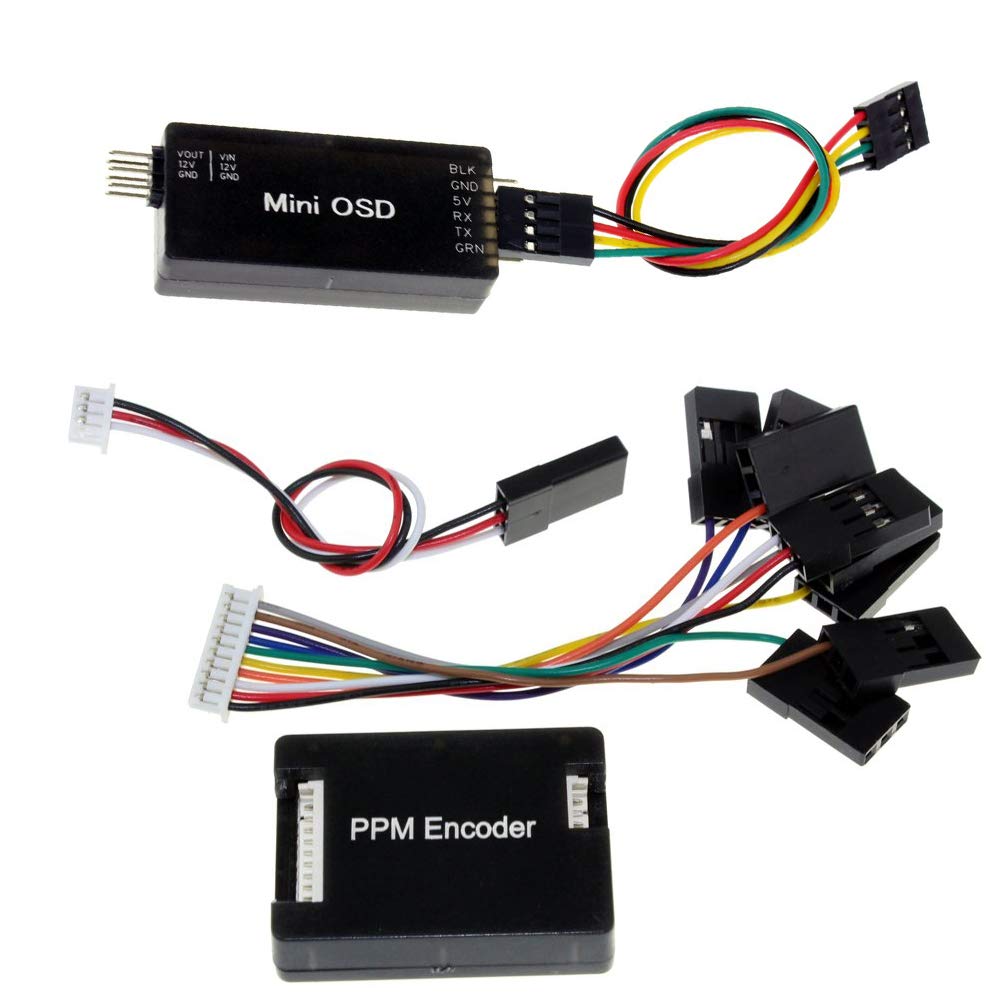

- 1 x PPM Module

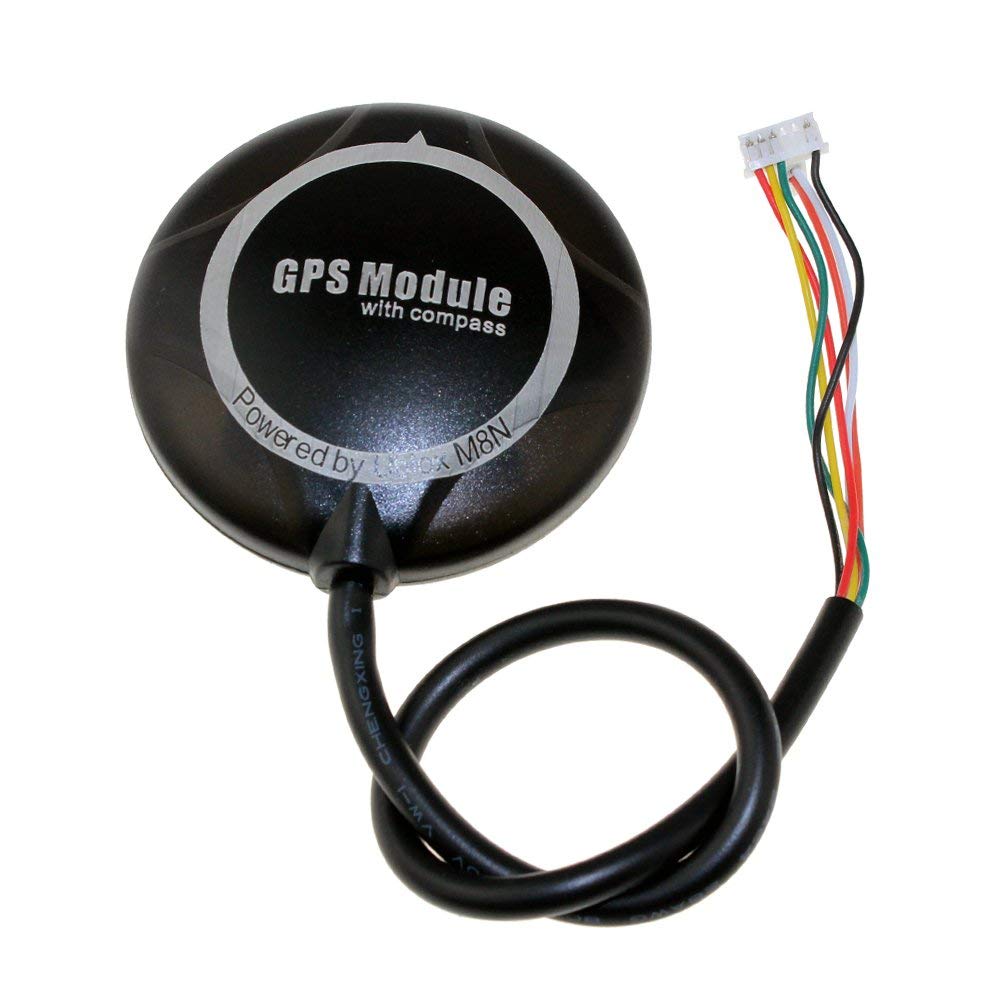

- 1 x NEO-M8N GPS
- 1 x Power Module (T-plug type)
- 1 x I2C Splitter Expand Board

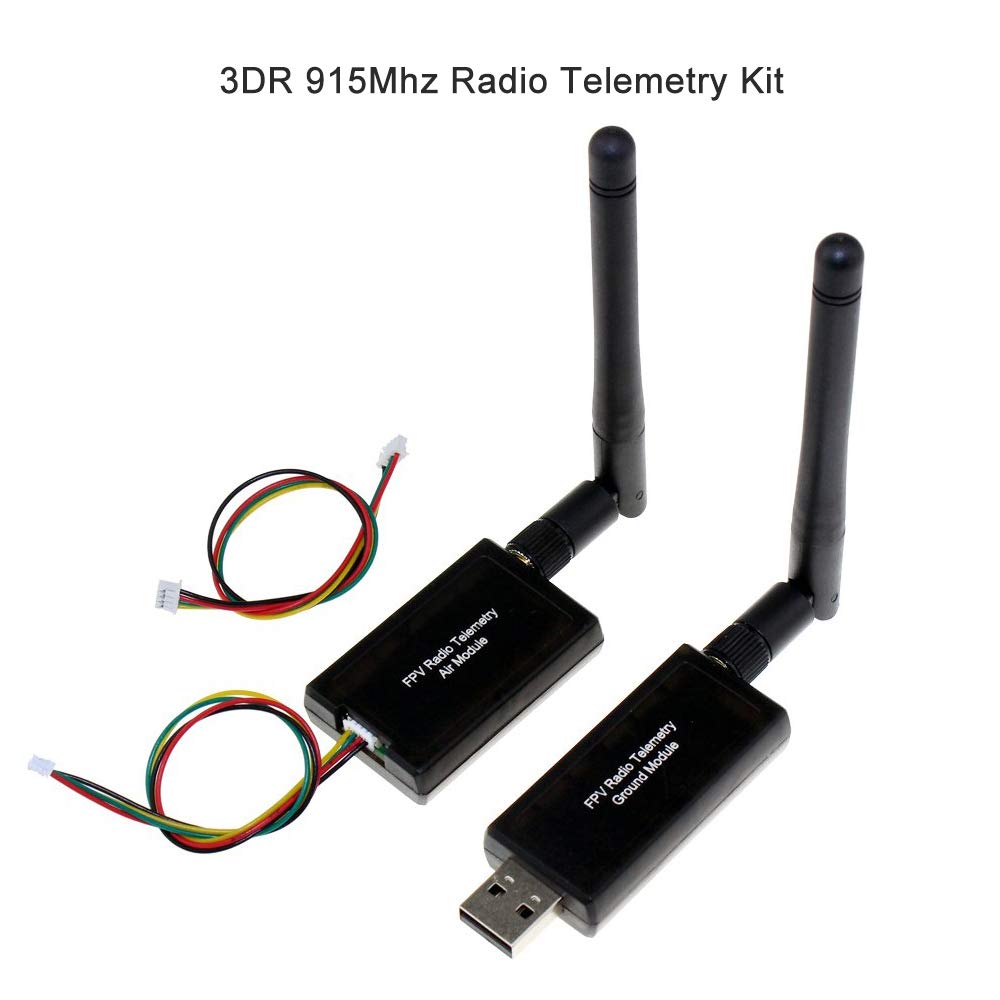

- 1 x 3DR Radio Data Transmission Module (915MHz)
- 1 x Mini USB Cable
- 1 x Mini OSD
- 1 x GPS Bracket
- 1 x SD Card Adapter
- 1 x Buzzer
Key specifications
| Brand | Pixhawk |
|---|---|
| Department | Flight Controllers |
| Minimum order | 1 pcs (samples available) |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 1 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 12 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 172 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Pixhawk 2.4.8 Full Combo - M8N GPS +?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For Pixhawk 2.4.8 Full Combo - M8N GPS + 3DR Telemetry + OSD + we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
