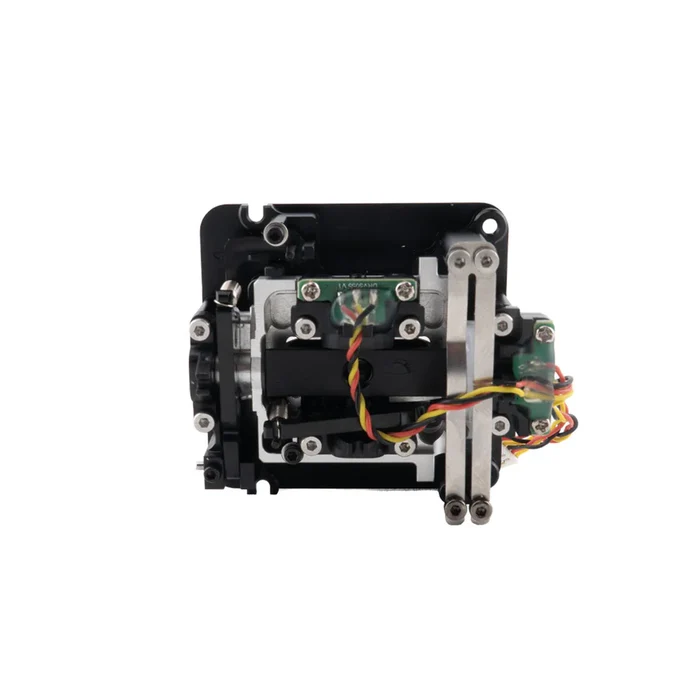

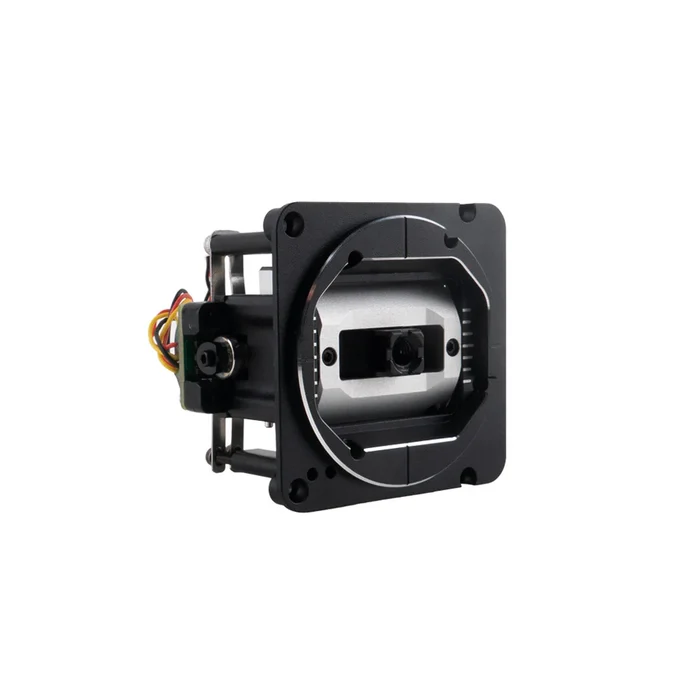

RadioMaster AG02 M5 Threaded For custom sticks CNC Hall Gimbal Set (Throttle and Centering)

The AG02 M5 version is specifically developed for pilots using custom stick ends, such as the M5 compatible options from RC Technik. While retaining the proven mechanical design of the standard AG02, this edition adopts an M5 stick thread to expand compatibility with third-party hardware.

The gimbal assembly is fully CNC machined from aluminum and engineered to reduce rotational inertia by 21.6%, significantly improving stick response and precision. Featuring high-resolution Hall effect sensors and quad precision bearings, it provides a smooth, low-noise control experience tailored for professional and custom setups.

Features

• M5 Threaded Sticks: Designed specifically for compatibility with M5 custom stick ends (e.g., Peter Herr / RC Technik).

• Reduced Rotational Inertia: Structural optimization results in a 21.6% lighter rotational feel for faster input response.

• Full CNC Construction: Machined from high-grade aluminum for maximum rigidity and long-term durability.

• Independent Travel Adjustment: Vertical and horizontal travel can be fine-tuned without compromising mechanical stability.

• Low-Noise Hall Sensors: High-resolution sensors ensure rapid and accurate signal processing.

Specifications

• Sensor Type: Hall Analog

• Operating Voltage: DC 3.3V

• Gimbal Sticks: M5 Threaded

• X-Axis Travel Adjustment Range: 30° – 56°

• Y-Axis Travel Adjustment Range: 38° – 54°

• Throttle Mode Switch: Supported (Adjustable without disassembly)

• Spring Tension: Adjustable (Without disassembly)

• Bearings: Quad Precision Ball Bearings

• Operating Temperature: -20°C to +85°C

• Dimensions: 54.6 x 53 x 33.3mm (Excluding stick ends)

• Weight: 67.9g ± 1g (per unit)

Compatibility

• RadioMaster TX16S (All versions)

• RadioMaster Boxer

• RadioMaster TX15 Series

• Stick Ends: Specifically requires M5 threaded stick ends.

Package Includes

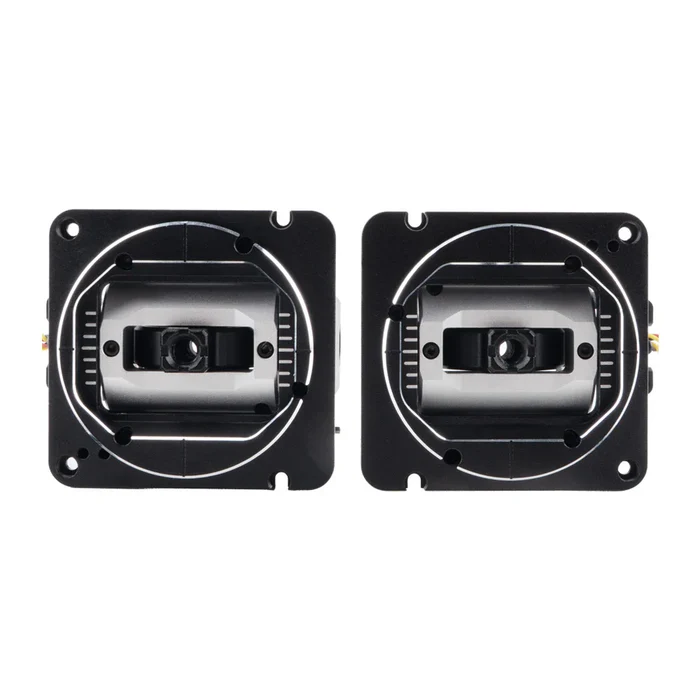

• 2x AG02 M5 CNC Hall Gimbals (Throttle & Centering)

• 4x Low Tension Springs

• 2x GH1.25-SH1.25 Adapter Boards (for Boxer/TX16sMKII)

• 8x PB2.3x10 Mounting Screws

• 2x Hex Wrenches

• 1x User Manual

Critical Notes

• Stick End Note: This version does not include stick ends. Standard M4 stick ends will not fit; you must use M5 threaded hardware.


• Calibration: You must perform a full stick calibration in your radio settings immediately after installation to ensure center-point accuracy.
