Radiomaster GX12 Dual-band Gemini Xrossband ELRS Remote
SKU RS-345 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h

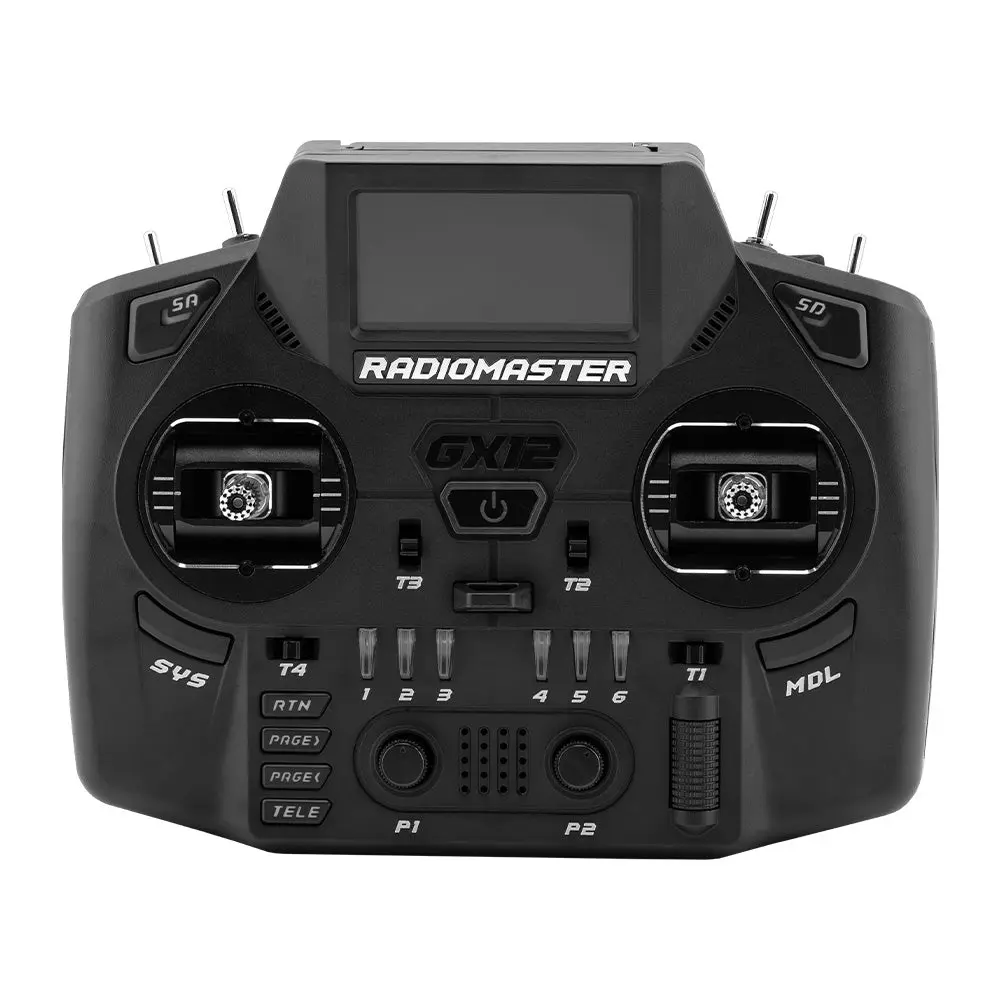

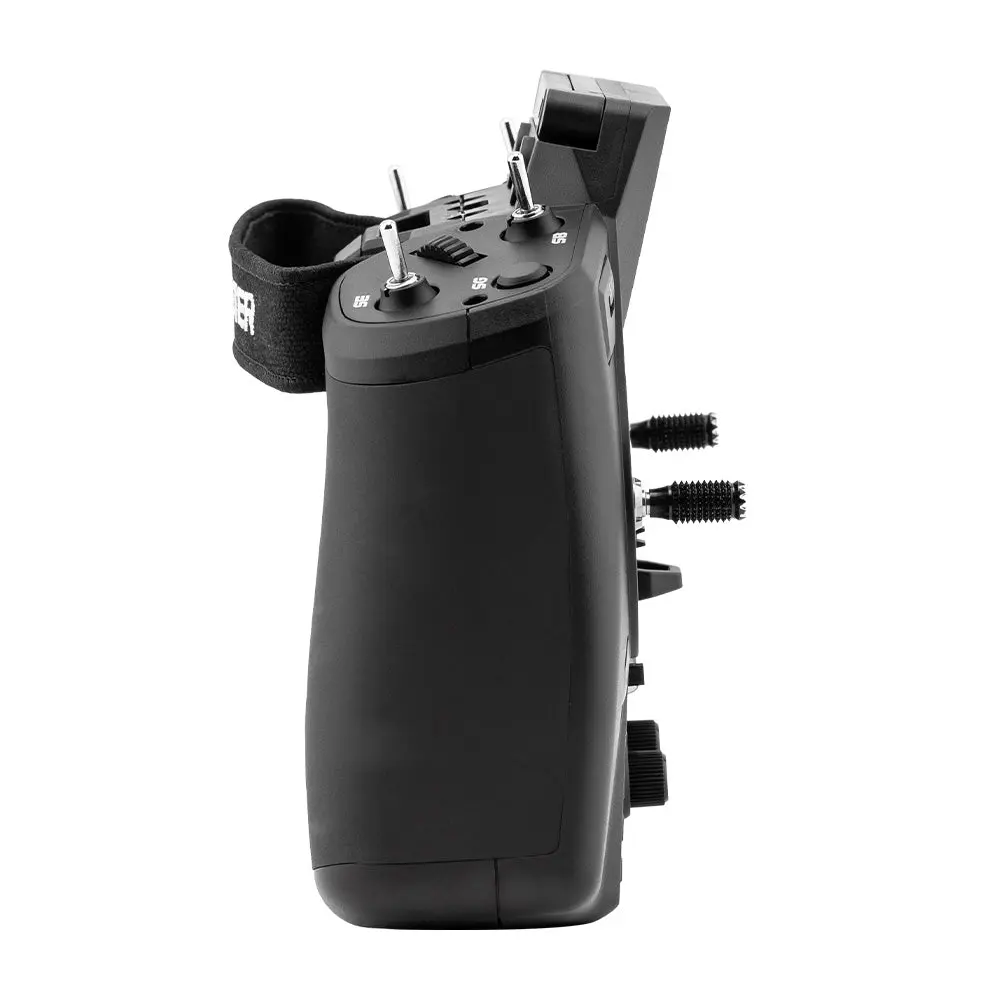

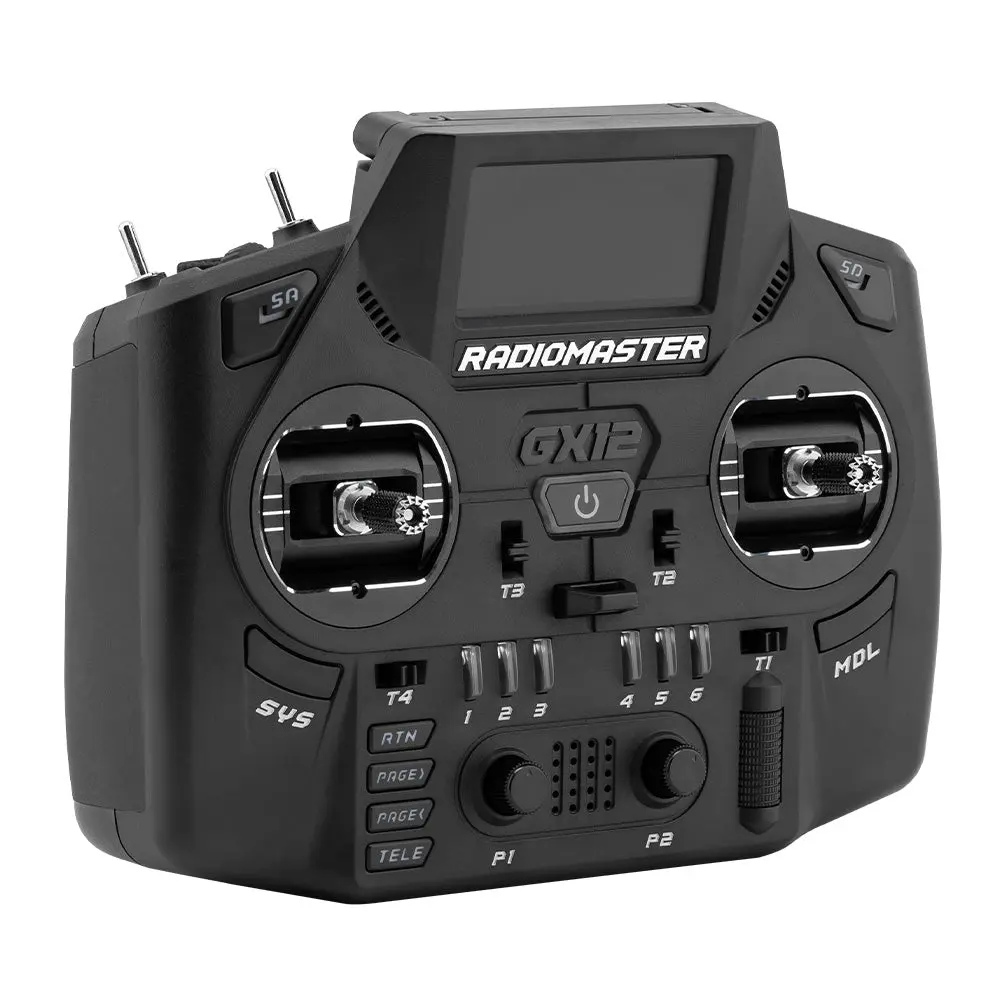

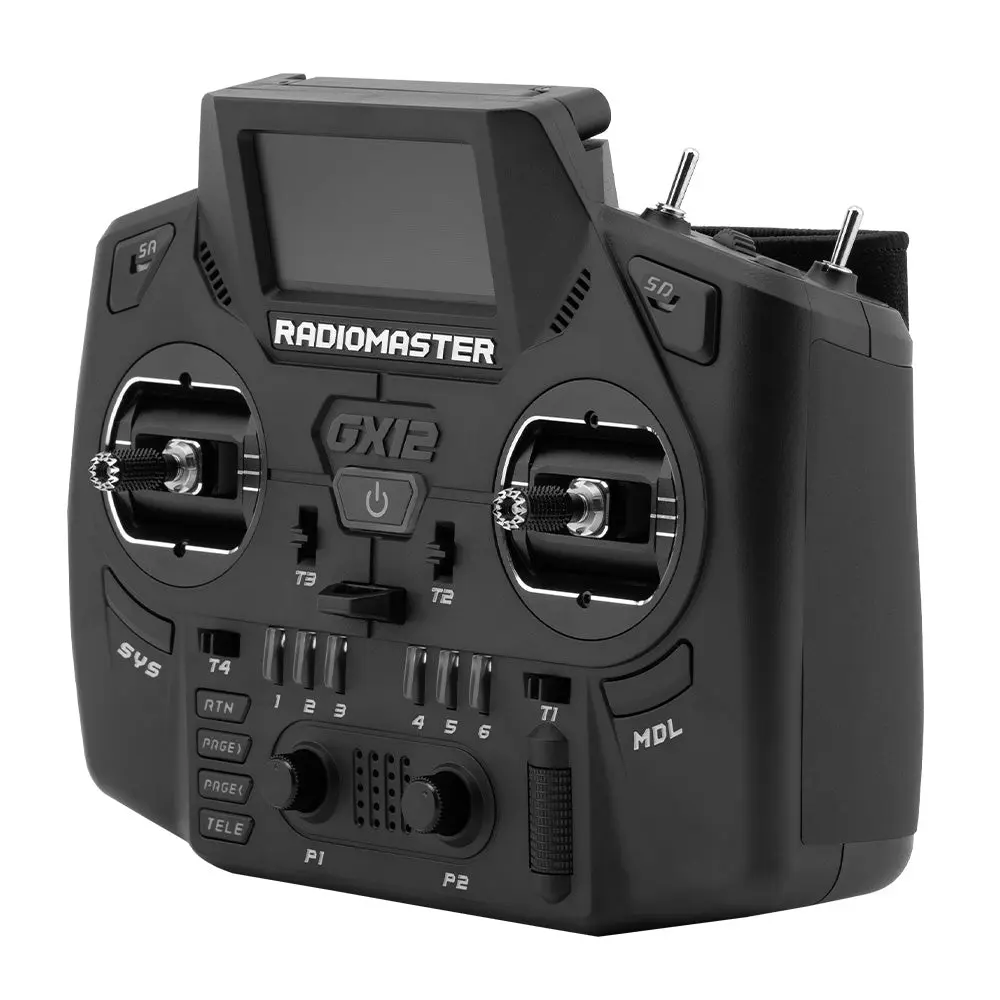

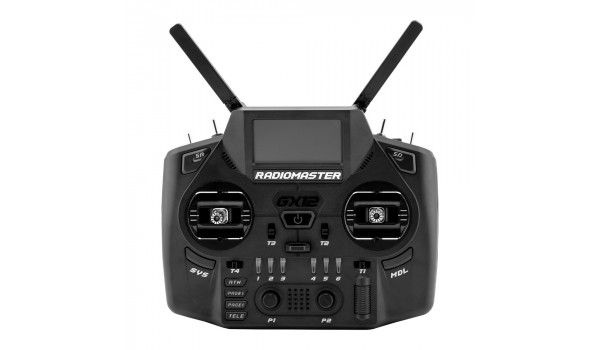

The RadioMaster GX12 marks a new era in innovation and technology for high-performance radio controllers. Designed for drone racing, FPV flying, and video work, the GX12 prioritizes signal strength and reliability, ensuring you stay connected when it matters most. Whether for work or play, the GX12 embodies excellence in drone control. Welcome to the future of radio controllers—elevate your RC experience with the latest advancements in open-source technology and performance!
Specification:
Size: 183*148*78mm
Weight: 573g
Frequency: 2.400GHz and Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Antenna: Dual folding 2.4GHz/ Sub-G 900MHz Omni directional
RF: (Dual 1,000mW | Dual band XROSSBAND ELRS)
Voltage Range: 6.6 - 8.4V DC
Current: 390mA - 1000mA (Depending on Rf output)
Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Charging: 2S Smart Balance Charging
Connectivity: USB-C
Display: 128*64 Monochrome OLED display
Gimbal: GX01 1000Hz, 3D Digital CNC Hall Effect Gimbal with folding sticks
Gimbal Sticks: 3mm
External Module: Nano / Crossfire compatible
Upgrade Method: USB / EdgeTX Companion PC software
Memory: 512Mb Integrated Flash

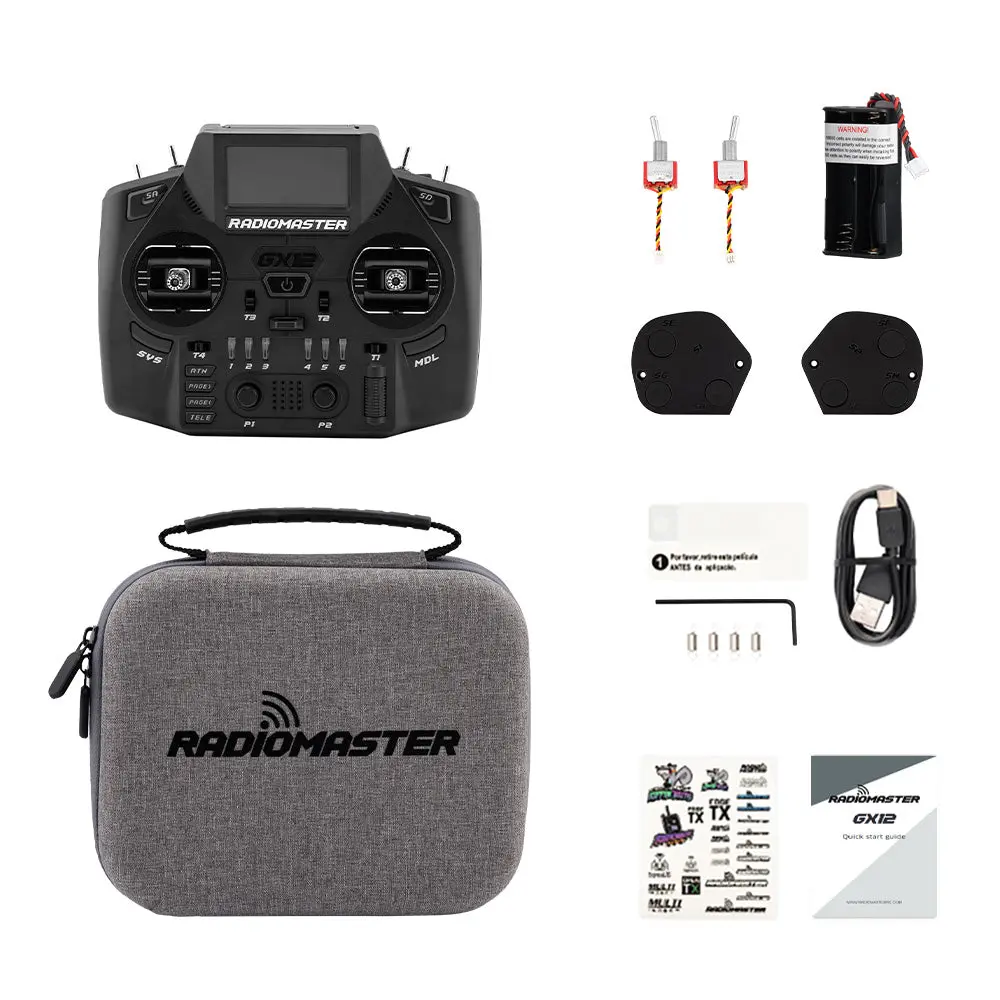

Package Included
1x GX12 Radio Controller
1x Signature Carry Case
1x 18650 Battery Tray
2x Replacement Switch Panels
6x Switch Delete Plugs
1x Type-C Cable
1x Screen Protector
1x 1.5mm Hex Wrench
4x High Tension Gimbals Springs
1x 2 Position Switch
1x Momentary Switch
1x RadioMaster Sticker Set
1x GX12 Manual
Key specifications
| Brand | RadioMaster |
|---|---|
| Department | Radio, RX & VTX |
| Minimum order | 5 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 19 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 109 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Radiomaster GX12 Dual-band Gemini?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For Radiomaster GX12 Dual-band Gemini Xrossband ELRS Remote we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
