RadioMaster RP1 V2 ELRS Receiver
SKU RS-348 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 4 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24-48h from stock
- Trade desk replies in 6h
The RP1 is an 2.4GHz ELRS nano series receiver is an open-source receiver based on ExpressLRS.

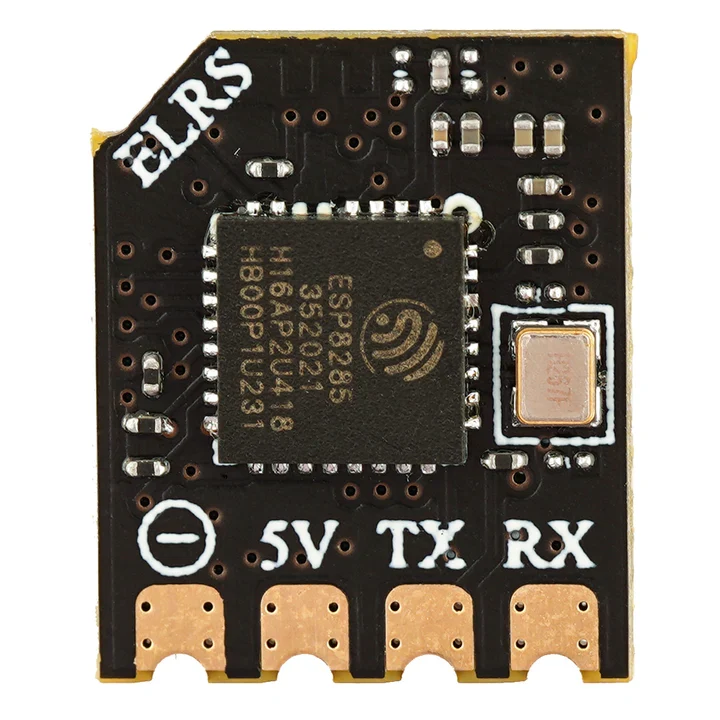

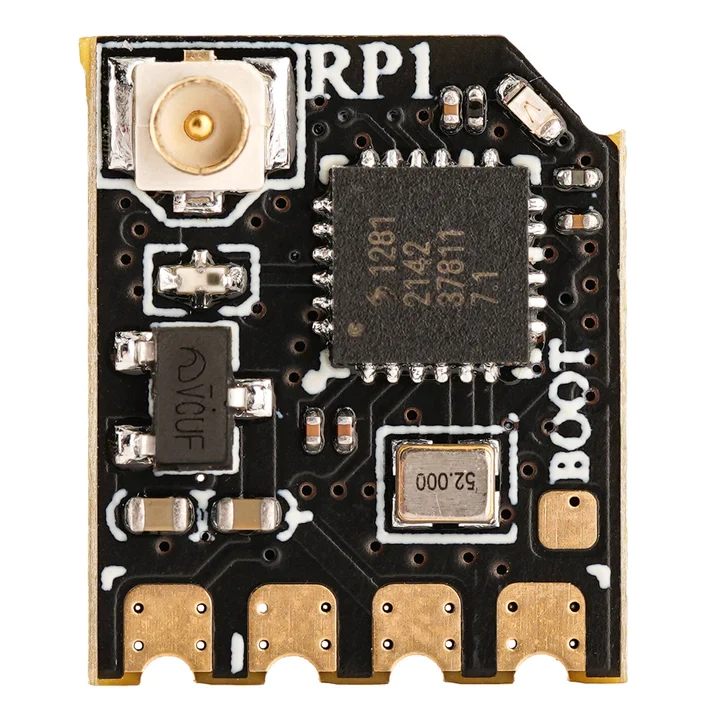

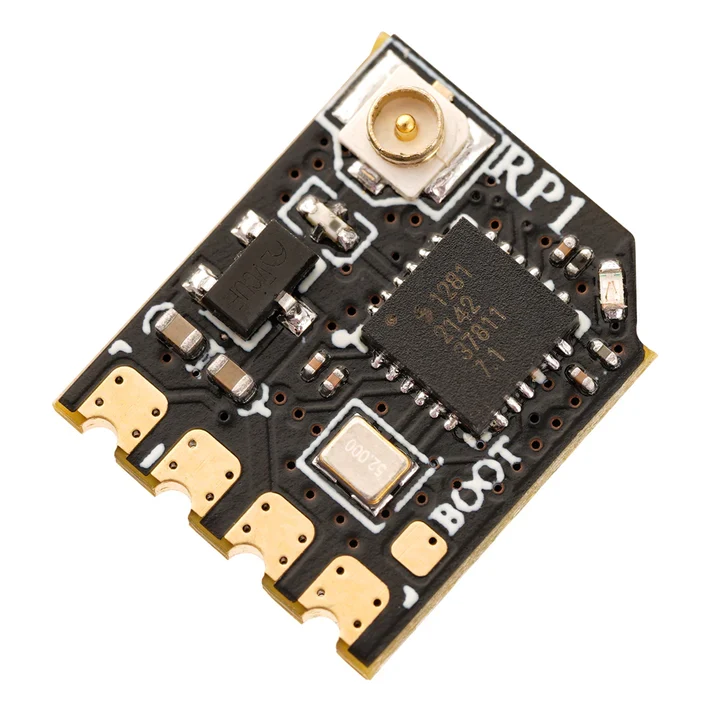

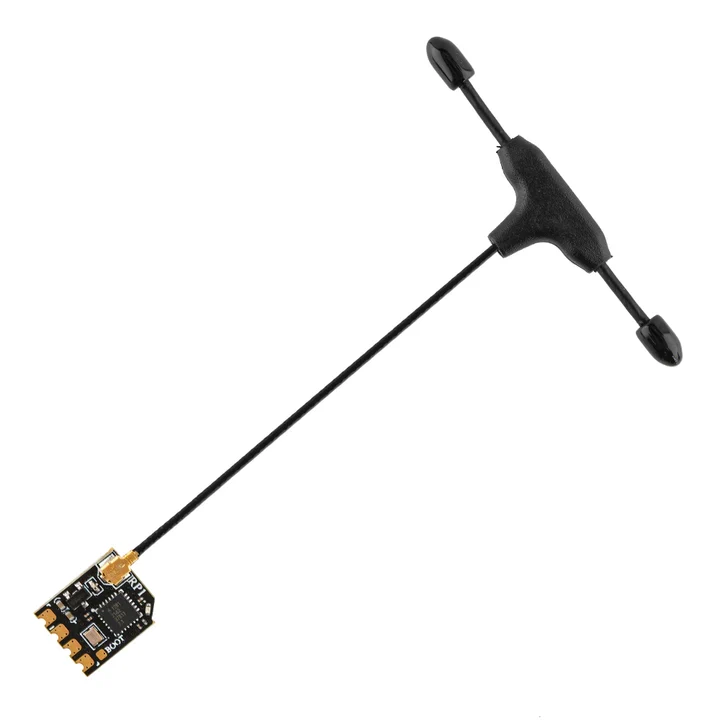

The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.
The RP1 features WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.
Due to the low-latency and high-refresh-rate RF module, the RP1 is ideal for FPV races or Long Range. Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere!
Visit https://www.expresslrs.org/ to learn more.
Bullet Point

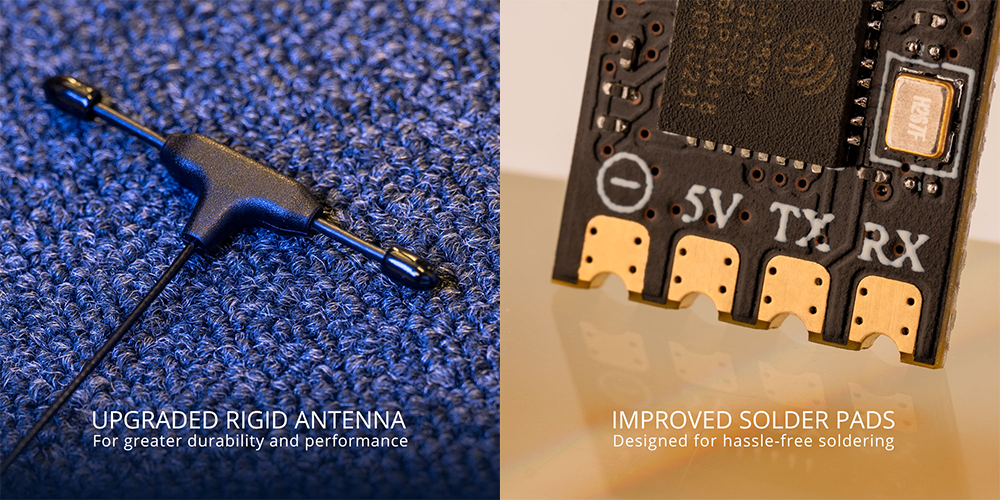

- Improved PCB design is better for heat dissipation.
- Upgraded rigid antenna with greater durability and performance.
- LED on the top side of PCB.
- Solder pads are improved and easier to solder to.
Specification
- Item: RP1 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- Antenna: 65mm 2.4ghz T Antenna
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v

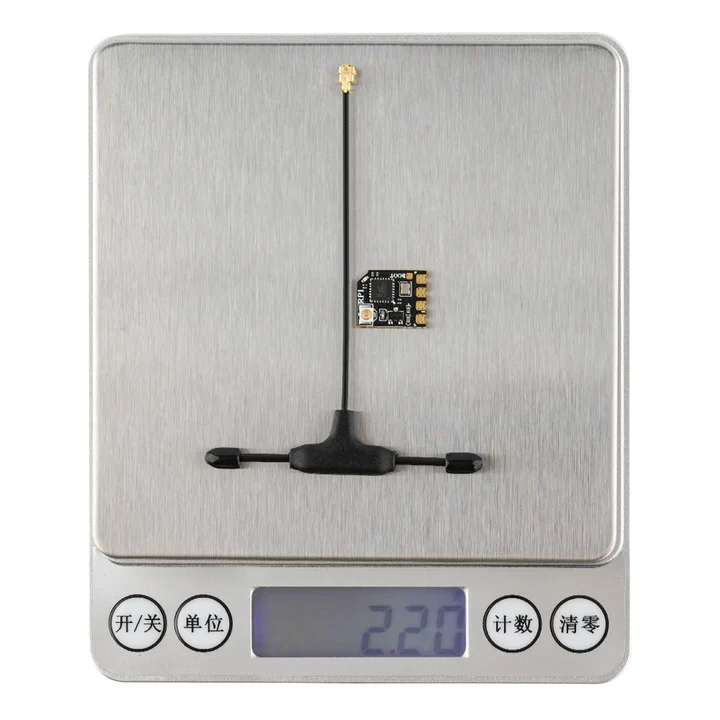

- Weight: 2.2g (Including antenna)

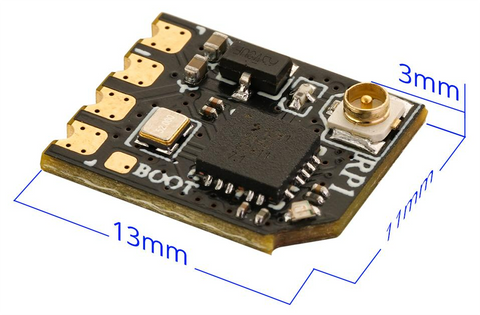

- Dimension: 13mm*11mm*3mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF
Download

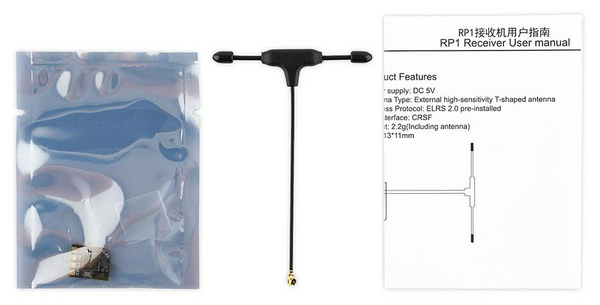

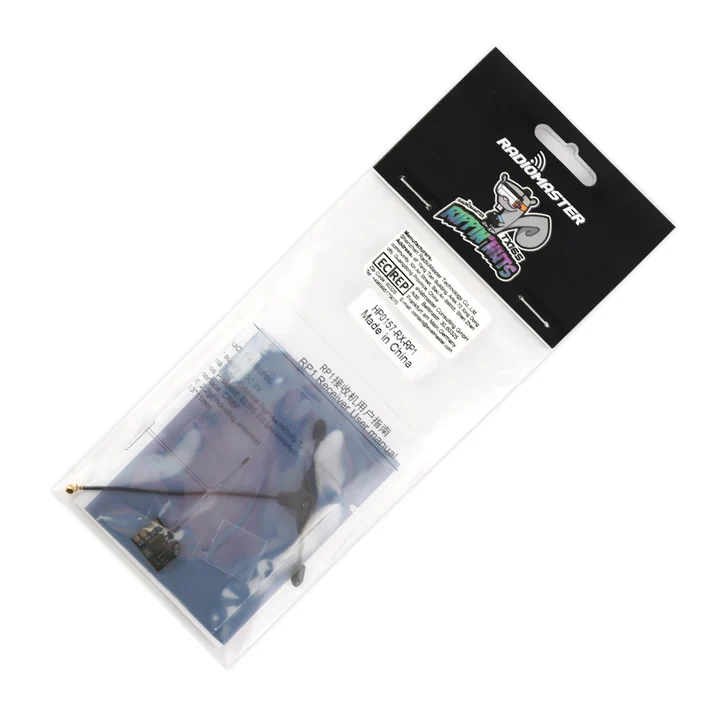

- Package Includes
- 1 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * 65mm UFL 2.4Ghz T Antenna
- 1 * User Manual
Key specifications
| Brand | RadioMaster |
|---|---|
| Department | Radio, RX & VTX |
| Minimum order | 5 pcs (samples available) |
| Lead time | Ships in 24-48h from stock |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 12 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 162 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for RadioMaster RP1 V2 ELRS Receiver?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above.
Can you print our brand on this product?
Not on this specific SKU. For RadioMaster RP1 V2 ELRS Receiver we supply as-is, but if you need a private-label version we will usually find an equivalent part in the same family that can be branded — send us the requirement.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
More from Radio, RX & VTX
Buyers of this item usually also quote these SKUs.
Ruistart

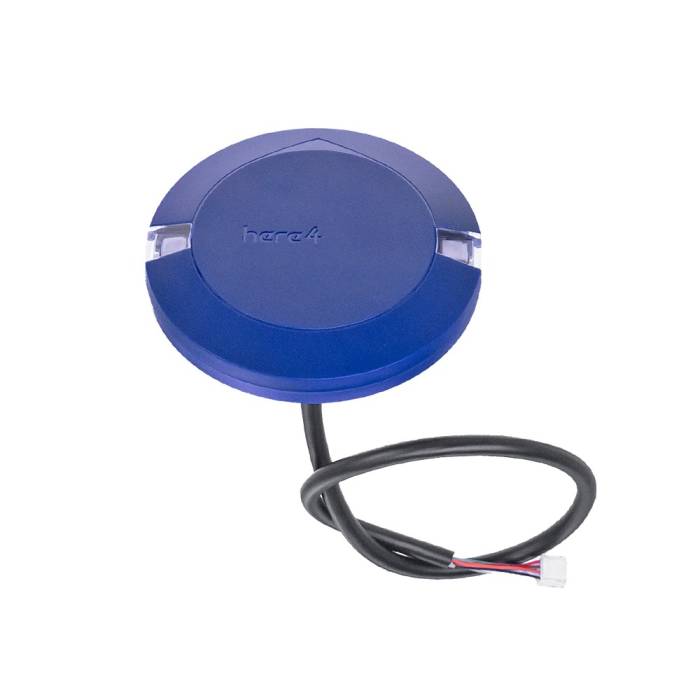

CubePilot Here4 Blue Multiband RTK GNSS with NRF 2.4GHz Radio
