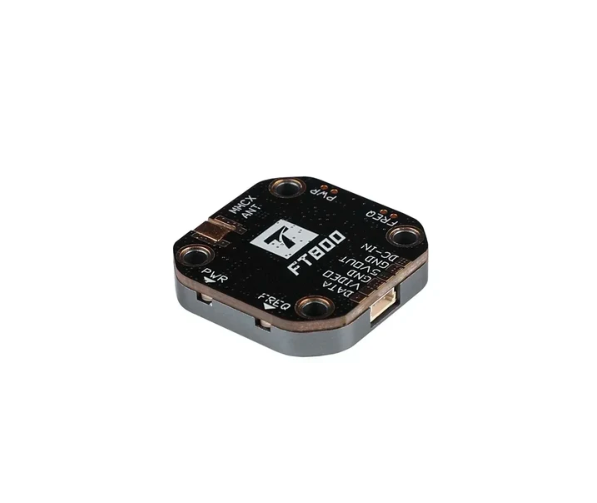

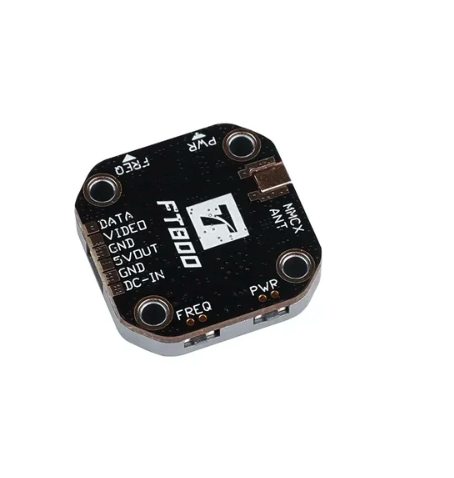

T-MOTOR FT800 VTX 5.8G 48CH Video Transmission
SKU RS-327 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
description:

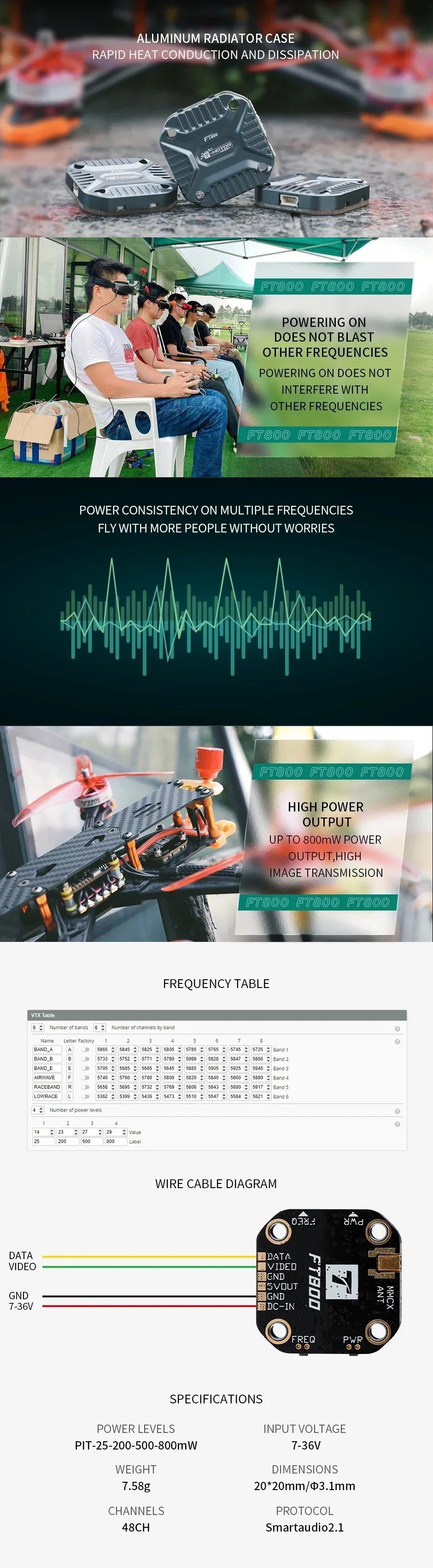

The T‑MOTOR FT800 is a high‑performance 5.8 GHz analog FPV video transmitter built for freestyle, long‑range and racing drone platforms. It features an integrated aluminum alloy heat‑dissipating shell to handle thermal load under high‑power transmission. It supports multi‑level adjustable output power: PIT / 25 mW / 200 mW / 500 mW / 800 mW, with total 48 selectable channels including RaceBand. Running SmartAudio 2.1 protocol, users can adjust channels & power directly via BetaFlight OSD.
Wide operating voltage input from 7‑36 V DC supports 2‑8S LiPo battery setups. Compact 20×20 mm mounting hole layout and light‑weight 7.58‑gram design fit most 5‑7‑inch FPV frames. Equipped with MMCX antenna connector. It provides stable analog CVBS video output, anti‑interference performance for multi‑pilot flying events. Ideal for long‑range cruising, freestyle and racing FPV drone builds.
brand: T‑MOTOR
sku: TM‑FT800‑VTX‑58G
offers:
• 5.8 GHz analog VTX, 48 channels including RaceBand
• Adjustable power levels: PIT / 25 mW / 200 mW / 500 mW / 800 mW
• SmartAudio 2.1 protocol, OSD parameter configuration supported
• 7‑36 V wide‑voltage input, compatible with 2‑8S LiPo

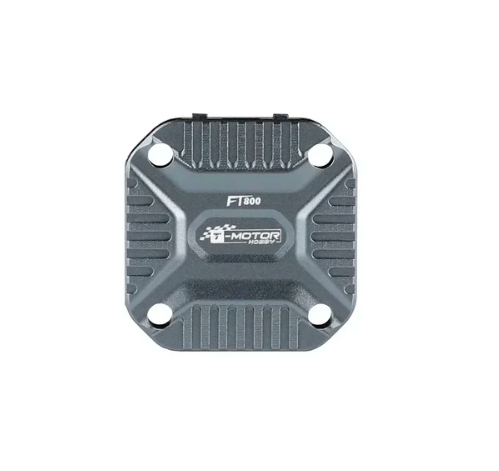

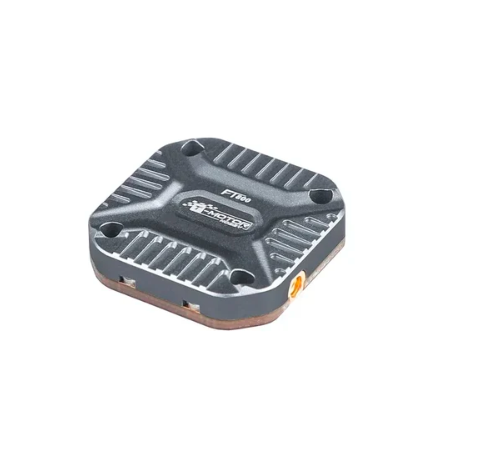

• Aluminum alloy heat‑sink housing for reliable high‑power operation
• MMCX antenna connector; 20×20 mm mounting footprint, only 7.58 g
• Stable CVBS analog video output, optimized for multi‑pilot flight scenarios
availability: In Stock, Fast Shipping
Key specifications
| Brand | T-MOTOR |
|---|---|
| Department | Drone Accessories |
| Minimum order | 5 pcs (samples available) |
| Lead time | Ships in 48h · OEM run 15-20 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 13 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 133 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for T-MOTOR FT800 VTX 5.8G 48CH Video?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For T-MOTOR FT800 VTX 5.8G 48CH Video Transmission Mechfpv of we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
