Holybro Pixhawk 4 STM32F765 Open Source PX4 Flight Controller Autopilot for Multirotor Fixed Wing VTOL UAV Drone
Price on request
MOQ 1 pc · samples available
Ruistart · Flight Controllers

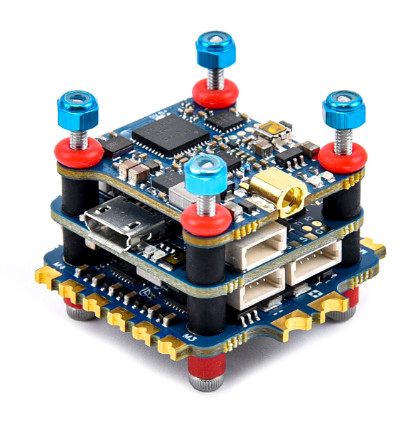

Cyclone Mini F405 20mm Stack with 35A ESC & 400mW VTX for Toothpick
SKU RS-26 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 1 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
Small cyclone separator BLS U 35AV2.1 2-6S 4-in-1 electronic stability control system
The newly developed BLHELI_ S 35A V2.14 in 1 miniature electronic stability control
High system integration, greatly reduced than standard size, excellent performance, support 6S,
The target is J-H-30. Support DSHOT, MULTISHOT, ONESHOT, etc.,
The pad is half-expanded, saving space and being durable. feature:
■ EFM8BB21F16G single chip microcomputer, fast remelting; increase capacitor to reduce power
Noise; electronic stability control system with BLHELI_ firmware
Support 2-6S voltage input, 4PWM input
Compact size 31 * 31MM, ultra light 6.1G
Support ONESHOT125, ONESHOT42, MULTISHOT,
DSHOT150, DSHOT300, DSHOT600
Specifications: MCU: EFM8BB21F16G, ammeter: yes input: 2-6SLIPO
Mounting holes: 20X20 MM, M2
Target: J-H-30
Conventional: 25 amps
Peak: 35 amps
Size: 31 * 31MM (including power cushion)
Mounting hole: 20 * 20MM
Features
Mini F4V2.1 Flying Tower 2-6S
Mini F4V2.1 flight control
The newly released MINI V2.1F4 flight control system has been optimized overall.
The main welding port is upgraded to a terminal plug, which is convenient for pilots to disassemble and assemble.
The F405 MUC with MPU6000 gyroscope is optimized,
To get better flight performance. Built-in programmable RGB LED interface,
Used for external LED to set LED color, function and status. Built-in OSD chip,
Monitor flight data status at any time, with intelligent audio function; Features:
With SUBUS, SUMH, SUMD, SPEKTUMU1024 /
2048, XBUS, PPM receiver, etc. compatible;
LED light bar signal output port, adjust LED light through FC
The color and flashing pattern of the bar;
Voltage / amp monitoring port, check battery voltage (VBAT + port)
And current (CRT port) (requires additional ammeter);
Buzzer output port allows to connect external buzzer to FC,
To warn or notify flight status;
XF5806 VTX 5.8G
Model: XF5806_ V2
Input voltage: 7-26V
Control protocol: TBS SmarAudio V2.
Onboard BEC output: 5V
Antenna connector: MMCX
Number of transmitting channels: 40
Wiring method: pad
Transmit power: 25/100/200 / 400mW
Mounting hole: 20 * 20
Video format: PAL / NTSC
Key specifications
| Department | Flight Controllers |
|---|---|
| Current rating | 35 A |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 15 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 105 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Cyclone Mini F405 20mm Stack with 35A?
Stock supply starts at 1 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For Cyclone Mini F405 20mm Stack with 35A ESC & 400mW VTX for we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
