Ruistart · Flight Controllers

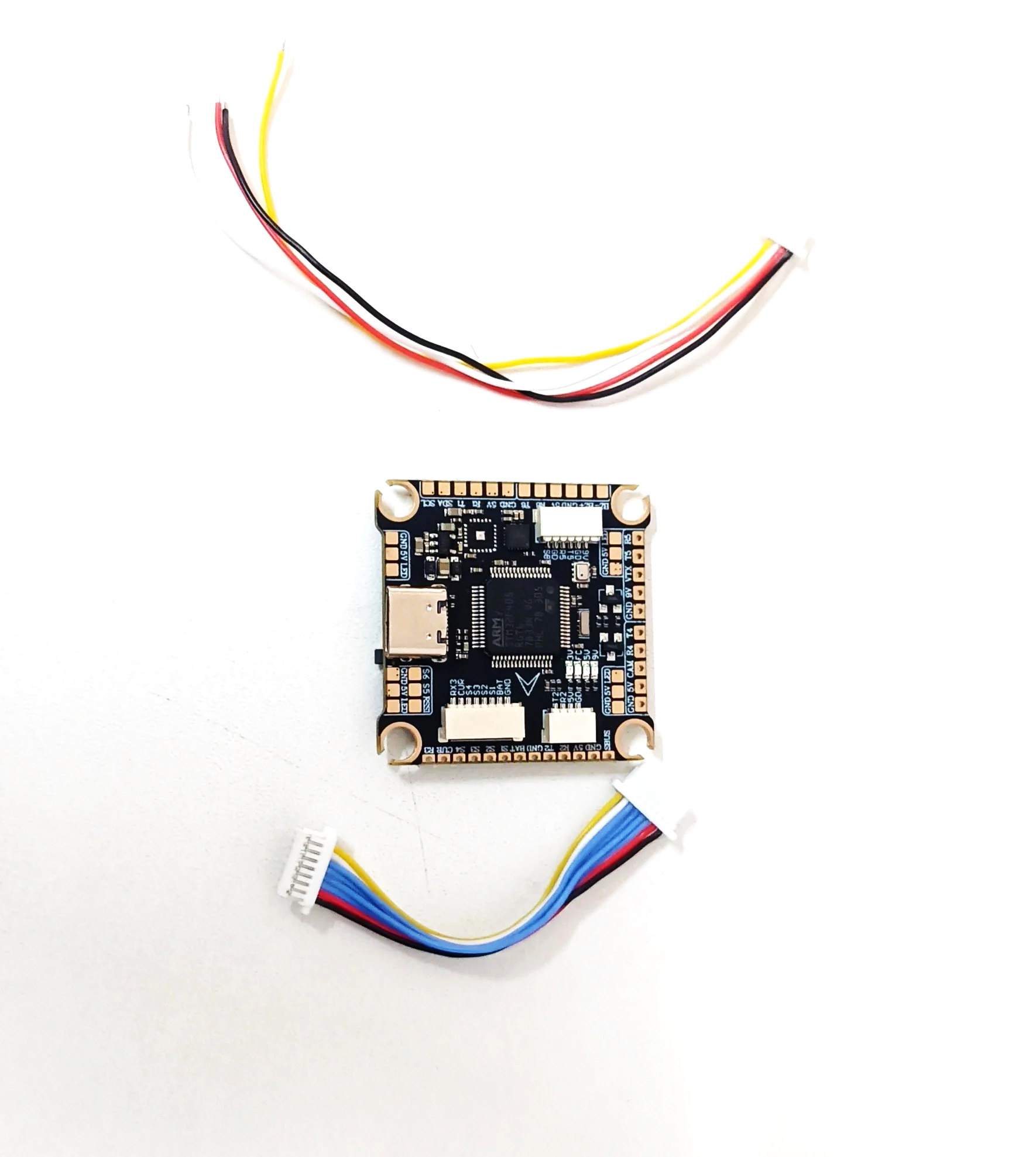

F405Flight Controller With OSD 16M Black Box Flight Control MPU6500
SKU RS-30 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 48h · OEM run 15-20 working days
- Trade desk replies in 6h
The Matek F405-OSD Flight Controller comes with lots of features. From the high-speed, 168MHz, 32bit F405 processor to BetaFlight firmware and OSD this flight controller has the power to easily control your drone. It also has a black box to help you fine-tune your drone or to help determine what went wrong with any mishap. The OSD provides detailed information on battery voltage and other information.
The FC board is lightweight (7g) and of standard FC size (36 x 36mm) to easily fit into any drone.
Features:
- Support 32K Gyro update & 16K PID Loop.
- OSD: BetaFlight OSD w/ AT7456E chip
- Beeper: Yes.
- RSSI: Yes.
- Blackbox: MicroSD card slot (SD/SDHC).
- VCP, UART1, UART2, UART3, UART4, UART5.
- Built-in inverter for SBUS input (UART2-RX).
- PPM/UART Shared: UART2-RX.
- Support SoftSerial on S5 & S6.
- Battery Voltage Sensor: 1:10.
- Current Sensor: No (FCHUB-6S option).
- BEC 5V & 10V: No (FCHUB-6S option).
- LDO 3.3V: Max.300mA for Spektrum RX.
- Spektrum BIND_PIN: RX4.
- WS2812 Led Strip: Yes.
- 2x LEDs for FC STATUS (Blue, Red).
- 6x PWM / DShot outputs without conflict.
- 5x UARTs.
- 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND.
- 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
- 1x Side-press button for BOOT(DFU) mode.
- 1x 16pin bottom mounted FFC Slot for FCHUB-6S connection.
Highlights:
- 168MHz STM32F405RGT6
- 6-axis ICM-20602 (3-axis gyroscope. 3-axis accelerometer)
- BetaFlight OSD
- MicroSD BlackBox
- VCP and 5 x UARTs
- 6 PWM/DSHOT outputs
- MatekF405 Target
Requires:
1 x Micro SD card (Up to 4GB)
Package Includes:
1 × F405-OSD Flight Controller Board
1 × OSD 16M Black Box Flight Control
Key specifications
| Department | Flight Controllers |
|---|---|
| Minimum order | 5 pcs (samples available) |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 3 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 12 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 102 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for F405Flight Controller With OSD 16M?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For F405Flight Controller With OSD 16M Black Box Flight Control we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
