Holybro
Holybro Pixhawk 4 STM32F765 Open Source PX4 Flight Controller Autopilot for Multirotor Fixed Wing VTOL UAV Drone
Price on request
MOQ 1 pc · samples available
Ruistart · Flight Controllers

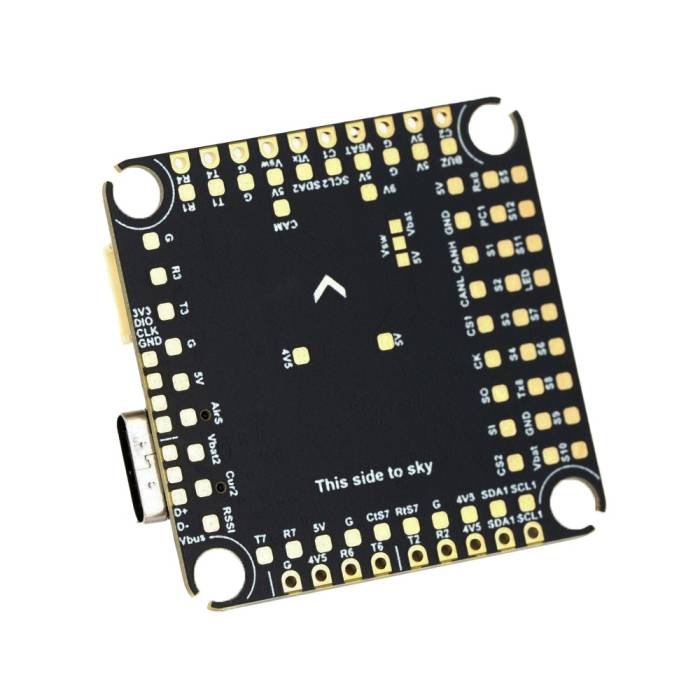

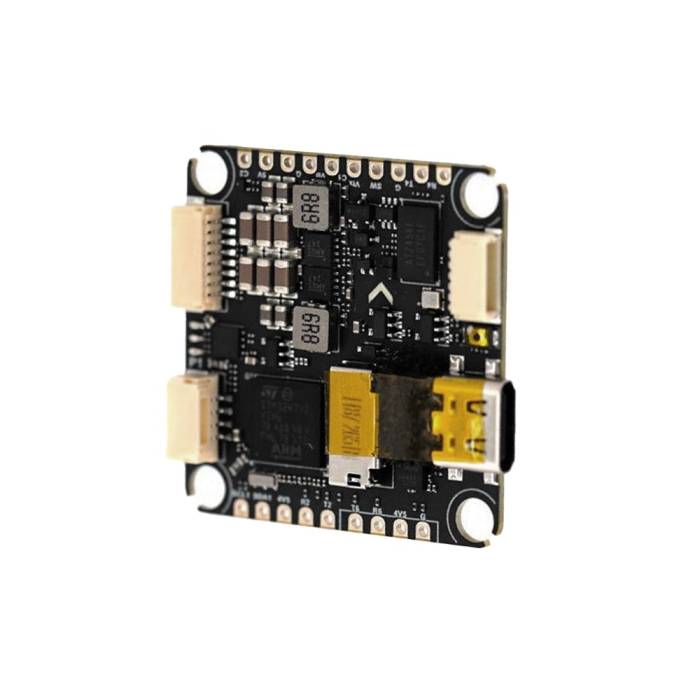

Triumph Lucid H7 Flight Controller - MPU6000 - NDAA
SKU RS-271 HTS 8806.99 Origin Shenzhen, CN Updated Oct 2026
Price on request
Wholesale pricing is quoted per order. Send the quantity and destination and the trade desk replies within six working hours, EXW Shenzhen.
- MOQ 5 pc — samples welcome
- Sourced equivalent available for private label
- Bench-tested before dispatch
- 12-month warranty, RMA support
- Ships in 24h · OEM run 10-15 working days
- Trade desk replies in 6h
About this product
The NDAA-compliant Triumph Lucid H7 FC is a powerhouse built for those who crave peak performance and adaptability in their drones. Whether you're ripping through freestyle moves or fine-tuning a racing rig, the TBS Lucid H7 delivers with its robust 480MHz processor and seamless support for Betaflight, ArduPilot, and INAV. Designed for both seasoned pros and enthusiastic newcomers, this flight controller makes pushing the limits of your drone easier than ever.
Features
- Built for racing and freestyle
- Plug-and-Play Connectivity
- User-Friendly Design
- Supports 4-in-1 ESCs
- Versatile Application
- High Compatibility
- NDAA-Compliant
Specifications
- Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
- MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash
- LED Indicators: 3 LEDs - Blue and Green for FC status, Red for 3.3V power
- Blackbox: Data logging equipped with a MicroSD card slot (SDIO)
- PWM Outputs: 13 channels, including a dedicated “LED” pad
- Power Control: Switch for filtered 5V/Vbat output power
- Dual Camera Input: Switchable inputs for two cameras
- UARTs: 7 total (1, 2, 3, 4, 6, 7, 8), signal inversion ready
- USB Interface: Type-C connector (USB 2.0 standard)
- DJI FPV OSD: Compatible via any spare UART port
- Barometer: Infineon DPS310, connected via I2C2
- Manufacturer: Triumph Manufacturing
- Breakout: SPI3 breakout available
- Gyro: MPU6000
- OSD Chip: AT7456E (SPI2)
- I2C Buses: 2 available
- CAN Bus: 1 available
- JST Connectors:
- 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground)
POWER
- Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot
- Voltage Support: ADC Vbat2 pad supports up to 36V (1K:10K voltage divider)
- BEC: 5V 2A continuous (3A max) & 9V 2A continuous (3A max)
- Input Voltage: 6–36V (2 to 8S LiPo)
- LDO 3.3V: Supports up to 200mA
Links
Includes
- 1x Triumph Lucid H7 Flight Controller
- 1x FC-to-ESC cable (plug & play)
- 1x DJI O3 cable (plug & play)
- 4x M3 rubber dampers
- 4x M3x8 screws
Key specifications
| Department | Flight Controllers |
|---|---|
| Minimum order | 5 pcs (samples available) |
| Lead time | Ships in 24h · OEM run 10-15 working days |
Packing and freight data
| Packaging | Qty per carton | Carton (cm) | Gross weight | CBM |
|---|---|---|---|---|
| Retail box | 2 | 18 × 12 × 6 | 0.42 kg | 0.0013 |
| Inner carton | 13 | 38 × 26 × 22 | 4.6 kg | 0.0217 |
| Export carton | 173 | 58 × 42 × 38 | 21.4 kg | 0.0926 |
Placeholder packing data — confirm with your supplier before quoting freight. CBM is per export carton.
Wholesale questions
What is the minimum order quantity for Triumph Lucid H7 Flight Controller?
Stock supply starts at 5 pc. The 10× and 50× quantity breaks are already applied in the price table above, and OEM branding is available from a few hundred pieces.
Can you print our brand on this product?
Yes. For Triumph Lucid H7 Flight Controller - MPU6000 - NDAA we can apply your logo, use a custom shell or housing colour, flash a locked firmware build and pack it in your retail packaging. Tooling-free branding normally starts around 100-500 pieces depending on the part; tooling-backed parts are quoted individually.
How is this shipped and how long does it take?
Air express (DHL / FedEx / UPS) is typically 4-7 working days door to door. Larger orders can move by sea or rail with DDP terms so the landed cost is fixed before dispatch.
Is it tested before dispatch?
Every unit is bench-tested and inspected before packing, and we can supply CE / FCC / RoHS documentation and a QC report with the shipment.
